MS132L-AEKBS (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 5M
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8709-8908)MS13#,YS132..LHD

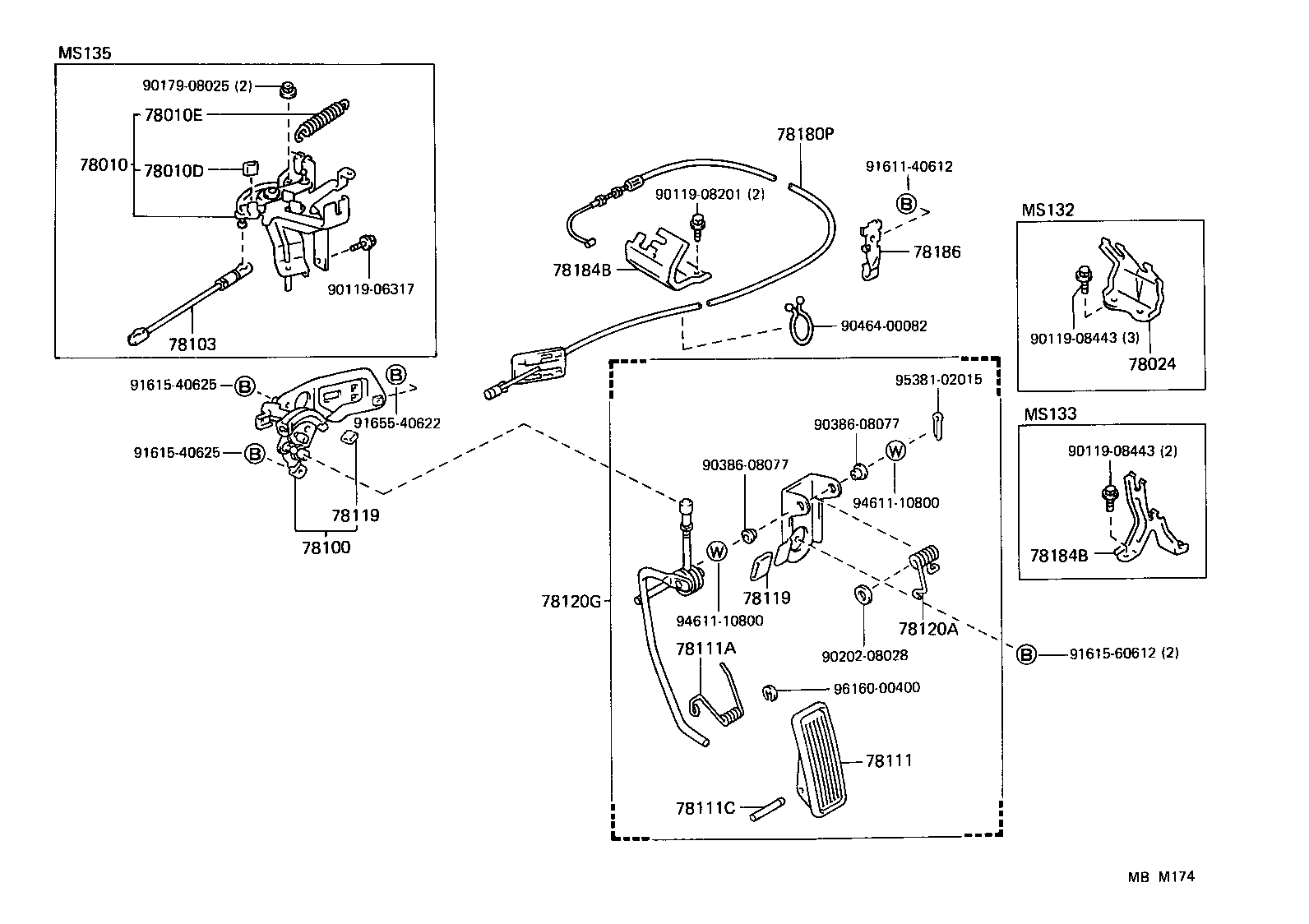

Click highlighted areas on diagram

diagram 78010 78010D 78010E 78024 78100 78103 78111 78111A 78111C 78119 78119 78120A 78120G 78180P 78184B 78184B 78186 9011906317 9011908201 9011908443 9011908443 9017908025 9020208028 9038608077 9038608077 9046400082 9161140612 9161540625 9161540625 9161560612 9165540622 9461110800 9461110800 9538102015 9616000400
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-30010

MS132

 1
78100 - LINK ASSY, ACCELERATOR
78100-30500

GS131,MS13#,YS132..LHD

 1
78111 - PEDAL, ACCELERATOR
78111-30090

GS131,LS130,MS13#,YS132..LHD

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-18071

GS131,LS130,MS13#,YS132..LHD

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05043

GS131,LS130,MS13#,YS132..LHD

 1
78119 - STOPPER, ACCELERATOR PEDAL ROD
78119-30040

GS131,LS130,MS13#,YS132..LHD

 1
78119-30050

LS130,MS13#,YS132..LHD

 1
78119 - STOPPER, ACCELERATOR PEDAL ROD
78119-30040

GS131,LS130,MS13#,YS132..LHD

 1
78119-30050

LS130,MS13#,YS132..LHD

 1
78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)
90508-35008

GS131,LS130,MS132,133,YS132..LHD..MTM

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-30680

GS131,LS130,MS132,YS132..LHD..MTM

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-30490

MS132..LHD

 1
Common parts
90119-06317
90119-08201
90119-08443
90179-08025
90202-08028
90386-08077
90464-00082
91611-40612
91615-40625
91615-60612
91655-40622
94611-10800
95381-02015
96160-00400

(8908- )GS131,MS13#,YS132..LHD

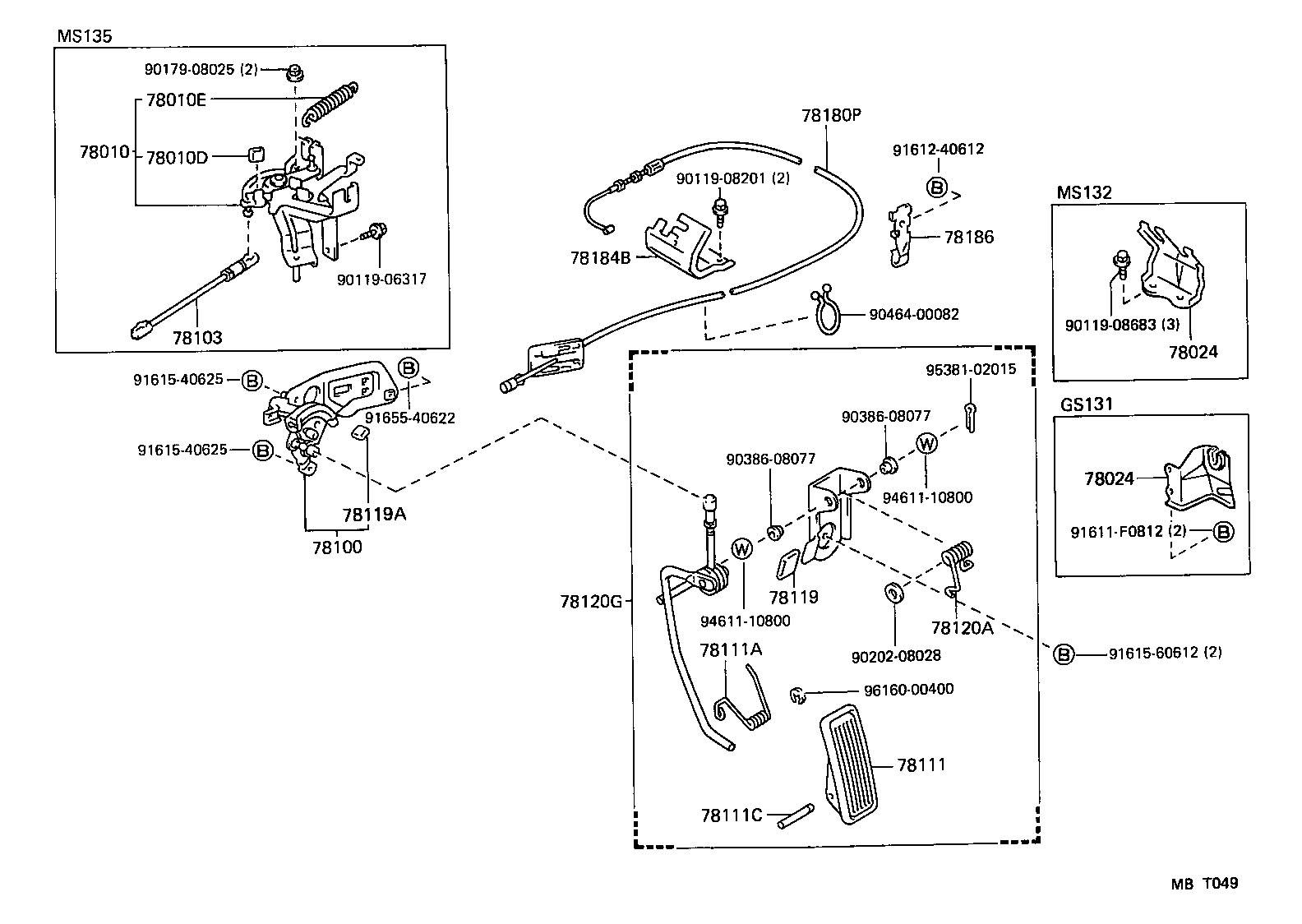

Click highlighted areas on diagram

diagram 78010 78010D 78010E 78024 78024 78100 78103 78111 78111A 78111C 78119 78119A 78120A 78120G 78180P 78184B 78186 9011906317 9011908201 9011908683 9017908025 9020208028 9038608077 9038608077 9046400082 91611F0812 9161240612 9161540625 9161540625 9161560612 9165540622 9461110800 9461110800 9538102015 9616000400
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-30010

MS132

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-30010

MS132

 1
78100 - LINK ASSY, ACCELERATOR
78100-30500

GS131,MS13#,YS132..LHD

 1
78111 - PEDAL, ACCELERATOR
78111-30090

GS131,LS130,MS13#,YS132..LHD

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-18071

GS131,LS130,MS13#,YS132..LHD

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05043

GS131,LS130,MS13#,YS132..LHD

 1
78119 - STOPPER, ACCELERATOR PEDAL ROD
78119-30040

GS131,LS130,MS13#,YS132..LHD

 1
78119-30050

LS130,MS13#,YS132..LHD

 1
78119A - STOPPER, ACCELERATOR LINK
78119-30050

GS131,LS130,MS13#,YS132..LHD

 1
78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)
90508-35008

GS131,LS130,MS132,133,YS132..LHD..MTM

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-30680

GS131,LS130,MS132,YS132..LHD..MTM

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-30490

MS132..LHD

 1
Common parts
90119-06317
90119-08201
90119-08683
90179-08025
90202-08028
90386-08077
90464-00082
91611-F0812
91612-40612
91615-40625
91615-60612
91655-40622
94611-10800
95381-02015
96160-00400
