Toyota Crown MS132 EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

Manufacturers Home
Toyota
GR
CROWN
MS132L-AEKBS (1987)
7501 - EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

MS132L-AEKBS (1987)

Toyota Crown

Production Sep 1987 - Oct 1991

Engine 5M

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

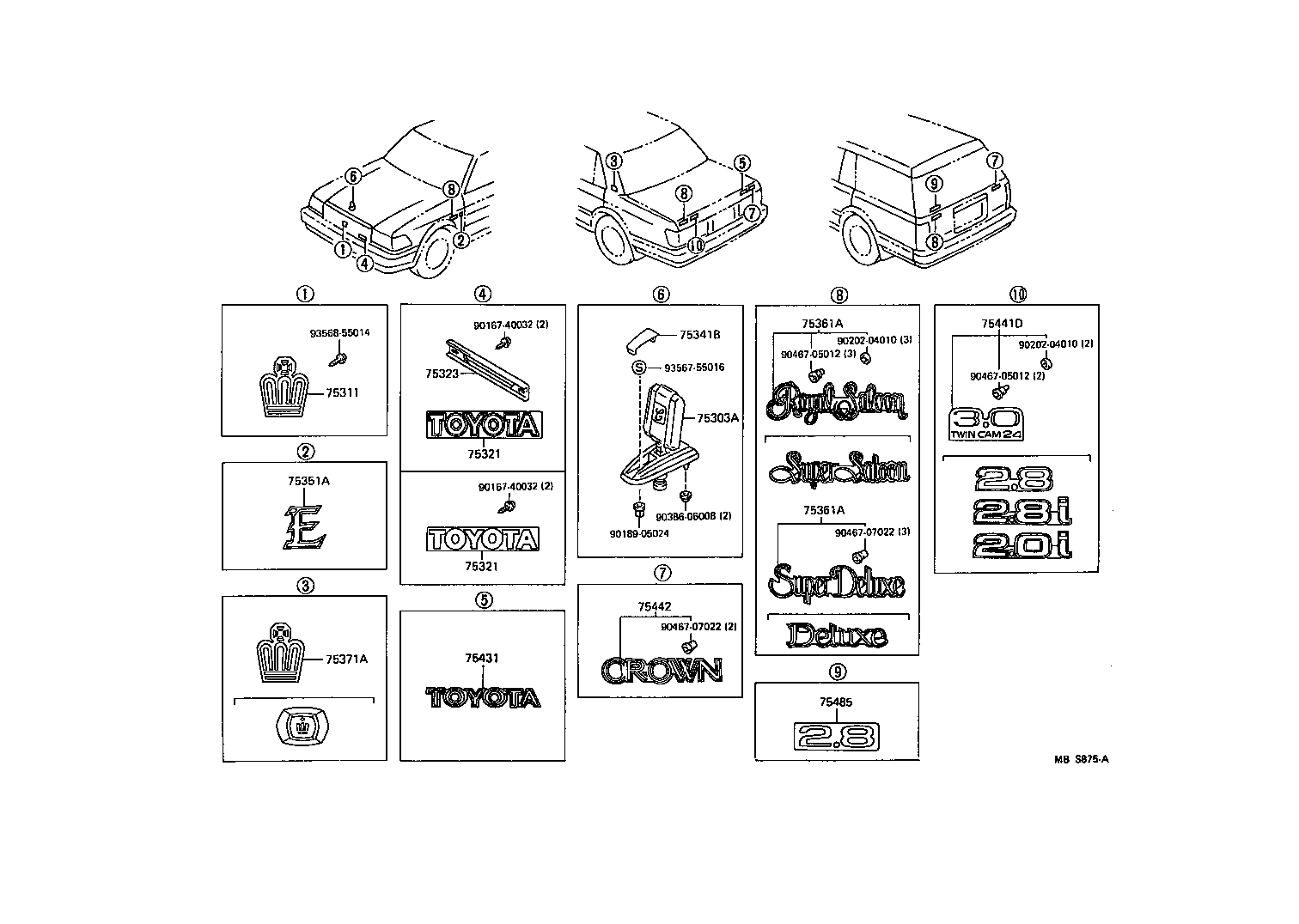

(8709-8908)

Click highlighted areas on diagram

Part #	Description	Period	Qty
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-30190	GS131,LS130,MS13#,YS132	09/1987 - 08/1989	1
75311-30200	GS131,LS130,MS13#,YS132	08/1989 - 10/1991	1
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-30670	GS131,LS130,MS132,133,YS132..DLX,SAL,STD TOYOTA	08/1989 - 10/1991	1
75321-30460	LS130,MS132,YS132..DLX,SAL,STD TOYOTA	09/1987 - 08/1989	1
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-30670	GS131,LS130,MS132,133,YS132..DLX,SAL,STD TOYOTA	08/1989 - 10/1991	1
75321-30460	LS130,MS132,YS132..DLX,SAL,STD TOYOTA	09/1987 - 08/1989	1
75323 - RETAINER, RADIATOR GRILLE
75324-30120	MS135..RHD..4FC;GS131,LS130,MS132,133,YS132..DLX,SAL,STD	08/1989 - 10/1991	1
75324-30120	LS130,MS132,YS132..DLX,SAL,STD	09/1987 - 08/1989	1
75361A - PLATE, FRONT FENDER NAME, NO.1
75361-30270	MS132..4F	09/1987 - 10/1991	1
75361A - PLATE, FRONT FENDER NAME, NO.1
75361-30270	MS132..4F	09/1987 - 10/1991	1
75371A - EMBLEM, QUARTER PANEL
75371-30110	LS130,MS132,YS132..DLX,STD	09/1987 - 08/1989	2
75431 - EMBLEM, LUGGAGE COMPARTMENT DOOR
75431-30190	GS131,LS130,MS13#,YS132..HT,SED	09/1987 - 08/1989	1
75431-30200	GS131,LS130,MS13#,YS132..SED TOYOTA	08/1989 - 10/1991	1
75441D - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1
75441-30091	MS132..SED 2.8	09/1987 - 10/1991	1
75441D - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1
75441-30091	MS132..SED 2.8	09/1987 - 10/1991	1
75442 - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2
75442-30110	GS131,LS130,MS13#,YS132 CROWN	09/1987 - 10/1991	1
Common parts
90167-40032
90189-05024
90202-04010
90386-06008
90467-05012
90467-07022
93567-55016
93568-55014

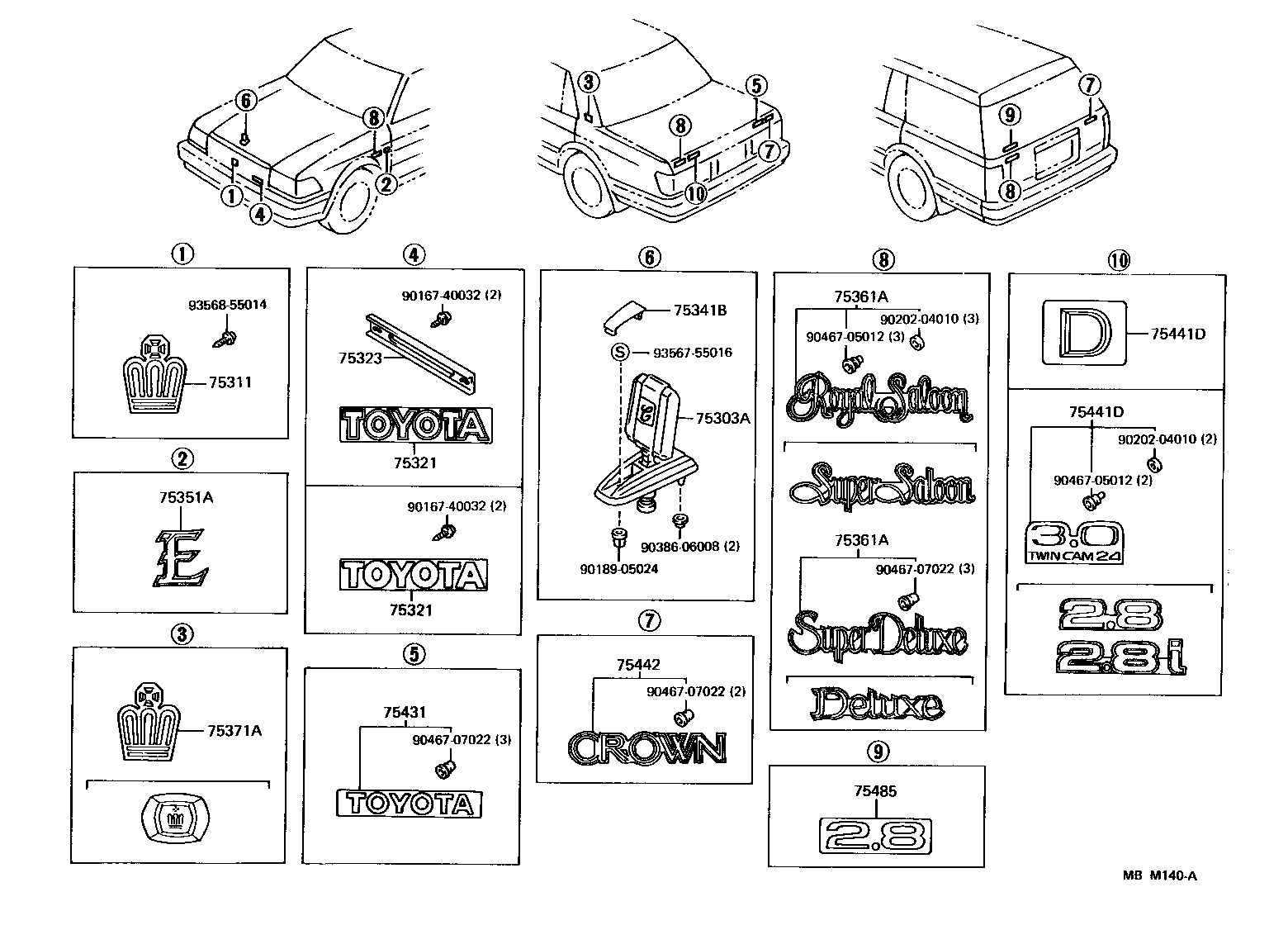

(8908- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-30190	GS131,LS130,MS13#,YS132	09/1987 - 08/1989	1
75311-30200	GS131,LS130,MS13#,YS132	08/1989 - 10/1991	1
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-30670	GS131,LS130,MS132,133,YS132..DLX,SAL,STD TOYOTA	08/1989 - 10/1991	1
75321-30460	LS130,MS132,YS132..DLX,SAL,STD TOYOTA	09/1987 - 08/1989	1
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-30670	GS131,LS130,MS132,133,YS132..DLX,SAL,STD TOYOTA	08/1989 - 10/1991	1
75321-30460	LS130,MS132,YS132..DLX,SAL,STD TOYOTA	09/1987 - 08/1989	1
75323 - RETAINER, RADIATOR GRILLE
75324-30120	MS135..RHD..4FC;GS131,LS130,MS132,133,YS132..DLX,SAL,STD	08/1989 - 10/1991	1
75324-30120	LS130,MS132,YS132..DLX,SAL,STD	09/1987 - 08/1989	1
75361A - PLATE, FRONT FENDER NAME, NO.1
75361-30270	MS132..4F	09/1987 - 10/1991	1
75361A - PLATE, FRONT FENDER NAME, NO.1
75361-30270	MS132..4F	09/1987 - 10/1991	1
75371A - EMBLEM, QUARTER PANEL
75371-30110	LS130,MS132,YS132..DLX,STD	09/1987 - 08/1989	2
75431 - EMBLEM, LUGGAGE COMPARTMENT DOOR
75431-30190	GS131,LS130,MS13#,YS132..HT,SED	09/1987 - 08/1989	1
75431-30200	GS131,LS130,MS13#,YS132..SED TOYOTA	08/1989 - 10/1991	1
75441D - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1
75441-30091	MS132..SED 2.8	09/1987 - 10/1991	1
75442 - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2
75442-30110	GS131,LS130,MS13#,YS132 CROWN	09/1987 - 10/1991	1
Common parts
90167-40032
90189-05024
90202-04010
90386-06008
90467-05012
90467-07022
93567-55016
93568-55014

MS132L-AEKBS (1987)

(8709-8908)

(8908- )
