MS132L-AEKBS (1987)
Toyota Crown
ILLUST NO. 1 OF 3(8709- )SED,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-30370 |
GS131,MS13#..SED..GEN |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-30370 |
GS131,MS13#..SED..GEN |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-30220 |
GS131,MS13#..SED |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-30230 |
GS131,MS13#..SED |
1 | ||
| 67405B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH | ||||
| 67405-30080 |
GS131,LS130,MS13#,YS132..SED,WG |
1 | ||
| 67406B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH | ||||
| 67406-30050 |
GS131,LS130,MS13#,YS132..SED,WG |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-30100 |
GS131,LS130,MS13#,YS132..SED |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-30090 |
GS131,LS130,MS13#,YS132..SED |
1 | ||
| 67812 - PAD, REAR DOOR SILENCER | ||||
| 67811-30050 |
GS131,LS130,MS13#,YS132..GEN |
2 | ||
| 67841B - COVER, REAR DOOR SERVICE HOLE | ||||
| 67842-30110 |
LS130,MS132,133,YS132..(DLX,STD)..GEN LH |
1 | ||
| 67841-30240 |
LS130,MS132,133,YS132..(DLX,STD)..GEN RH |
1 | ||
| 67841-30240 |
LS130,MS132,133,YS132..DLX,STD RH |
1 | ||
| 67842-30110 |
LS130,MS132,133,YS132..DLX,STD LH |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67868-30050 |
GS131,LS130,MS13#,YS132..SED,WG |
20 | ||
| 67868-30050 |
GS131,LS130,MS13#,YS132..SED |
20 | ||
| 67868-22020 |
GS131,LS130,MS13#,YS132..SED,WG |
20 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-30050 |
GS131,LS130,MS132,135,YS132..SED,WG |
20 | ||
| 67868-30050 |
GS131,LS130,MS13#,YS132..SED |
20 | ||
| 67868-30050 |
GS131,LS130,MS13#,YS132..SED,WG TYPE B |
20 | ||
| 67868-22020 |
GS131,LS130,MS13#,YS132..SED,WG TYPE A |
20 | ||
| 67868-30050 |
LS130,MS132..SED..MTM..GEN TAXI FOR GNRL COUNTRIES,TYPE B |
20 | ||
| 67868-30050 |
GS131,LS130,MS13#,YS132..SED TYPE B |
20 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-30160 |
LS130..4H;LS130,MS132..LHD..SED..MTM..GEN TAXI SPEC |
1 | ||
| 67871-30131 |
GS131,LS130,MS13#,YS132..SED |
1 | ||
| 67871-30130 |
LS130,MS132,135,YS132..SED |
1 | ||
| 67871-30132 |
GS131,LS130,MS13#,YS132..SED |
1 | ||
| 67871-30131 |
MS132..SED;GS131,LS130,MS135,YS132..(ROY,STD)..GEN |
1 | ||
| 67871-30161 |
LS130,MS132..SED..MTM..GEN TAXI SPEC |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-30130 |
LS130,MS132,135,YS132..SED |
1 | ||
| 67872-30131 |
MS132..SED;GS131,LS130,MS135,YS132..(ROY,STD)..GEN |
1 | ||
| 67872-30160 |
LS130..4H;LS130,MS132..LHD..SED..MTM..GEN TAXI SPEC |
1 | ||
| 67872-30132 |
GS131,LS130,MS13#,YS132..SED |
1 | ||
| 67872-30131 |
GS131,LS130,MS13#,YS132..SED |
1 | ||
| 67872-30170 |
LS130;MS132..LHD..SED..MTM..GEN TAXI SPEC |
1 | ||
| 67872-30171 |
LS130,MS132..SED..MTM..GEN TAXI SPEC |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-30280 |
MS132..4F;LS130,MS135,YS132..GEN;MS132..SED..(DLX,ROY,SAL) *TT,T=4.0,BLUE |
1 | ||
| 68113-30280 |
GS131,LS130,MS13#,YS132..SED *TT,T=4.0,BLUE |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-30200 |
GS131,LS130,MS13#,YS132..SED *TEM,T=4.0,BLUE |
1 | ||
| 68114-30200 |
MS132..4F;LS130,MS135,YS132..GEN;MS132..SED..(DLX,ROY,SAL) *TEM,T=4.0,BLUE |
1 | ||
| 68123 - GLASS, REAR DOOR WINDOW, RH | ||||
| 68123-30220 |
MS133..SAL;GS131,LS130,MS132,135,YS132..SED *TT,T=3.5 |
1 | ||
| 68123-30220 |
MS132..4F;LS130,MS135,YS132..GEN;MS132..SED..(DLX,ROY,SAL) *TT,T=3.5 |
1 | ||
| 68124 - GLASS, REAR DOOR WINDOW, LH | ||||
| 68124-30160 |
MS132..4F;LS130,MS135,YS132..GEN;MS132..SED..(DLX,ROY,SAL) *TT,T=3.5 |
1 | ||
| 68124-30160 |
MS133..SAL;GS131,LS130,MS132,135,YS132..SED *TT,T=3.5 |
1 | ||
| 68142 - RUN, REAR DOOR GLASS | ||||
| 68152-30020 |
GS131,LS130,MS132,135,YS132..SED,WG LH |
1 | ||
| 68142-30120 |
GS131,LS130,MS132,135,YS132..SED,WG RH |
1 | ||
| 68142-30121 |
GS131,LS130,MS13#,YS132..SED,WG RH |
1 | ||
| 68152-30021 |
GS131,LS130,MS13#,YS132..SED,WG LH |
1 | ||
| 68142-30121 |
GS131,LS130,MS13#,YS132..SED,WG |
1 | ||
| 68152-30020 |
GS131,LS130,MS13#,YS132..SED,WG LH |
1 | ||
| 68142-30120 |
GS131,LS130,MS13#,YS132..SED,WG RH |
1 | ||
| 68152-30022 |
GS131,LS130,MS13#,YS132..SED,WG LH |
1 | ||
| 68142-30122 |
GS131,LS130,MS13#,YS132..SED,WG RH |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-30080 |
MS132..4F;MS132..SED..(DLX,ROY,SAL);GS131,LS130,MS133,135,YS132..SED |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-30060 |
MS132..4F;MS132..SED..(DLX,ROY,SAL);GS131,LS130,MS133,135,YS132..SED |
1 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-30030 |
GS131,LS130,MS13#,YS132 |
2 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-30070 |
GS131,LS130,MS13#,YS132..SED,WG |
2 | ||
| Common parts | ||||
| 90151-50014 | ||||
| 90179-06070 | ||||
| 90333-35002 | ||||
| 90950-01229 | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||

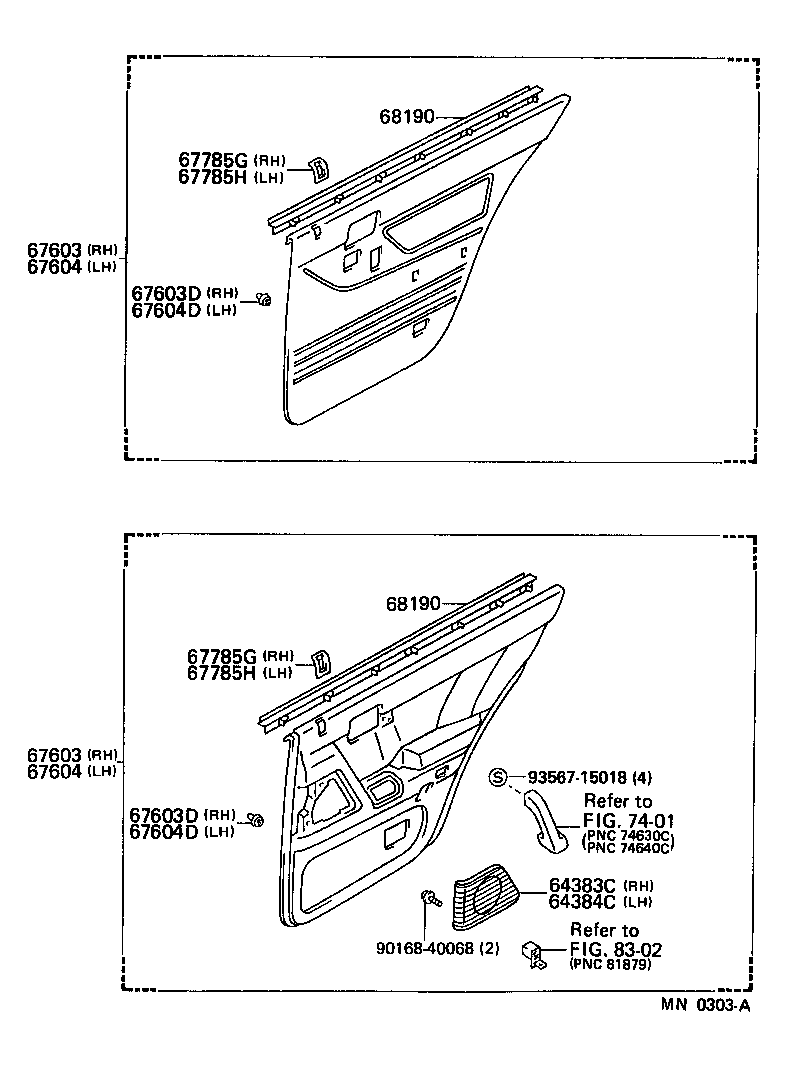

ILLUST NO. 2 OF 3(8709- )SED,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64383C - GRILLE, REAR DOOR SPEAKER, RH | ||||
| 64383-3005002 |
MS135..SED..GCC;GS131,MS132,133..DLX,SAL,STD MAROON,TRIM3# |
1 | ||
| 64383-3005004 |
MS135..SED..GCC;GS131,MS132,133..DLX,SAL,STD BLUE,TRIM8# |
1 | ||
| 64383-3005002 |
GS131..5F;MS135..SED..GCC;MS132,133..DLX,SAL,STD MAROON,TRIM3# |
1 | ||
| 64384C - GRILLE, REAR DOOR SPEAKER, LH | ||||
| 64384-3003004 |
MS135..SED..GCC;GS131,MS132,133..DLX,SAL,STD BLUE,TRIM8# |
1 | ||
| 64384-3003002 |
MS135..SED..GCC;GS131,MS132,133..DLX,SAL,STD MAROON,TRIM3# |
1 | ||
| 64384-3003002 |
GS131..5F;MS135..SED..GCC;MS132,133..DLX,SAL,STD MAROON,TRIM3# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-3A17002 |
LS130,MS132,YS132..(DLX,STD)..GEN MAROON,TRIM3# |
1 | ||
| 67630-3A23004 |
MS132,133..(DLX,STD)..GEN W(POWER WINDOW),BLUE,TRIM8# |
1 | ||
| 67630-3A23002 |
MS132,133..(DLX,STD)..GEN W(POWER WINDOW),MAROON,TRIM3# |
1 | ||
| 67630-3A17002 |
LS130,MS132,133,YS132..(4F,5F)..STD MAROON,TRIM3# |
1 | ||
| 67630-3A17004 |
LS130,MS132,133,YS132..(DLX,STD)..GEN BLUE,TRIM8# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-3A17002 |
LS130,MS132,YS132..(DLX,STD)..GEN MAROON,TRIM3# |
1 | ||
| 67630-3A23004 |
MS132,133..(DLX,STD)..GEN W(POWER WINDOW),BLUE,TRIM8# |
1 | ||
| 67630-3A23002 |
MS132,133..(DLX,STD)..GEN W(POWER WINDOW),MAROON,TRIM3# |
1 | ||
| 67630-3A17002 |
LS130,MS132,133,YS132..(4F,5F)..STD MAROON,TRIM3# |
1 | ||
| 67630-3A17004 |
LS130,MS132,133,YS132..(DLX,STD)..GEN BLUE,TRIM8# |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12050 |
MS132,133..(DLX,STD)..GEN W(POWER WINDOW) |
10 | ||
| 67771-30100 |
LS130,MS132,133,YS132..STD |
9 | ||
| 67771-12040 |
LS130,MS132,133,YS132..(DLX,STD)..GEN |
9 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12050 |
MS132,133..(DLX,STD)..GEN W(POWER WINDOW) |
10 | ||
| 67771-30100 |
LS130,MS132,133,YS132..STD |
9 | ||
| 67771-12040 |
LS130,MS132,133,YS132..(DLX,STD)..GEN |
9 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-3A17002 |
LS130,MS132,YS132..(DLX,STD)..GEN MAROON,TRIM3# |
1 | ||
| 67640-3A23002 |
MS132,133..(DLX,STD)..GEN W(POWER WINDOW),MAROON,TRIM3# |
1 | ||
| 67640-3A17004 |
LS130,MS132,133,YS132..(DLX,STD)..GEN BLUE,TRIM8# |
1 | ||
| 67640-3A23004 |
MS132,133..(DLX,STD)..GEN W(POWER WINDOW),BLUE,TRIM8# |
1 | ||
| 67640-3A17002 |
LS130,MS132,133,YS132..(4F,5F)..STD MAROON,TRIM3# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-3A17002 |
LS130,MS132,YS132..(DLX,STD)..GEN MAROON,TRIM3# |
1 | ||
| 67640-3A23002 |
MS132,133..(DLX,STD)..GEN W(POWER WINDOW),MAROON,TRIM3# |
1 | ||
| 67640-3A17004 |
LS130,MS132,133,YS132..(DLX,STD)..GEN BLUE,TRIM8# |
1 | ||
| 67640-3A23004 |
MS132,133..(DLX,STD)..GEN W(POWER WINDOW),BLUE,TRIM8# |
1 | ||
| 67640-3A17002 |
LS130,MS132,133,YS132..(4F,5F)..STD MAROON,TRIM3# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12050 |
MS132,133..(DLX,STD)..GEN W(POWER WINDOW) |
10 | ||
| 67771-12040 |
LS130,MS132,133,YS132..(DLX,STD)..GEN |
9 | ||
| 67771-30100 |
LS130,MS132,133,YS132..STD |
9 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12050 |
MS132,133..(DLX,STD)..GEN W(POWER WINDOW) |
10 | ||
| 67771-12040 |
LS130,MS132,133,YS132..(DLX,STD)..GEN |
9 | ||
| 67771-30100 |
LS130,MS132,133,YS132..STD |
9 | ||
| 67785G - HOLDER, REAR DOOR LOCK CONTROL KNOB, RH | ||||
| 67785-3007004 |
MS132,135..SED,WG;GS131,LS130,MS133,YS132..SAL,STD BLUE,TRIM8# |
1 | ||
| 67785-3007002 |
GS131,LS130,MS132,135,YS132..SED,WG MAROON,TRIM3# |
1 | ||
| 67785-3007002 |
GS131,LS130,MS13#,YS132..(SED,WG)..(4F,4FC,4HC,5F) MAROON,TRIM3# |
1 | ||
| 67785G - HOLDER, REAR DOOR LOCK CONTROL KNOB, RH | ||||
| 67785-3007004 |
MS132,135..SED,WG;GS131,LS130,MS133,YS132..SAL,STD BLUE,TRIM8# |
1 | ||
| 67785-3007002 |
GS131,LS130,MS132,135,YS132..SED,WG MAROON,TRIM3# |
1 | ||
| 67785-3007002 |
GS131,LS130,MS13#,YS132..(SED,WG)..(4F,4FC,4HC,5F) MAROON,TRIM3# |
1 | ||
| 67785H - HOLDER, REAR DOOR LOCK CONTROL KNOB, LH | ||||
| 67785-3007002 |
GS131,LS130,MS132,135,YS132..SED,WG MAROON,TRIM3# |
1 | ||
| 67785-3007004 |
MS132,135..SED,WG;GS131,LS130,MS133,YS132..SAL,STD BLUE,TRIM8# |
1 | ||
| 67785-3007002 |
GS131,LS130,MS13#,YS132..(SED,WG)..(4F,4FC,4HC,5F) MAROON,TRIM3# |
1 | ||
| 67785H - HOLDER, REAR DOOR LOCK CONTROL KNOB, LH | ||||
| 67785-3007002 |
GS131,LS130,MS132,135,YS132..SED,WG MAROON,TRIM3# |
1 | ||
| 67785-3007004 |
MS132,135..SED,WG;GS131,LS130,MS133,YS132..SAL,STD BLUE,TRIM8# |
1 | ||
| 67785-3007002 |
GS131,LS130,MS13#,YS132..(SED,WG)..(4F,4FC,4HC,5F) MAROON,TRIM3# |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-30120 |
GS131,LS130,MS13#,YS132..SED,WG RH |
1 | ||
| 68240-30090 |
GS131,LS130,MS13#,YS132..SED,WG LH |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-30120 |
GS131,LS130,MS13#,YS132..SED,WG RH |
1 | ||
| 68240-30090 |
GS131,LS130,MS13#,YS132..SED,WG LH |
1 | ||
| Common parts | ||||
| 90168-40068 | ||||
| 93567-15018 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8302 | ||||
