MS132L-AEKBS (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 5M
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )HT,SED

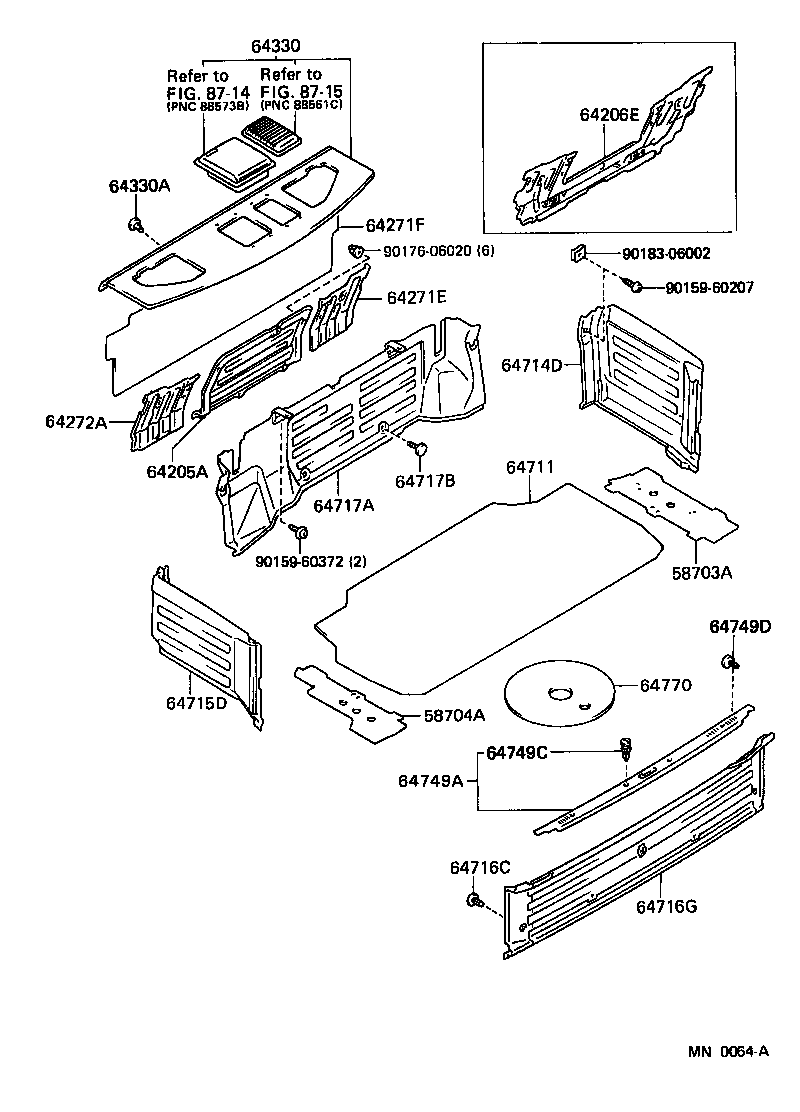

Click highlighted areas on diagram

diagram 58703A 58704A 64205A 64206E 64271E 64271F 64272A 64330 64330A 64711 64714D 64715D 64716C 64716G 64717A 64717B 64749A 64749C 64749D 64770 8714 8715 9015960207 9015960372 9017606020 9018306002
Part # Description Qty Price
58703A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58703-30030

LS130,MS13#,YS132..HT,SED

 1
58703-30030

MS132..4F;GS131,LS130,MS135,YS132;MS132,133..(HT,SED)..(DLX,ROY,SAL,SALEX)

 1
58704A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
58704-30060

GS131,LS130,MS13#,YS132..HT,SED

 1
64205A - COVER SUB-ASSY, ROOM PARTITION
64205-30030

LS130,MS132,YS132..SED

 1
64271E - PANEL, ROOM PARTITION
64271-30130

LS130,MS132,YS132..SED

 1
64271F - TRIM, ROOM PARTITION
64271-30120

GS131,LS130,MS13#,YS132..HT,SED

 1
64272A - PANEL, ROOM PARTITION, LH
64272-30030

LS130,MS132,YS132..SED

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-3067004

MS133..SAL;MS135..SED..GCC;LS130,MS132,YS132..SED..(DLX,SAL,STD)

BLUE,TRIM8#

 1
64330-3067002

LS130,MS132,YS132..SED..(DLX,SAL,STD)

MAROON,TRIM3#

 1
64330-3067002

MS133..SAL;MS135..SED..GCC;LS130,MS132,YS132..SED..(4F,4FC,5F)..(DLX,SAL,STD)

MAROON,TRIM3#

 1
64330-3067002

MS133..SAL;MS135..SED..GCC;MS132..SED..(DLX,SAL,STD);GS131,LS130,YS132..(4F,5F)..(ROY,STD)

MAROON,TRIM3#

 1
64711 - MAT, LUGGAGE COMPARTMENT FLOOR
64711-3026003

LS130,MS132,YS132..DLX,STD

GRAY,TRIM3#,8#

 1
64711-3026103

LS130,MS132,133,YS132..(4F,5F)..(DLX,STD)

GRAY,TRIM3#,8#

 1
64714D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
64714-3010003

LS130,MS132,YS132..DLX,STD

GRAY,TRIM3#,8#

 1
64714-3010003

LS130,MS132,133,YS132..(4F,5F)..(DLX,STD)

GRAY,TRIM3#,8#

 1
64715D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
64715-3011003

LS130,MS132,YS132..DLX,STD

GRAY,TRIM3#,8#

 1
64715-3011003

LS130,MS132,133,YS132..(4F,5F)..(DLX,STD)

GRAY,TRIM3#,8#

 1
64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
90467-0500433

LS130,MS132,YS132..DLX,STD

GRAY,TRIM3#,8#

 5
90467-0500433

LS130,MS132,133,YS132..(4F,5F)..(DLX,STD)

GRAY,TRIM3#,8#

 5
64716G - COVER, LUGGAGE COMPARTMENT TRIM, REAR
64716-3010003

LS130,MS132,YS132..DLX,STD

GRAY,TRIM3#,8#

 1
64716-3010003

LS130,MS132,133,YS132..(4F,5F)..(DLX,STD)

GRAY,TRIM3#,8#

 1
64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT
64717-3012003

LS130,MS132,133,YS132..(4F,5F)..(DLX,STD)

GRAY,TRIM3#,8#

 1
64717-3012003

LS130,MS132,YS132..DLX,STD

GRAY,TRIM3#,8#

 1
64717B - CLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
90467-0708003

LS130,MS132,YS132..DLX,STD

GRAY,TRIM3#,8#

 4
90467-0708003

LS130,MS132,133,YS132..(4F,5F)..(DLX,STD)

GRAY,TRIM3#,8#

 4
64749A - COVER, LUGGAGE COMPARTMENT DOOR STRIKER
64749-3005003

LS130,MS132,YS132..DLX,STD

GRAY,TRIM3#,8#

 1
64749-3005003

LS130,MS132,133,YS132..(4F,5F)..(DLX,STD)

GRAY,TRIM3#,8#

 1
64749C - CLIP(FOR LUGGAGE DOOR STRIKER COVER)
90467-06059

GS131,LS130,MS13#,YS132..HT,SED

 4
64770 - COVER ASSY, SPARE WHEEL
64770-30050

GS131,LS130,MS13#,YS132..HT,SED

 1
Common parts
90159-60207
90159-60372
90176-06020
90183-06002
Linked diagrams
8714
8715
