MS132L-AEKBS (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 5M
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )SED

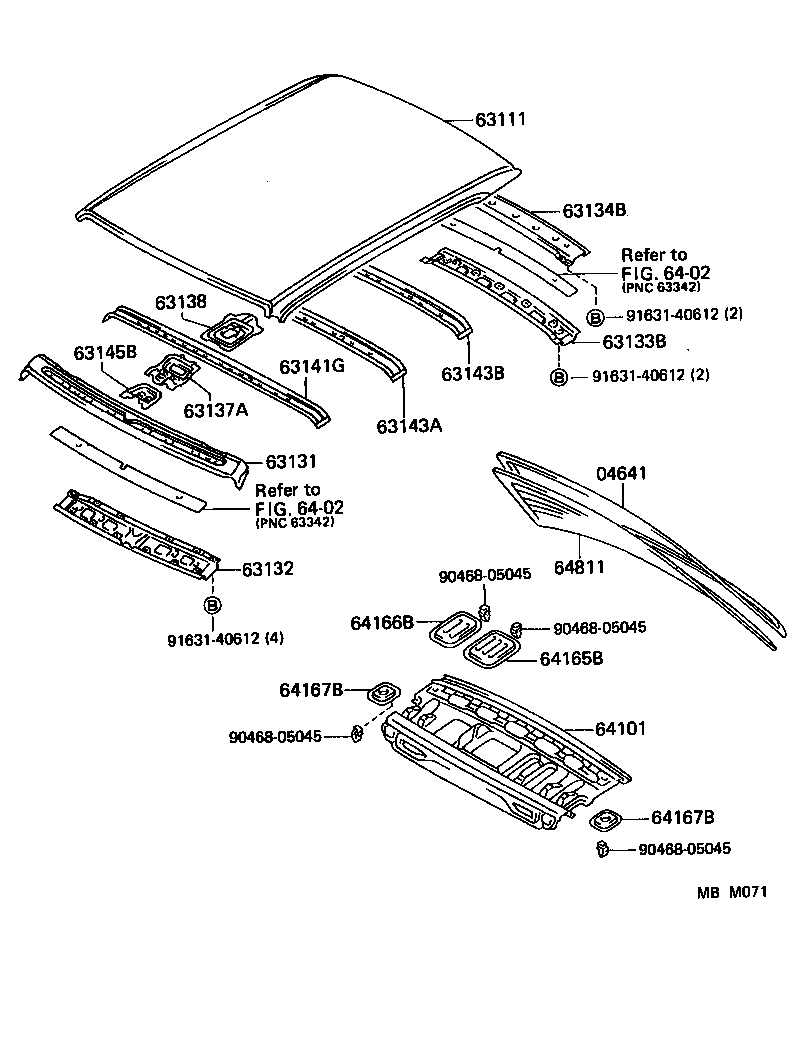

Click highlighted areas on diagram

diagram 04641 63111 63131 63132 63133B 63134B 63137A 63138 63141G 63143A 63143B 63145B 6402 6402 64101 64165B 64166B 64167B 64167B 64811 9046805045 9046805045 9046805045 9046805045 9163140612 9163140612 9163140612
Part # Description Qty Price
04641 - DAM KIT, BACK WINDOW GLASS
04562-30040

GS131,LS130,MS13#,YS132..HT,SED

 1
63111 - PANEL, ROOF
63111-30200

GS131,LS130,MS13#,YS132..SED

 1
63131 - PANEL, WINDSHIELD HEADER, OUTER
63131-30030

GS131,LS130,MS13#,YS132..SED,WG

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-30140

GS131,LS130,MS13#,YS132..SED,WG

 1
63133B - FRAME, BACK WINDOW
63133-30130

GS131,LS130,MS13#,YS132..SED

 1
63134B - PANEL, BACK WINDOW, UPR OUTER
63134-30010

GS131,LS130,MS13#,YS132..SED

 1
63138 - BRACKET, DOME LAMP, NO.2
63138-30050

GS131,LS130,MS13#,YS132..SED

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-30060

GS131,LS130,MS13#,YS132..SED

 1
63143A - REINFORCEMENT, ROOF PANEL
63143-30070

GS131,LS130,MS13#,YS132..SED

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-30070

GS131,LS130,MS13#,YS132..SED

 1
63145B - REINFORCEMENT, WINDSHIELD HEADER PANEL
63145-30060

GS131,LS130,MS13#,YS132..SED,WG

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-30160

MS132..SED;MS135..SED..4FC;GS131,LS130,MS133,YS132..SAL,STD

 1
64101-30160

GS131,LS130,YS132..MTM;MS13#..SED..(4F,4FC,5F)

 1
64165B - COVER, UPPER BACK PANEL HOLE, NO.1
64165-30020

MS135..V;MS135..SED..GCC;GS131,LS130,MS133,YS132;MS132..SED..(DLX,SAL,STD)

 1
64165-30020

MS135..GCC;MS133..SAL,SALEX;GS131,LS130,YS132;MS132..SED..(DLX,SAL,STD)

 1
64165-30020

MS133..SAL;MS135..SED..GCC;GS131,LS130,YS132;MS132..SED..(DLX,SAL,STD)

 1
64166B - COVER, UPPER BACK PANEL HOLE, NO.2
64166-30020

MS135..V;MS135..SED..GCC;GS131,LS130,MS133,YS132;MS132..SED..(DLX,SAL,STD)

 1
64166-30020

MS133..SAL;MS135..SED..GCC;GS131,LS130,YS132;MS132..SED..(DLX,SAL,STD)

 1
64166-30020

MS135..GCC;MS133..SAL,SALEX;GS131,LS130,YS132;MS132..SED..(DLX,SAL,STD)

 1
64167B - COVER, UPPER BACK PANEL HOLE, NO.3
64167-30020

MS135..GCC;GS131,LS130,YS132..MTM;MS132,133..(HT,SED)..(DLX,SAL,SALEX,STD)

 2
64167-30020

MS135..V;MS135..SED..GCC;GS131,LS130,MS132,133,YS132..(HT,SED)..(DLX,SAL,SALEX,STD)

 2
64167B - COVER, UPPER BACK PANEL HOLE, NO.3
64167-30020

MS135..GCC;GS131,LS130,YS132..MTM;MS132,133..(HT,SED)..(DLX,SAL,SALEX,STD)

 2
64167-30020

MS135..V;MS135..SED..GCC;GS131,LS130,MS132,133,YS132..(HT,SED)..(DLX,SAL,SALEX,STD)

 2
64811 - GLASS, BACK WINDOW
64801-30360

LS130,MS132,135,YS132..SED

*EHTT,T=4.0

 1
64801-30360

MS132..4F;LS130,MS135,YS132..GEN;MS132..SED..(DLX,ROY,SAL)

*EHTT,T=4.0

 1
64801-30360

GS131,LS130,MS13#,YS132..SED

*EHTT,T=4.0

 1
Common parts
90468-05045
91631-40612
Linked diagrams
6402
