MS132L-AEKBS (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 5M
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

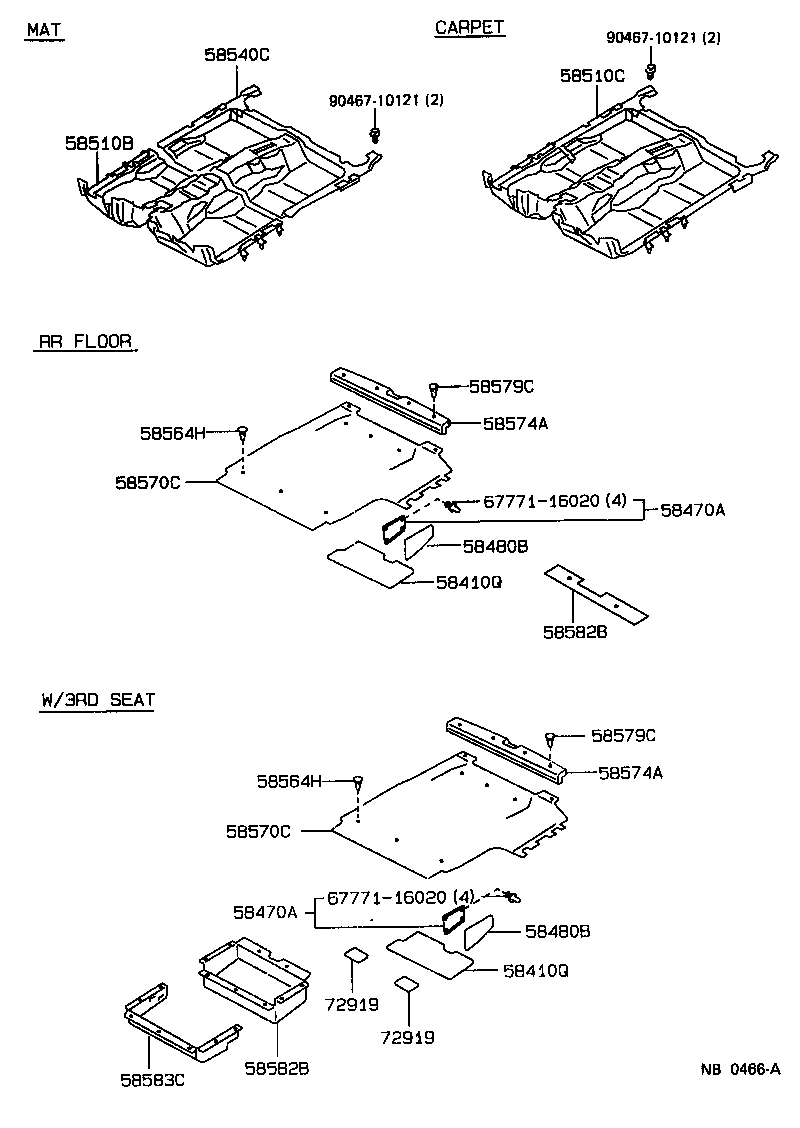

Click highlighted areas on diagram

diagram 58410Q 58410Q 58470A 58470A 58480B 58480B 58510B 58510C 58540C 58564H 58564H 58570C 58570C 58574A 58574A 58579C 58579C 58582B 58582B 58583C 6777116020 6777116020 72919 72919 9046710121 9046710121
Part # Description Qty Price
58510B - MAT, FRONT FLOOR, FRONT
58510-3A55001

LS130,MS132,YS132..LHD..4F

BLACK,TRIM3#,8#

 1
58510-3A80001

LS130,MS132,YS132..LHD..4F

W(HEATER),BLACK,TRIM3#,8#

 1
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-3A56002

LS130,MS132,YS132..LHD..4F

W(HEATER),MAROON,TRIM3#

 1
58510-3A56004

LS130,MS132,YS132..LHD..4F

W(HEATER),BLUE,TRIM8#

 1
58510-3A73002

LS130,MS132,YS132..LHD..4F

MAROON,TRIM3#

 1
58510-3A73004

LS130,MS132,YS132..LHD..4F

BLUE,TRIM8#

 1
58510-3A56104

LS130,MS132,YS132..4F

W(HEATER),BLUE,TRIM8#

 1
58510-3A73102

LS130,MS132,YS132..4F

MAROON,TRIM3#

 1
58510-3A56102

LS130,MS132,YS132..4F

W(HEATER),MAROON,TRIM3#

 1
58510-3A73104

LS130,MS132,YS132..4F

BLUE,TRIM8#

 1
58540C - MAT ASSY, FLOOR, REAR
58540-3A07001

LS130,MS132,YS132..(4F,5F)..STD

BLACK,TRIM3#,8#

 1
58540-3A07101

LS130,MS132,133,YS132..(4F,5F)..STD

BLACK,TRIM3#,8#

 1
Common parts
67771-16020
90467-10121
