MS132L-AEKBS (1987)
Toyota Crown

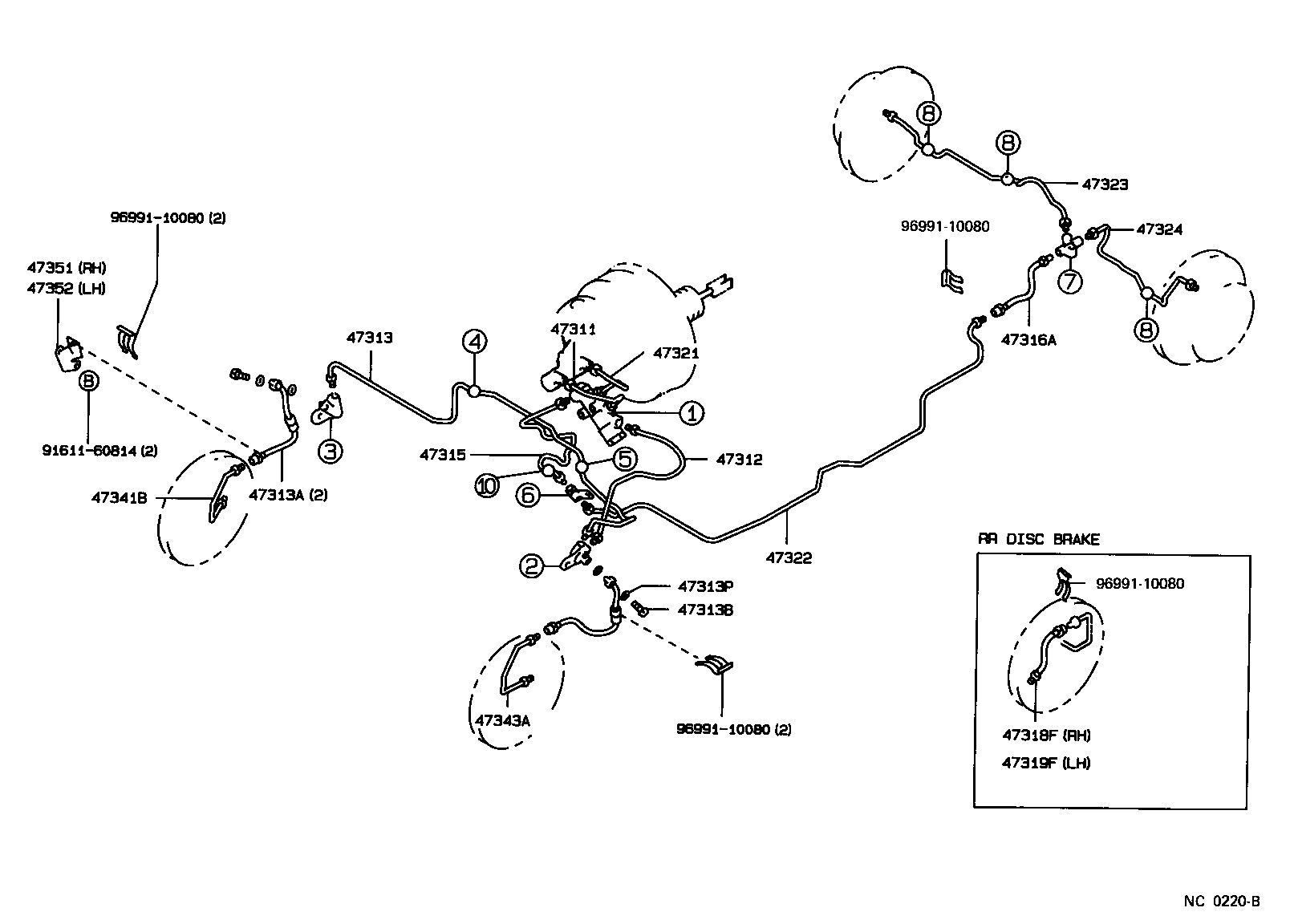

ILLUST NO. 1 OF 2(8709- )LS130,MS132,YS132..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-30430 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 47311-30431 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-30270 |
GS131,MS13#..LHD |
1 | ||
| 47312-30270 |
MS13#..LHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-30201 |
GS131,LS130,MS13#,YS132..LHD |
1 | ||
| 47313-30200 |
LS130,MS13#,YS132..LHD |
1 | ||
| 47313-30201 |
LS130,MS13#,YS132..LHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02543 |
GS131,LS130,MS13#,YS132 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
GS131,LS130,MS13#,YS132 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
GS131,LS130,MS13#,YS132 |
4 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-30390 |
MS13#..LHD |
1 | ||
| 47315-30390 |
GS131,MS13#..LHD |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-32855 |
LS130,MS132,YS132 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-30150 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 47321-30151 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-30110 |
LS130,MS132,YS132 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-30130 |
LS130,MS132,YS132..DLX,SAL,STD |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-30090 |
LS130,MS132,YS132..DLX,SAL,STD |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-30030 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-30030 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-30210 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-30090 |
GS131,LS130,MS13#,YS132 |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
| 96991-10080 | ||||

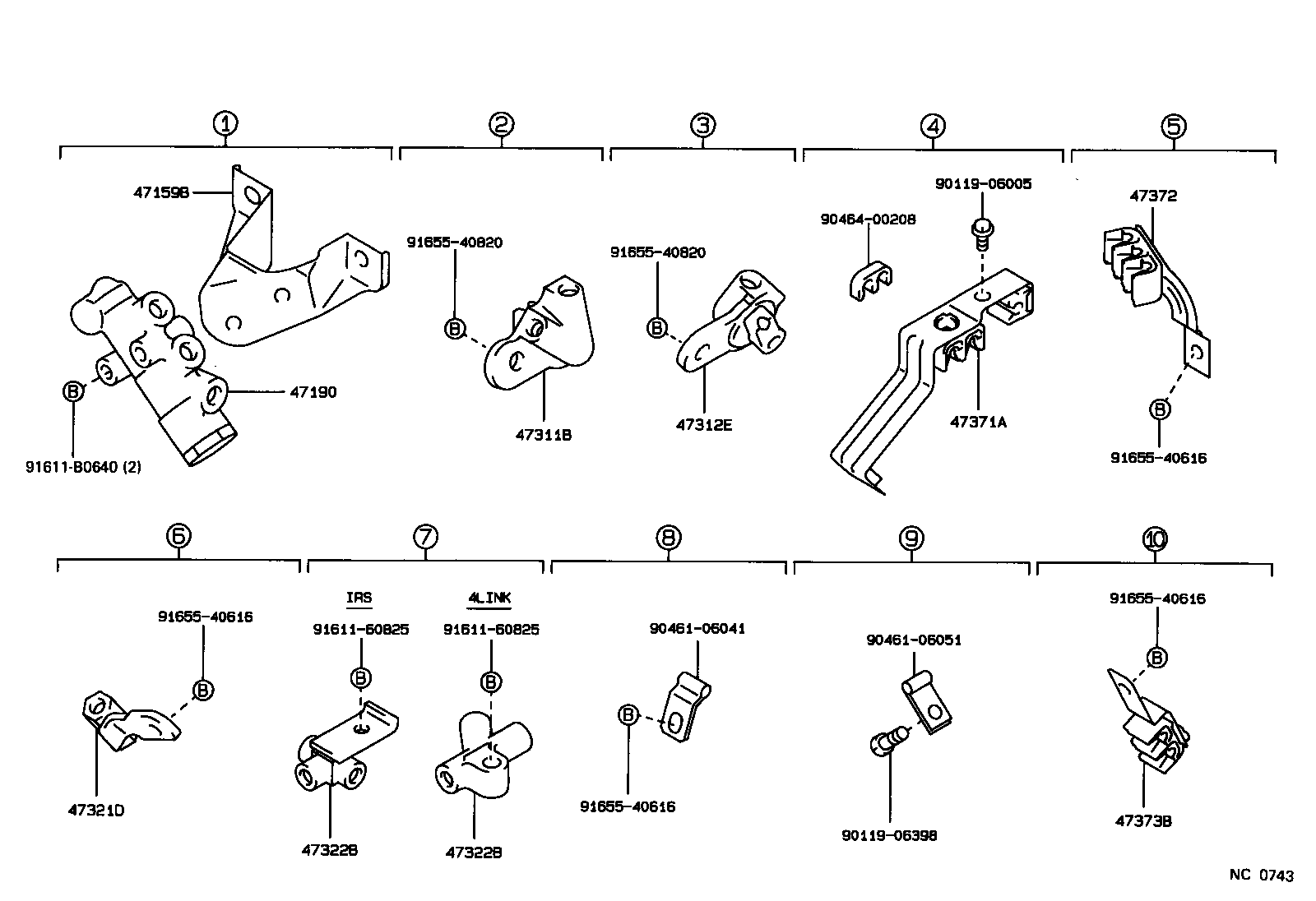

ILLUST NO. 2 OF 2(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47159B - BRACKET, PROPORTIONING & BY-PASS VALVE | ||||
| 47159-30171 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 47159-30170 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 47190 - VALVE ASSY, PROPORTIONING & BY-PASS | ||||
| 47190-30190 |
LS130,YS132;MS132..LHD..(DLX,SAL,STD) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10212 |
GS131,LS130,MS13#,YS132..LHD |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10145 |
GS131,LS130,MS13#,YS132..LHD |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10144 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10156 |
LS130,MS132,YS132 |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10156 |
LS130,MS132,YS132 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-30070 |
GS131,LS130,MS13#,YS132..LHD |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-30090 |
GS131,LS130,MS13#..LHD |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-30100 |
GS131,LS130,MS13#,YS132..LHD |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06398 | ||||
| 90461-06041 | ||||
| 90461-06051 | ||||
| 90464-00208 | ||||
| 91611-60825 | ||||
| 91611-B0640 | ||||
| 91655-40616 | ||||
| 91655-40820 | ||||
