MS132L-AEKBS (1987)
Toyota Crown
(8709- )

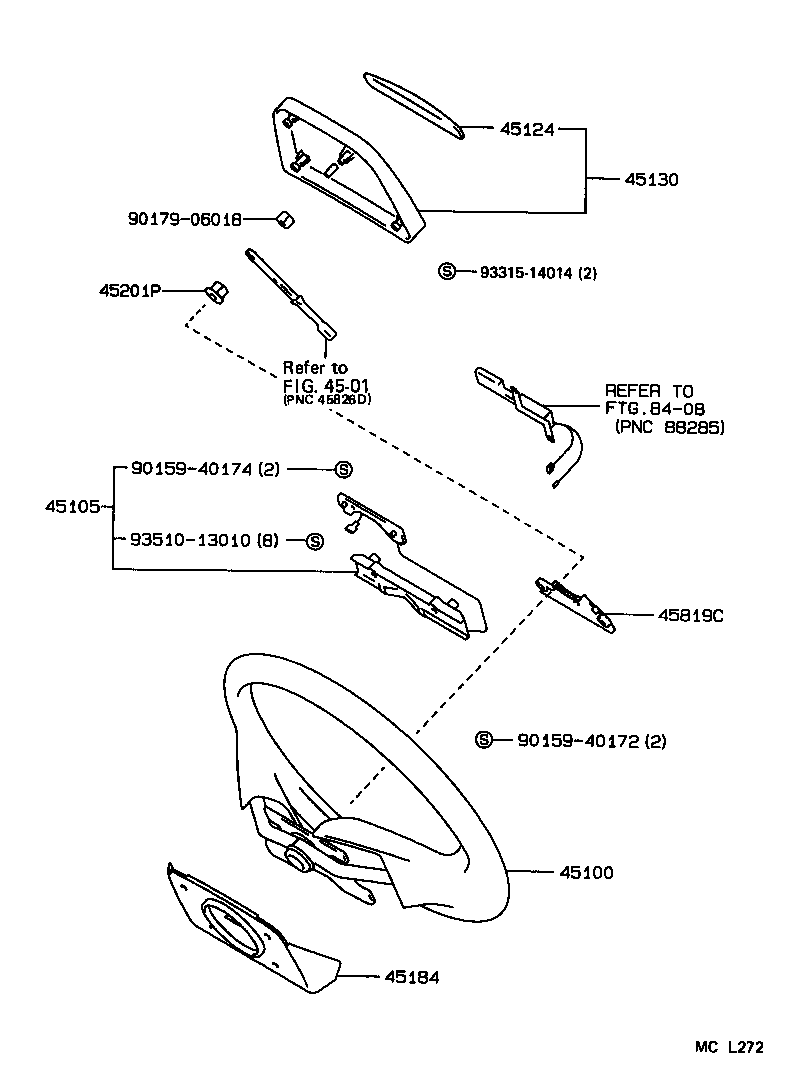

3-SPOCK W(CRUISE CONTROL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-3029004 |
LS130,MS132,YS132..(DLX,STD)..GEN W(POWER STEERING),BLUE,TRIM8# |
1 | ||
| 45100-3024004 |
LS130,MS132,YS132..(DLX,STD)..GEN 3SPOKE,POLYPROPYLENE,BLUE,TRIM8# |
1 | ||
| 45100-3024002 |
LS130,MS132,YS132..(DLX,STD)..GEN 3SPOKE,POLYPROPYLENE,MAROON,TRIM3# |
1 | ||
| 45100-3029002 |
LS130,MS132,YS132..(DLX,STD)..GEN W(POWER STEERING),MAROON,TRIM3# |
1 | ||
| 45100-3036004 |
MS135..4HC;MS135..GCC;GS131,MS132,133..DLX,SAL,SALEX,STD BLUE,TRIM8# |
1 | ||
| 45100-3036002 |
MS135..4HC;MS135..GCC;GS131,MS132,133..DLX,SAL,SALEX,STD MAROON,TRIM3# |
1 | ||
| 45100-3036102 |
MS135..4HC;MS135..GCC;GS131,MS132,133..DLX,SAL,SALEX,STD MAROON,TRIM3# |
1 | ||
| 45100-3036104 |
MS135..4HC;MS135..GCC;GS131,MS132,133..DLX,SAL,SALEX,STD BLUE,TRIM8# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-30100 |
LS130,MS132,YS132..(DLX,STD)..GEN W(POWER STEERING) |
1 | ||
| 45105-30100 |
GS131,MS13# |
1 | ||
| 45105-30120 |
LS130,MS132,YS132..(DLX,STD)..GEN |
1 | ||
| 45124 - ORNAMENT, STEERING WHEEL MARK | ||||
| 45124-3003004 |
MS132,135;GS131,LS130,MS133,YS132..SAL,SALEX,STD BLUE,TRIM8# |
1 | ||
| 45124-3001004 |
LS130,MS13#,YS132 BLUE,TRIM8# |
1 | ||
| 45124-3003002 |
GS131,LS130,MS13#,YS132..4F,4FC,4HC,5F MAROON,TRIM3# |
1 | ||
| 45124-3001002 |
GS131,LS130,MS13#,YS132 MAROON,TRIM3# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-3023004 |
LS130,MS132,YS132..(DLX,STD)..GEN BLUE,TRIM8# |
1 | ||
| 45130-3023002 |
LS130,MS132,YS132..(DLX,STD)..GEN MAROON,TRIM3# |
1 | ||
| 45130-3024002 |
LS130,MS132,YS132..(DLX,STD)..GEN W(POWER STEERING),MAROON,TRIM3# |
1 | ||
| 45130-3028004 |
MS133,135;GS131,MS132..LHD BLUE,TRIM8# |
1 | ||
| 45130-3028002 |
GS131,MS13# MAROON,TRIM3# |
1 | ||
| 45130-3024004 |
LS130,MS132,YS132..(DLX,STD)..GEN W(POWER STEERING),BLUE,TRIM8# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
LS130,MS13#,YS132..(4F,4H,4HC,5F)..(DLX,ROY,STD)..GEN |
1 | ||
| Common parts | ||||
| 90159-40172 | ||||
| 90159-40174 | ||||
| 90179-06018 | ||||
| 93315-14014 | ||||
| 93510-13010 | ||||
| Linked diagrams | ||||
| 4501 | ||||
| 8408 | ||||

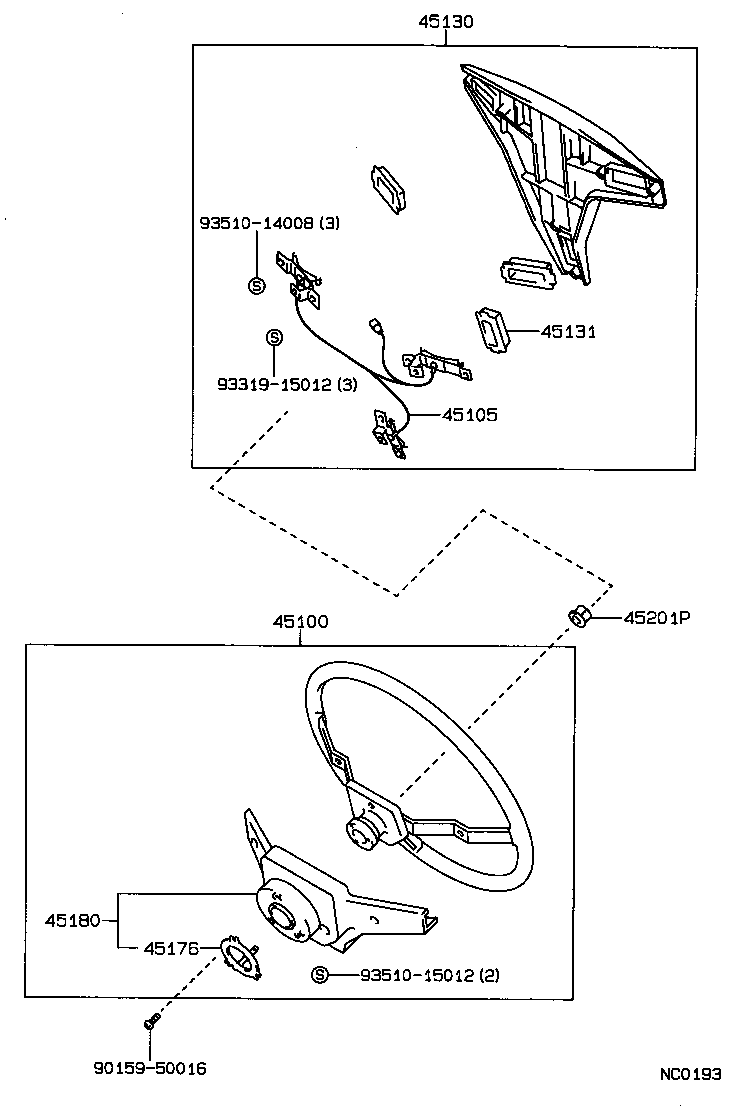

(8709- )
3-SPOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-3029004 |
LS130,MS132,YS132..(DLX,STD)..GEN W(POWER STEERING),BLUE,TRIM8# |
1 | ||
| 45100-3024004 |
LS130,MS132,YS132..(DLX,STD)..GEN 3SPOKE,POLYPROPYLENE,BLUE,TRIM8# |
1 | ||
| 45100-3024002 |
LS130,MS132,YS132..(DLX,STD)..GEN 3SPOKE,POLYPROPYLENE,MAROON,TRIM3# |
1 | ||
| 45100-3029002 |
LS130,MS132,YS132..(DLX,STD)..GEN W(POWER STEERING),MAROON,TRIM3# |
1 | ||
| 45100-3036004 |
MS135..4HC;MS135..GCC;GS131,MS132,133..DLX,SAL,SALEX,STD BLUE,TRIM8# |
1 | ||
| 45100-3036002 |
MS135..4HC;MS135..GCC;GS131,MS132,133..DLX,SAL,SALEX,STD MAROON,TRIM3# |
1 | ||
| 45100-3036102 |
MS135..4HC;MS135..GCC;GS131,MS132,133..DLX,SAL,SALEX,STD MAROON,TRIM3# |
1 | ||
| 45100-3036104 |
MS135..4HC;MS135..GCC;GS131,MS132,133..DLX,SAL,SALEX,STD BLUE,TRIM8# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-30100 |
LS130,MS132,YS132..(DLX,STD)..GEN W(POWER STEERING) |
1 | ||
| 45105-30100 |
GS131,MS13# |
1 | ||
| 45105-30120 |
LS130,MS132,YS132..(DLX,STD)..GEN |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-3023004 |
LS130,MS132,YS132..(DLX,STD)..GEN BLUE,TRIM8# |
1 | ||
| 45130-3023002 |
LS130,MS132,YS132..(DLX,STD)..GEN MAROON,TRIM3# |
1 | ||
| 45130-3024002 |
LS130,MS132,YS132..(DLX,STD)..GEN W(POWER STEERING),MAROON,TRIM3# |
1 | ||
| 45130-3028004 |
MS133,135;GS131,MS132..LHD BLUE,TRIM8# |
1 | ||
| 45130-3028002 |
GS131,MS13# MAROON,TRIM3# |
1 | ||
| 45130-3024004 |
LS130,MS132,YS132..(DLX,STD)..GEN W(POWER STEERING),BLUE,TRIM8# |
1 | ||
| 45131 - BUTTON, HORN, NO.1 | ||||
| 45131-3018004 |
LS130,MS132,YS132..(DLX,STD)..GEN BLUE,TRIM8# |
3 | ||
| 45131-3018002 |
LS130,MS132,YS132..(DLX,STD)..GEN MAROON,TRIM3# |
3 | ||
| 45176 - RING, HORN CONTACT | ||||
| 45176-30050 |
LS130,MS132,YS132..(DLX,STD)..GEN |
1 | ||
| 45176-30060 |
LS130,MS132,YS132..(DLX,STD)..GEN W(POWER STEERING) |
1 | ||
| 45176-30060 |
GS131,MS13# |
1 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-3001002 |
LS130,MS132,YS132..(DLX,STD)..GEN MAROON,TRIM3# |
1 | ||
| 45180-3002002 |
LS130,MS132,YS132..(DLX,STD)..GEN W(POWER STEERING),MAROON,TRIM3# |
1 | ||
| 45180-3004002 |
MS135..4HC;MS135..GCC;GS131,MS132,133..DLX,SAL,SALEX,STD MAROON,TRIM3# |
1 | ||
| 45180-3001004 |
LS130,MS132,YS132..(DLX,STD)..GEN BLUE,TRIM8# |
1 | ||
| 45180-3004004 |
MS135..4HC;MS135..GCC;GS131,MS132,133..DLX,SAL,SALEX,STD BLUE,TRIM8# |
1 | ||
| 45180-3002004 |
LS130,MS132,YS132..(DLX,STD)..GEN W(POWER STEERING),BLUE,TRIM8# |
1 | ||
| 45180-3004002 |
MS135..GCC;GS131,MS135..4HC,5F;MS132,133..DLX,SAL,SALEX,STD MAROON,TRIM3# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
LS130,MS13#,YS132..(4F,4H,4HC,5F)..(DLX,ROY,STD)..GEN |
1 | ||
| Common parts | ||||
| 90159-50016 | ||||
| 93319-15012 | ||||
| 93510-14008 | ||||
| 93510-15012 | ||||
(8709-8908)
2-SPOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-3029004 |
LS130,MS132,YS132..(DLX,STD)..GEN W(POWER STEERING),BLUE,TRIM8# |
1 | ||
| 45100-3024004 |
LS130,MS132,YS132..(DLX,STD)..GEN 3SPOKE,POLYPROPYLENE,BLUE,TRIM8# |
1 | ||
| 45100-3024002 |
LS130,MS132,YS132..(DLX,STD)..GEN 3SPOKE,POLYPROPYLENE,MAROON,TRIM3# |
1 | ||
| 45100-3029002 |
LS130,MS132,YS132..(DLX,STD)..GEN W(POWER STEERING),MAROON,TRIM3# |
1 | ||
| 45100-3036004 |
MS135..4HC;MS135..GCC;GS131,MS132,133..DLX,SAL,SALEX,STD BLUE,TRIM8# |
1 | ||
| 45100-3036002 |
MS135..4HC;MS135..GCC;GS131,MS132,133..DLX,SAL,SALEX,STD MAROON,TRIM3# |
1 | ||
| 45100-3036102 |
MS135..4HC;MS135..GCC;GS131,MS132,133..DLX,SAL,SALEX,STD MAROON,TRIM3# |
1 | ||
| 45100-3036104 |
MS135..4HC;MS135..GCC;GS131,MS132,133..DLX,SAL,SALEX,STD BLUE,TRIM8# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-30100 |
LS130,MS132,YS132..(DLX,STD)..GEN W(POWER STEERING) |
1 | ||
| 45105-30100 |
GS131,MS13# |
1 | ||
| 45105-30120 |
LS130,MS132,YS132..(DLX,STD)..GEN |
1 | ||
| 45124 - ORNAMENT, STEERING WHEEL MARK | ||||
| 45124-3003004 |
MS132,135;GS131,LS130,MS133,YS132..SAL,SALEX,STD BLUE,TRIM8# |
1 | ||
| 45124-3001004 |
LS130,MS13#,YS132 BLUE,TRIM8# |
1 | ||
| 45124-3003002 |
GS131,LS130,MS13#,YS132..4F,4FC,4HC,5F MAROON,TRIM3# |
1 | ||
| 45124-3001002 |
GS131,LS130,MS13#,YS132 MAROON,TRIM3# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-3023004 |
LS130,MS132,YS132..(DLX,STD)..GEN BLUE,TRIM8# |
1 | ||
| 45130-3023002 |
LS130,MS132,YS132..(DLX,STD)..GEN MAROON,TRIM3# |
1 | ||
| 45130-3024002 |
LS130,MS132,YS132..(DLX,STD)..GEN W(POWER STEERING),MAROON,TRIM3# |
1 | ||
| 45130-3028004 |
MS133,135;GS131,MS132..LHD BLUE,TRIM8# |
1 | ||
| 45130-3028002 |
GS131,MS13# MAROON,TRIM3# |
1 | ||
| 45130-3024004 |
LS130,MS132,YS132..(DLX,STD)..GEN W(POWER STEERING),BLUE,TRIM8# |
1 | ||
| 45176 - RING, HORN CONTACT | ||||
| 45176-30050 |
LS130,MS132,YS132..(DLX,STD)..GEN |
1 | ||
| 45176-30060 |
LS130,MS132,YS132..(DLX,STD)..GEN W(POWER STEERING) |
1 | ||
| 45176-30060 |
GS131,MS13# |
1 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-3001002 |
LS130,MS132,YS132..(DLX,STD)..GEN MAROON,TRIM3# |
1 | ||
| 45180-3002002 |
LS130,MS132,YS132..(DLX,STD)..GEN W(POWER STEERING),MAROON,TRIM3# |
1 | ||
| 45180-3004002 |
MS135..4HC;MS135..GCC;GS131,MS132,133..DLX,SAL,SALEX,STD MAROON,TRIM3# |
1 | ||
| 45180-3001004 |
LS130,MS132,YS132..(DLX,STD)..GEN BLUE,TRIM8# |
1 | ||
| 45180-3004004 |
MS135..4HC;MS135..GCC;GS131,MS132,133..DLX,SAL,SALEX,STD BLUE,TRIM8# |
1 | ||
| 45180-3002004 |
LS130,MS132,YS132..(DLX,STD)..GEN W(POWER STEERING),BLUE,TRIM8# |
1 | ||
| 45180-3004002 |
MS135..GCC;GS131,MS135..4HC,5F;MS132,133..DLX,SAL,SALEX,STD MAROON,TRIM3# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
LS130,MS13#,YS132..(4F,4H,4HC,5F)..(DLX,ROY,STD)..GEN |
1 | ||
| Common parts | ||||
| 90159-40170 | ||||
| 90159-40172 | ||||
| 90159-40174 | ||||
| 93510-13010 | ||||

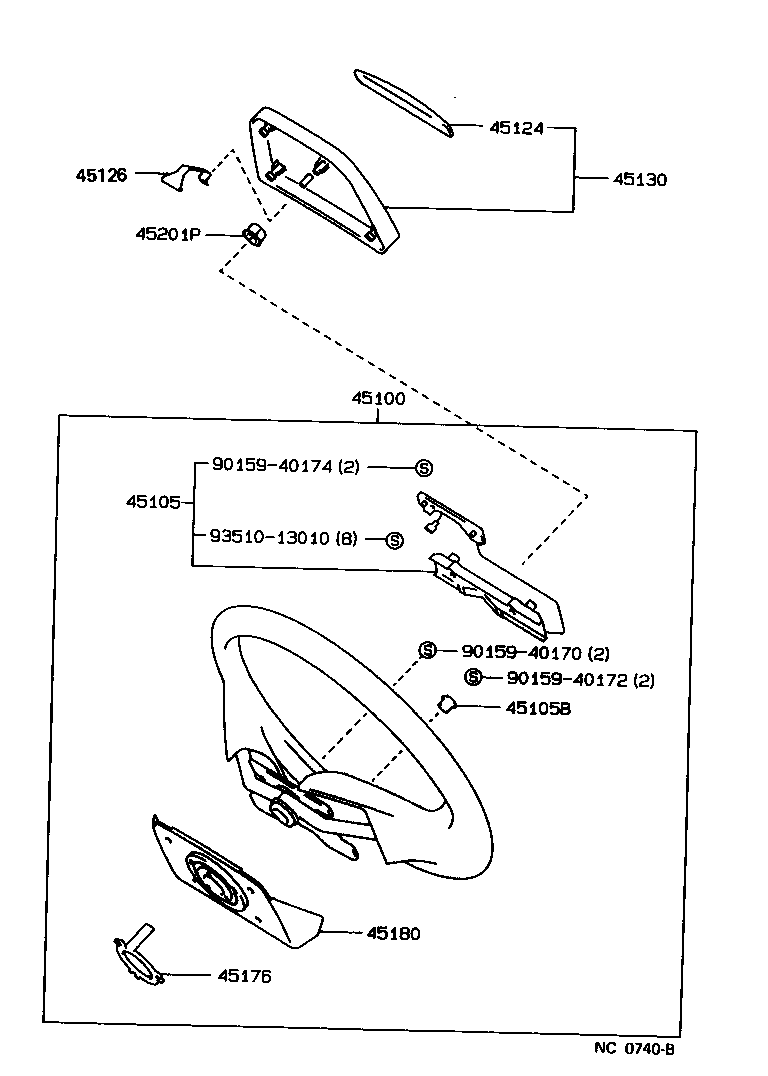

(8908- )
2-SPOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-3029004 |
LS130,MS132,YS132..(DLX,STD)..GEN W(POWER STEERING),BLUE,TRIM8# |
1 | ||
| 45100-3024004 |
LS130,MS132,YS132..(DLX,STD)..GEN 3SPOKE,POLYPROPYLENE,BLUE,TRIM8# |
1 | ||
| 45100-3024002 |
LS130,MS132,YS132..(DLX,STD)..GEN 3SPOKE,POLYPROPYLENE,MAROON,TRIM3# |
1 | ||
| 45100-3029002 |
LS130,MS132,YS132..(DLX,STD)..GEN W(POWER STEERING),MAROON,TRIM3# |
1 | ||
| 45100-3036004 |
MS135..4HC;MS135..GCC;GS131,MS132,133..DLX,SAL,SALEX,STD BLUE,TRIM8# |
1 | ||
| 45100-3036002 |
MS135..4HC;MS135..GCC;GS131,MS132,133..DLX,SAL,SALEX,STD MAROON,TRIM3# |
1 | ||
| 45100-3036102 |
MS135..4HC;MS135..GCC;GS131,MS132,133..DLX,SAL,SALEX,STD MAROON,TRIM3# |
1 | ||
| 45100-3036104 |
MS135..4HC;MS135..GCC;GS131,MS132,133..DLX,SAL,SALEX,STD BLUE,TRIM8# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-30100 |
LS130,MS132,YS132..(DLX,STD)..GEN W(POWER STEERING) |
1 | ||
| 45105-30100 |
GS131,MS13# |
1 | ||
| 45105-30120 |
LS130,MS132,YS132..(DLX,STD)..GEN |
1 | ||
| 45105B - SPACER(FOR HORN BUTTON CONTACT PLATE) | ||||
| 90561-04012 |
MS135..4HC;MS135..GCC;GS131,LS130,MS132,133,YS132..DLX,SAL,SALEX,STD |
2 | ||
| 90561-04012 |
MS135..GCC;MS132,133..DLX,SAL,SALEX,STD;GS131,LS130,MS135,YS132..4F,4H,4HC,5F |
2 | ||
| 45124 - ORNAMENT, STEERING WHEEL MARK | ||||
| 45124-3003004 |
MS132,135;GS131,LS130,MS133,YS132..SAL,SALEX,STD BLUE,TRIM8# |
1 | ||
| 45124-3001004 |
LS130,MS13#,YS132 BLUE,TRIM8# |
1 | ||
| 45124-3003002 |
GS131,LS130,MS13#,YS132..4F,4FC,4HC,5F MAROON,TRIM3# |
1 | ||
| 45124-3001002 |
GS131,LS130,MS13#,YS132 MAROON,TRIM3# |
1 | ||
| 45126 - PLATE, STEERING WHEEL PAD SET | ||||
| 45126-30090 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-3023004 |
LS130,MS132,YS132..(DLX,STD)..GEN BLUE,TRIM8# |
1 | ||
| 45130-3023002 |
LS130,MS132,YS132..(DLX,STD)..GEN MAROON,TRIM3# |
1 | ||
| 45130-3024002 |
LS130,MS132,YS132..(DLX,STD)..GEN W(POWER STEERING),MAROON,TRIM3# |
1 | ||
| 45130-3028004 |
MS133,135;GS131,MS132..LHD BLUE,TRIM8# |
1 | ||
| 45130-3028002 |
GS131,MS13# MAROON,TRIM3# |
1 | ||
| 45130-3024004 |
LS130,MS132,YS132..(DLX,STD)..GEN W(POWER STEERING),BLUE,TRIM8# |
1 | ||
| 45176 - RING, HORN CONTACT | ||||
| 45176-30050 |
LS130,MS132,YS132..(DLX,STD)..GEN |
1 | ||
| 45176-30060 |
LS130,MS132,YS132..(DLX,STD)..GEN W(POWER STEERING) |
1 | ||
| 45176-30060 |
GS131,MS13# |
1 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-3001002 |
LS130,MS132,YS132..(DLX,STD)..GEN MAROON,TRIM3# |
1 | ||
| 45180-3002002 |
LS130,MS132,YS132..(DLX,STD)..GEN W(POWER STEERING),MAROON,TRIM3# |
1 | ||
| 45180-3004002 |
MS135..4HC;MS135..GCC;GS131,MS132,133..DLX,SAL,SALEX,STD MAROON,TRIM3# |
1 | ||
| 45180-3001004 |
LS130,MS132,YS132..(DLX,STD)..GEN BLUE,TRIM8# |
1 | ||
| 45180-3004004 |
MS135..4HC;MS135..GCC;GS131,MS132,133..DLX,SAL,SALEX,STD BLUE,TRIM8# |
1 | ||
| 45180-3002004 |
LS130,MS132,YS132..(DLX,STD)..GEN W(POWER STEERING),BLUE,TRIM8# |
1 | ||
| 45180-3004002 |
MS135..GCC;GS131,MS135..4HC,5F;MS132,133..DLX,SAL,SALEX,STD MAROON,TRIM3# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
LS130,MS13#,YS132..(4F,4H,4HC,5F)..(DLX,ROY,STD)..GEN |
1 | ||
| Common parts | ||||
| 90159-40170 | ||||
| 90159-40172 | ||||
| 90159-40174 | ||||
| 93510-13010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
