MS132L-AEKBS (1987)
Toyota Crown
Production
Sep 1987
-
Oct 1991
Engine
5M
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8709- )5M

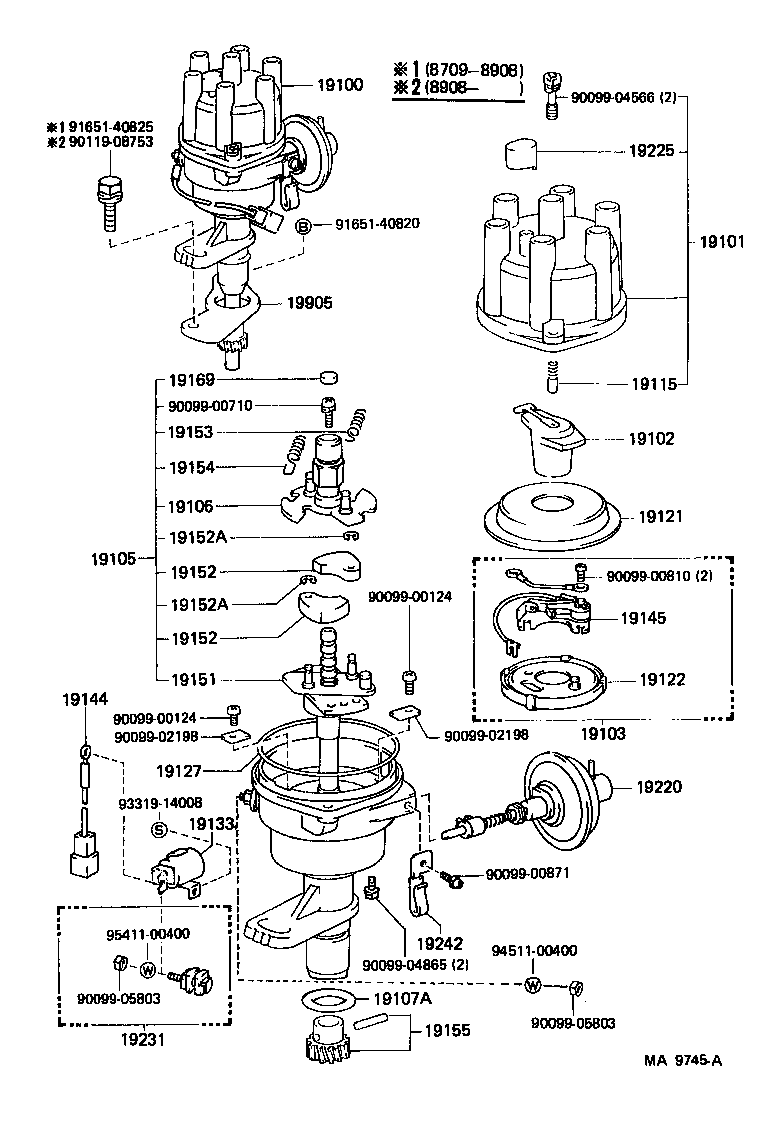

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19100-43220 |
5M..MS132..GEN |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-41140 |
5M#..MS132,133 |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-45150 |
5M#..MS132,133 |
1 | ||
| 19103 - BREAKER SUB-ASSY, DISTRIBUTOR | ||||
| 19103-33013 |
5M..MS132..GEN |
1 | ||
| 19105 - GOVERNOR SUB-ASSY | ||||
| 19105-43080 |
5M..MS132..GEN |
1 | ||
| 19106 - CAM SUB-ASSY, DISTRIBUTOR | ||||
| 19106-41100 |
5M..MS132..GEN |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14088 |
5M#,7MGE..MS13# |
1 | ||
| 90099-14018 |
5M#..MS132,133 |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-50010 |
5M#,7MGE..MS13# |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-41140 |
5M..MS132..GEN |
1 | ||
| 19122 - PLATE, STATIONARY, DISTRIBUTOR | ||||
| 19122-33013 |
5M..MS132..GEN |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-41141 |
5M#..MS132,133 |
1 | ||
| 19133 - CONDENSER, DISTRIBUTOR | ||||
| 90099-52071 |
5M..MS132 |
1 | ||
| 19144 - LEAD, DISTRIBUTOR BREAKER | ||||
| 19144-43170 |
5M..MS132 |
1 | ||
| 19144-43170 |
5M..MS132..GEN |
1 | ||
| 19145 - POINT, DISTRIBUTOR | ||||
| 19145-26060 |
5M..MS132 |
1 | ||
| 19151 - SHAFT, GOVERNOR | ||||
| 19151-41200 |
5M#..MS132,133 |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-45060 |
5ME..MS133;5M..MS132..GEN |
2 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-45060 |
5ME..MS133;5M..MS132..GEN |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07109 |
5ME..MS133;5M..MS132..GEN |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07109 |
5ME..MS133;5M..MS132..GEN |
2 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-43080 |
5M..MS132..GEN |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19154-43080 |
5M..MS132..GEN |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-41130 |
5M#..MS132,133 |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-63011 |
5M#..MS132,133 |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-43080 |
5M..MS132..GEN |
1 | ||
| 19225 - CAP, RUBBER | ||||
| 19225-41140 |
5M#,7MGE..MS13# |
1 | ||
| 19231 - TERMINAL, DISTRIBUTOR | ||||
| 19231-24140 |
5M..MS132 |
1 | ||
| 19242 - CLAMP, CORD | ||||
| 19242-26250 |
5M..MS132 |
1 | ||
| 19905 - CLAMP SUB-ASSY, DISTRIBUTOR | ||||
| 19955-45010 |
5M#..MS132,133 |
1 | ||
| Common parts | ||||
| 90099-00124 | ||||
| 90099-00710 | ||||
| 90099-00810 | ||||
| 90099-00871 | ||||
| 90099-02198 | ||||
| 90099-04566 | ||||
| 90099-04865 | ||||
| 90099-05803 | ||||
| 90119-08753 | ||||
| 91651-40820 | ||||
| 91651-40825 | ||||
| 93319-14008 | ||||
| 94511-00400 | ||||
| 95411-00400 | ||||
