MS132L-AEKBS (1987)
Toyota Crown
Production
Sep 1987
-
Oct 1991
Engine
5M
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

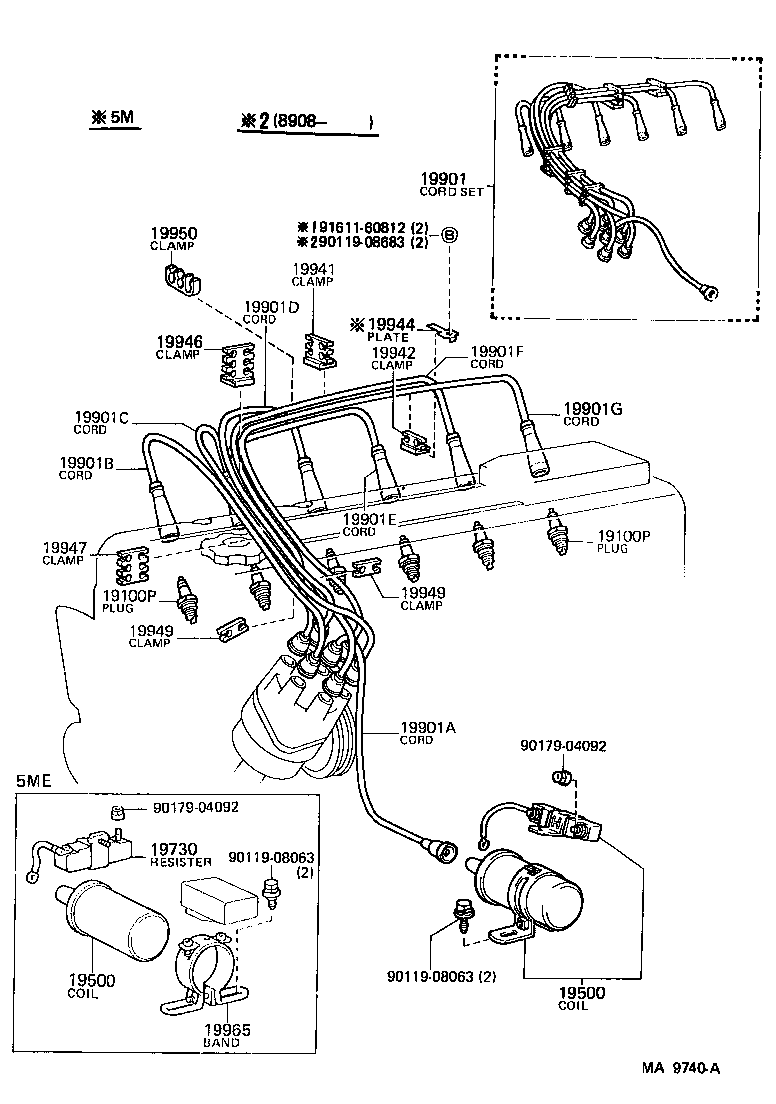

(8709- )5M#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01064 |
5M#..MS132,133 W16EXR-U |
6 | ||
| 19100P - PLUG, SPARK | ||||
| 90919-01064 |
5M#..MS132,133 W16EXR-U |
6 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02186 |
5M..MS132 |
1 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02186 |
5M..MS132 |
1 | ||
| 19901 - CORD SET, COIL & SPARK, W/RESISTIVE | ||||
| 90919-21338 |
5M#..MS132,133 |
1 | ||
| 19901A - CORD, COIL RESISTIVE | ||||
| 90919-13217 |
5M#..MS132,133 |
1 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-12180 |
5M#..MS132,133 |
1 | ||
| 19901C - CORD, SPARK PLUG RESISTIVE, NO.2 | ||||
| 90919-12181 |
5M#..MS132,133 |
1 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 90919-12182 |
5M#..MS132,133 |
1 | ||
| 19901E - CORD, SPARK PLUG RESISTIVE, NO.4 | ||||
| 90919-12530 |
5M#..MS132,133 |
1 | ||
| 19901F - CORD, SPARK PLUG RESISTIVE, NO.5 | ||||
| 90919-12531 |
5M#..MS132,133 |
1 | ||
| 19901G - CORD, SPARK PLUG RESISTIVE, NO.6 | ||||
| 90919-12532 |
5M#..MS132,133 |
1 | ||
| 19941 - CLAMP, RESISTIVE CORD, NO.1 | ||||
| 90464-00068 |
5M#..MS132,133 |
1 | ||
| 19942 - CLAMP, RESISTIVE CORD, NO.2 | ||||
| 90464-00069 |
5M#..MS132,133 |
1 | ||
| 19944 - PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2 | ||||
| 19944-45021 |
5M..MS132 |
2 | ||
| 19946 - CLAMP, RESISTIVE CORD, NO.3 | ||||
| 90464-00323 |
5M#..MS132,133 |
1 | ||
| 19947 - CLAMP, RESISTIVE CORD, NO.4 | ||||
| 90464-00071 |
5M#..MS132,133 |
1 | ||
| 19949 - CLAMP, RESISTIVE CORD, NO.5 | ||||
| 90464-00116 |
5M#..MS132,133 |
1 | ||
| 90464-00116 |
5M#..MS132,133 |
2 | ||
| 19949 - CLAMP, RESISTIVE CORD, NO.5 | ||||
| 90464-00116 |
5M#..MS132,133 |
1 | ||
| 90464-00116 |
5M#..MS132,133 |
2 | ||
| 19950 - CLAMP, RESISTIVE CORD, NO.6 | ||||
| 90464-00349 |
5M#..MS132,133 |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90119-08683 | ||||
| 90179-04092 | ||||
| 91611-60812 | ||||

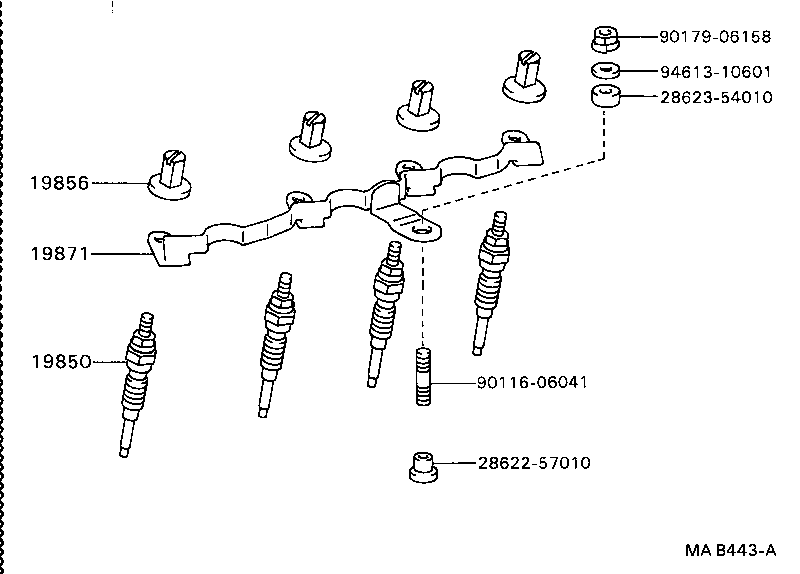

(8908- )2L
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 28622-57010 | ||||
| 28623-54010 | ||||
| 90116-06041 | ||||
| 90179-06158 | ||||
| 94613-10601 | ||||
(8709-8908)2L
Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|
