MS132L-AEKBS (1987)
Toyota Crown

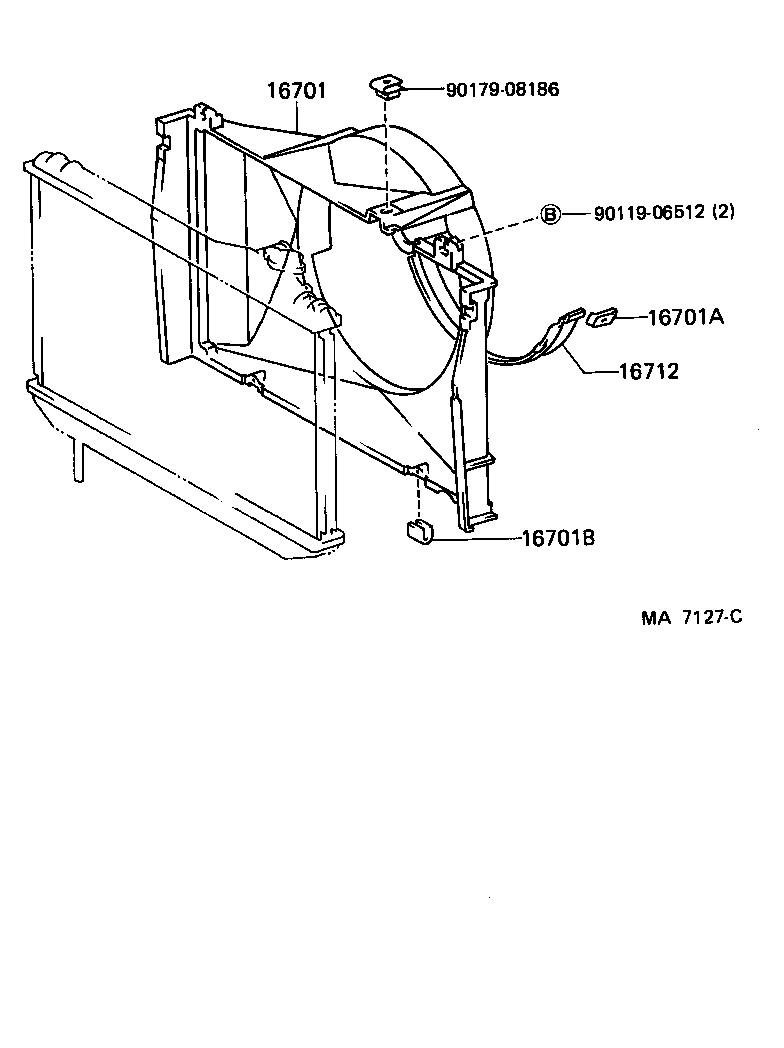

ILLUST NO. 2 OF 3(8709- )2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-43030 |
5M#..MS132,133 |
1 | ||
| 16711-43030 |
5M#..MS132,133..GEN |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
5M#,7MGE..MS13# |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-41080 |
5M#,7MGE..MS13# |
1 | ||
| Common parts | ||||
| 90119-06512 | ||||
| 90179-08186 | ||||

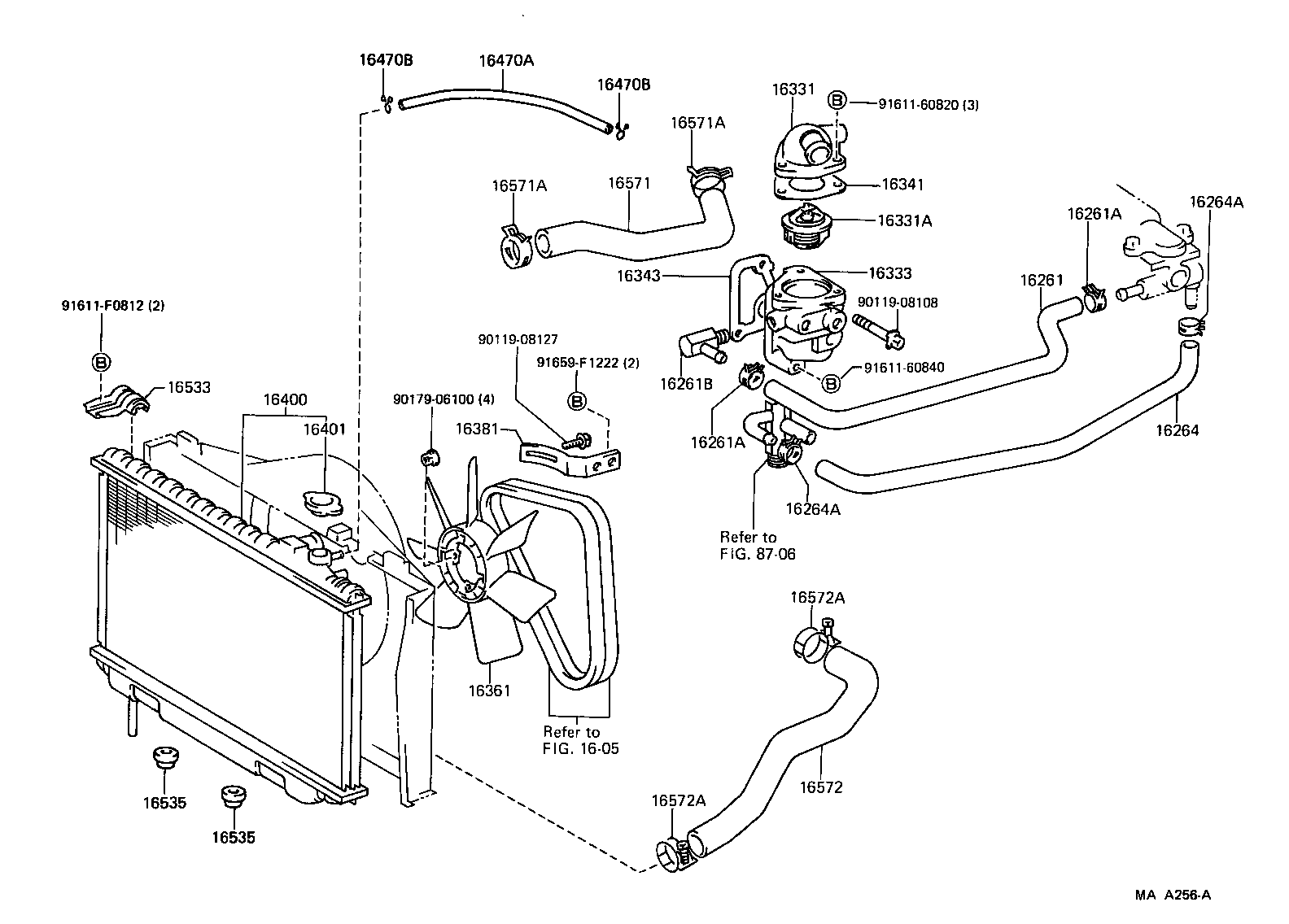

ILLUST NO. 1 OF 3(8709-8908)2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-43030 |
5M..MS132 |
1 | ||
| 16331-43030 |
5M..MS132..GEN |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03055 |
5M#,7MGE..MS13# *WAX 88-100 |
1 | ||
| 90916-03078 |
5M#,7MGE..MS13# *WAX 88-100 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38021 |
5M#..MS132,133 |
1 | ||
| 16341-41010 |
5M#..MS132,133 |
1 | ||
| 16361 - FAN | ||||
| 16361-41100 |
5M#..MS132,133;7MGE..MS135..GEN |
1 | ||
| 16361-41100 |
5M#,7MGE..MS13#..GEN |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-43010 |
5M#..MS132,133 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-43230 |
5M..MS132..LHD..MTM..GEN HOT AREA SPEC |
1 | ||
| 16400-43231 |
5M..MS132..MTM..GEN HOT AREA SPEC |
1 | ||
| 16400-43210 |
5M..MS132..4F;5M#..MS132,133..5F..SAL..GEN |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 85343-30270 |
5M#,7MGE..MS13# |
1 | ||
| 85319-30280 |
5M#,7MGE..MS13# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
5M#,7MGE..MS13# |
1 | ||
| 90467-11085 |
5M#,7MGE..MS13# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
5M#,7MGE..MS13# |
1 | ||
| 90467-11085 |
5M#,7MGE..MS13# |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-41010 |
5M#,7MGE..MS13# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-41130 |
5M#..MS132,133 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
5M#,7MGE..MS13# RADIATOR SIDE |
1 | ||
| 90467-37002 |
5M#,7MGE..MS13# |
2 | ||
| 90467-37002 |
5M#,7MGE..MS13# OUTLET SIDE |
1 | ||
| 90467-37002 |
5M#,7MGE..MS13# WATER OUTLET SIDE |
1 | ||
| 90467-37002 |
5M#,7MGE..MS13# |
2 | ||
| 90467-37006 |
5M#,7MGE..MS13# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
5M#,7MGE..MS13# RADIATOR SIDE |
1 | ||
| 90467-37002 |
5M#,7MGE..MS13# |
2 | ||
| 90467-37002 |
5M#,7MGE..MS13# OUTLET SIDE |
1 | ||
| 90467-37002 |
5M#,7MGE..MS13# WATER OUTLET SIDE |
1 | ||
| 90467-37002 |
5M#,7MGE..MS13# |
2 | ||
| 90467-37006 |
5M#,7MGE..MS13# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-41120 |
5M#..MS132,133 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37001 |
5M#,7MGE..MS13# RADIATOR SIDE |
1 | ||
| 90467-37002 |
5M#,7MGE..MS13# WATER OUTLET SIDE |
1 | ||
| 90467-37002 |
5M#,7MGE..MS13# |
2 | ||
| 90467-37002 |
5M#,7MGE..MS13# |
2 | ||
| 90467-37002 |
5M#,7MGE..MS13# OUTLET SIDE |
1 | ||
| 90467-37006 |
5M#,7MGE..MS13# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37001 |
5M#,7MGE..MS13# RADIATOR SIDE |
1 | ||
| 90467-37002 |
5M#,7MGE..MS13# WATER OUTLET SIDE |
1 | ||
| 90467-37002 |
5M#,7MGE..MS13# |
2 | ||
| 90467-37002 |
5M#,7MGE..MS13# |
2 | ||
| 90467-37002 |
5M#,7MGE..MS13# OUTLET SIDE |
1 | ||
| 90467-37006 |
5M#,7MGE..MS13# |
2 | ||
| Common parts | ||||
| 90119-08108 | ||||
| 90119-08127 | ||||
| 90179-06100 | ||||
| 91611-60820 | ||||
| 91611-60840 | ||||
| 91611-F0812 | ||||
| 91659-F1222 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 8706 | ||||

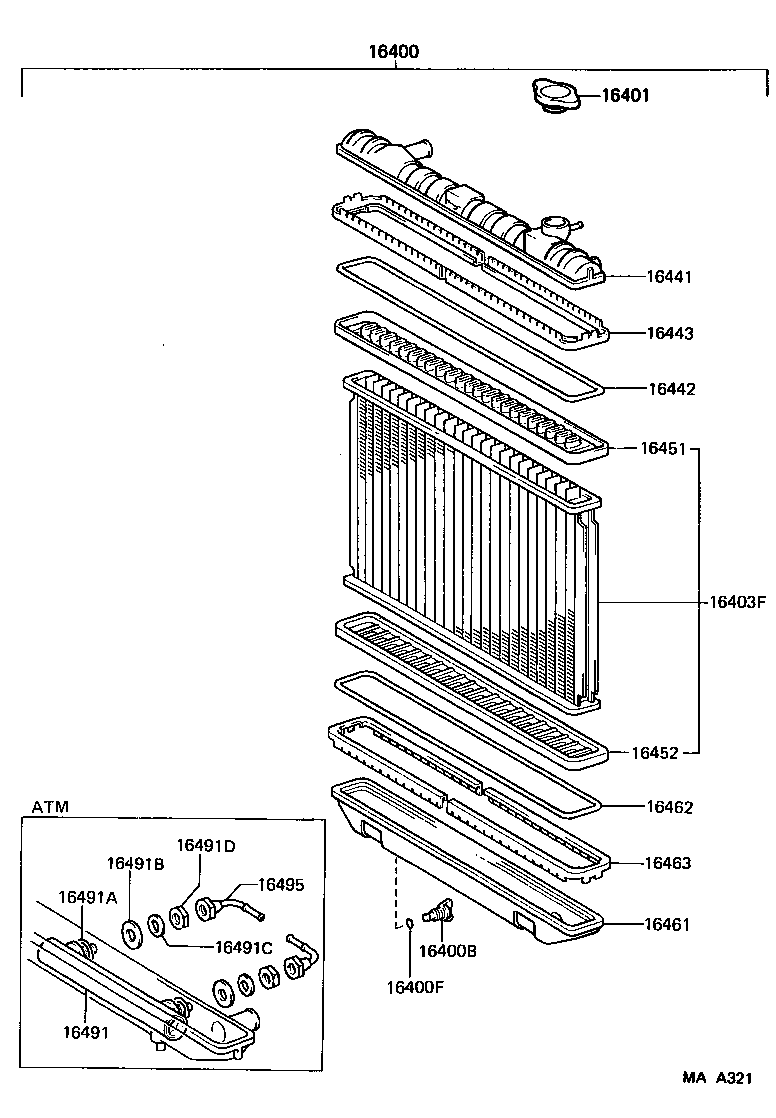

ILLUST NO. 3 OF 3(8709- )2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-43230 |
5M..MS132..LHD..MTM..GEN HOT AREA SPEC |
1 | ||
| 16400-43230 |
5M..MS132..LHD..MTM..GEN HOT AREA SPEC |
1 | ||
| 16400-43230 |
5M..MS132..LHD..MTM..GEN HOT AREA SPEC |
1 | ||
| 16400-43230 |
5M..MS132..LHD..MTM..GEN HOT AREA SPEC |
1 | ||
| 16400-43231 |
5M..MS132..MTM..GEN HOT AREA SPEC |
1 | ||
| 16400-43231 |
5M..MS132..MTM..GEN HOT AREA SPEC |
1 | ||
| 16400-43231 |
5M..MS132..MTM..GEN HOT AREA SPEC |
1 | ||
| 16400-43231 |
5M..MS132..MTM..GEN HOT AREA SPEC |
1 | ||
| 16400-43210 |
5M..MS132..4F;5M#..MS132,133..5F..SAL..GEN |
1 | ||
| 16400-43210 |
5M..MS132..4F;5M#..MS132,133..5F..SAL..GEN |
1 | ||
| 16400-43210 |
5M..MS132..4F;5M#..MS132,133..5F..SAL..GEN |
1 | ||
| 16400-43210 |
5M..MS132..4F;5M#..MS132,133..5F..SAL..GEN |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 23322-54010 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 23322-54010 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 23322-54010 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 96711-19007 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 96711-19007 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 96711-19007 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 16401-63010 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 16401-63010 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 16401-63010 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-43170 |
5M..MS132..4F;5M#,7MGE..MS13#..(DLX,ROY,SAL)..GEN |
1 | ||
| 16403-43170 |
5M..MS132..4F;5M#,7MGE..MS13#..(DLX,ROY,SAL)..GEN |
1 | ||
| 16403-43170 |
5M..MS132..4F;5M#,7MGE..MS13#..(DLX,ROY,SAL)..GEN |
1 | ||
| 16403-43170 |
5M..MS132..4F;5M#,7MGE..MS13#..(DLX,ROY,SAL)..GEN |
1 | ||
| 16403-43140 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
1 | ||
| 16403-43140 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
1 | ||
| 16403-43140 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
1 | ||
| 16403-43140 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-43210 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
1 | ||
| 16441-43210 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
1 | ||
| 16441-43210 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
1 | ||
| 16441-43210 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
1 | ||
| 16441-43210 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
1 | ||
| 16441-43210 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
1 | ||
| 16441-43210 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
1 | ||
| 16441-43210 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
1 | ||
| 16441-42180 |
5M..MS132..GEN HOT AREA SPEC,UPR |
1 | ||
| 16441-42180 |
5M..MS132..GEN HOT AREA SPEC,UPR |
1 | ||
| 16441-42180 |
5M..MS132..GEN HOT AREA SPEC,UPR |
1 | ||
| 16441-42180 |
5M..MS132..GEN HOT AREA SPEC,UPR |
1 | ||
| 16441-43230 |
5M..MS132..LHD..GEN HOT AREA SPEC |
1 | ||
| 16441-43230 |
5M..MS132..LHD..GEN HOT AREA SPEC |
1 | ||
| 16441-43230 |
5M..MS132..LHD..GEN HOT AREA SPEC |
1 | ||
| 16441-43230 |
5M..MS132..LHD..GEN HOT AREA SPEC |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16462-63030 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
1 | ||
| 16462-63030 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
1 | ||
| 16462-63030 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
1 | ||
| 16462-63030 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
1 | ||
| 16442-63030 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
1 | ||
| 16442-63030 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
1 | ||
| 16442-63030 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
1 | ||
| 16442-63030 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
1 | ||
| 16442-63030 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
1 | ||
| 16442-63030 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
1 | ||
| 16442-63030 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
1 | ||
| 16442-63030 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16443-15321 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
2 | ||
| 16443-15321 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
2 | ||
| 16443-15321 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
2 | ||
| 16443-15321 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
2 | ||
| 16443-15321 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
2 | ||
| 16443-15321 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
2 | ||
| 16443-15321 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
2 | ||
| 16443-15321 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
2 | ||
| 16463-15320 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
2 | ||
| 16463-15320 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
2 | ||
| 16463-15320 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
2 | ||
| 16463-15320 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16452-64070 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
1 | ||
| 16452-64070 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
1 | ||
| 16452-64070 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
1 | ||
| 16452-64070 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
1 | ||
| 16451-63030 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
1 | ||
| 16451-63030 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
1 | ||
| 16451-63030 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
1 | ||
| 16451-63030 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
1 | ||
| 16451-63030 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
1 | ||
| 16451-63030 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
1 | ||
| 16451-63030 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
1 | ||
| 16451-63030 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-63030 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
1 | ||
| 16452-63030 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
1 | ||
| 16452-63030 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
1 | ||
| 16452-63030 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
1 | ||
| 16452-64070 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
1 | ||
| 16452-64070 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
1 | ||
| 16452-64070 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
1 | ||
| 16452-64070 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
1 | ||
| 16452-63030 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
1 | ||
| 16452-63030 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
1 | ||
| 16452-63030 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
1 | ||
| 16452-63030 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-43210 |
5M..MS132..4F;5M#..MS132,133..5F..(DLX,SAL,SALEX) |
1 | ||
| 16461-43210 |
5M..MS132..4F;5M#..MS132,133..5F..(DLX,SAL,SALEX) |
1 | ||
| 16461-43210 |
5M..MS132..4F;5M#..MS132,133..5F..(DLX,SAL,SALEX) |
1 | ||
| 16461-43210 |
5M..MS132..4F;5M#..MS132,133..5F..(DLX,SAL,SALEX) |
1 | ||
| 16461-43231 |
5M..MS132..MTM..GEN HOT AREA SPEC,LWR |
1 | ||
| 16461-43231 |
5M..MS132..MTM..GEN HOT AREA SPEC,LWR |
1 | ||
| 16461-43231 |
5M..MS132..MTM..GEN HOT AREA SPEC,LWR |
1 | ||
| 16461-43231 |
5M..MS132..MTM..GEN HOT AREA SPEC,LWR |
1 | ||
| 16461-43210 |
5M..MS132..MTM..GEN;5ME..MS133..5F..SAL..GEN |
1 | ||
| 16461-43210 |
5M..MS132..MTM..GEN;5ME..MS133..5F..SAL..GEN |
1 | ||
| 16461-43210 |
5M..MS132..MTM..GEN;5ME..MS133..5F..SAL..GEN |
1 | ||
| 16461-43210 |
5M..MS132..MTM..GEN;5ME..MS133..5F..SAL..GEN |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-63030 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 16462-63030 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 16462-63030 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 16462-63030 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16463-15320 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
2 | ||
| 16463-15320 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
2 | ||
| 16463-15320 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
2 | ||
| 16463-15320 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
2 | ||

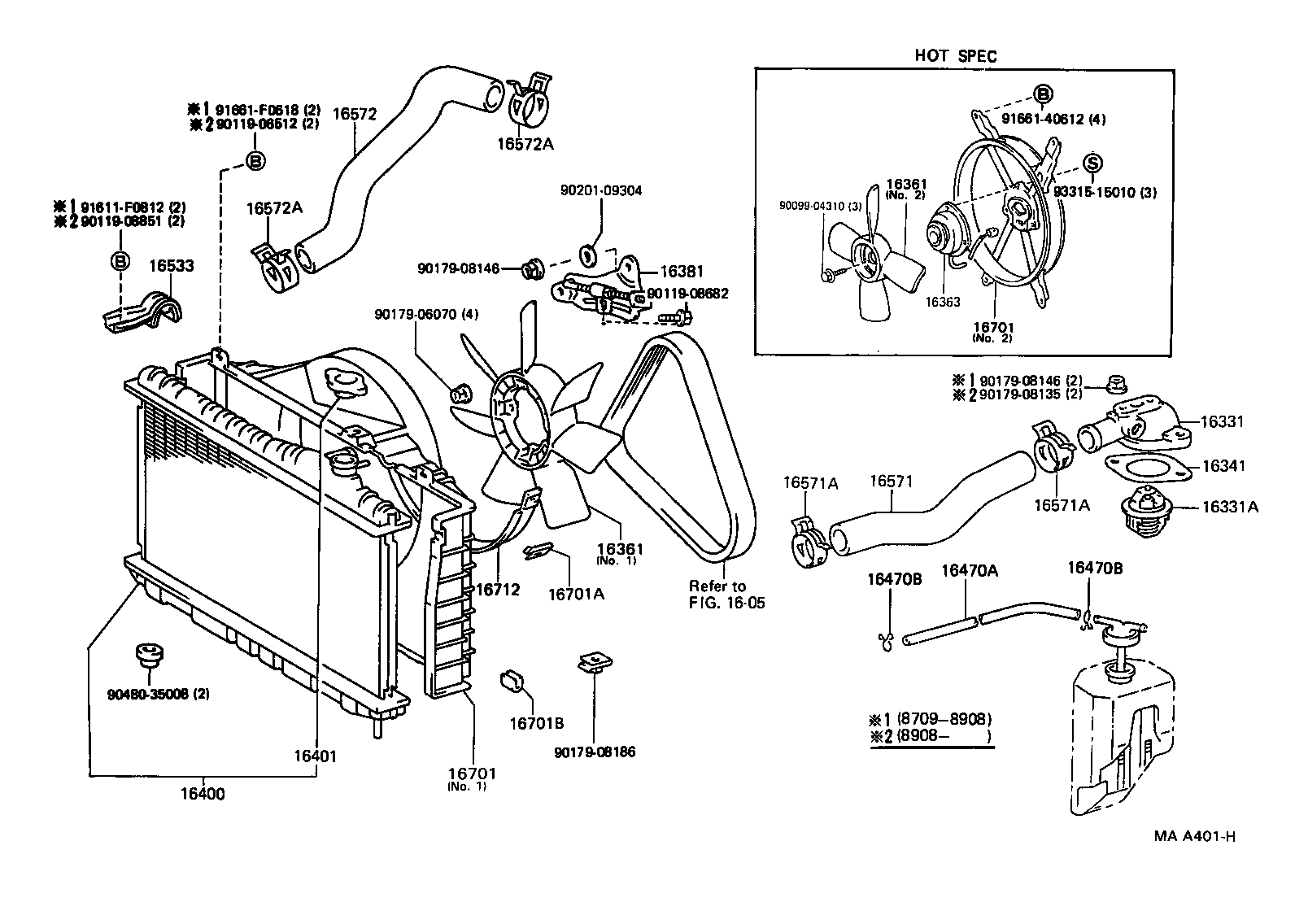

ILLUST NO. 3 OF 3(8709- )5M#,7MGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-43230 |
5M..MS132..LHD..MTM..GEN HOT AREA SPEC |
1 | ||
| 16400-43230 |
5M..MS132..LHD..MTM..GEN HOT AREA SPEC |
1 | ||
| 16400-43230 |
5M..MS132..LHD..MTM..GEN HOT AREA SPEC |
1 | ||
| 16400-43230 |
5M..MS132..LHD..MTM..GEN HOT AREA SPEC |
1 | ||
| 16400-43231 |
5M..MS132..MTM..GEN HOT AREA SPEC |
1 | ||
| 16400-43231 |
5M..MS132..MTM..GEN HOT AREA SPEC |
1 | ||
| 16400-43231 |
5M..MS132..MTM..GEN HOT AREA SPEC |
1 | ||
| 16400-43231 |
5M..MS132..MTM..GEN HOT AREA SPEC |
1 | ||
| 16400-43210 |
5M..MS132..4F;5M#..MS132,133..5F..SAL..GEN |
1 | ||
| 16400-43210 |
5M..MS132..4F;5M#..MS132,133..5F..SAL..GEN |
1 | ||
| 16400-43210 |
5M..MS132..4F;5M#..MS132,133..5F..SAL..GEN |
1 | ||
| 16400-43210 |
5M..MS132..4F;5M#..MS132,133..5F..SAL..GEN |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 23322-54010 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 23322-54010 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 23322-54010 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 96711-19007 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 96711-19007 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 96711-19007 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 16401-63010 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 16401-63010 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 16401-63010 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-43170 |
5M..MS132..4F;5M#,7MGE..MS13#..(DLX,ROY,SAL)..GEN |
1 | ||
| 16403-43170 |
5M..MS132..4F;5M#,7MGE..MS13#..(DLX,ROY,SAL)..GEN |
1 | ||
| 16403-43170 |
5M..MS132..4F;5M#,7MGE..MS13#..(DLX,ROY,SAL)..GEN |
1 | ||
| 16403-43170 |
5M..MS132..4F;5M#,7MGE..MS13#..(DLX,ROY,SAL)..GEN |
1 | ||
| 16403-43140 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
1 | ||
| 16403-43140 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
1 | ||
| 16403-43140 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
1 | ||
| 16403-43140 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-43210 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
1 | ||
| 16441-43210 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
1 | ||
| 16441-43210 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
1 | ||
| 16441-43210 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
1 | ||
| 16441-43210 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
1 | ||
| 16441-43210 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
1 | ||
| 16441-43210 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
1 | ||
| 16441-43210 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
1 | ||
| 16441-42180 |
5M..MS132..GEN HOT AREA SPEC,UPR |
1 | ||
| 16441-42180 |
5M..MS132..GEN HOT AREA SPEC,UPR |
1 | ||
| 16441-42180 |
5M..MS132..GEN HOT AREA SPEC,UPR |
1 | ||
| 16441-42180 |
5M..MS132..GEN HOT AREA SPEC,UPR |
1 | ||
| 16441-43230 |
5M..MS132..LHD..GEN HOT AREA SPEC |
1 | ||
| 16441-43230 |
5M..MS132..LHD..GEN HOT AREA SPEC |
1 | ||
| 16441-43230 |
5M..MS132..LHD..GEN HOT AREA SPEC |
1 | ||
| 16441-43230 |
5M..MS132..LHD..GEN HOT AREA SPEC |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16462-63030 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
1 | ||
| 16462-63030 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
1 | ||
| 16462-63030 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
1 | ||
| 16462-63030 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
1 | ||
| 16442-63030 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
1 | ||
| 16442-63030 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
1 | ||
| 16442-63030 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
1 | ||
| 16442-63030 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
1 | ||
| 16442-63030 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
1 | ||
| 16442-63030 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
1 | ||
| 16442-63030 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
1 | ||
| 16442-63030 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16443-15321 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
2 | ||
| 16443-15321 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
2 | ||
| 16443-15321 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
2 | ||
| 16443-15321 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
2 | ||
| 16443-15321 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
2 | ||
| 16443-15321 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
2 | ||
| 16443-15321 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
2 | ||
| 16443-15321 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
2 | ||
| 16463-15320 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
2 | ||
| 16463-15320 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
2 | ||
| 16463-15320 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
2 | ||
| 16463-15320 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16452-64070 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
1 | ||
| 16452-64070 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
1 | ||
| 16452-64070 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
1 | ||
| 16452-64070 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
1 | ||
| 16451-63030 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
1 | ||
| 16451-63030 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
1 | ||
| 16451-63030 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
1 | ||
| 16451-63030 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
1 | ||
| 16451-63030 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
1 | ||
| 16451-63030 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
1 | ||
| 16451-63030 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
1 | ||
| 16451-63030 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-63030 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
1 | ||
| 16452-63030 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
1 | ||
| 16452-63030 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
1 | ||
| 16452-63030 |
5M..MS132..4F;5M,7MGE..MS132,135..(DLX,ROY,SAL)..GEN |
1 | ||
| 16452-64070 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
1 | ||
| 16452-64070 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
1 | ||
| 16452-64070 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
1 | ||
| 16452-64070 |
5M,7MGE..MS132,135..LHD..GEN HOT AREA SPEC |
1 | ||
| 16452-63030 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
1 | ||
| 16452-63030 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
1 | ||
| 16452-63030 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
1 | ||
| 16452-63030 |
5ME..MS133..SAL..GEN;5M,7MGE..MS132,135..GEN |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-43210 |
5M..MS132..4F;5M#..MS132,133..5F..(DLX,SAL,SALEX) |
1 | ||
| 16461-43210 |
5M..MS132..4F;5M#..MS132,133..5F..(DLX,SAL,SALEX) |
1 | ||
| 16461-43210 |
5M..MS132..4F;5M#..MS132,133..5F..(DLX,SAL,SALEX) |
1 | ||
| 16461-43210 |
5M..MS132..4F;5M#..MS132,133..5F..(DLX,SAL,SALEX) |
1 | ||
| 16461-43231 |
5M..MS132..MTM..GEN HOT AREA SPEC,LWR |
1 | ||
| 16461-43231 |
5M..MS132..MTM..GEN HOT AREA SPEC,LWR |
1 | ||
| 16461-43231 |
5M..MS132..MTM..GEN HOT AREA SPEC,LWR |
1 | ||
| 16461-43231 |
5M..MS132..MTM..GEN HOT AREA SPEC,LWR |
1 | ||
| 16461-43210 |
5M..MS132..MTM..GEN;5ME..MS133..5F..SAL..GEN |
1 | ||
| 16461-43210 |
5M..MS132..MTM..GEN;5ME..MS133..5F..SAL..GEN |
1 | ||
| 16461-43210 |
5M..MS132..MTM..GEN;5ME..MS133..5F..SAL..GEN |
1 | ||
| 16461-43210 |
5M..MS132..MTM..GEN;5ME..MS133..5F..SAL..GEN |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-63030 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 16462-63030 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 16462-63030 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 16462-63030 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16463-15320 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
2 | ||
| 16463-15320 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
2 | ||
| 16463-15320 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
2 | ||
| 16463-15320 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
2 | ||
ILLUST NO. 1 OF 3(8709- )5M#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-43030 |
5M..MS132 |
1 | ||
| 16331-43030 |
5M..MS132..GEN |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03055 |
5M#,7MGE..MS13# *WAX 88-100 |
1 | ||
| 90916-03078 |
5M#,7MGE..MS13# *WAX 88-100 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38021 |
5M#..MS132,133 |
1 | ||
| 16341-41010 |
5M#..MS132,133 |
1 | ||
| 16361 - FAN | ||||
| 16361-41100 |
5M#..MS132,133;7MGE..MS135..GEN |
1 | ||
| 16361-41100 |
5M#,7MGE..MS13#..GEN |
1 | ||
| 16361 - FAN | ||||
| 16361-41100 |
5M#..MS132,133;7MGE..MS135..GEN |
1 | ||
| 16361-41100 |
5M#,7MGE..MS13#..GEN |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-43010 |
5M#..MS132,133 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-43230 |
5M..MS132..LHD..MTM..GEN HOT AREA SPEC |
1 | ||
| 16400-43231 |
5M..MS132..MTM..GEN HOT AREA SPEC |
1 | ||
| 16400-43210 |
5M..MS132..4F;5M#..MS132,133..5F..SAL..GEN |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 85343-30270 |
5M#,7MGE..MS13# |
1 | ||
| 85319-30280 |
5M#,7MGE..MS13# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
5M#,7MGE..MS13# |
1 | ||
| 90467-11085 |
5M#,7MGE..MS13# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
5M#,7MGE..MS13# |
1 | ||
| 90467-11085 |
5M#,7MGE..MS13# |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-41010 |
5M#,7MGE..MS13# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-41130 |
5M#..MS132,133 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
5M#,7MGE..MS13# RADIATOR SIDE |
1 | ||
| 90467-37002 |
5M#,7MGE..MS13# |
2 | ||
| 90467-37002 |
5M#,7MGE..MS13# OUTLET SIDE |
1 | ||
| 90467-37002 |
5M#,7MGE..MS13# WATER OUTLET SIDE |
1 | ||
| 90467-37002 |
5M#,7MGE..MS13# |
2 | ||
| 90467-37006 |
5M#,7MGE..MS13# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
5M#,7MGE..MS13# RADIATOR SIDE |
1 | ||
| 90467-37002 |
5M#,7MGE..MS13# |
2 | ||
| 90467-37002 |
5M#,7MGE..MS13# OUTLET SIDE |
1 | ||
| 90467-37002 |
5M#,7MGE..MS13# WATER OUTLET SIDE |
1 | ||
| 90467-37002 |
5M#,7MGE..MS13# |
2 | ||
| 90467-37006 |
5M#,7MGE..MS13# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-41120 |
5M#..MS132,133 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37001 |
5M#,7MGE..MS13# RADIATOR SIDE |
1 | ||
| 90467-37002 |
5M#,7MGE..MS13# WATER OUTLET SIDE |
1 | ||
| 90467-37002 |
5M#,7MGE..MS13# |
2 | ||
| 90467-37002 |
5M#,7MGE..MS13# |
2 | ||
| 90467-37002 |
5M#,7MGE..MS13# OUTLET SIDE |
1 | ||
| 90467-37006 |
5M#,7MGE..MS13# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37001 |
5M#,7MGE..MS13# RADIATOR SIDE |
1 | ||
| 90467-37002 |
5M#,7MGE..MS13# WATER OUTLET SIDE |
1 | ||
| 90467-37002 |
5M#,7MGE..MS13# |
2 | ||
| 90467-37002 |
5M#,7MGE..MS13# |
2 | ||
| 90467-37002 |
5M#,7MGE..MS13# OUTLET SIDE |
1 | ||
| 90467-37006 |
5M#,7MGE..MS13# |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-43030 |
5M#..MS132,133 |
1 | ||
| 16711-43030 |
5M#..MS132,133..GEN |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-43030 |
5M#..MS132,133 |
1 | ||
| 16711-43030 |
5M#..MS132,133..GEN |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
5M#,7MGE..MS13# |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-41080 |
5M#,7MGE..MS13# |
1 | ||
| Common parts | ||||
| 90099-04310 | ||||
| 90119-06512 | ||||
| 90119-08682 | ||||
| 90119-08851 | ||||
| 90179-06070 | ||||
| 90179-08135 | ||||
| 90179-08146 | ||||
| 90179-08186 | ||||
| 90201-09304 | ||||
| 90480-35008 | ||||
| 91611-F0812 | ||||
| 91661-40612 | ||||
| 91661-F0618 | ||||
| 93315-15010 | ||||
| Linked diagrams | ||||
| 1605 | ||||

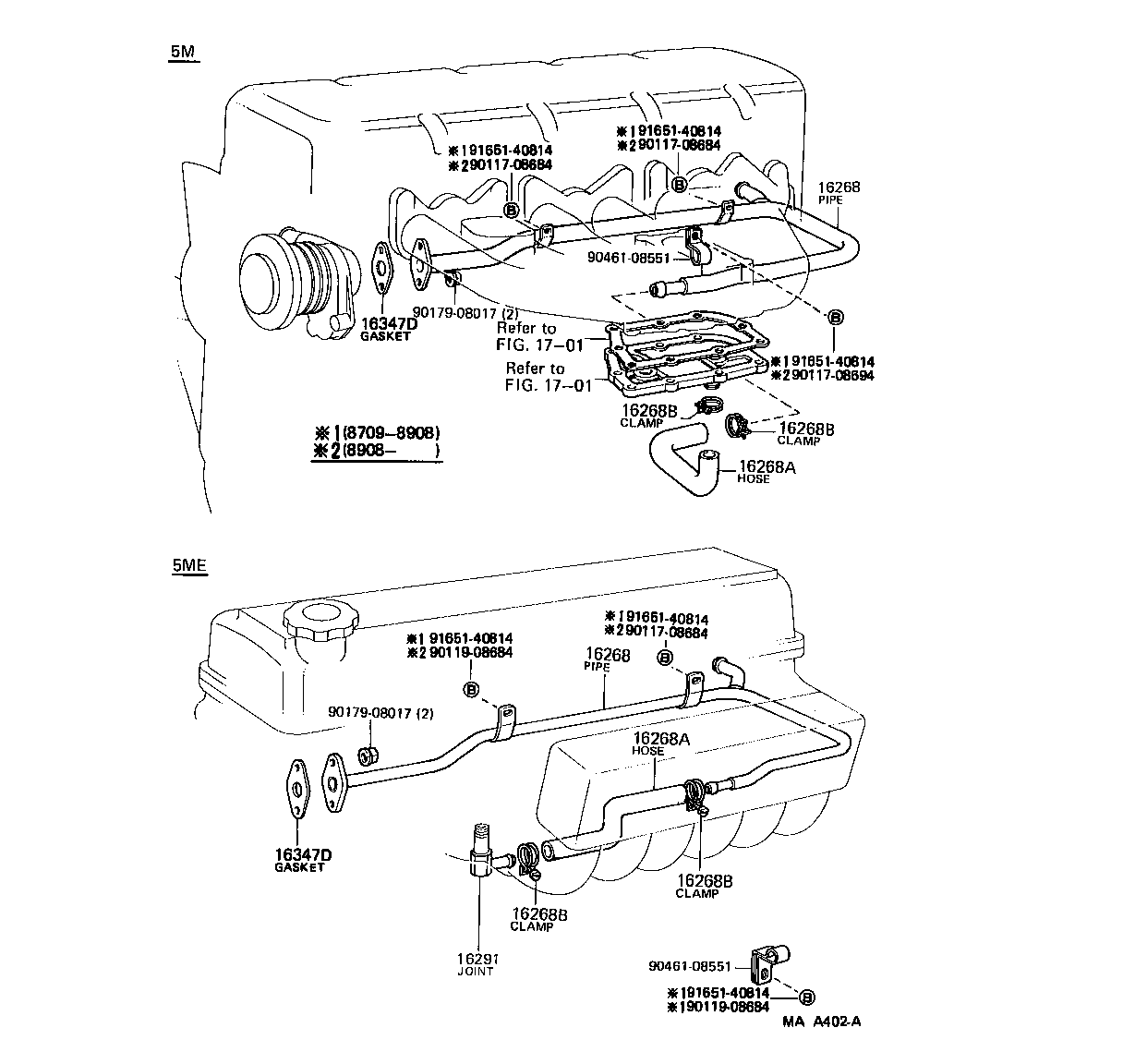

ILLUST NO. 2 OF 3(8709- )5M#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-41150 |
5M..MS132 |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-41150 |
5M..MS132 |
1 | ||
| 16268A - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 16264-45020 |
5M..MS132 |
1 | ||
| 16268A - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 16264-45020 |
5M..MS132 |
1 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96112-10220 |
5M#..MS132,133 |
2 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96112-10220 |
5M#..MS132,133 |
2 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96112-10220 |
5M#..MS132,133 |
2 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96112-10220 |
5M#..MS132,133 |
2 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-45010 |
5M#..MS132,133 |
1 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-45010 |
5M#..MS132,133 |
1 | ||
| Common parts | ||||
| 90117-08684 | ||||
| 90117-08694 | ||||
| 90119-08684 | ||||
| 90179-08017 | ||||
| 90461-08551 | ||||
| 91651-40814 | ||||
| Linked diagrams | ||||
| 1701 | ||||
ILLUST NO. 1 OF 3(8908- )2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-43030 |
5M..MS132 |
1 | ||
| 16331-43030 |
5M..MS132..GEN |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03055 |
5M#,7MGE..MS13# *WAX 88-100 |
1 | ||
| 90916-03078 |
5M#,7MGE..MS13# *WAX 88-100 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38021 |
5M#..MS132,133 |
1 | ||
| 16341-41010 |
5M#..MS132,133 |
1 | ||
| 16361 - FAN | ||||
| 16361-41100 |
5M#..MS132,133;7MGE..MS135..GEN |
1 | ||
| 16361-41100 |
5M#,7MGE..MS13#..GEN |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-43010 |
5M#..MS132,133 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-43230 |
5M..MS132..LHD..MTM..GEN HOT AREA SPEC |
1 | ||
| 16400-43231 |
5M..MS132..MTM..GEN HOT AREA SPEC |
1 | ||
| 16400-43210 |
5M..MS132..4F;5M#..MS132,133..5F..SAL..GEN |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
5M..MS132..4F;5M#,7MGE..MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 85343-30270 |
5M#,7MGE..MS13# |
1 | ||
| 85319-30280 |
5M#,7MGE..MS13# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
5M#,7MGE..MS13# |
1 | ||
| 90467-11085 |
5M#,7MGE..MS13# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
5M#,7MGE..MS13# |
1 | ||
| 90467-11085 |
5M#,7MGE..MS13# |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-41010 |
5M#,7MGE..MS13# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-41130 |
5M#..MS132,133 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
5M#,7MGE..MS13# RADIATOR SIDE |
1 | ||
| 90467-37002 |
5M#,7MGE..MS13# |
2 | ||
| 90467-37002 |
5M#,7MGE..MS13# OUTLET SIDE |
1 | ||
| 90467-37002 |
5M#,7MGE..MS13# WATER OUTLET SIDE |
1 | ||
| 90467-37002 |
5M#,7MGE..MS13# |
2 | ||
| 90467-37006 |
5M#,7MGE..MS13# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
5M#,7MGE..MS13# RADIATOR SIDE |
1 | ||
| 90467-37002 |
5M#,7MGE..MS13# |
2 | ||
| 90467-37002 |
5M#,7MGE..MS13# OUTLET SIDE |
1 | ||
| 90467-37002 |
5M#,7MGE..MS13# WATER OUTLET SIDE |
1 | ||
| 90467-37002 |
5M#,7MGE..MS13# |
2 | ||
| 90467-37006 |
5M#,7MGE..MS13# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-41120 |
5M#..MS132,133 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37001 |
5M#,7MGE..MS13# RADIATOR SIDE |
1 | ||
| 90467-37002 |
5M#,7MGE..MS13# WATER OUTLET SIDE |
1 | ||
| 90467-37002 |
5M#,7MGE..MS13# |
2 | ||
| 90467-37002 |
5M#,7MGE..MS13# |
2 | ||
| 90467-37002 |
5M#,7MGE..MS13# OUTLET SIDE |
1 | ||
| 90467-37006 |
5M#,7MGE..MS13# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37001 |
5M#,7MGE..MS13# RADIATOR SIDE |
1 | ||
| 90467-37002 |
5M#,7MGE..MS13# WATER OUTLET SIDE |
1 | ||
| 90467-37002 |
5M#,7MGE..MS13# |
2 | ||
| 90467-37002 |
5M#,7MGE..MS13# |
2 | ||
| 90467-37002 |
5M#,7MGE..MS13# OUTLET SIDE |
1 | ||
| 90467-37006 |
5M#,7MGE..MS13# |
2 | ||
| Common parts | ||||
| 90116-08366 | ||||
| 90119-08689 | ||||
| 90119-08694 | ||||
| 90119-08851 | ||||
| 90119-12224 | ||||
| 90179-06100 | ||||
| 90179-08150 | ||||
| 90339-16001 | ||||
| 90929-01074 | ||||
| 96112-10250 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 8706 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
