MS132L-AEKBS (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 5M
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )5M#

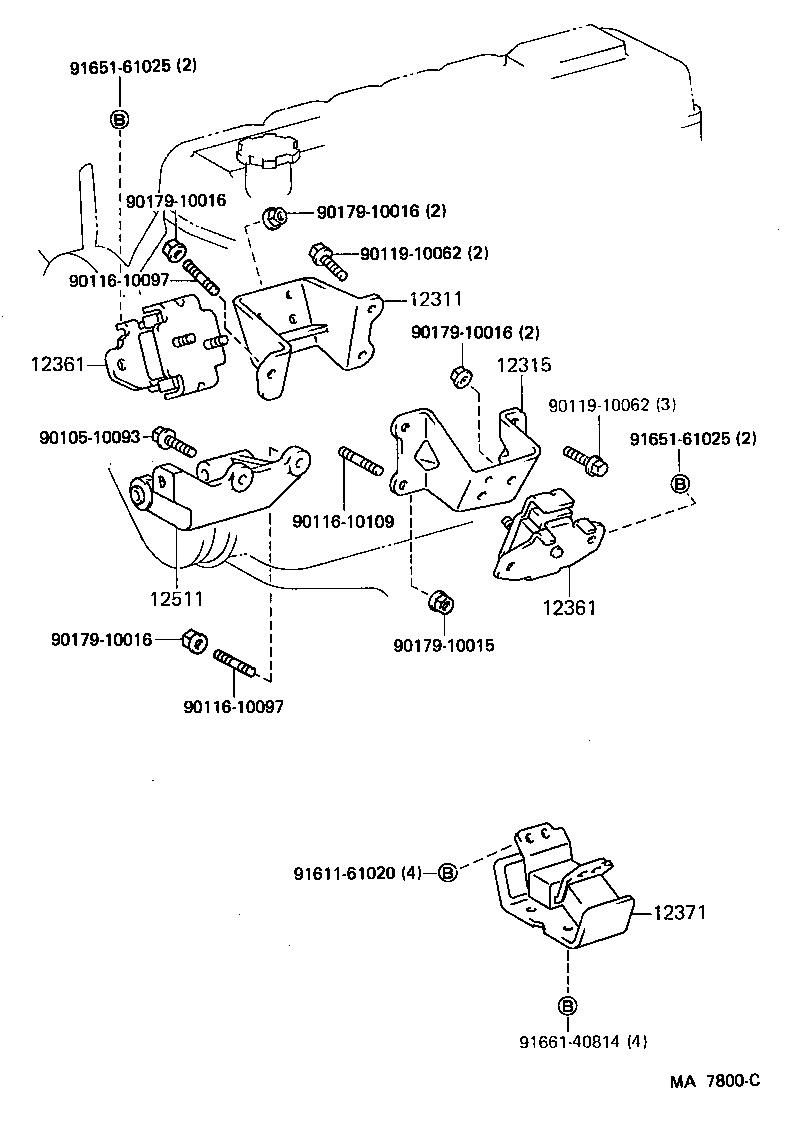

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12511 9010510093 9011610097 9011610097 9011610109 9011910062 9011910062 9017910015 9017910016 9017910016 9017910016 9017910016 9161161020 9165161025 9165161025 9166140814
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-41080

5M#,7MGE..MS13#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-41090

5M#,7MGE..MS13#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-41120

5M#,7MGE..MS13#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-41120

5M#,7MGE..MS13#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-41070

5M#,7MGE..MS13#

 1
12371-70030

5M#,7MGE..MS13#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-41050

5M#..MS132,133

 1
Common parts
90105-10093
90116-10097
90116-10109
90119-10062
90179-10015
90179-10016
91611-61020
91651-61025
91661-40814

(8709- )2L

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12381 12381 9017012008 9017012008 9161161020 9161161022 9161161025 9165261025 9165261025 9166140814 9411541200 9411541200 9451201200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-41080

5M#,7MGE..MS13#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-41090

5M#,7MGE..MS13#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-41120

5M#,7MGE..MS13#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-41120

5M#,7MGE..MS13#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-41070

5M#,7MGE..MS13#

 1
12371-70030

5M#,7MGE..MS13#

 1
Common parts
90170-12008
91611-61020
91611-61022
91611-61025
91652-61025
91661-40814
94115-41200
94512-01200
