MS125L-STPQFV (1985)

Toyota Crown

Production Sep 1985 - Aug 1987
Engine 6MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )HT

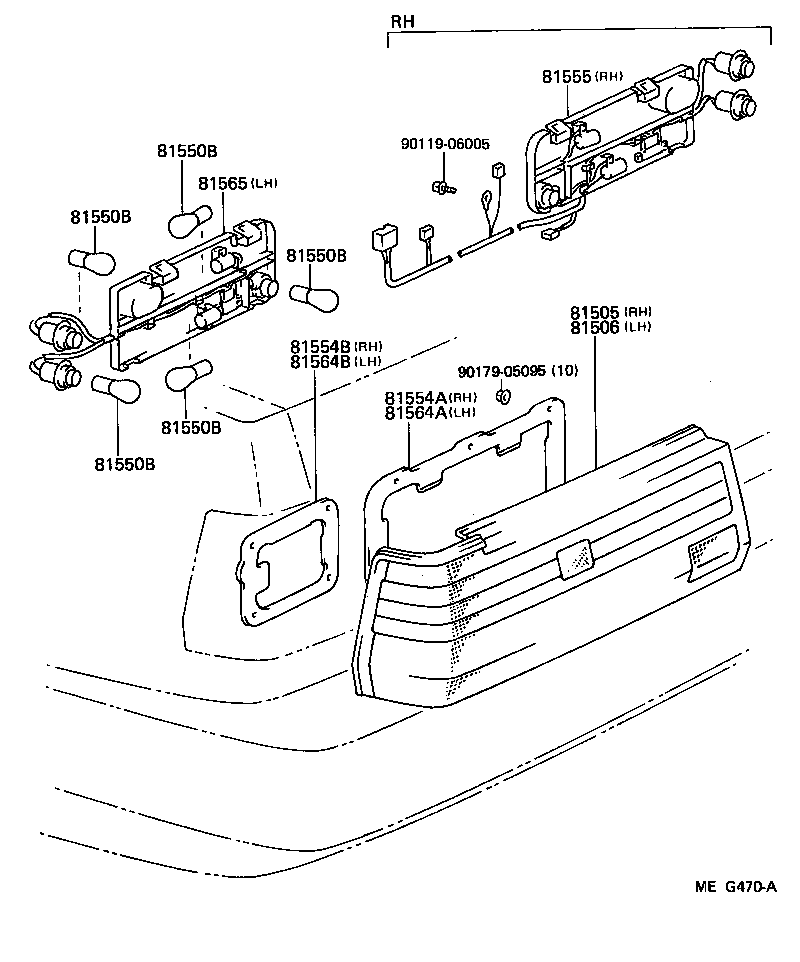

Click highlighted areas on diagram

diagram 81505 81506 81550B 81550B 81550B 81550B 81550B 81554A 81554B 81555 81564A 81564B 81565 9011906005 9017905095
Part # Description Qty Price
81505 - LAMP SUB-ASSY, REAR COMBINATION, RH
81505-39185

MS123,125..ROY

 1
81505-30180

MS122,125..HT

 1
81506 - LAMP SUB-ASSY, REAR COMBINATION, LH
81506-39165

MS123,125..ROY

 1
81506-30160

MS122,125..HT

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

LS120,MS12#,YS120

12V 21/5W,12V 21/5W(STOP & TAIL)

 4
99132-11230

LS120,MS12#,YS120..ARL,GEN,SAA

12V 23W,12V 23W(BACK & TURN)

 6
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

LS120,MS12#,YS120

12V 21/5W,12V 21/5W(STOP & TAIL)

 4
99132-11230

LS120,MS12#,YS120..ARL,GEN,SAA

12V 23W,12V 23W(BACK & TURN)

 6
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

LS120,MS12#,YS120

12V 21/5W,12V 21/5W(STOP & TAIL)

 4
99132-11230

LS120,MS12#,YS120..ARL,GEN,SAA

12V 23W,12V 23W(BACK & TURN)

 6
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

LS120,MS12#,YS120

12V 21/5W,12V 21/5W(STOP & TAIL)

 4
99132-11230

LS120,MS12#,YS120..ARL,GEN,SAA

12V 23W,12V 23W(BACK & TURN)

 6
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

LS120,MS12#,YS120

12V 21/5W,12V 21/5W(STOP & TAIL)

 4
99132-11230

LS120,MS12#,YS120..ARL,GEN,SAA

12V 23W,12V 23W(BACK & TURN)

 6
81554A - GASKET, REAR COMBINATION LAMP BODY, NO.1 RH
81554-30540

MS122,125..HT

 1
81554B - GASKET, REAR COMBINATION LAMP BODY, NO.2 RH
81556-30540

MS122,125..HT

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-30510

MS123,125..ROY

 1
81555-30541

MS122,125..HT

*LPL=SIDE LIGHTING

 1
81564A - GASKET, REAR COMBINATION LAMP BODY, NO.1 LH
81554-30540

MS122,125..HT

 1
81564B - GASKET, REAR COMBINATION LAMP BODY, NO.2 LH
81556-30540

MS122,125..HT

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-30480

MS123,125..ROY

 1
81565-30511

MS122,125..HT

 1
Common parts
90119-06005
90179-05095
