MS125L-SEPQF (1984)
Toyota Crown
Production
Oct 1984
-
Aug 1987
Engine
6MGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )LHD..ROY

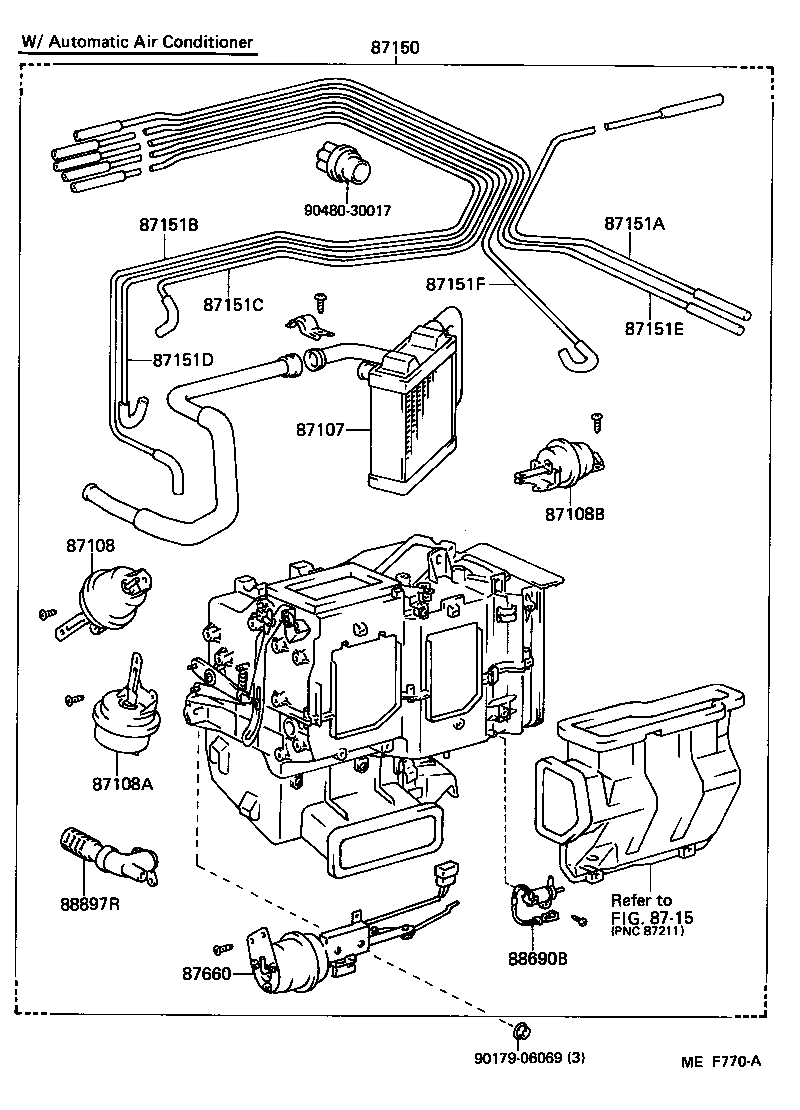

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-30370 |
LS120,MS12#,YS120..LHD |
1 | ||
| 87108 - DIAPHRAGM SUB-ASSY, HEATER DOOR CONTROL | ||||
| 87108-30410 |
LS120,MS12#,YS120..LHD |
1 | ||
| 87108A - DIAPHRAGM SUB-ASSY, VENTILATOR DOOR CONTROL | ||||
| 87108-30380 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD |
1 | ||
| 87108B - DIAPHRAGM SUB-ASSY, BI-LEVEL DOOR CONTROL | ||||
| 87108-30460 |
LS120,MS12#,YS120..LHD |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-30490 |
MS122,125..LHD..ROY |
1 | ||
| 87150-30460 |
MS12#..LHD..ROY |
1 | ||
| 87151A - HOSE, VACUUM, A | ||||
| 90447-04003 |
MS12#..LHD..ROY W/*AAC |
1 | ||
| 90447-04072 |
MS122,125..LHD..ROY W/*AAC |
1 | ||
| 87151B - HOSE, VACUUM, B | ||||
| 90447-04011 |
MS12#..ROY W/*AAC |
1 | ||
| 87151C - HOSE, VACUUM, C | ||||
| 90447-04015 |
MS12#..LHD..ROY W/*AAC |
1 | ||
| 87151D - HOSE, VACUUM, D | ||||
| 90447-04018 |
MS12#..ROY W/*AAC |
1 | ||
| 87151E - HOSE, VACUUM, E | ||||
| 90447-04074 |
MS12#..ROY W/*AAC |
1 | ||
| 90447-04019 |
MS12#..LHD..ROY W/*AAC |
1 | ||
| 87151F - HOSE, VACUUM, F | ||||
| 90447-04022 |
MS12#..LHD..ROY W/*AAC |
1 | ||
| 87660 - SERVO ASSY, AIR CONDITIONER | ||||
| 88660-30350 |
MS12#..LHD..ROY |
1 | ||
| 88690B - VALVE ASSY, COOLER MAGNET | ||||
| 88690-30600 |
MS12#..ROY |
1 | ||
| 88897R - ASPIRATOR | ||||
| 88897-30650 |
MS12#..LHD..ROY |
1 | ||
| Common parts | ||||
| 90179-06069 | ||||
| 90480-30017 | ||||
| Linked diagrams | ||||
| 8715 | ||||
