MS125L-SEPQF (1984)
Toyota Crown

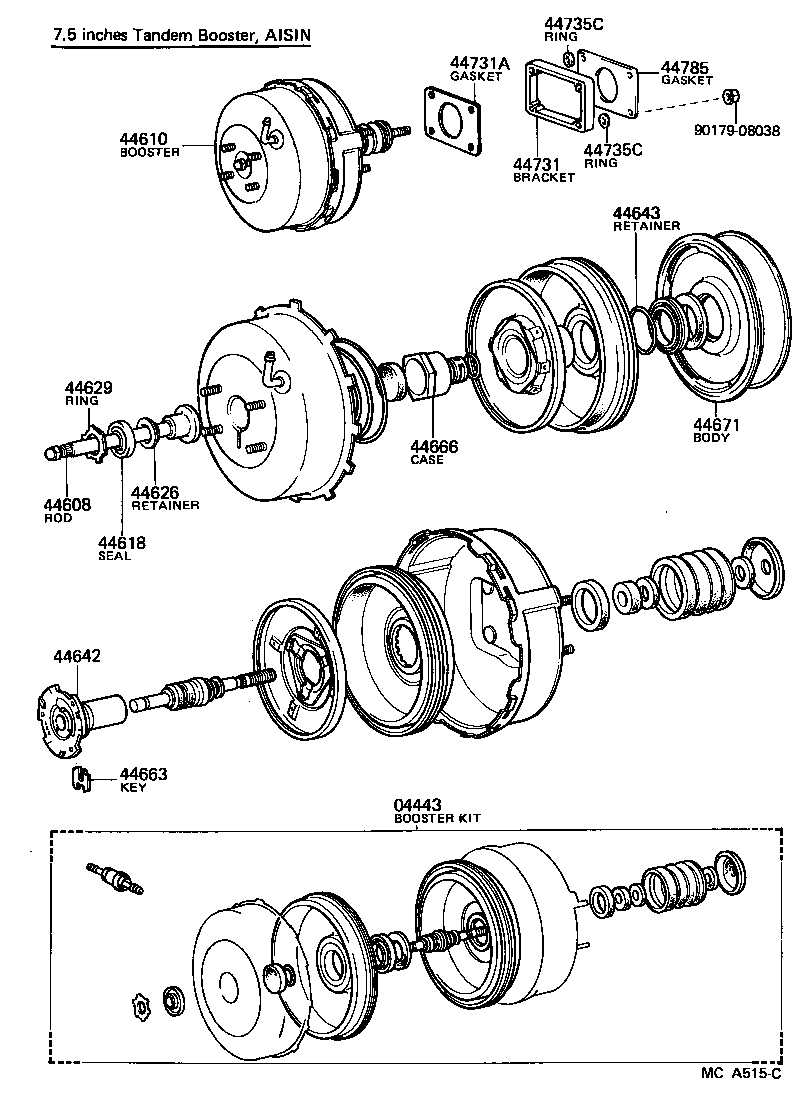

(8308-8509)MS123,125..LHD..EUG,GEN,SAA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-30390 |
MS123,125..LHD..(EUG,GEN,SAA) |
1 | ||
| 04443-30510 |
MS122,125..LHD |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-30460 |
MS123,125..LHD..(EUG,GEN,SAA) |
1 | ||
| 44608-20810 |
MS122,125..LHD |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-30570 |
MS122,125..LHD |
1 | ||
| 44610-30470 |
MS123,125..LHD..(EUG,GEN,SAA) |
1 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44621-14030 |
MS123,125..LHD..(EUG,GEN,SAA) |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-60010 |
MS123,125..LHD..(EUG,GEN,SAA) |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-60010 |
MS123,125..LHD..(EUG,GEN,SAA) |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-30340 |
MS123,125..LHD..(EUG,GEN,SAA) |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-30340 |
MS123,125..LHD..(EUG,GEN,SAA) |
1 | ||
| 44663 - KEY, VALVE STOPPER | ||||
| 44635-30340 |
MS123,125..LHD..(EUG,GEN,SAA) |
1 | ||
| 44666 - CASE, REACTION DISC | ||||
| 44657-30460 |
MS123,125..LHD..(EUG,GEN,SAA) |
1 | ||
| 44671 - BODY SUB-ASSY, NO.3 | ||||
| 44607-30460 |
MS123,125..LHD..(EUG,GEN,SAA) |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-30060 |
LS120,MS12#,YS120 |
1 | ||
| 44731A - GASKET, BRAKE BOOSTER BRACKET | ||||
| 44785-30020 |
LS120,MS12#,YS120 |
1 | ||
| 44735C - RING, BOOSTER BRACKET STOPPER | ||||
| 44735-30010 |
LS120,MS12#,YS120 |
2 | ||
| 44735C - RING, BOOSTER BRACKET STOPPER | ||||
| 44735-30010 |
LS120,MS12#,YS120 |
2 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-30020 |
LS120,MS12#,YS120 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||

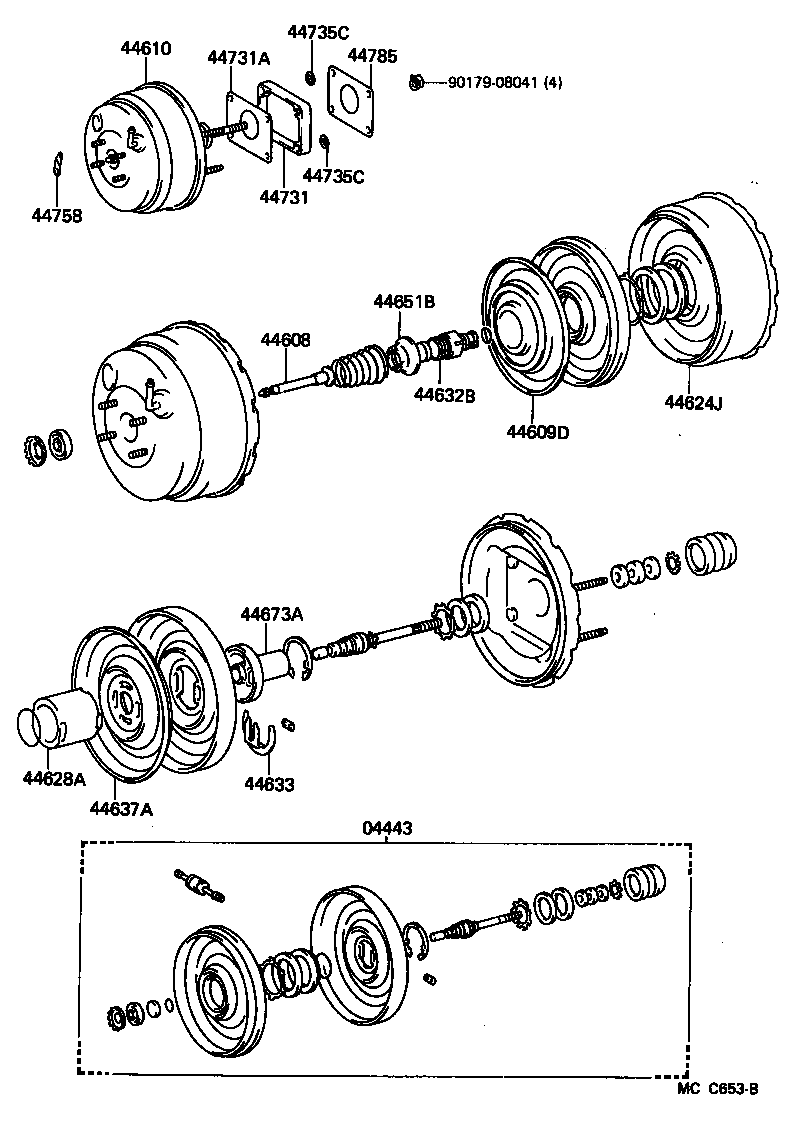

(8509- )MS122,125..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-30390 |
MS123,125..LHD..(EUG,GEN,SAA) |
1 | ||
| 04443-30510 |
MS122,125..LHD |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-30460 |
MS123,125..LHD..(EUG,GEN,SAA) |
1 | ||
| 44608-20810 |
MS122,125..LHD |
1 | ||
| 44609D - PLATE & RETAINER SUB-ASSY, BOOSTER | ||||
| 44609-28300 |
MS122,125..LHD |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-30570 |
MS122,125..LHD |
1 | ||
| 44610-30470 |
MS123,125..LHD..(EUG,GEN,SAA) |
1 | ||
| 44624J - PLATE, BOOSTER CENTER | ||||
| 44624-28300 |
MS122,125..LHD |
1 | ||
| 44628A - BODY, BOOSTER CENTER | ||||
| 44628-20810 |
MS122,125..LHD |
1 | ||
| 44632B - HUB, BOOSTER REACTION DISK | ||||
| 44632-30550 |
MS122,125..LHD |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-20811 |
MS122,125..LHD |
1 | ||
| 44637A - PLATE, BOOSTER DIAPHRAGM | ||||
| 44637-28300 |
MS122,125..LHD |
1 | ||
| 44651B - NUT, BOOSTER | ||||
| 44651-20810 |
MS122,125..LHD |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-20810 |
MS122,125..LHD |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-30060 |
LS120,MS12#,YS120 |
1 | ||
| 44731A - GASKET, BRAKE BOOSTER BRACKET | ||||
| 44785-30020 |
LS120,MS12#,YS120 |
1 | ||
| 44735C - RING, BOOSTER BRACKET STOPPER | ||||
| 44735-30010 |
LS120,MS12#,YS120 |
2 | ||
| 44735C - RING, BOOSTER BRACKET STOPPER | ||||
| 44735-30010 |
LS120,MS12#,YS120 |
2 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-30090 |
MS122,125..LHD |
1 | ||
| 44758-30080 |
MS123,125..LHD |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-30020 |
LS120,MS12#,YS120 |
1 | ||
| Common parts | ||||
| 90179-08041 | ||||
