MS125L-SEPQF (1984)

Toyota Crown

Production Oct 1984 - Aug 1987
Engine 6MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )MS125

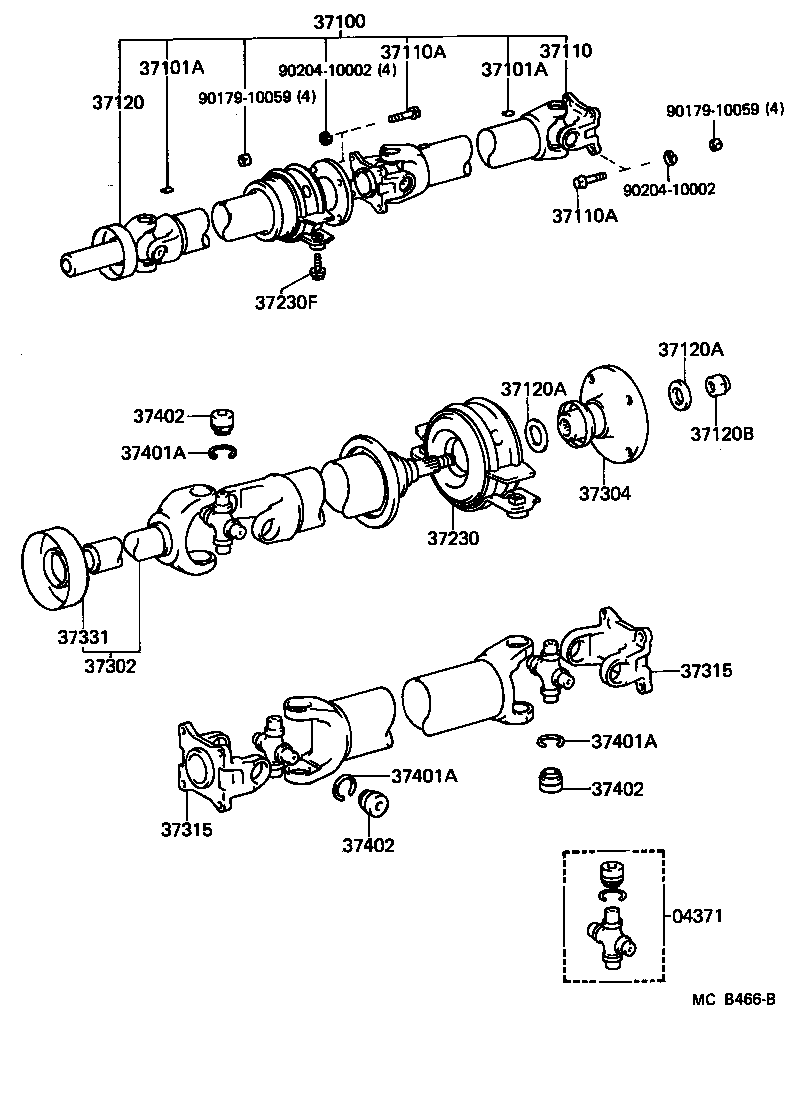

Click highlighted areas on diagram

diagram 04371 37100 37101A 37101A 37110 37110A 37110A 37120 37120A 37120A 37120B 37230 37230F 37302 37304 37315 37315 37331 37401A 37401A 37401A 37402 37402 37402 9017910059 9017910059 9020410002 9020410002
Part # Description Qty Price
04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)
04371-30020

MS125

 3
37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING
37100-30200

MS125

 1
37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
90937-01153

LS120,MS12#,YS120

16G,L=33.2,16G

 1
90937-01136

LS120,MS12#,YS120

20G,L=41.4,20G

 1
90937-01140

LS120,MS12#,YS120

30G,L=62.2,30G

 1
90937-01154

LS120,MS12#,YS120

18G,L=37.3,18G

 1
90937-01156

LS120,MS12#,YS120

24G,L=49.7,24G

 1
90937-01158

LS120,MS12#,YS120

28G,L=58.1,28G

 1
90937-01155

LS120,MS12#,YS120

22G,L=45.6,22G

 1
90937-01147

LS120,MS12#,YS120

2G,T=2.0,2G

 1
90937-01148

LS120,MS12#,YS120

4G,T=2.0,4G

 1
90937-01157

LS120,MS12#,YS120

26G,L=53.9,26G

 1
90937-01151

LS120,MS12#,YS120

12G,L=24.9,12G

 1
90937-01152

LS120,MS12#,YS120

14G,L=29.0,14G

 1
90937-01150

LS120,MS12#,YS120

8G,L=16.6,8G

 1
90937-01132

LS120,MS12#,YS120

10G,L=20.7,10G

 1
90937-01149

LS120,MS12#,YS120

6G,L=12.4,6G

 1
37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
90937-01153

LS120,MS12#,YS120

16G,L=33.2,16G

 1
90937-01136

LS120,MS12#,YS120

20G,L=41.4,20G

 1
90937-01140

LS120,MS12#,YS120

30G,L=62.2,30G

 1
90937-01154

LS120,MS12#,YS120

18G,L=37.3,18G

 1
90937-01156

LS120,MS12#,YS120

24G,L=49.7,24G

 1
90937-01158

LS120,MS12#,YS120

28G,L=58.1,28G

 1
90937-01155

LS120,MS12#,YS120

22G,L=45.6,22G

 1
90937-01147

LS120,MS12#,YS120

2G,T=2.0,2G

 1
90937-01148

LS120,MS12#,YS120

4G,T=2.0,4G

 1
90937-01157

LS120,MS12#,YS120

26G,L=53.9,26G

 1
90937-01151

LS120,MS12#,YS120

12G,L=24.9,12G

 1
90937-01152

LS120,MS12#,YS120

14G,L=29.0,14G

 1
90937-01150

LS120,MS12#,YS120

8G,L=16.6,8G

 1
90937-01132

LS120,MS12#,YS120

10G,L=20.7,10G

 1
90937-01149

LS120,MS12#,YS120

6G,L=12.4,6G

 1
37110 - SHAFT ASSY, PROPELLER
37110-30100

MS125

 1
37110A - BOLT (FOR PROPELLER SHAFT)
90105-10085

MS125

*10-1.00PX27-13

 8
37110A - BOLT (FOR PROPELLER SHAFT)
90105-10085

MS125

*10-1.00PX27-13

 8
37120 - SHAFT ASSY, PROPELLER INTERMEDIATE
37120-30200

MS125

 1
37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)
90201-18182

LS120,MS12#;YS120..4F,5F

OD=33.5,T=4.0,OD=33.5,T=4

 1
37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)
90201-18182

LS120,MS12#;YS120..4F,5F

OD=33.5,T=4.0,OD=33.5,T=4

 1
37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
90179-18060

LS120,MS12#;YS120..4F,5F

 1
37230 - BEARING ASSY, CENTER SUPPORT, NO.1
37230-30060

MS123,125..ATM

 1
37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING)
90119-10046

LS120,MS12#;YS120..4F,5F

 2
37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37302-30030

MS125

 1
37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT
37304-35041

MS125

 1
37304-22012

LS120,MS12#

 1
37315 - YOKE, UNIVERSAL JOINT FLANGE
37315-35040

MS125

 2
37315 - YOKE, UNIVERSAL JOINT FLANGE
37315-35040

MS125

 2
37331 - COVER, SLIDING SHAFT DUST
37331-40010

MS125

 1
37401A - RING, HOLE SNAP (FOR SPIDER BEARING)
90520-26234

MS125

T=1.55,T=1.55

 12
90520-26233

MS125

T=1.50,OD=32.4,T=1.50

 12
90520-26235

MS125

T=1.60,T=1.60

 12
37401A - RING, HOLE SNAP (FOR SPIDER BEARING)
90520-26234

MS125

T=1.55,T=1.55

 12
90520-26233

MS125

T=1.50,OD=32.4,T=1.50

 12
90520-26235

MS125

T=1.60,T=1.60

 12
37401A - RING, HOLE SNAP (FOR SPIDER BEARING)
90520-26234

MS125

T=1.55,T=1.55

 12
90520-26233

MS125

T=1.50,OD=32.4,T=1.50

 12
90520-26235

MS125

T=1.60,T=1.60

 12
37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
37402-30020

MS125

RED RAINTED

 12
37402-30010

MS125

 12
37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
37402-30020

MS125

RED RAINTED

 12
37402-30010

MS125

 12
37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
37402-30020

MS125

RED RAINTED

 12
37402-30010

MS125

 12
Common parts
90179-10059
90204-10002
