MS125L-SEPQF (1984)
Toyota Crown
Production
Oct 1984
-
Aug 1987
Engine
6MGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8410- )MS125

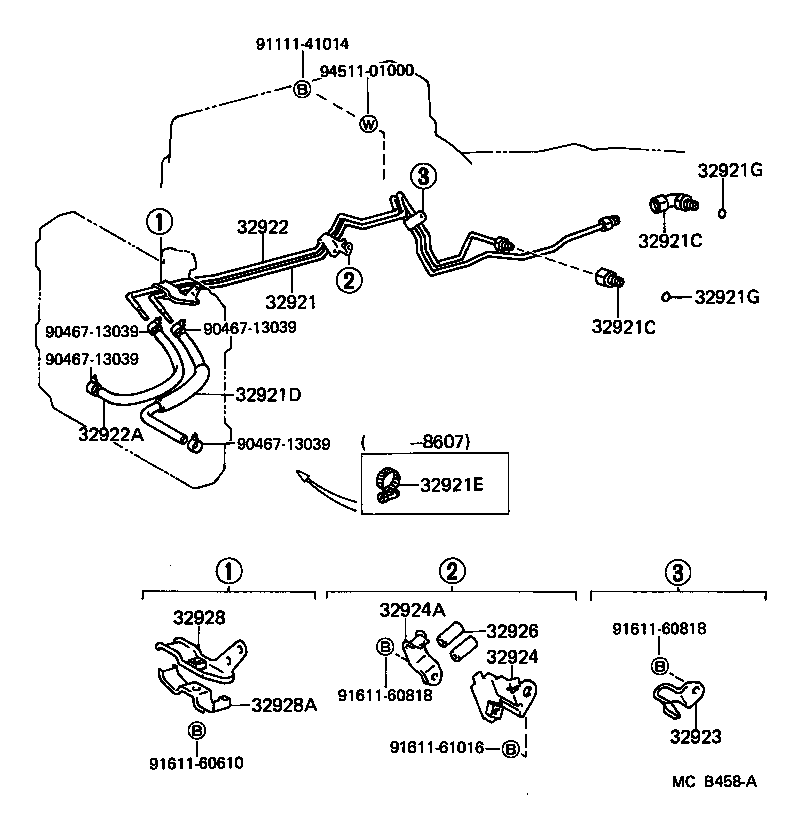

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-30320 |
MS125 |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16009 |
MS125 OUTLEL |
1 | ||
| 90404-16020 |
MS125 INLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16009 |
MS125 OUTLEL |
1 | ||
| 90404-16020 |
MS125 INLET |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32942-30030 |
MS125 |
1 | ||
| 32942-22060 |
MS125 |
1 | ||
| 32921E - CLAMP, HOSE(FOR OIL COOLER) | ||||
| 90460-18002 |
MS125 |
4 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
MS125 |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
MS125 |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-30320 |
MS125 |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-16022 |
MS125 |
1 | ||
| 90445-15015 |
MS125 |
1 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32923-30120 |
MS125 |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32924-30120 |
MS125 |
1 | ||
| 32924A - CLAMP(FOR OIL COOLER TUBE, NO.2) | ||||
| 32929-30110 |
MS125 |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
MS125 L=35,ID=10 |
2 | ||
| 32928 - CLAMP, FLEXIBLE HOSE, NO.1 | ||||
| 15781-42020 |
MS125 |
1 | ||
| 32928A - CLAMP(FOR FLEXIBLE HOSE CLAMP) | ||||
| 90929-01043 |
MS125 |
1 | ||
| Common parts | ||||
| 90467-13039 | ||||
| 91111-41014 | ||||
| 91611-60610 | ||||
| 91611-60818 | ||||
| 91611-61016 | ||||
| 94511-01000 | ||||
