MS125L-SEPQF (1984)
Toyota Crown
Production
Oct 1984
-
Aug 1987
Engine
6MGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8410- )MS125

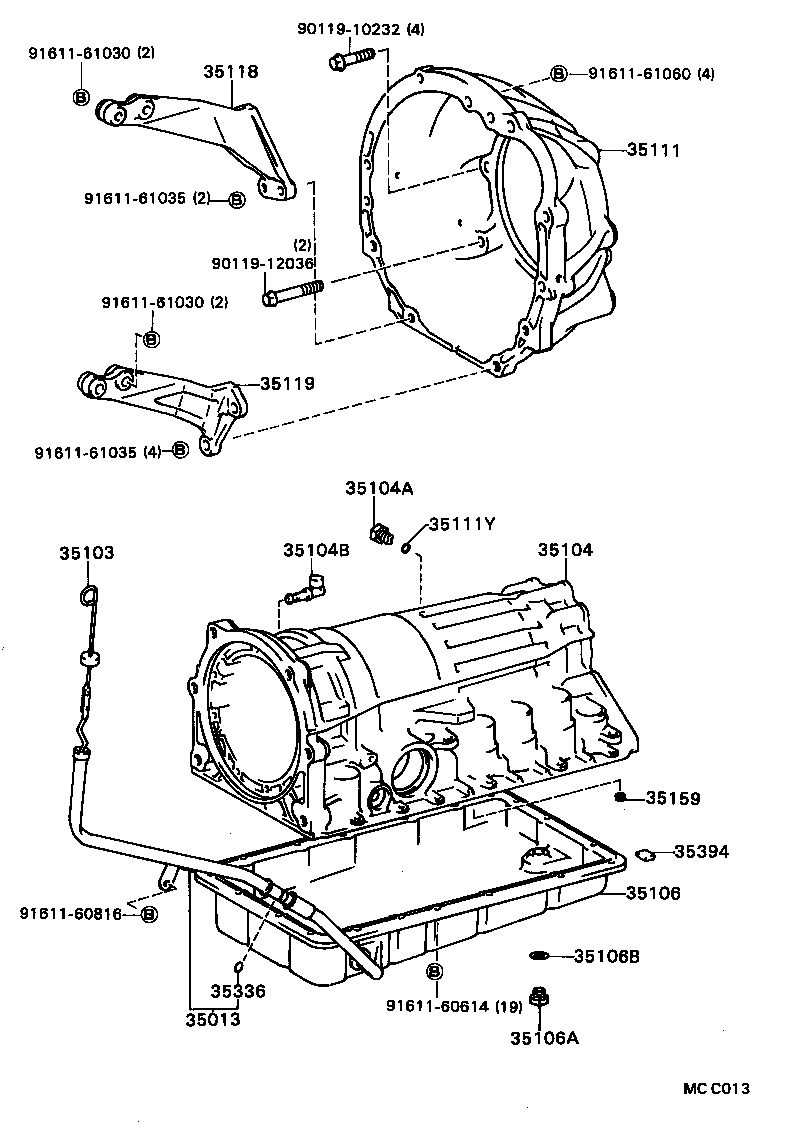

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-30140 |
MS125..LHD |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-30160 |
MS125..LHD |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-26020 |
MS12#..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35104-30131 |
MS125 |
1 | ||
| 35104-30132 |
MS125 |
1 | ||
| 35104-30133 |
MS125 |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
MS12#..ATM |
2 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03108 |
MS12#..ATM |
1 | ||
| 90930-03069 |
MS12#..ATM |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-30110 |
MS125..LHD |
1 | ||
| 35106-30080 |
MS125..LHD |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10006 |
MS12#..ATM |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
MS12#..ATM |
1 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-24020 |
MS125 |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
MS12#..ATM |
2 | ||
| 35118 - PLATE, STIFENER, RH (ATM) | ||||
| 33118-22040 |
MS12#..ATM |
1 | ||
| 33118-22060 |
MS12#..ATM |
1 | ||
| 35119 - PLATE, STIFENER, LH (ATM) | ||||
| 33119-22030 |
MS12#..ATM |
1 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-32010 |
MS125 |
1 | ||
| 35159-30010 |
MS125 |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
MS12#..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
MS12#..ATM |
4 | ||
| Common parts | ||||
| 90119-10232 | ||||
| 90119-12036 | ||||
| 91611-60614 | ||||
| 91611-60816 | ||||
| 91611-61030 | ||||
| 91611-61035 | ||||
| 91611-61060 | ||||
