MS125L-SEPQF (1984)
Toyota Crown
(8308-8509)5MGE,6MGE ; (8509- )6MGE

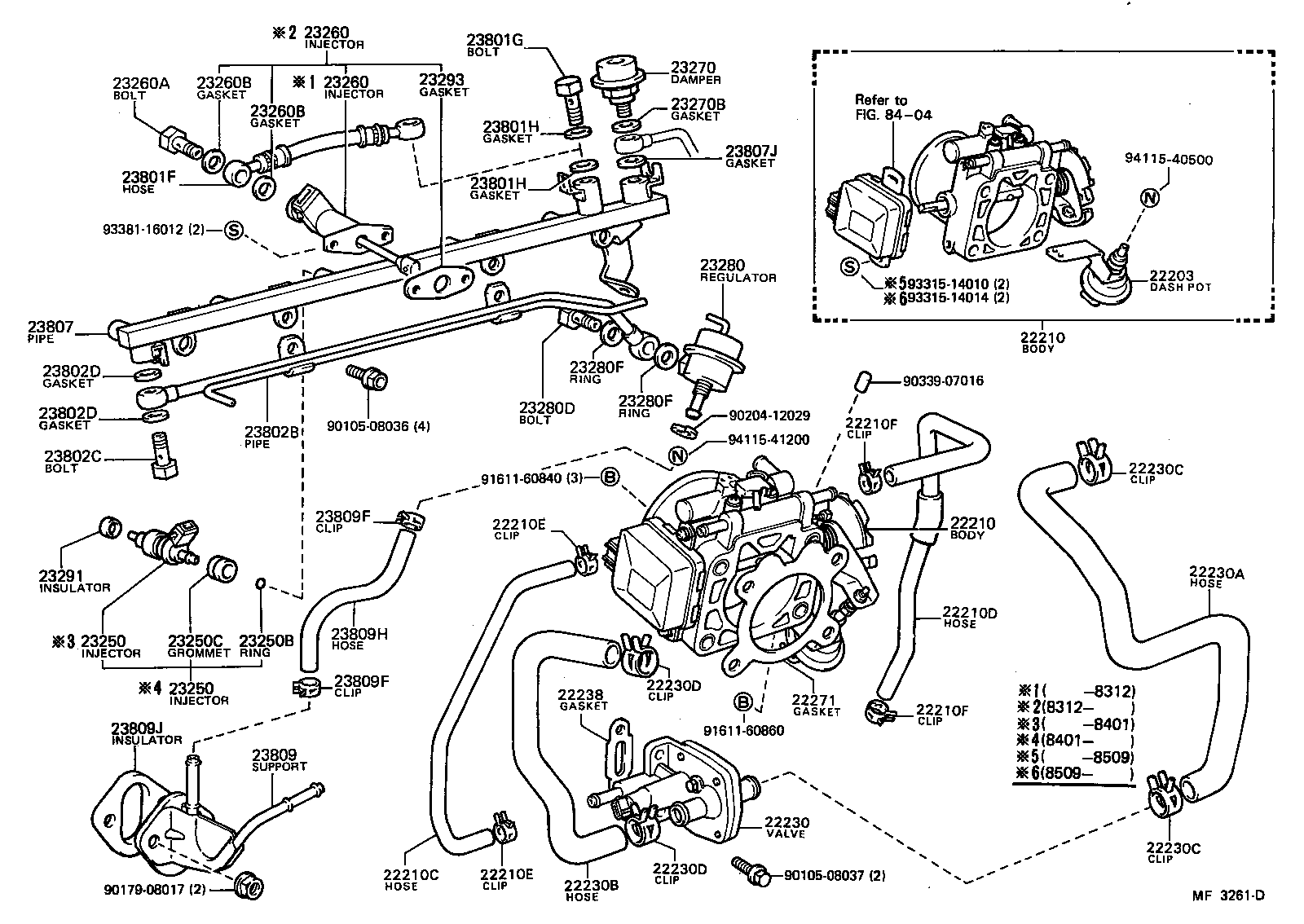

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY) | ||||
| 22203-43030 |
5MGE,6MGE..MS123,125..LHD |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-42040 |
6MGE..MS125..LHD |
1 | ||
| 22210-42050 |
6MGE..MS125..LHD |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-42040 |
6MGE..MS125..LHD |
1 | ||
| 22210-42050 |
6MGE..MS125..LHD |
1 | ||
| 22210C - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-43020 |
6MGE..MS125 |
1 | ||
| 16261-43020 |
5MGE,6MGE..MS123,125 |
1 | ||
| 22210D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-43021 |
5MGE,6MGE..MS123,125 |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13001 |
5ME,5MGE,6MGE..MS12# |
2 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13001 |
5ME,5MGE,6MGE..MS12# |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13001 |
5ME,5MGE,6MGE..MS12# |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13001 |
5ME,5MGE,6MGE..MS12# |
2 | ||
| 22230 - VALVE ASSY, AUXILIARY AIR | ||||
| 22230-43010 |
5MGE,6MGE..MS123,125 |
1 | ||
| 22230-43010 |
6MGE..MS125 |
1 | ||
| 22230A - HOSE, AUXILIARY AIR VALVE, NO.1 | ||||
| 17341-43030 |
5MGE,6MGE..MS123,125 |
1 | ||
| 17341-43030 |
6MGE..MS125 |
1 | ||
| 22230B - HOSE, AUXILIARY AIR VALVE, NO.2 | ||||
| 17342-43020 |
5MGE,6MGE..MS123,125 |
1 | ||
| 17342-43020 |
6MGE..MS125 |
1 | ||
| 22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1 | ||||
| 90467-23003 |
6MGE..MS125 ID=23.0 |
1 | ||
| 90467-21001 |
5MGE,6MGE..MS123,125 ID=20.8 |
1 | ||
| 90467-23003 |
5MGE,6MGE..MS123,125 ID=23.0 |
1 | ||
| 90467-21001 |
6MGE..MS125 ID=20.8 |
1 | ||
| 22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1 | ||||
| 90467-23003 |
6MGE..MS125 ID=23.0 |
1 | ||
| 90467-21001 |
5MGE,6MGE..MS123,125 ID=20.8 |
1 | ||
| 90467-23003 |
5MGE,6MGE..MS123,125 ID=23.0 |
1 | ||
| 90467-21001 |
6MGE..MS125 ID=20.8 |
1 | ||
| 22230D - CLIP, AUXILIARY AIR VALVE HOSE, NO.2 | ||||
| 90467-23003 |
5MGE,6MGE..MS123,125 |
2 | ||
| 90467-23003 |
6MGE..MS125 |
2 | ||
| 22230D - CLIP, AUXILIARY AIR VALVE HOSE, NO.2 | ||||
| 90467-23003 |
5MGE,6MGE..MS123,125 |
2 | ||
| 90467-23003 |
6MGE..MS125 |
2 | ||
| 22238 - GASKET, AUXILIARY AIR VALVE | ||||
| 22238-43010 |
5MGE,6MGE..MS123,125 |
1 | ||
| 22238-43010 |
6MGE..MS125 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-43010 |
5MGE,6MGE..MS123,125 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-43010 |
5ME,6MGE..MS122,125 |
6 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-43010 |
5ME,6MGE..MS122,125 |
6 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
5ME,5MGE,6MGE..MS12# |
6 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
5ME,5MGE,6MGE..MS12# |
6 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-49065 |
6MGE..MS125 |
1 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-49065 |
6MGE..MS125 |
1 | ||
| 23260A - BOLT, UNION | ||||
| 90401-10008 |
5ME,5MGE,6MGE..MS12# |
1 | ||
| 23260B - GASKET | ||||
| 90099-01459 |
5ME,5MGE,6MGE..MS12# |
2 | ||
| 23260B - GASKET | ||||
| 90099-01459 |
5ME,5MGE,6MGE..MS12# |
2 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-35010 |
5MGE,6MGE..MS123,125 |
1 | ||
| 23270-42010 |
5MGE,6MGE..MS123,125 |
1 | ||
| 23270-43010 |
5MGE,6MGE..MS123,125 |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-17002 |
5ME,5MGE,6MGE..MS12# DAMPER SIDE |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-43020 |
5MGE,6MGE..MS123,125 |
1 | ||
| 23280D - BOLT, UNION(FOR FUEL PIPE OR HOSE SET) | ||||
| 90401-12097 |
5ME,5MGE,6MGE..MS12# |
1 | ||
| 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) | ||||
| 90430-12005 |
5ME,5MGE,6MGE..MS12# |
2 | ||
| 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) | ||||
| 90430-12005 |
5ME,5MGE,6MGE..MS12# |
2 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
5ME,5MGE,6MGE..MS12# |
6 | ||
| 23293 - GASKET, COLD START INJECTOR | ||||
| 23293-43010 |
5MGE,6MGE..MS123,125 |
1 | ||
| 23801F - HOSE, FUEL, NO.1 | ||||
| 90923-01249 |
6MGE..MS125 |
1 | ||
| 90923-01249 |
5MGE,6MGE..MS123,125 |
1 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-10008 |
5MGE,6MGE..MS123,125 |
1 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-10204 |
5MGE,6MGE..MS123,125 |
2 | ||
| 90099-01459 |
5MGE,6MGE..MS123,125 |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-10204 |
5MGE,6MGE..MS123,125 |
2 | ||
| 90099-01459 |
5MGE,6MGE..MS123,125 |
2 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-43010 |
5MGE,6MGE..MS123,125 |
1 | ||
| 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) | ||||
| 90401-12097 |
5ME,5MGE,6MGE..MS12# |
1 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-12005 |
5ME,5MGE,6MGE..MS12# |
2 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-12005 |
5ME,5MGE,6MGE..MS12# |
2 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23814-43020 |
5MGE,6MGE..MS123,125 |
1 | ||
| 23807J - GASKET, PIPE FUEL DELIVARY INLET | ||||
| 90430-14002 |
5ME,5MGE,6MGE..MS12# |
1 | ||
| 23809 - SUPPORT SUB-ASSY, FUEL PIPE | ||||
| 23849-41050 |
5ME,5MGE,6MGE..MS12# |
1 | ||
| 23809F - CLIP(FOR FUEL PIPE SUPPORT) | ||||
| 90467-13001 |
5ME,5MGE,6MGE..MS12# |
2 | ||
| 23809F - CLIP(FOR FUEL PIPE SUPPORT) | ||||
| 90467-13001 |
5ME,5MGE,6MGE..MS12# |
2 | ||
| 23809H - HOSE, FUEL PIPE SUPPORT TO REGULATOR | ||||
| 23271-43050 |
5MGE,6MGE..MS123,125 |
1 | ||
| 23809J - INSULATOR, FUEL PIPE SUPPORT | ||||
| 90923-06007 |
5ME,5MGE,6MGE..MS12# |
1 | ||
| Common parts | ||||
| 90105-08036 | ||||
| 90105-08037 | ||||
| 90179-08017 | ||||
| 90204-12029 | ||||
| 90339-07016 | ||||
| 91611-60840 | ||||
| 91611-60860 | ||||
| 93315-14010 | ||||
| 93315-14014 | ||||
| 93381-16012 | ||||
| 94115-40500 | ||||
| 94115-41200 | ||||
| Linked diagrams | ||||
| 8404 | ||||
