MS125L-SEPQF (1984)

Toyota Crown

Production Oct 1984 - Aug 1987
Engine 6MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8509)5MGE..EUG ; (8410- )6MGE

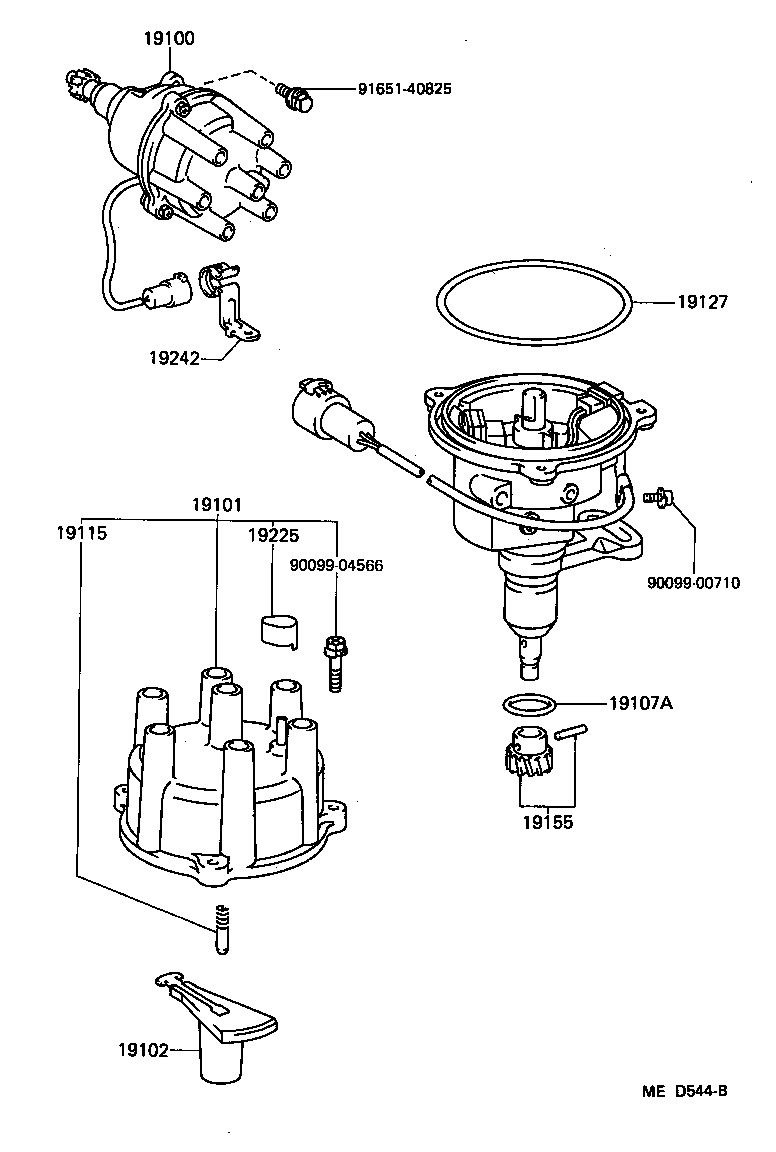

Click highlighted areas on diagram

diagram 19100 19101 19102 19107A 19115 19127 19155 19225 19242 9009900710 9009904566 9165140825
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-43120

6MGE..MS125;5MGE..MS123..EUG

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-70011

6MGE..MS125

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-43110

6MGE..MS125

 1
19102-43110

6MGE..MS125

 1
19102-43120

6MGE..MS125

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14018

5M#,6MGE..MS12#

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

5M#,6MGE..MS12#

 1
19127 - PACKING, DUST PROOF
19127-52020

5MGE,6MGE..MS123,125

 1
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-43060

5MGE,6MGE..MS123,125

 1
19225 - CAP, RUBBER
19225-41140

5M#,6MGE..MS12#

 1
19242 - CLAMP, CORD
90929-01042

6MGE..MS125;5MGE..MS123..EUG

 1
Common parts
90099-00710
90099-04566
91651-40825
