MS125L-SEPQF (1984)

Toyota Crown

Production Oct 1984 - Aug 1987
Engine 6MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )6MGE

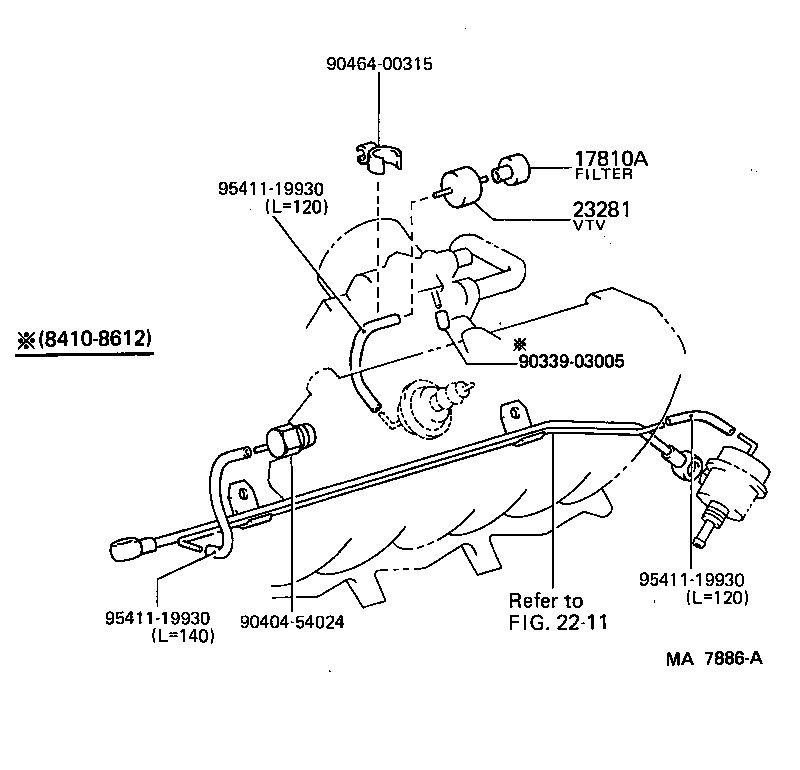

Click highlighted areas on diagram

diagram 17810A 2211 23281 9033903005 9040454024 9046400315 9541119930 9541119930 9541119930
Part # Description Qty Price
17810A - FILTER ASSY, AIR
90925-06006

5ME,5MGE,6MGE..MS12#

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01014

5MGE,6MGE..MS123,125

 1
Common parts
90339-03005
90404-54024
90464-00315
95411-19930
Linked diagrams
2211
