MS123R-SESQF (1983)
Toyota Crown
(8308- )5M,5ME

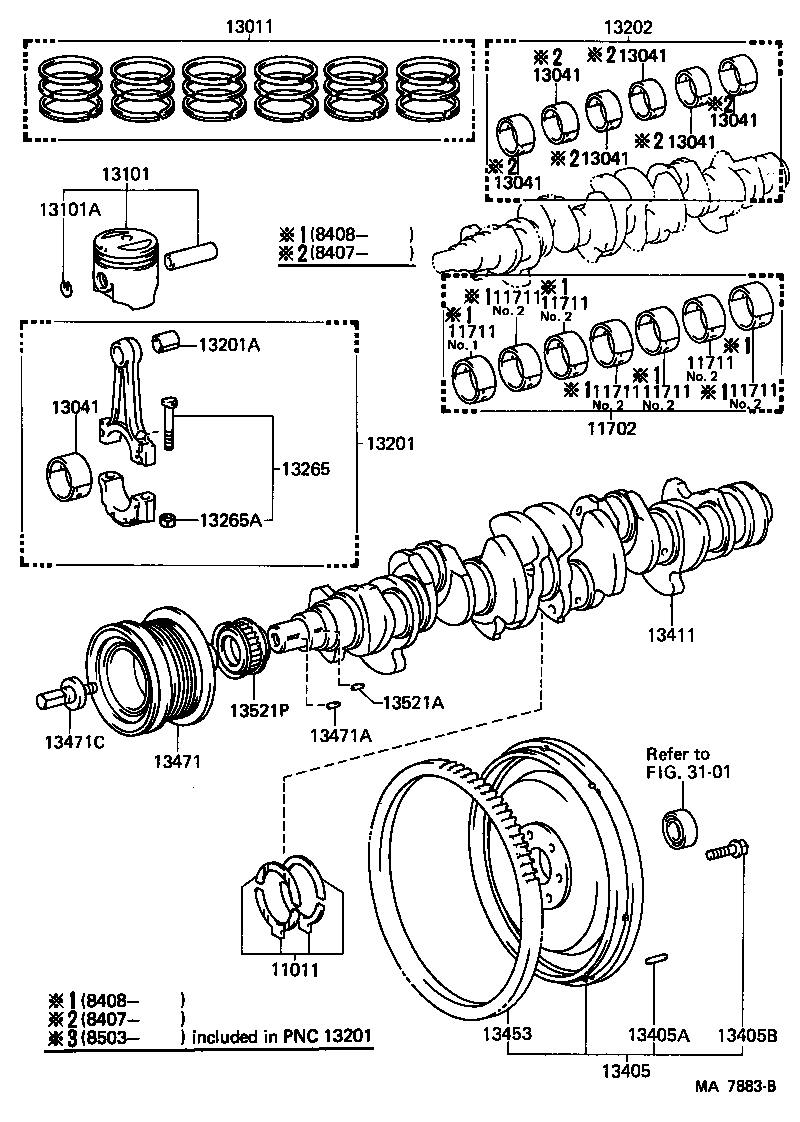

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11012-43010 |
5M#,6MGE..MS12# O/S 0.125,O/S 0.125 |
1 | ||
| 11011-43010 |
5M#,6MGE..MS12# STD,STD |
1 | ||
| 11013-43010 |
5M#,6MGE..MS12# O/S 0.250,O/S 0.25 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11705-45011 |
5M#..MS12# U/S 0.50,U/S 0.50 |
1 | ||
| 11702-45011 |
5M#..MS12# STD,STD |
1 | ||
| 11704-45011 |
5M#..MS12# U/S 0.25,U/S 0.25 |
1 | ||
| 11703-45011 |
5M#..MS12# U/S 0.05,U/S 0.05 |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-43080 |
5MGE,6MGE..MS123,125 STD,STD |
1 | ||
| 13013-43080 |
5MGE,6MGE..MS123,125 O/S 0.50,O/S 0.50 |
1 | ||
| 13014-43080 |
5MGE,6MGE..MS123,125 O/S 0.75,O/S 0.75 |
1 | ||
| 13015-43080 |
5MGE,6MGE..MS123,125 O/S 1.00,O/S 1.00 |
1 | ||
| 13013-43030 |
5M,5ME..MS122,123 O/S 0.50,O/S 0.50 |
1 | ||
| 13014-43030 |
5M,5ME..MS122,123 O/S 0.75,O/S 0.75 |
1 | ||
| 13011-43030 |
5M,5ME..MS122,123 STD,STD |
1 | ||
| 13015-43030 |
5M,5ME..MS122,123 O/S 1.00,O/S 1.00 |
1 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-43040 |
5MGE..MS123..GEN STD |
6 | ||
| 13103-43050 |
5MGE..MS123..GEN O/S 0.50 |
6 | ||
| 13104-43051 |
5MGE..MS123..GEN O/S 0.75,O/S 0.75 |
6 | ||
| 13103-43051 |
5MGE..MS123..GEN O/S 0.50,O/S 0.50 |
6 | ||
| 13104-43050 |
5MGE..MS123..GEN O/S 0.75 |
6 | ||
| 13101-43041 |
5MGE..MS123..GEN STD,STD |
6 | ||
| 13105-43051 |
5MGE..MS123..GEN O/S 1.00,O/S 1.00 |
6 | ||
| 13105-43050 |
5MGE..MS123..GEN O/S 1.00 |
6 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-25052 |
5M#..MS12# |
12 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-43010 |
5M#..MS12# |
6 | ||
| 13201-45010 |
5M#..MS12# |
6 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-43010 |
5M#..MS12# |
6 | ||
| 13201-45010 |
5M#..MS12# |
6 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73066 |
5M#,6MGE..MS12# |
6 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-45011 |
5M#..MS12# U/S 0.25,U/S 0.25 |
1 | ||
| 13205-45011 |
5M#..MS12# U/S 0.50,U/S 0.50 |
1 | ||
| 13203-45011 |
5M#..MS12# U/S 0.05,U/S 0.05 |
1 | ||
| 13202-45011 |
5M#..MS12# STD,STD |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-49025 |
5M#,6MGE..MS12# |
12 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-09195 |
5M#,6MGE..MS12# |
12 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-45012 |
5M#..MS12# |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13407-41030 |
5M,5ME..MS122,123 |
1 | ||
| 13407-43020 |
5MGE..MS123 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05001 |
5M#..MS12# |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-16011 |
5M#..MS122,123 |
1 | ||
| 13477 - PULLEY, CRANKSHAFT, NO.2 | ||||
| 88451-30330 |
5M,5ME..MS122,123 W/COOLER |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-41011 |
5M,5ME..MS122,123 N=20 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05010 |
5M#..MS12# |
1 | ||
| Common parts | ||||
| 90119-08251 | ||||
| Linked diagrams | ||||
| 3101 | ||||
(8308- )5MGE,6MGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11012-43010 |
5M#,6MGE..MS12# O/S 0.125,O/S 0.125 |
1 | ||
| 11011-43010 |
5M#,6MGE..MS12# STD,STD |
1 | ||
| 11013-43010 |
5M#,6MGE..MS12# O/S 0.250,O/S 0.25 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11705-45011 |
5M#..MS12# U/S 0.50,U/S 0.50 |
1 | ||
| 11702-45011 |
5M#..MS12# STD,STD |
1 | ||
| 11704-45011 |
5M#..MS12# U/S 0.25,U/S 0.25 |
1 | ||
| 11703-45011 |
5M#..MS12# U/S 0.05,U/S 0.05 |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-43080 |
5MGE,6MGE..MS123,125 STD,STD |
1 | ||
| 13013-43080 |
5MGE,6MGE..MS123,125 O/S 0.50,O/S 0.50 |
1 | ||
| 13014-43080 |
5MGE,6MGE..MS123,125 O/S 0.75,O/S 0.75 |
1 | ||
| 13015-43080 |
5MGE,6MGE..MS123,125 O/S 1.00,O/S 1.00 |
1 | ||
| 13013-43030 |
5M,5ME..MS122,123 O/S 0.50,O/S 0.50 |
1 | ||
| 13014-43030 |
5M,5ME..MS122,123 O/S 0.75,O/S 0.75 |
1 | ||
| 13011-43030 |
5M,5ME..MS122,123 STD,STD |
1 | ||
| 13015-43030 |
5M,5ME..MS122,123 O/S 1.00,O/S 1.00 |
1 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-43040 |
5MGE..MS123..GEN STD |
6 | ||
| 13103-43050 |
5MGE..MS123..GEN O/S 0.50 |
6 | ||
| 13104-43051 |
5MGE..MS123..GEN O/S 0.75,O/S 0.75 |
6 | ||
| 13103-43051 |
5MGE..MS123..GEN O/S 0.50,O/S 0.50 |
6 | ||
| 13104-43050 |
5MGE..MS123..GEN O/S 0.75 |
6 | ||
| 13101-43041 |
5MGE..MS123..GEN STD,STD |
6 | ||
| 13105-43051 |
5MGE..MS123..GEN O/S 1.00,O/S 1.00 |
6 | ||
| 13105-43050 |
5MGE..MS123..GEN O/S 1.00 |
6 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-25052 |
5M#..MS12# |
12 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-43010 |
5M#..MS12# |
6 | ||
| 13201-45010 |
5M#..MS12# |
6 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73066 |
5M#,6MGE..MS12# |
6 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-45011 |
5M#..MS12# U/S 0.25,U/S 0.25 |
1 | ||
| 13205-45011 |
5M#..MS12# U/S 0.50,U/S 0.50 |
1 | ||
| 13203-45011 |
5M#..MS12# U/S 0.05,U/S 0.05 |
1 | ||
| 13202-45011 |
5M#..MS12# STD,STD |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-49025 |
5M#,6MGE..MS12# |
12 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-09195 |
5M#,6MGE..MS12# |
12 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-45012 |
5M#..MS12# |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13407-41030 |
5M,5ME..MS122,123 |
1 | ||
| 13407-43020 |
5MGE..MS123 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05001 |
5M#..MS12# |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-16011 |
5M#..MS122,123 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05010 |
5M#..MS12# |
1 | ||
| 13521P - PULLEY, CRANKSHAFT TIMING | ||||
| 13521-43020 |
5MGE..MS123 |
1 | ||
| Linked diagrams | ||||
| 3101 | ||||
