MS123L-SEPQF (1983)
Toyota Crown
(8308- )HT,SED..ROY,SAL

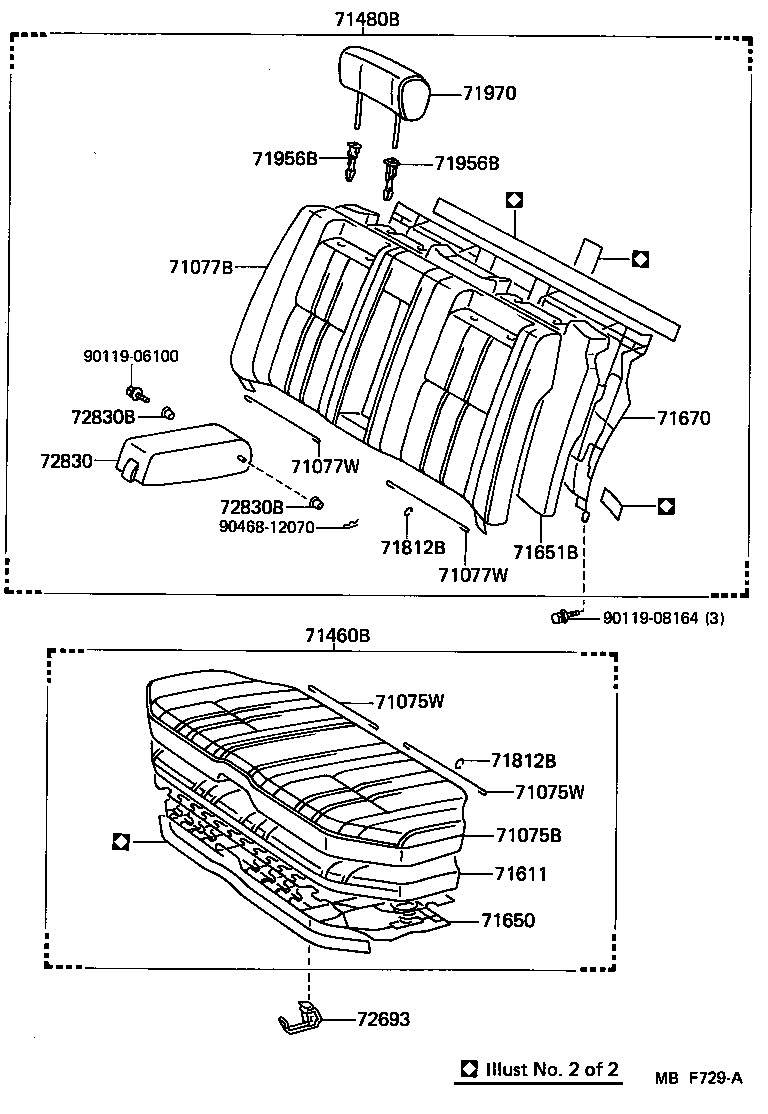

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-3018004 |
MS12#..ROY..(GEN,SAA) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71065-3018002 |
MS12#..ROY..(GEN,SAA) FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71065-3018005 |
MS12#..ROY..(GEN,SAA) FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71075W - WIRE, REAR SEAT CUSHION COVER | ||||
| 90580-20105 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=250 |
2 | ||
| 90580-20097 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=1050 |
1 | ||
| 90580-20029 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=750 |
1 | ||
| 90580-20089 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=130 |
1 | ||
| 90580-29010 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=280 |
2 | ||
| 90580-29010 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=280 |
2 | ||
| 90580-20079 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=960 |
2 | ||
| 90580-20020 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=420 |
1 | ||
| 90580-20108 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=550 |
1 | ||
| 90580-20130 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=700 |
1 | ||
| 90580-20109 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=330 |
3 | ||
| 90580-29013 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=400 |
1 | ||
| 71075W - WIRE, REAR SEAT CUSHION COVER | ||||
| 90580-20105 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=250 |
2 | ||
| 90580-20097 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=1050 |
1 | ||
| 90580-20029 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=750 |
1 | ||
| 90580-20089 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=130 |
1 | ||
| 90580-29010 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=280 |
2 | ||
| 90580-29010 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=280 |
2 | ||
| 90580-20079 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=960 |
2 | ||
| 90580-20020 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=420 |
1 | ||
| 90580-20108 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=550 |
1 | ||
| 90580-20130 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=700 |
1 | ||
| 90580-20109 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=330 |
3 | ||
| 90580-29013 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=400 |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-3A07005 |
MS12#..ROY FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71077-3A07004 |
MS12#..ROY FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-3A07002 |
MS12#..ROY FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-20010 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=150 |
1 | ||
| 90580-20015 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=900 |
2 | ||
| 90580-20122 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=200 |
2 | ||
| 90580-20110 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=920 |
1 | ||
| 90580-20122 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=200 |
2 | ||
| 90580-20023 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=110 |
2 | ||
| 90580-20020 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=420 |
2 | ||
| 90580-20108 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=550 |
2 | ||
| 90580-20109 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=330 |
3 | ||
| 90580-20041 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=220 |
3 | ||
| 90580-20136 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=80 |
2 | ||
| 90580-29003 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=300 |
2 | ||
| 90580-20168 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=1300 |
1 | ||
| 90580-29009 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=210 |
4 | ||
| 90580-20130 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=700 |
2 | ||
| 90580-20126 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=380 |
2 | ||
| 90580-29010 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=280 |
4 | ||
| 90580-29003 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=300 |
2 | ||
| 90580-29010 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=280 |
2 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-20010 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=150 |
1 | ||
| 90580-20015 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=900 |
2 | ||
| 90580-20122 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=200 |
2 | ||
| 90580-20110 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=920 |
1 | ||
| 90580-20122 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=200 |
2 | ||
| 90580-20023 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=110 |
2 | ||
| 90580-20020 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=420 |
2 | ||
| 90580-20108 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=550 |
2 | ||
| 90580-20109 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=330 |
3 | ||
| 90580-20041 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=220 |
3 | ||
| 90580-20136 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=80 |
2 | ||
| 90580-29003 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=300 |
2 | ||
| 90580-20168 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=1300 |
1 | ||
| 90580-29009 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=210 |
4 | ||
| 90580-20130 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=700 |
2 | ||
| 90580-20126 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=380 |
2 | ||
| 90580-29010 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=280 |
4 | ||
| 90580-29003 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=300 |
2 | ||
| 90580-29010 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=280 |
2 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-3023005 |
MS12#..ROY..(GEN,SAA) FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71560-3023002 |
MS12#..ROY..(GEN,SAA) FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71560-3023004 |
MS12#..ROY..(GEN,SAA) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-3A15004 |
MS12#..ROY FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-3A15005 |
MS12#..ROY FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71480-3A15002 |
MS12#..ROY FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-30500 |
LS120,MS12#,YS120..SED..(ROY,SAL) |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-30280 |
LS120,MS12#,YS120..SED |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-30490 |
LS120,MS12#,YS120..SED..(ROY,SAL) |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71670-30330 |
LS120,MS12#,YS120..SED..(ROY,SAL) |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
LS120,MS12#,YS120 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
LS120,MS12#,YS120 |
1 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006002 |
LS120,MS12#,YS120..(HT,SED)..(ROY,SAL) W(LOCK),W/LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71931-1001004 |
LS120,MS12#,YS120..(HT,SED)..(ROY,SAL) W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006004 |
LS120,MS12#,YS120..(HT,SED)..(ROY,SAL) W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006025 |
LS120,MS12#,YS120..SED..(ROY,SAL) W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001025 |
LS120,MS12#,YS120..SED..(ROY,SAL) W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001002 |
LS120,MS12#,YS120..(HT,SED)..(ROY,SAL) W/O(LOCK),W/O LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006002 |
LS120,MS12#,YS120..(HT,SED)..(ROY,SAL) W(LOCK),W/LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71931-1001004 |
LS120,MS12#,YS120..(HT,SED)..(ROY,SAL) W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006004 |
LS120,MS12#,YS120..(HT,SED)..(ROY,SAL) W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006025 |
LS120,MS12#,YS120..SED..(ROY,SAL) W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001025 |
LS120,MS12#,YS120..SED..(ROY,SAL) W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001002 |
LS120,MS12#,YS120..(HT,SED)..(ROY,SAL) W/O(LOCK),W/O LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71940-3013004 |
MS12#..ROY BLUE,BLUE,TRIM8# |
2 | ||
| 71940-3013005 |
MS12#..ROY BEIGE,BEIGE,TRIM4# |
2 | ||
| 71940-3013002 |
MS12#..ROY DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-30011 |
LS120,MS12#,YS120..SED |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-3020005 |
MS12#..ROY BEIGE,BEIGE,TRIM4# |
1 | ||
| 72830-3020002 |
MS12#..ROY DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72830-3020004 |
MS12#..ROY BLUE,BLUE,TRIM8# |
1 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06002 |
MS122..SED;LS120,MS123,125,YS120..4F,4FC,4HC,5F RH |
1 | ||
| 90386-06009 |
MS122..SED;LS120,MS123,125,YS120..4F,4FC,4HC,5F LH |
1 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06002 |
MS122..SED;LS120,MS123,125,YS120..4F,4FC,4HC,5F RH |
1 | ||
| 90386-06009 |
MS122..SED;LS120,MS123,125,YS120..4F,4FC,4HC,5F LH |
1 | ||
| Common parts | ||||
| 90119-06100 | ||||
| 90119-08164 | ||||
| 90468-12070 | ||||
(8308- )ROY..GEN,SAA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71065-3015005 |
MS12#..ROY..(GEN,SAA) FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71065-3015004 |
MS12#..ROY..(GEN,SAA) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71065-3015002 |
MS12#..ROY..(GEN,SAA) FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71075W - WIRE, REAR SEAT CUSHION COVER | ||||
| 90580-20105 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=250 |
2 | ||
| 90580-20097 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=1050 |
1 | ||
| 90580-20029 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=750 |
1 | ||
| 90580-20089 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=130 |
1 | ||
| 90580-29010 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=280 |
2 | ||
| 90580-29010 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=280 |
2 | ||
| 90580-20079 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=960 |
2 | ||
| 90580-20020 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=420 |
1 | ||
| 90580-20108 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=550 |
1 | ||
| 90580-20130 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=700 |
1 | ||
| 90580-20109 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=330 |
3 | ||
| 90580-29013 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=400 |
1 | ||
| 71075W - WIRE, REAR SEAT CUSHION COVER | ||||
| 90580-20105 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=250 |
2 | ||
| 90580-20097 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=1050 |
1 | ||
| 90580-20029 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=750 |
1 | ||
| 90580-20089 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=130 |
1 | ||
| 90580-29010 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=280 |
2 | ||
| 90580-29010 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=280 |
2 | ||
| 90580-20079 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=960 |
2 | ||
| 90580-20020 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=420 |
1 | ||
| 90580-20108 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=550 |
1 | ||
| 90580-20130 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=700 |
1 | ||
| 90580-20109 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=330 |
3 | ||
| 90580-29013 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=400 |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-3003005 |
MS12#..ROY..(GEN,SAA) FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71076-3003004 |
MS12#..ROY..(GEN,SAA) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71076-3003002 |
MS12#..ROY..(GEN,SAA) FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-3A11004 |
MS12#..ROY..(GEN,SAA) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-3A11005 |
MS12#..ROY..(GEN,SAA) FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71077-3A11002 |
MS12#..ROY..(GEN,SAA) FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-20010 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=150 |
1 | ||
| 90580-20015 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=900 |
2 | ||
| 90580-20122 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=200 |
2 | ||
| 90580-20110 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=920 |
1 | ||
| 90580-20122 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=200 |
2 | ||
| 90580-20023 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=110 |
2 | ||
| 90580-20020 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=420 |
2 | ||
| 90580-20108 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=550 |
2 | ||
| 90580-20109 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=330 |
3 | ||
| 90580-20041 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=220 |
3 | ||
| 90580-20136 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=80 |
2 | ||
| 90580-29003 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=300 |
2 | ||
| 90580-20168 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=1300 |
1 | ||
| 90580-29009 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=210 |
4 | ||
| 90580-20130 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=700 |
2 | ||
| 90580-20126 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=380 |
2 | ||
| 90580-29010 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=280 |
4 | ||
| 90580-29003 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=300 |
2 | ||
| 90580-29010 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=280 |
2 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-20010 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=150 |
1 | ||
| 90580-20015 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=900 |
2 | ||
| 90580-20122 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=200 |
2 | ||
| 90580-20110 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=920 |
1 | ||
| 90580-20122 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=200 |
2 | ||
| 90580-20023 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=110 |
2 | ||
| 90580-20020 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=420 |
2 | ||
| 90580-20108 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=550 |
2 | ||
| 90580-20109 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=330 |
3 | ||
| 90580-20041 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=220 |
3 | ||
| 90580-20136 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=80 |
2 | ||
| 90580-29003 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=300 |
2 | ||
| 90580-20168 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=1300 |
1 | ||
| 90580-29009 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=210 |
4 | ||
| 90580-20130 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=700 |
2 | ||
| 90580-20126 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=380 |
2 | ||
| 90580-29010 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,L=280 |
4 | ||
| 90580-29003 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=300 |
2 | ||
| 90580-29010 |
LS120,MS12#,YS120..SED..(ROY,SAL) L=280 |
2 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-3005002 |
MS12#..ROY..(GEN,SAA) FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71078-3005005 |
MS12#..ROY..(GEN,SAA) FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71078-3005004 |
MS12#..ROY..(GEN,SAA) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71560-3028004 |
MS12#..ROY..(GEN,SAA) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71560-3028002 |
MS12#..ROY..(GEN,SAA) FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71560-3028005 |
MS12#..ROY..(GEN,SAA) FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71470-3003002 |
MS12#..ROY..(GEN,SAA) FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71470-3003004 |
MS12#..ROY..(GEN,SAA) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71470-3003005 |
MS12#..ROY..(GEN,SAA) FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-3A21005 |
MS12#..ROY..(GEN,SAA) FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71480-3A21002 |
MS12#..ROY..(GEN,SAA) FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71480-3A21004 |
MS12#..ROY..(GEN,SAA) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-3003004 |
MS12#..ROY..(GEN,SAA) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71490-3003005 |
MS12#..ROY..(GEN,SAA) FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71490-3003002 |
MS12#..ROY..(GEN,SAA) FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-30540 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-30290 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT |
1 | ||
| 71650B - SPRING ASSY, REAR SEAT CUSHION, RH | ||||
| 71650-30320 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-30510 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-30260 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT |
1 | ||
| 71660B - SPRING ASSY, REAR SEAT CUSHION, LH | ||||
| 71660-30020 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT |
1 | ||
| 71661A - PAD, REAR SEAT BACK, UPPER A | ||||
| 71662-30100 |
MS12#..ROY..(GEN,SAA) LH,RR SLIDE SEAT |
1 | ||
| 71661-30230 |
MS12#..ROY..(GEN,SAA) RH,RR SLIDE SEAT |
1 | ||
| 71661A - PAD, REAR SEAT BACK, UPPER A | ||||
| 71662-30100 |
MS12#..ROY..(GEN,SAA) LH,RR SLIDE SEAT |
1 | ||
| 71661-30230 |
MS12#..ROY..(GEN,SAA) RH,RR SLIDE SEAT |
1 | ||
| 71670S - SPRING ASSY, REAR SEAT BACK, RH(FOR SEPARATE SEAT) | ||||
| 71730-30030 |
MS12#..ROY..(GEN,SAA) LWR, RR SLIDE SEAT |
1 | ||
| 71670-30380 |
MS12#..ROY..(GEN,SAA) UPR, RR SLIDE SEAT |
1 | ||
| 71670S - SPRING ASSY, REAR SEAT BACK, RH(FOR SEPARATE SEAT) | ||||
| 71730-30030 |
MS12#..ROY..(GEN,SAA) LWR, RR SLIDE SEAT |
1 | ||
| 71670-30380 |
MS12#..ROY..(GEN,SAA) UPR, RR SLIDE SEAT |
1 | ||
| 71680S - SPRING ASSY, REAR SEAT BACK, LH(FOR SEPARATE SEAT) | ||||
| 71680-30060 |
MS12#..ROY..(GEN,SAA) UPR, RR SLIDE SEAT |
1 | ||
| 71740-30010 |
MS12#..ROY..(GEN,SAA) LWR, RR SLIDE SEAT |
1 | ||
| 71680S - SPRING ASSY, REAR SEAT BACK, LH(FOR SEPARATE SEAT) | ||||
| 71680-30060 |
MS12#..ROY..(GEN,SAA) UPR, RR SLIDE SEAT |
1 | ||
| 71740-30010 |
MS12#..ROY..(GEN,SAA) LWR, RR SLIDE SEAT |
1 | ||
| 71731A - FASTENER, SEAT COVER, A (FOR REAR SEAT) | ||||
| 71731-3008002 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,DEEP MAROON,RED/MAROON,TRIM3# |
4 | ||
| 71731-3008004 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,BLUE,BLUE,TRIM8# |
4 | ||
| 71731-3008005 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,BEIGE,BEIGE,TRIM4# |
4 | ||
| 71731A - FASTENER, SEAT COVER, A (FOR REAR SEAT) | ||||
| 71731-3008002 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,DEEP MAROON,RED/MAROON,TRIM3# |
4 | ||
| 71731-3008004 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,BLUE,BLUE,TRIM8# |
4 | ||
| 71731-3008005 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,BEIGE,BEIGE,TRIM4# |
4 | ||
| 71732A - FASTENER, SEAT COVER, B (FOR REAR SEAT) | ||||
| 71732-30020 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT |
4 | ||
| 71732A - FASTENER, SEAT COVER, B (FOR REAR SEAT) | ||||
| 71732-30020 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT |
4 | ||
| 71737 - RETAINER, SEAT COVER FASTENER, B (FOR REAR SEAT) | ||||
| 71733-30060 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT |
4 | ||
| 71737 - RETAINER, SEAT COVER FASTENER, B (FOR REAR SEAT) | ||||
| 71733-30060 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT |
4 | ||
| 71804A - BOARD SUB-ASSY, REAR SEAT ARMREST HOLE | ||||
| 71803-3018002 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71803-3018005 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71803-3018004 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
LS120,MS12#,YS120 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
LS120,MS12#,YS120 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
LS120,MS12#,YS120 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
LS120,MS12#,YS120 |
1 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006002 |
LS120,MS12#,YS120..(HT,SED)..(ROY,SAL) W(LOCK),W/LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71931-1001004 |
LS120,MS12#,YS120..(HT,SED)..(ROY,SAL) W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006004 |
LS120,MS12#,YS120..(HT,SED)..(ROY,SAL) W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006025 |
LS120,MS12#,YS120..SED..(ROY,SAL) W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001025 |
LS120,MS12#,YS120..SED..(ROY,SAL) W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001002 |
LS120,MS12#,YS120..(HT,SED)..(ROY,SAL) W/O(LOCK),W/O LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006002 |
LS120,MS12#,YS120..(HT,SED)..(ROY,SAL) W(LOCK),W/LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71931-1001004 |
LS120,MS12#,YS120..(HT,SED)..(ROY,SAL) W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006004 |
LS120,MS12#,YS120..(HT,SED)..(ROY,SAL) W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006025 |
LS120,MS12#,YS120..SED..(ROY,SAL) W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001025 |
LS120,MS12#,YS120..SED..(ROY,SAL) W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001002 |
LS120,MS12#,YS120..(HT,SED)..(ROY,SAL) W/O(LOCK),W/O LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71940-3013004 |
MS12#..ROY BLUE,BLUE,TRIM8# |
2 | ||
| 71940-3013005 |
MS12#..ROY BEIGE,BEIGE,TRIM4# |
2 | ||
| 71940-3013002 |
MS12#..ROY DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71940-3013004 |
MS12#..ROY BLUE,BLUE,TRIM8# |
2 | ||
| 71940-3013005 |
MS12#..ROY BEIGE,BEIGE,TRIM4# |
2 | ||
| 71940-3013002 |
MS12#..ROY DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-3020005 |
MS12#..ROY BEIGE,BEIGE,TRIM4# |
1 | ||
| 72830-3020002 |
MS12#..ROY DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72830-3020004 |
MS12#..ROY BLUE,BLUE,TRIM8# |
1 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06002 |
MS122..SED;LS120,MS123,125,YS120..4F,4FC,4HC,5F RH |
1 | ||
| 90386-06009 |
MS122..SED;LS120,MS123,125,YS120..4F,4FC,4HC,5F LH |
1 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06002 |
MS122..SED;LS120,MS123,125,YS120..4F,4FC,4HC,5F RH |
1 | ||
| 90386-06009 |
MS122..SED;LS120,MS123,125,YS120..4F,4FC,4HC,5F LH |
1 | ||
| Common parts | ||||
| 90119-06110 | ||||
| 90119-08164 | ||||
| 90386-12027 | ||||
| 90468-12070 | ||||
| 90523-08001 | ||||
| 94110-40800 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(8308- )HT,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-30240 |
LS120,MS12#,YS120..SED |
2 | ||
| 71621-30260 |
MS12#..ROY..(GEN,SAA) LH,RR SLIDE SEAT |
1 | ||
| 71621-30230 |
MS12#..ROY..(GEN,SAA) RH,RR SLIDE SEAT |
1 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-30240 |
LS120,MS12#,YS120..SED |
2 | ||
| 71621-30260 |
MS12#..ROY..(GEN,SAA) LH,RR SLIDE SEAT |
1 | ||
| 71621-30230 |
MS12#..ROY..(GEN,SAA) RH,RR SLIDE SEAT |
1 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-30240 |
LS120,MS12#,YS120..SED |
2 | ||
| 71621-30260 |
MS12#..ROY..(GEN,SAA) LH,RR SLIDE SEAT |
1 | ||
| 71621-30230 |
MS12#..ROY..(GEN,SAA) RH,RR SLIDE SEAT |
1 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-30240 |
LS120,MS12#,YS120..SED |
2 | ||
| 71621-30260 |
MS12#..ROY..(GEN,SAA) LH,RR SLIDE SEAT |
1 | ||
| 71621-30230 |
MS12#..ROY..(GEN,SAA) RH,RR SLIDE SEAT |
1 | ||
| 71622A - PAD, REAR SEAT CUSHION SILENCER, B | ||||
| 71622-30100 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT |
1 | ||
| 71622A - PAD, REAR SEAT CUSHION SILENCER, B | ||||
| 71622-30100 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT |
1 | ||
| 71622A - PAD, REAR SEAT CUSHION SILENCER, B | ||||
| 71622-30100 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT |
1 | ||
| 71623A - PAD, REAR SEAT CUSHION SILENCER, C | ||||
| 71623-30060 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT |
2 | ||
| 71623A - PAD, REAR SEAT CUSHION SILENCER, C | ||||
| 71623-30060 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT |
2 | ||
| 71624A - PAD, REAR SEAT CUSHION SILENCER, D | ||||
| 71671-30120 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT |
2 | ||
| 71523-30020 |
LS120,MS12#,YS120..SED |
2 | ||
| 71624A - PAD, REAR SEAT CUSHION SILENCER, D | ||||
| 71671-30120 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT |
2 | ||
| 71523-30020 |
LS120,MS12#,YS120..SED |
2 | ||
| 71624A - PAD, REAR SEAT CUSHION SILENCER, D | ||||
| 71671-30120 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT |
2 | ||
| 71523-30020 |
LS120,MS12#,YS120..SED |
2 | ||
| 71624A - PAD, REAR SEAT CUSHION SILENCER, D | ||||
| 71671-30120 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT |
2 | ||
| 71523-30020 |
LS120,MS12#,YS120..SED |
2 | ||
| 71631A - PAD, REAR SEAT CUSHION CORNER | ||||
| 71631-30040 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT |
1 | ||
| 71662 - PAD, REAR SEAT BACK, UPPER B | ||||
| 71662-30110 |
LS120,MS12#,YS120..SED |
1 | ||
| 71667A - PAD, REAR SEAT BACK, CENTER A | ||||
| 71667-30020 |
LS120,MS12#,YS120..SED |
1 | ||
| 71672 - PAD, REAR SEAT BACK SILENCER, B | ||||
| 71672-30050 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT |
4 | ||
| 71672 - PAD, REAR SEAT BACK SILENCER, B | ||||
| 71672-30050 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT |
4 | ||
| 71672 - PAD, REAR SEAT BACK SILENCER, B | ||||
| 71672-30050 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT |
4 | ||
| 71672 - PAD, REAR SEAT BACK SILENCER, B | ||||
| 71672-30050 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT |
4 | ||
(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72030 - ADJUSTER ASSY, REAR NO.1 SEAT | ||||
| 72030-30010 |
MS12#..ROY..(GEN,SAA) |
1 | ||
| 72040 - ADJUSTER ASSY, REAR NO.2 SEAT | ||||
| 72040-30010 |
MS12#..ROY..(GEN,SAA) |
1 | ||
| 72180 - TRACK ASSY, REAR SEAT, INNER RH | ||||
| 72180-30020 |
MS12#..ROY..(GEN,SAA) |
1 | ||
| 72190 - TRACK ASSY, REAR SEAT INNER, LH | ||||
| 72190-30020 |
MS12#..ROY..(GEN,SAA) |
1 | ||
| 72205C - HOUSING SUB-ASSY, POWER SEAT, NO.1 | ||||
| 72205-30010 |
MS12#..ROY..(GEN,SAA) |
1 | ||
| 72206A - HOUSING SUB-ASSY, POWER SEAT, NO.2 | ||||
| 72206-30020 |
MS12#..ROY..(GEN,SAA) |
1 | ||
| 72402A - None | ||||
| 72402-30070 |
MS12#..ROY..(GEN,SAA) |
2 | ||
| 72402A - None | ||||
| 72402-30070 |
MS12#..ROY..(GEN,SAA) |
2 | ||
| 72420 - CABLE ASSY, SEAT ADJUSTER DRIVE, NO.2 | ||||
| 72420-30010 |
MS12#..ROY..(GEN,SAA) |
1 | ||
| 72450 - CABLE ASSY, SEAT ADJUSTER DRIVE, NO.5 | ||||
| 72450-30010 |
MS12#..ROY..(GEN,SAA) |
1 | ||
| 72460 - CABLE ASSY, SEAT ADJUSTER DRIVE, NO.6 | ||||
| 72460-30010 |
MS12#..ROY..(GEN,SAA) |
2 | ||
| 72460 - CABLE ASSY, SEAT ADJUSTER DRIVE, NO.6 | ||||
| 72460-30010 |
MS12#..ROY..(GEN,SAA) |
2 | ||
| Common parts | ||||
| 90119-08164 | ||||
| 90179-08143 | ||||
| 91611-60816 | ||||
| Linked diagrams | ||||
| 8511 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
