MS123L-SEPQF (1983)

Toyota Crown

Production Aug 1983 - Oct 1984
Engine 5MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )MS123,125

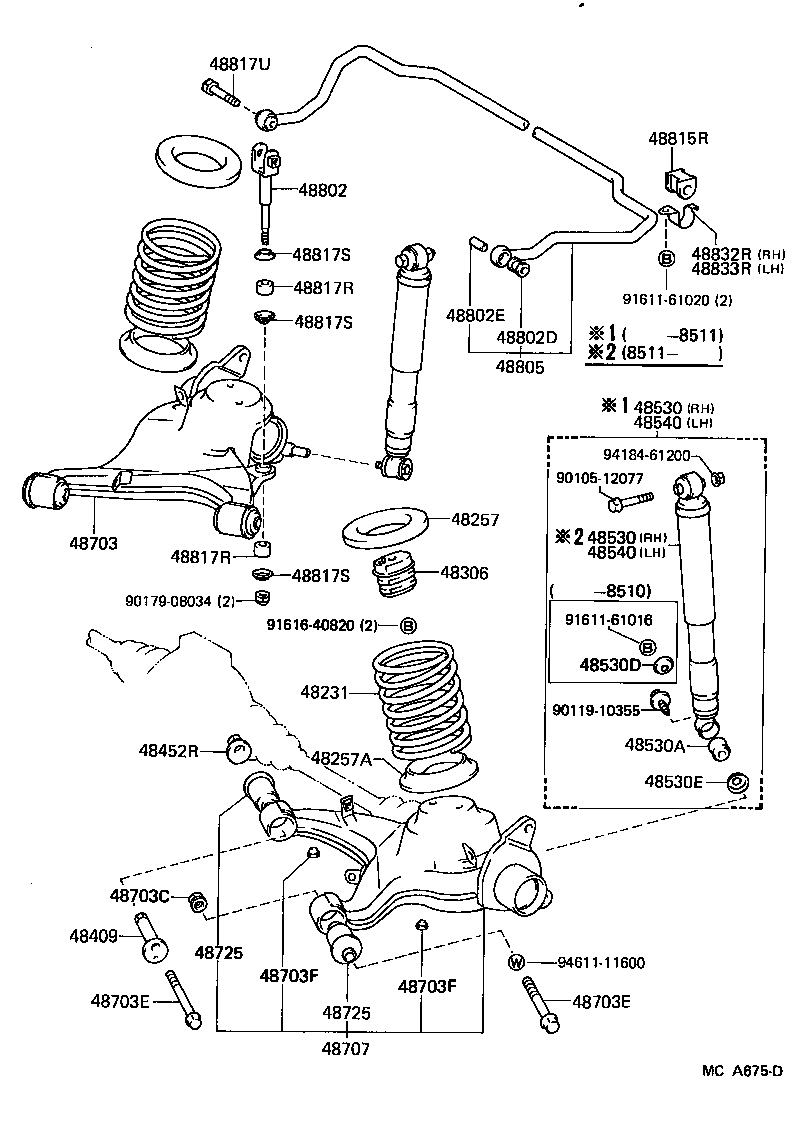

Click highlighted areas on diagram

diagram 48231 48257 48257A 48306 48409 48452R 48530 48530 48530A 48530D 48530E 48540 48540 48703 48703C 48703E 48703E 48703F 48703F 48707 48725 48725 48802 48802D 48802E 48805 48815R 48817R 48817R 48817S 48817S 48817S 48817U 48832R 48833R 9010512077 9011910355 9017908034 9161161016 9161161020 9161640820 9418461200 9461111600
Part # Description Qty Price
48231 - SPRING, COIL, REAR
48231-30460

MS123,125

 2
48257 - INSULATOR, REAR COIL SPRING
48257-30040

MS123,125

 2
48257A - INSULATOR, REAR COIL SPRING, LOWER
48258-30020

MS123,125

 2
48306 - BUMPER SUB-ASSY, REAR SPRING
48306-30080

MS123,125

 2
48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48409-30010

MS123,125

 2
48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2
48452-30010

MS123,125

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-39575

MS123,125

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-39575

MS123,125

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16001

LS120,MS12#,YS120

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03007

LS120,MS12#,YS120

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

LS120,MS12#,YS120

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-39575

MS123,125

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-39575

MS123,125

 1
48703 - ARM SUB-ASSY, REAR SUSPENSION, RH
48703-30900

MS123,125

 1
48703C - NUT(FOR REAR SUSPENSION ARM)
90179-16003

MS123,125

 2
48703E - BOLT(FOR REAR SUSPENSION ARM)
90105-12078

MS123,125

INNER

 2
90101-16017

MS123,125

*16X1.5PX105-30,OUTER

 2
48703E - BOLT(FOR REAR SUSPENSION ARM)
90105-12078

MS123,125

INNER

 2
90101-16017

MS123,125

*16X1.5PX105-30,OUTER

 2
48703F - PLUG, HOLE(FOR REAR SUSPENSION ARM)
47491-22020

MS123,125

OD=16,T=9

 4
47491-30050

MS123,125

OD=22,T=12

 2
90950-01258

MS123,125

OD=22,T=8.5

 10
48703F - PLUG, HOLE(FOR REAR SUSPENSION ARM)
47491-22020

MS123,125

OD=16,T=9

 4
47491-30050

MS123,125

OD=22,T=12

 2
90950-01258

MS123,125

OD=22,T=8.5

 10
48707 - ARM SUB-ASSY, REAR SUSPENSION, LH
48707-30900

MS123,125

 1
48725 - BUSH, LOWER CONTROL ARM
48725-30020

MS123,125

INNER

 2
48725-30030

MS123,125

OUTER

 2
48725 - BUSH, LOWER CONTROL ARM
48725-30020

MS123,125

INNER

 2
48725-30030

MS123,125

OUTER

 2
48802 - LINK SUB-ASSY, STABILIZER
48802-30020

MS123,125

 2
48802D - BUSH, STABILIZER LINK
90385-11021

MS123,125

 2
48802E - SPACER(FOR REAR STABILIZER BAR)
90560-10275

MS123,125

 2
48805 - BAR SUB-ASSY, REAR STABILIZER
48805-30030

MS123,125

 1
48815R - BUSH, STABILIZER(FOR REAR)
48815-30060

MS123,125

 2
48817R - CUSHION, STABILIZER(FOR REAR)
48817-10010

LS120,MS12#

 8
48817R - CUSHION, STABILIZER(FOR REAR)
48817-10010

LS120,MS12#

 8
48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
90948-02025

LS120,MS12#

T=1.0

 2
90948-02024

LS120,MS12#

T=1.2

 8
48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
90948-02025

LS120,MS12#

T=1.0

 2
90948-02024

LS120,MS12#

T=1.2

 8
48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
90948-02025

LS120,MS12#

T=1.0

 2
90948-02024

LS120,MS12#

T=1.2

 8
48817U - BOLT(FOR REAR STABILIZER)
91112-41040

MS123,125

 2
48832R - BRACKET, REAR STABILIZER BAR, NO.1 RH
48832-22020

MS123,125

 1
48833R - BRACKET, REAR STABILIZER BAR, NO.1 LH
48832-22020

MS123,125

 1
Common parts
90105-12077
90119-10355
90179-08034
91611-61016
91611-61020
91616-40820
94184-61200
94611-11600
