MS123L-SEPQF (1983)

Toyota Crown

Production Aug 1983 - Oct 1984
Engine 5MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

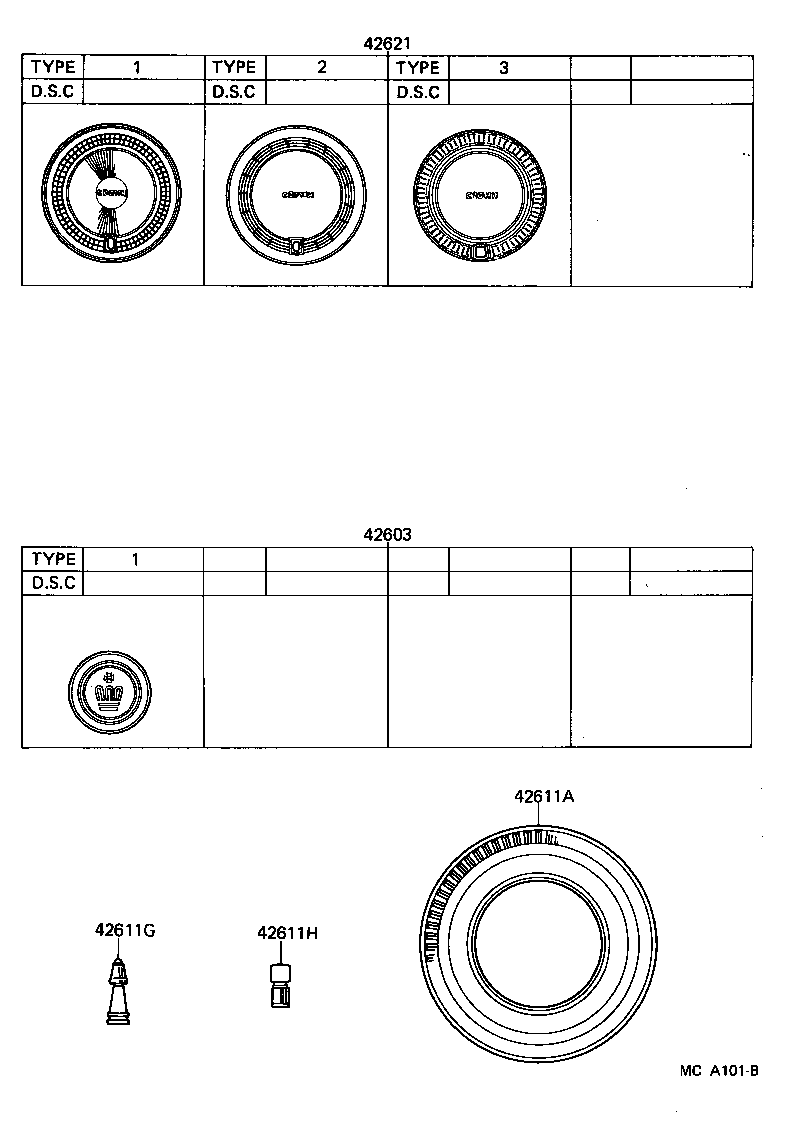

Click highlighted areas on diagram

diagram 42603 42611A 42611G 42611H 42621
Part # Description Qty Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-30070

LS120,MS12#..ROY,SAL

W/ALUMI WHEEL,TYPE 1

 4
42611A - TIRE TUBE SET OR TUBELESS TIRE
42652-30110

MS12#..(HT,SED)..(ROY,SAL)..(EUG,GEN,SAA,SWZ)

195/70HR14,TUBELESS

 5
42611G - VALVE (FOR TUBELESS TIRE)
90942-05004

YS120..STD;LS120,MS12#

 5
90942-05009

LS120,MS12#..ROY,SAL

W/ALUMI WHEEL

 5
42621 - CAP, WHEEL
42621-30230

MS12#..ROY

TYPE 1

 4

(8308- )

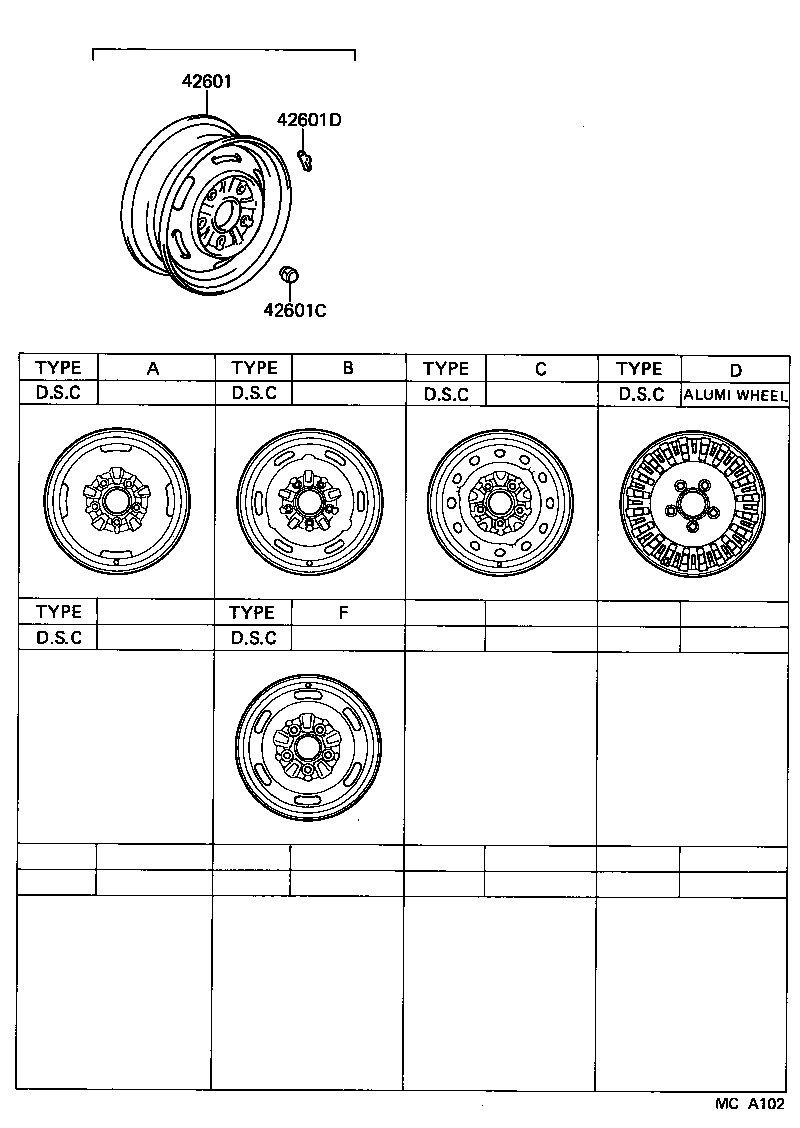

Click highlighted areas on diagram

diagram 42601 42601C 42601D
Part # Description Qty Price
42601 - WHEEL, DISC
42611-3038001

LS120,MS12#,YS120..SED..(EUG,GEN,SAA,SWZ)

5.5J-14,TYPE F,BLACK

 5
42611-30340

LS120,MS12#..ROY,SAL

5.5JJ-14,ALUMI,TYPE D,SILVER

 5
42601C - NUT, HUB (FOR AXLE)
90942-01007

LS120,MS12#,YS120

 20
90942-01026

LS120,MS12#..ROY,SAL

W/ALUMI WHEEL

 20
42601D - WEIGHT, BALANCE (FOR DISC WHEEL)
90942-03022

LS120,MS12#,YS120

40G,T=9.5,40G

 1
90942-03027

LS120,MS12#,YS120

60G,T=9.5,60G

 1
90942-03020

LS120,MS12#,YS120

30G,T=10,30G

 1
90942-03017

LS120,MS12#,YS120

20G,T=8,20G

 1
90942-03041

LS120,MS12#,YS120

10G,T=7.5,10G

 1
90942-03092

LS120,MS12#..ROY,SAL

10G,10G,W/ALUMI WHEEL

 1
90942-03029

LS120,MS12#,YS120

70G,T=9.5,70G

 1
90942-03096

LS120,MS12#..ROY,SAL

50G,50G,W/ALUMI WHEEL

 1
90942-03093

LS120,MS12#..ROY,SAL

20G,20G,W/ALUMI WHEEL

 1
90942-03031

LS120,MS12#,YS120

80G,T=9.5,80G

 1
90942-03095

LS120,MS12#..ROY,SAL

40G,40G,W/ALUMI WHEEL

 1
90942-03025

LS120,MS12#,YS120

50G,T=9.5,50G

 1
90942-03094

LS120,MS12#..ROY,SAL

30G,30G,W/ALUMI WHEEL

 1
90942-03097

LS120,MS12#..ROY,SAL

60G,60G,W/ALUMI WHEEL

 1
