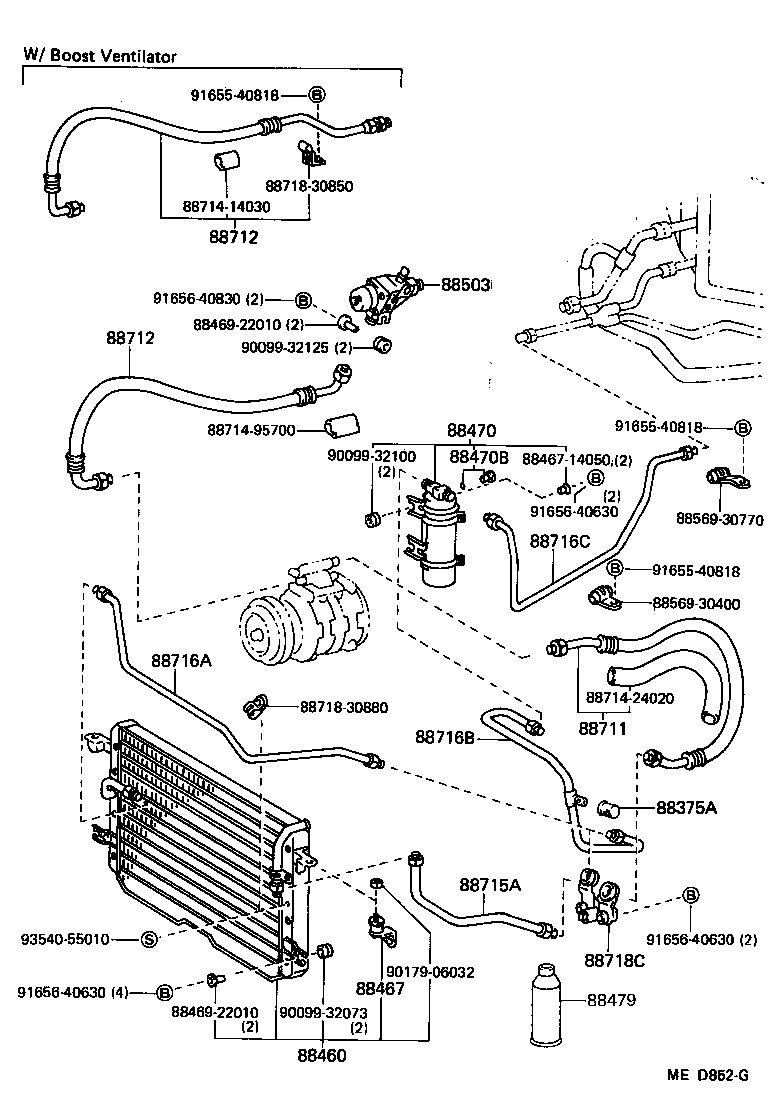

MS122R-SESGS (1983)
Toyota Crown
(8308- )MS12#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30270 |
MS12#,YS120 |
1 | ||
| 88375-20010 |
MS12#,YS120 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-30460 |
MS12# |
1 | ||
| 88460-30500 |
MS12# |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-22060 |
MS12#,YS120 |
2 | ||
| 88467-30320 |
MS12#,YS120 |
2 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-30470 |
MS12#,YS120 |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 88475-12020 |
LS120,MS12#,YS120 |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
LS120,MS12#,YS120 400G,400G |
3 | ||
| 88503 - REGULATOR ASSY, PRESSURE | ||||
| 88503-30400 |
MS12#..RHD W/HEATER |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-30570 |
MS12# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-30700 |
MS12#..RHD W/HEATER |
1 | ||
| 88712-30740 |
MS122..RHD..SAL W/*BV |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-30700 |
MS12#..RHD W/HEATER |
1 | ||
| 88712-30740 |
MS122..RHD..SAL W/*BV |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-30320 |
MS12# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88726-30680 |
MS12# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88726-30890 |
MS12# PLANT,M21-M22 |
1 | ||
| 88726-30690 |
LS120,MS12#,YS120 |
1 | ||
| 88726-30691 |
MS12# PLANT,A21-A26 |
1 | ||
| 88726-30891 |
MS12# PLANT,M21-M22 |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88726-30700 |
MS12# |
1 | ||
| 88726-30700 |
MS12# PLANT,M21-M22 |
1 | ||
| 88726-30880 |
MS12# PLANT,A21-A26 |
1 | ||
| 88726-30881 |
MS12# PLANT,A21-A26 |
1 | ||
| 88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE) | ||||
| 88569-30820 |
MS12# |
1 | ||
| Common parts | ||||
| 88467-14050 | ||||
| 88469-22010 | ||||
| 88569-30400 | ||||
| 88569-30770 | ||||
| 88714-14030 | ||||
| 88714-24020 | ||||
| 88714-95700 | ||||
| 88718-30850 | ||||
| 88718-30880 | ||||
| 90099-32073 | ||||
| 90099-32100 | ||||
| 90099-32125 | ||||
| 90179-06032 | ||||
| 91655-40818 | ||||
| 91656-40630 | ||||
| 91656-40830 | ||||
| 93540-55010 | ||||
(8308- )MS12#..SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88386A - PIPE, REAR COOLER REFRIGERANT LIQUID, A (FROM CONDENSER | ||||
| 88726-30640 |
MS122..(HT,SED)..(ROY,SAL) |
1 | ||
| 88386E - PIPE, REAR COOLER REFRIGERANT LIQUID, E (TO COOLER UNIT | ||||
| 88726-30760 |
MS122..(HT,SED)..(ROY,SAL) |
1 | ||
| 88387A - PIPE, RR COOLER REFRIGERANT SUCTION, A (FROM COOLER UNI | ||||
| 88727-30560 |
MS122..(HT,SED)..(ROY,SAL) |
1 | ||
| 88387B - PIPE, REAR COOLER REFRIGERANT SUCTION, B | ||||
| 88727-30580 |
MS122..(HT,SED)..(ROY,SAL) |
1 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-30410 |
MS12#..(HT,SED)..(ROY,SAL) |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-30260 |
MS122..(HT,SED)..(ROY,SAL) |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88726-30660 |
MS12#..RHD W/RR COOLER |
1 | ||
| 88726-30730 |
MS122..RHD..SAL W/O RR COOLER |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88726-30660 |
MS12#..RHD W/RR COOLER |
1 | ||
| 88726-30730 |
MS122..RHD..SAL W/O RR COOLER |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88726-30660 |
MS12#..RHD W/RR COOLER |
1 | ||
| 88726-30730 |
MS122..RHD..SAL W/O RR COOLER |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88726-30660 |
MS12#..RHD W/RR COOLER |
1 | ||
| 88726-30730 |
MS122..RHD..SAL W/O RR COOLER |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88727-30700 |
MS12#..RHD W/RR COOLER |
1 | ||
| 88727-30600 |
MS12#..RHD W/RR COOLER |
1 | ||
| 88727-30630 |
MS122,123..DLX,SAL W/O RR COOLER |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88727-30700 |
MS12#..RHD W/RR COOLER |
1 | ||
| 88727-30600 |
MS12#..RHD W/RR COOLER |
1 | ||
| 88727-30630 |
MS122,123..DLX,SAL W/O RR COOLER |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88727-30700 |
MS12#..RHD W/RR COOLER |
1 | ||
| 88727-30600 |
MS12#..RHD W/RR COOLER |
1 | ||
| 88727-30630 |
MS122,123..DLX,SAL W/O RR COOLER |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88727-30700 |
MS12#..RHD W/RR COOLER |
1 | ||
| 88727-30600 |
MS12#..RHD W/RR COOLER |
1 | ||
| 88727-30630 |
MS122,123..DLX,SAL W/O RR COOLER |
1 | ||
| Common parts | ||||
| 88569-30400 | ||||
| 88569-30740 | ||||
| 88569-30750 | ||||
| 88569-30780 | ||||
| 88569-30800 | ||||
| 88718-30870 | ||||
| 88718-3A030 | ||||
| 88718-3A060 | ||||
| 90119-06061 | ||||
| 90159-60168 | ||||
| 90480-50006 | ||||
| 91655-40818 | ||||
| Linked diagrams | ||||
| 8714 | ||||
