MS122R-SESGS (1983)
Toyota Crown
(8308- )YS120 ; (8308- )LS120..4F,5F ; (8308- )LS120..LHD..STD ; (8509-

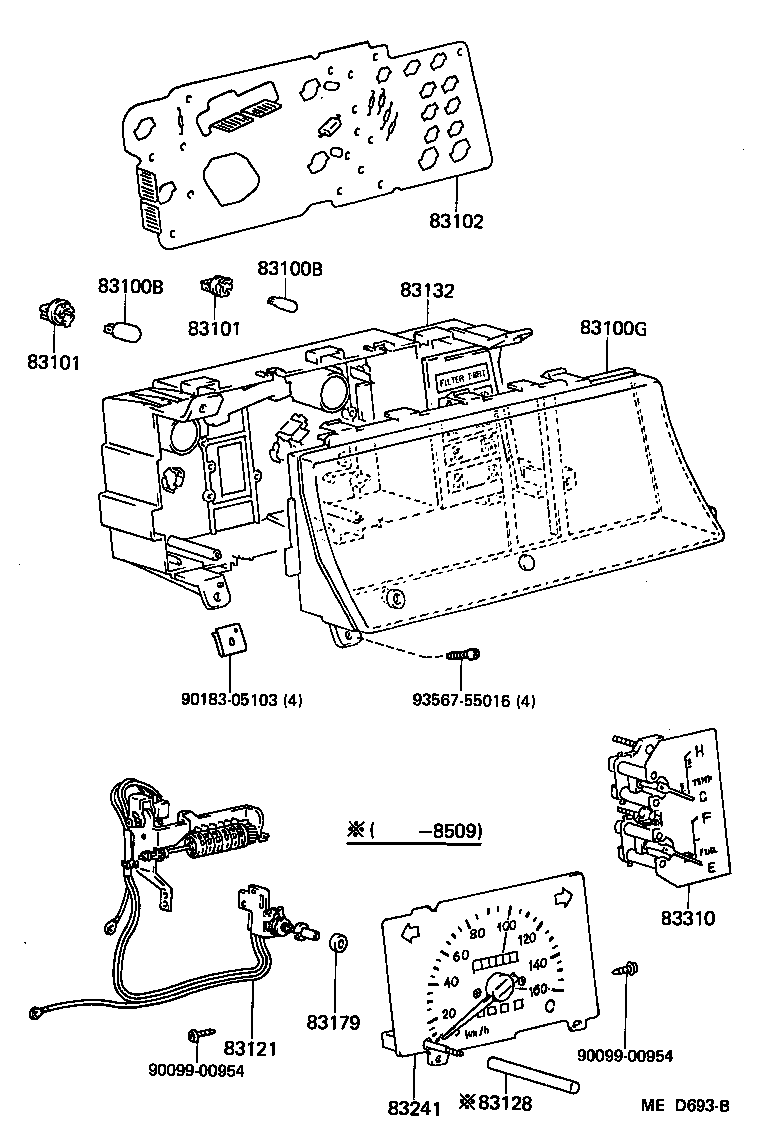

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD 12V3.4W W(GREEN CAP) |
5 | ||
| 99132-12034 |
LS120,MS12#,YS120 12V 3.4W |
4 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-3A050 |
MS12#..RHD |
1 | ||
| 83138-3A330 |
MS12#..RHD |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
LS120,MS12#,YS120 12V 3.4W,BLACK |
4 | ||
| 83101-28010 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD 12V 3.4W,GREEN |
5 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-3A410 |
MS12#..RHD |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-3A160 |
MS122..RHD MILE/KM |
1 | ||
| 83110-3A170 |
MS122..RHD KM |
1 | ||
| 83110-3A171 |
MS122..RHD KM |
1 | ||
| 83110-3A161 |
MS122..RHD MILE/KM |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-30330 |
MS12#..RHD |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-30190 |
MS12#..RHD |
1 | ||
| 83243-30270 |
MS12#..RHD |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-30110 |
MS12#..RHD |
1 | ||
| 83244-30330 |
MS12#..RHD |
1 | ||
| Common parts | ||||
| 90099-00954 | ||||
| 93567-55016 | ||||
(8308- )RHD..4H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD 12V3.4W W(GREEN CAP) |
5 | ||
| 99132-12034 |
LS120,MS12#,YS120 12V 3.4W |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD 12V3.4W W(GREEN CAP) |
5 | ||
| 99132-12034 |
LS120,MS12#,YS120 12V 3.4W |
4 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-3A050 |
MS12#..RHD |
1 | ||
| 83138-3A330 |
MS12#..RHD |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
LS120,MS12#,YS120 12V 3.4W,BLACK |
4 | ||
| 83101-28010 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD 12V 3.4W,GREEN |
5 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
LS120,MS12#,YS120 12V 3.4W,BLACK |
4 | ||
| 83101-28010 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD 12V 3.4W,GREEN |
5 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-3A410 |
MS12#..RHD |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-30330 |
MS12#..RHD |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-30190 |
MS12#..RHD |
1 | ||
| 83243-30270 |
MS12#..RHD |
1 | ||
| Common parts | ||||
| 90099-00954 | ||||
| 90183-05103 | ||||
| 93567-55016 | ||||
(8308- )DLX..GEN ; (8308- )MS12#..ROY,SAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD 12V3.4W W(GREEN CAP) |
5 | ||
| 99132-12034 |
LS120,MS12#,YS120 12V 3.4W |
4 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-3A050 |
MS12#..RHD |
1 | ||
| 83138-3A330 |
MS12#..RHD |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
LS120,MS12#,YS120 12V 3.4W,BLACK |
4 | ||
| 83101-28010 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD 12V 3.4W,GREEN |
5 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-3A410 |
MS12#..RHD |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-3A160 |
MS122..RHD MILE/KM |
1 | ||
| 83110-3A170 |
MS122..RHD KM |
1 | ||
| 83110-3A171 |
MS122..RHD KM |
1 | ||
| 83110-3A161 |
MS122..RHD MILE/KM |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-30330 |
MS12#..RHD |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-30210 |
MS122..RHD |
1 | ||
| 83242-30650 |
MS122..RHD |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-30190 |
MS12#..RHD |
1 | ||
| 83243-30270 |
MS12#..RHD |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-30110 |
MS12#..RHD |
1 | ||
| 83244-30330 |
MS12#..RHD |
1 | ||
| Common parts | ||||
| 93567-55016 | ||||
(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-14110 | ||||
| 83791-30020 | ||||
| 83791-30050 | ||||
| 83791-30060 | ||||
| 83791-30070 | ||||
| 83791-30080 | ||||
| 83791-30090 | ||||
| 83791-30100 | ||||
| 83791-30110 | ||||
| 90099-00917 | ||||
| 90464-00310 | ||||
| 91611-60816 | ||||
| 93510-13016 | ||||
| 93567-55016 | ||||
(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-30570 |
MS12#..RHD..ATM |
1 | ||
| 83710-30571 |
MS12#..RHD..ATM |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-30570 |
MS12#..RHD..ATM |
1 | ||
| 83710-30571 |
MS12#..RHD..ATM |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-30570 |
MS12#..RHD..ATM |
1 | ||
| 83710-30571 |
MS12#..RHD..ATM |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-30570 |
MS12#..RHD..ATM |
1 | ||
| 83710-30571 |
MS12#..RHD..ATM |
1 | ||
| 83770 - ADAPTER ASSY, SPEEDOMETER CABLE | ||||
| 83770-30070 |
MS12#..ATM |
1 | ||
(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-3037005 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)..GEN BEIGE,BEIGE,TRIM3#,4# |
1 | ||
| 83910-3037002 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 83910-3037004 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 83910-3043004 |
MS122,125..RHD BLUE,W/*MR,BLUE,TRIM8# |
1 | ||
| 83910-3043006 |
MS122,125..RHD BROWN,W/*MR,BROWN,TRIM3#,4# |
1 | ||
| 83910-3042006 |
MS122,125..RHD BROWN,BROWN,TRIM3#,4# |
1 | ||
| 83910-3042004 |
MS122,125..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-3037005 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)..GEN BEIGE,BEIGE,TRIM3#,4# |
1 | ||
| 83910-3037002 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 83910-3037004 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 83910-3043004 |
MS122,125..RHD BLUE,W/*MR,BLUE,TRIM8# |
1 | ||
| 83910-3043006 |
MS122,125..RHD BROWN,W/*MR,BROWN,TRIM3#,4# |
1 | ||
| 83910-3042006 |
MS122,125..RHD BROWN,BROWN,TRIM3#,4# |
1 | ||
| 83910-3042004 |
MS122,125..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-3037005 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)..GEN BEIGE,BEIGE,TRIM3#,4# |
1 | ||
| 83910-3037002 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 83910-3037004 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 83910-3043004 |
MS122,125..RHD BLUE,W/*MR,BLUE,TRIM8# |
1 | ||
| 83910-3043006 |
MS122,125..RHD BROWN,W/*MR,BROWN,TRIM3#,4# |
1 | ||
| 83910-3042006 |
MS122,125..RHD BROWN,BROWN,TRIM3#,4# |
1 | ||
| 83910-3042004 |
MS122,125..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-3037005 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)..GEN BEIGE,BEIGE,TRIM3#,4# |
1 | ||
| 83910-3037002 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 83910-3037004 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 83910-3043004 |
MS122,125..RHD BLUE,W/*MR,BLUE,TRIM8# |
1 | ||
| 83910-3043006 |
MS122,125..RHD BROWN,W/*MR,BROWN,TRIM3#,4# |
1 | ||
| 83910-3042006 |
MS122,125..RHD BROWN,BROWN,TRIM3#,4# |
1 | ||
| 83910-3042004 |
MS122,125..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-3037005 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)..GEN BEIGE,BEIGE,TRIM3#,4# |
1 | ||
| 83910-3037002 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 83910-3037004 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 83910-3043004 |
MS122,125..RHD BLUE,W/*MR,BLUE,TRIM8# |
1 | ||
| 83910-3043006 |
MS122,125..RHD BROWN,W/*MR,BROWN,TRIM3#,4# |
1 | ||
| 83910-3042006 |
MS122,125..RHD BROWN,BROWN,TRIM3#,4# |
1 | ||
| 83910-3042004 |
MS122,125..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-3037005 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)..GEN BEIGE,BEIGE,TRIM3#,4# |
1 | ||
| 83910-3037002 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)..GEN DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 83910-3037004 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 83910-3043004 |
MS122,125..RHD BLUE,W/*MR,BLUE,TRIM8# |
1 | ||
| 83910-3043006 |
MS122,125..RHD BROWN,W/*MR,BROWN,TRIM3#,4# |
1 | ||
| 83910-3042006 |
MS122,125..RHD BROWN,BROWN,TRIM3#,4# |
1 | ||
| 83910-3042004 |
MS122,125..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 83911 - COVER, CLOCK | ||||
| 83911-30010 |
LS120,MS122,125,YS120..RHD..(4F,4FC,4HC,5F) |
1 | ||
| 83915 - BRACKET, CLOCK | ||||
| 83915-3002006 |
LS120,MS122,125,YS120..RHD..(4F,4FC,4HC,5F) BROWN,BROWN,TRIM3#,4# |
1 | ||
| 83915-3002004 |
LS120,MS122,125,YS120..RHD..(4F,4FC,4HC,5F) BLUE,BLUE,TRIM8# |
1 | ||
| 83915 - BRACKET, CLOCK | ||||
| 83915-3002006 |
LS120,MS122,125,YS120..RHD..(4F,4FC,4HC,5F) BROWN,BROWN,TRIM3#,4# |
1 | ||
| 83915-3002004 |
LS120,MS122,125,YS120..RHD..(4F,4FC,4HC,5F) BLUE,BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90167-50003 | ||||
| 90463-05025 | ||||
| 93510-14012 | ||||
| 93546-24512 | ||||
