MS122R-SESGS (1983)
Toyota Crown
(8308-8509)MS123..SAL ; (8308-8509)MS122..4HC ;(8308-8509)MS122..RHD..ROY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

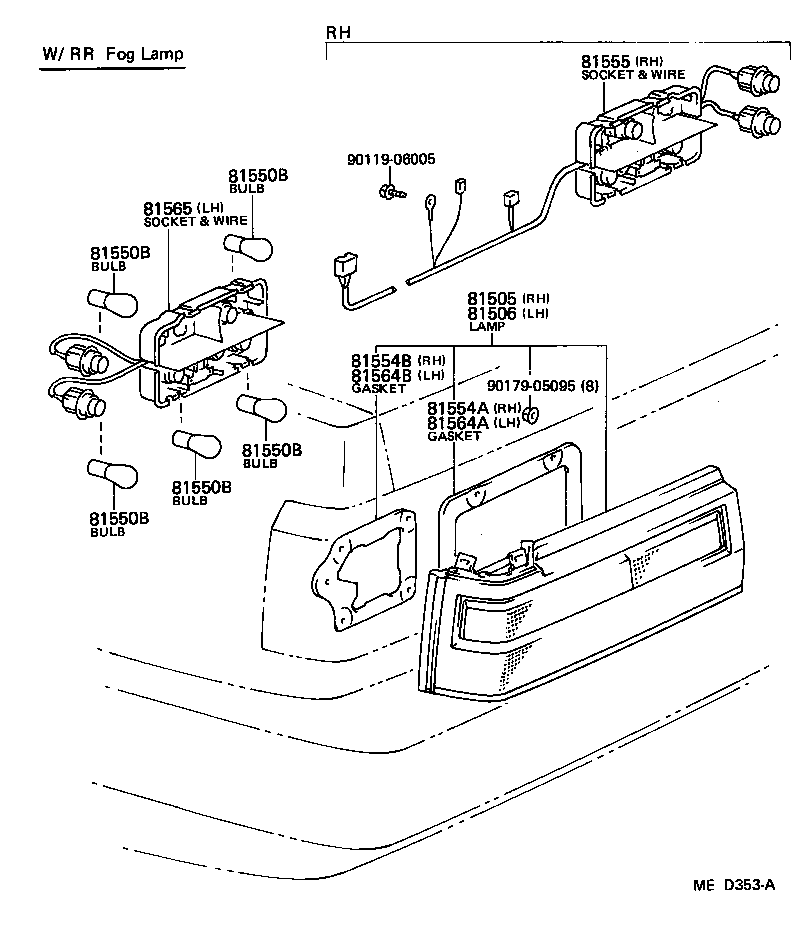

| 81505 - LAMP SUB-ASSY, REAR COMBINATION, RH | ||||
| 81505-39195 |
LS120,MS122,YS120..SED |
1 | ||
| 81505-30141 |
LS120,MS122,125,YS120..SED *LPL=LOWER LIGHTING |
1 | ||
| 81505-39205 |
MS123..SAL;MS122..4HC;MS122..RHD..ROY W/RR FOG LAMP |
1 | ||
| 81505-39195 |
LS120,MS122,125,YS120..SED *LPL=LOWER LIGHTING |
1 | ||
| 81506 - LAMP SUB-ASSY, REAR COMBINATION, LH | ||||
| 81506-39175 |
LS120,MS122,125,YS120..SED *LPL=LOWER LIGHTING |
1 | ||
| 81506-39185 |
MS123..SAL;MS122..4HC;MS122..RHD..ROY W/RR FOG LAMP |
1 | ||
| 81506-39175 |
LS120,MS122,YS120..SED |
1 | ||
| 81506-30121 |
LS120,MS122,125,YS120..SED *LPL=LOWER LIGHTING |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
MS123..SAL;MS122..4HC;MS122..RHD..ROY 12V 21W,12V 21W(BACK,FOG & TURN) |
6 | ||
| 99132-21210 |
LS120,MS12#,YS120 12V 21/5W,12V 21/5W(STOP & TAIL) |
4 | ||
| 99132-11230 |
LS120,MS12#,YS120..ARL,GEN,SAA 12V 23W,12V 23W(BACK & TURN) |
6 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
MS123..SAL;MS122..4HC;MS122..RHD..ROY 12V 21W,12V 21W(BACK,FOG & TURN) |
6 | ||
| 99132-21210 |
LS120,MS12#,YS120 12V 21/5W,12V 21/5W(STOP & TAIL) |
4 | ||
| 99132-11230 |
LS120,MS12#,YS120..ARL,GEN,SAA 12V 23W,12V 23W(BACK & TURN) |
6 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
MS123..SAL;MS122..4HC;MS122..RHD..ROY 12V 21W,12V 21W(BACK,FOG & TURN) |
6 | ||
| 99132-21210 |
LS120,MS12#,YS120 12V 21/5W,12V 21/5W(STOP & TAIL) |
4 | ||
| 99132-11230 |
LS120,MS12#,YS120..ARL,GEN,SAA 12V 23W,12V 23W(BACK & TURN) |
6 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
MS123..SAL;MS122..4HC;MS122..RHD..ROY 12V 21W,12V 21W(BACK,FOG & TURN) |
6 | ||
| 99132-21210 |
LS120,MS12#,YS120 12V 21/5W,12V 21/5W(STOP & TAIL) |
4 | ||
| 99132-11230 |
LS120,MS12#,YS120..ARL,GEN,SAA 12V 23W,12V 23W(BACK & TURN) |
6 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
MS123..SAL;MS122..4HC;MS122..RHD..ROY 12V 21W,12V 21W(BACK,FOG & TURN) |
6 | ||
| 99132-21210 |
LS120,MS12#,YS120 12V 21/5W,12V 21/5W(STOP & TAIL) |
4 | ||
| 99132-11230 |
LS120,MS12#,YS120..ARL,GEN,SAA 12V 23W,12V 23W(BACK & TURN) |
6 | ||
| 81554A - GASKET, REAR COMBINATION LAMP BODY, NO.1 RH | ||||
| 81554-30520 |
LS120,MS12#,YS120..SED |
1 | ||
| 81554B - GASKET, REAR COMBINATION LAMP BODY, NO.2 RH | ||||
| 81556-30520 |
LS120,MS12#,YS120..SED |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-30530 |
MS123..EUG;MS122..4HC;MS122..RHD..ROY W/RR FOG LAMP |
1 | ||
| 81555-30520 |
LS120,MS122,YS120..SED |
1 | ||
| 81555-30521 |
LS120,MS122,125,YS120..SED *LPL=LOWER LIGHTING |
1 | ||
| 81555-30520 |
LS120,MS122,125,YS120..SED *LPL=LOWER LIGHTING |
1 | ||
| 81564A - GASKET, REAR COMBINATION LAMP BODY, NO.1 LH | ||||
| 81554-30520 |
LS120,MS12#,YS120..SED..(ARL,EUG,GEN,SAA) |
1 | ||
| 81564B - GASKET, REAR COMBINATION LAMP BODY, NO.2 LH | ||||
| 81556-30520 |
LS120,MS12#,YS120..SED..(ARL,EUG,GEN,SAA) |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81565-30490 |
LS120,MS122,125,YS120..SED *LPL=LOWER LIGHTING |
1 | ||
| 81565-30490 |
LS120,MS122,YS120..SED |
1 | ||
| 81565-30500 |
MS123..EUG;MS122..4HC;MS122..RHD..ROY W/RR FOG LAMP |
1 | ||
| 81565-30491 |
LS120,MS122,125,YS120..SED *LPL=LOWER LIGHTING |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90179-05095 | ||||
(8308-8509)LS120,MS122,YS120..SED ; (8406-8509)MS123
*LPL=LOWER LIGHTING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81505 - LAMP SUB-ASSY, REAR COMBINATION, RH | ||||
| 81505-39195 |
LS120,MS122,YS120..SED |
1 | ||
| 81505-30141 |
LS120,MS122,125,YS120..SED *LPL=LOWER LIGHTING |
1 | ||
| 81505-39205 |
MS123..SAL;MS122..4HC;MS122..RHD..ROY W/RR FOG LAMP |
1 | ||
| 81505-39195 |
LS120,MS122,125,YS120..SED *LPL=LOWER LIGHTING |
1 | ||
| 81506 - LAMP SUB-ASSY, REAR COMBINATION, LH | ||||
| 81506-39175 |
LS120,MS122,125,YS120..SED *LPL=LOWER LIGHTING |
1 | ||
| 81506-39185 |
MS123..SAL;MS122..4HC;MS122..RHD..ROY W/RR FOG LAMP |
1 | ||
| 81506-39175 |
LS120,MS122,YS120..SED |
1 | ||
| 81506-30121 |
LS120,MS122,125,YS120..SED *LPL=LOWER LIGHTING |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
MS123..SAL;MS122..4HC;MS122..RHD..ROY 12V 21W,12V 21W(BACK,FOG & TURN) |
6 | ||
| 99132-21210 |
LS120,MS12#,YS120 12V 21/5W,12V 21/5W(STOP & TAIL) |
4 | ||
| 99132-11230 |
LS120,MS12#,YS120..ARL,GEN,SAA 12V 23W,12V 23W(BACK & TURN) |
6 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
MS123..SAL;MS122..4HC;MS122..RHD..ROY 12V 21W,12V 21W(BACK,FOG & TURN) |
6 | ||
| 99132-21210 |
LS120,MS12#,YS120 12V 21/5W,12V 21/5W(STOP & TAIL) |
4 | ||
| 99132-11230 |
LS120,MS12#,YS120..ARL,GEN,SAA 12V 23W,12V 23W(BACK & TURN) |
6 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
MS123..SAL;MS122..4HC;MS122..RHD..ROY 12V 21W,12V 21W(BACK,FOG & TURN) |
6 | ||
| 99132-21210 |
LS120,MS12#,YS120 12V 21/5W,12V 21/5W(STOP & TAIL) |
4 | ||
| 99132-11230 |
LS120,MS12#,YS120..ARL,GEN,SAA 12V 23W,12V 23W(BACK & TURN) |
6 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
MS123..SAL;MS122..4HC;MS122..RHD..ROY 12V 21W,12V 21W(BACK,FOG & TURN) |
6 | ||
| 99132-21210 |
LS120,MS12#,YS120 12V 21/5W,12V 21/5W(STOP & TAIL) |
4 | ||
| 99132-11230 |
LS120,MS12#,YS120..ARL,GEN,SAA 12V 23W,12V 23W(BACK & TURN) |
6 | ||
| 81554A - GASKET, REAR COMBINATION LAMP BODY, NO.1 RH | ||||
| 81554-30520 |
LS120,MS12#,YS120..SED |
1 | ||
| 81554B - GASKET, REAR COMBINATION LAMP BODY, NO.2 RH | ||||
| 81556-30520 |
LS120,MS12#,YS120..SED |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-30530 |
MS123..EUG;MS122..4HC;MS122..RHD..ROY W/RR FOG LAMP |
1 | ||
| 81555-30520 |
LS120,MS122,YS120..SED |
1 | ||
| 81555-30521 |
LS120,MS122,125,YS120..SED *LPL=LOWER LIGHTING |
1 | ||
| 81555-30520 |
LS120,MS122,125,YS120..SED *LPL=LOWER LIGHTING |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-30530 |
MS123..EUG;MS122..4HC;MS122..RHD..ROY W/RR FOG LAMP |
1 | ||
| 81555-30520 |
LS120,MS122,YS120..SED |
1 | ||
| 81555-30521 |
LS120,MS122,125,YS120..SED *LPL=LOWER LIGHTING |
1 | ||
| 81555-30520 |
LS120,MS122,125,YS120..SED *LPL=LOWER LIGHTING |
1 | ||
| 81557C - COVER, REAR COMBINATION LAMP, RH | ||||
| 81557-30520 |
LS120,MS122,125,YS120..SED |
1 | ||
| 81564A - GASKET, REAR COMBINATION LAMP BODY, NO.1 LH | ||||
| 81554-30520 |
LS120,MS12#,YS120..SED..(ARL,EUG,GEN,SAA) |
1 | ||
| 81564B - GASKET, REAR COMBINATION LAMP BODY, NO.2 LH | ||||
| 81556-30520 |
LS120,MS12#,YS120..SED..(ARL,EUG,GEN,SAA) |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81565-30490 |
LS120,MS122,125,YS120..SED *LPL=LOWER LIGHTING |
1 | ||
| 81565-30490 |
LS120,MS122,YS120..SED |
1 | ||
| 81565-30500 |
MS123..EUG;MS122..4HC;MS122..RHD..ROY W/RR FOG LAMP |
1 | ||
| 81565-30491 |
LS120,MS122,125,YS120..SED *LPL=LOWER LIGHTING |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81565-30490 |
LS120,MS122,125,YS120..SED *LPL=LOWER LIGHTING |
1 | ||
| 81565-30490 |
LS120,MS122,YS120..SED |
1 | ||
| 81565-30500 |
MS123..EUG;MS122..4HC;MS122..RHD..ROY W/RR FOG LAMP |
1 | ||
| 81565-30491 |
LS120,MS122,125,YS120..SED *LPL=LOWER LIGHTING |
1 | ||
| 81567C - COVER, REAR COMBINATION LAMP, LH | ||||
| 81567-30490 |
LS120,MS122,125,YS120..SED |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90179-05095 | ||||
| 93510-14012 | ||||
