MS122R-SESGS (1983)
Toyota Crown
Production
Aug 1983
-
Aug 1987
Engine
5M
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )MS12#,YS120..RHD

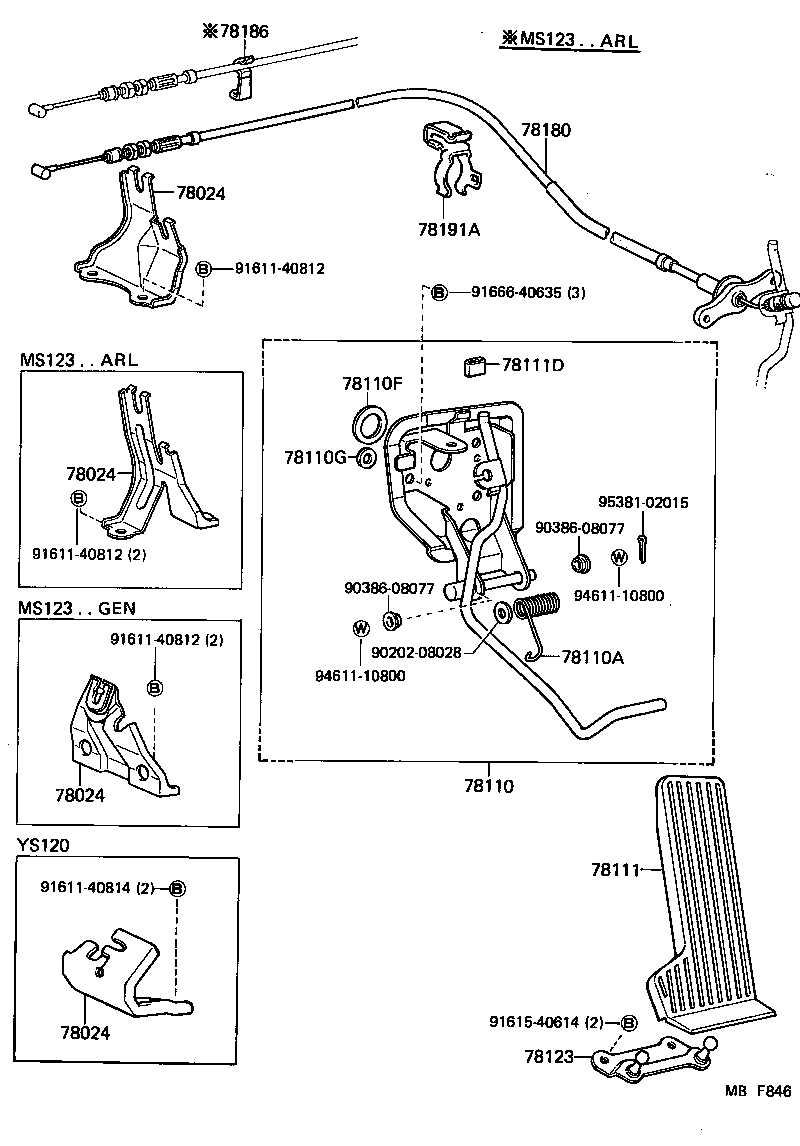

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-30010 |
MS122..SED |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-30010 |
MS122..SED |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-30010 |
MS122..SED |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-30010 |
MS122..SED |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-30460 |
MS12#..RHD..ATM |
1 | ||
| 78120-30370 |
MS12#..RHD..ATM |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18016 |
MS12#..RHD..ATM |
1 | ||
| 78110F - SEAL, NO.1 (FOR ACCELERATOR PEDAL ROD) | ||||
| 78129-30050 |
LS120,MS12#,YS120..RHD |
1 | ||
| 78110G - SEAL, NO.2 (FOR ACCELERATOR PEDAL ROD) | ||||
| 78139-30050 |
LS120,MS12#,YS120..RHD |
3 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-30080 |
LS120,MS12#,YS120..RHD |
1 | ||
| 78111D - STOPPER (FOR ACCELERATOR PEDAL) | ||||
| 78119-30050 |
LS120,MS12#,YS120..RHD |
1 | ||
| 78123 - BRACKET, ACCELERATOR PEDAL SUPPORT | ||||
| 78114-30050 |
LS120,MS12#,YS120..RHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-30470 |
MS122..RHD |
1 | ||
| 78191A - CLAMP (FOR ACCELERATOR WIRE SET) | ||||
| 78183-30070 |
LS120,MS12#,YS120..RHD |
1 | ||
| Common parts | ||||
| 90202-08028 | ||||
| 90386-08077 | ||||
| 91611-40812 | ||||
| 91611-40814 | ||||
| 91615-40614 | ||||
| 91666-40635 | ||||
| 94611-10800 | ||||
| 95381-02015 | ||||
