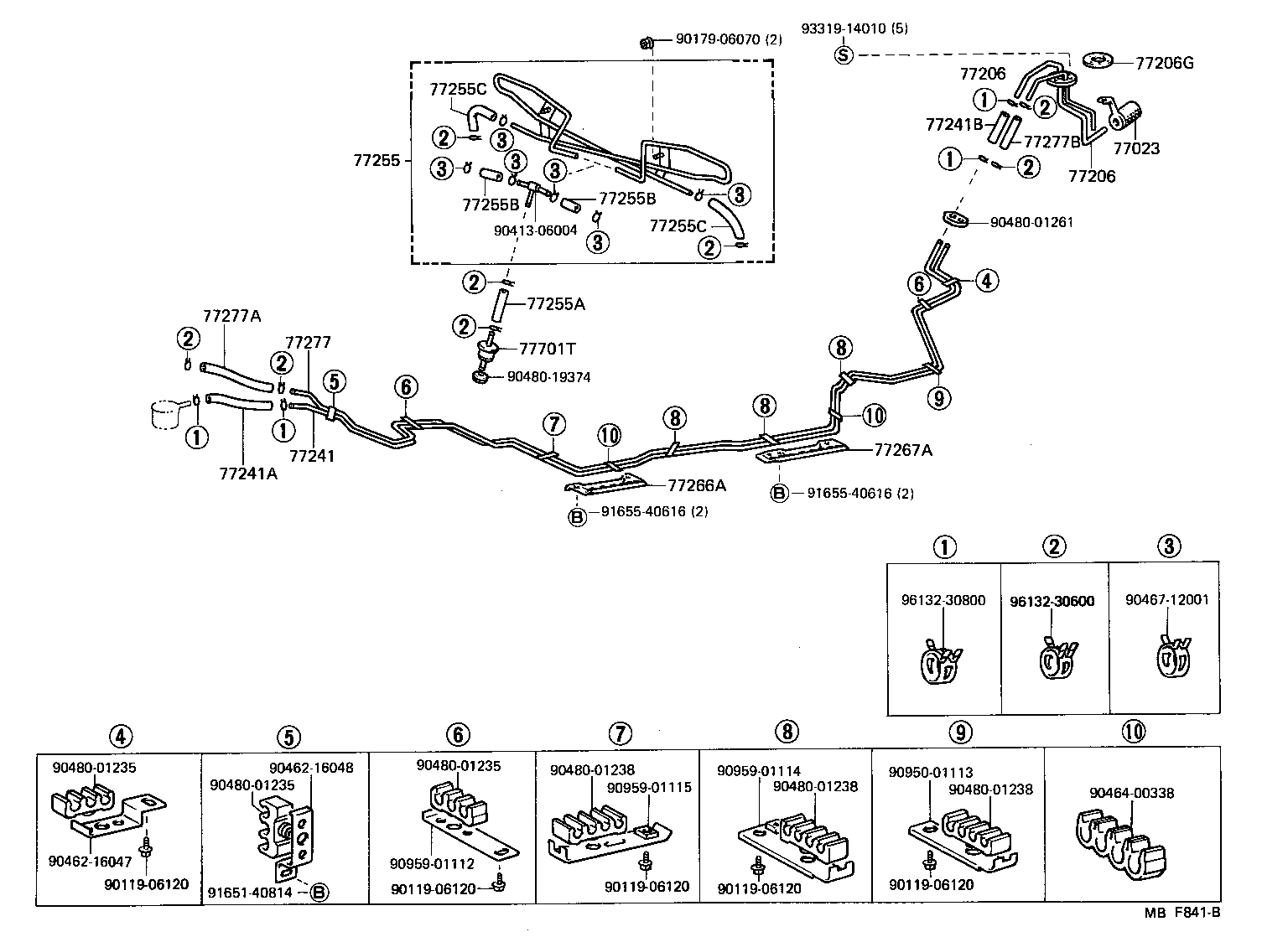

MS122R-SESGS (1983)
Toyota Crown
(8308- )LS120,MS122,YS120..HT,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
MS12#,YS120 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
LS120,MS12#,YS120 |
1 | ||
| 77033 - LOCK SUB-ASSY, FUEL TANK CAP | ||||
| 77037-14010 |
LS120,MS12#,YS120..HT,SED |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-30070 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F) |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-30070 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F) |
1 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 69749-30030 |
LS120,MS12#,YS120 RR |
1 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 69749-30030 |
LS120,MS12#,YS120 RR |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-39195 |
MS122,YS120..SED |
1 | ||
| 77001-39185 |
LS120,MS122,YS120..HT,SED |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
LS120,MS12#,YS120 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
LS120,MS12#,YS120 |
1 | ||
| 77100E - HOSE, FUEL, NO.2(FOR FUEL TANK) | ||||
| 90445-22010 |
LS120,MS122,YS120..HT,SED |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-30140 |
LS120,MS122,125,YS120..HT,SED |
1 | ||
| 77201-30140 |
LS120,MS12#,YS120..SED |
1 | ||
| 77206G - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
LS120,MS122,YS120..HT,SED |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-30050 |
LS120,MS122,YS120..HT,SED |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77291-12010 |
LS120,MS12#,YS120 |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77051-3005004 |
MS122..SED BLUE,BLUE,TRIM8# |
1 | ||
| 77051-3005002 |
LS120,MS12#,YS120..ROY,SAL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 77051-3005005 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 77051-3005004 |
LS120..4F;LS120..LHD;MS12#,YS120 BLUE,BLUE,TRIM8# |
1 | ||
| 77051-3005006 |
LS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC) BROWN |
1 | ||
| 77051-3005012 |
MS12#..ROY,SAL MAROON |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-30110 |
LS120,MS12#,YS120..SED |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-08011 |
LS120,MS12#,YS120 |
2 | ||
| 90541-08003 |
LS120,MS12#,YS120 |
2 | ||
| 90541-08003 |
LS120,MS12#,YS120 |
2 | ||
| 77315 - HOSE, FUEL FILLER OPENING | ||||
| 90446-09011 |
LS120,MS12#,YS120..HT,SED L=590 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-24010 |
LS120,MS12#,YS120 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-24010 |
LS120,MS12#,YS120 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-30090 |
LS120,MS122,YS120..SED |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-30090 |
LS120,MS122,YS120..SED |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-30060 |
LS120,MS122,YS120..HT,SED |
4 | ||
| 77653 - SHIELD, FUEL TANK DRAIN PLUG | ||||
| 77292-30020 |
LS120,MS12#,YS120..HT,SED |
1 | ||
| 77658 - MOULDING, FUEL TANK EDGE | ||||
| 77658-30030 |
LS120,MS12#,YS120..HT,SED |
3 | ||
| 77658 - MOULDING, FUEL TANK EDGE | ||||
| 77658-30030 |
LS120,MS12#,YS120..HT,SED |
3 | ||
| 77691 - SHEET, FUEL TANK SILENCER, UPPER NO.1 | ||||
| 77691-30020 |
LS120,MS122,YS120..HT,SED |
1 | ||
| 77692 - SHEET, FUEL TANK SILENCER, LOWER NO.1 | ||||
| 77692-30020 |
LS120,MS122,YS120..HT,SED |
1 | ||
| 77693 - SHEET, FUEL TANK SILENCER, UPPER NO.2 | ||||
| 77693-30020 |
LS120,MS122,YS120..HT,SED |
1 | ||
| 77694 - SHEET, FUEL TANK SILENCER, LOWER NO.2 | ||||
| 77694-30020 |
LS120,MS122,YS120..HT,SED |
1 | ||
| 77695 - SHEET, FUEL TANK SILENCER, UPPER NO.3 | ||||
| 77695-30020 |
LS120,MS122,YS120..HT,SED |
1 | ||
| 77696 - SHEET, FUEL TANK SILENCER, LOWER NO.3 | ||||
| 77696-30020 |
LS120,MS122,YS120..HT,SED |
2 | ||
| 77696 - SHEET, FUEL TANK SILENCER, LOWER NO.3 | ||||
| 77696-30020 |
LS120,MS122,YS120..HT,SED |
2 | ||
| Common parts | ||||
| 90119-08019 | ||||
| 90159-50004 | ||||
| 90159-50064 | ||||
| 90179-05020 | ||||
| 90179-10033 | ||||
| 90183-05005 | ||||
| 90460-63009 | ||||
| 90480-26019 | ||||
| 91651-60820 | ||||
| 91661-40620 | ||||
| 93567-55016 | ||||
| 96112-10240 | ||||
(8308- )MS122..SED..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12031 |
LS120,MS122,YS120..SED |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77017-30130 |
LS120,MS122..SED |
1 | ||
| 77017-30130 |
LS120,MS122,YS120..SED |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77017-30130 |
LS120,MS122..SED |
1 | ||
| 77017-30130 |
LS120,MS122,YS120..SED |
1 | ||
| 77206G - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
LS120,MS122,YS120..HT,SED |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77252-30190 |
MS122..SED |
1 | ||
| 77252-30270 |
MS122..SED..GEN |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08017 |
MS122 *H,L=170 |
1 | ||
| 95332-08020 |
MS122 *H,L=170,ID=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08020 |
LS120,MS122..SED *H,L=130,ID=7.6 |
1 | ||
| 95333-08013 |
LS120,MS122..SED *H,L=130 |
1 | ||
| 77255 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77028-30070 |
LS120,MS12#,YS120..HT,SED |
1 | ||
| 77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2) | ||||
| 95332-06030 |
LS120,MS122,YS120..HT,SED *H,L=220 |
1 | ||
| 77255B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.2) | ||||
| 95332-06010 |
LS120,MS12#,YS120..HT,SED *H,L=50 |
2 | ||
| 77255B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.2) | ||||
| 95332-06010 |
LS120,MS12#,YS120..HT,SED *H,L=50 |
2 | ||
| 77255C - HOSE, FUEL, NO.3 (FOR EMISSION TUBE, NO.2) | ||||
| 95332-06020 |
LS120,MS12#,YS120..HT,SED *H,L=160 |
2 | ||
| 77255C - HOSE, FUEL, NO.3 (FOR EMISSION TUBE, NO.2) | ||||
| 95332-06020 |
LS120,MS12#,YS120..HT,SED *H,L=160 |
2 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-30040 |
LS120,MS12#,YS120 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-30050 |
LS120,MS12#,YS120 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77256-30120 |
LS120,MS122..SED |
1 | ||
| 77256-30180 |
LS120,MS122..SED..GEN |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90445-12006 |
MS122..SED,WG |
1 | ||
| 90445-06070 |
MS122 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95333-06012 |
MS122..SED *H,L=120 |
1 | ||
| 95332-06020 |
LS120,MS122..SED *H,L=120 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
LS120,MS12#,YS120..SED..(EUG,GEN,SWZ) |
1 | ||
| Common parts | ||||
| 90119-06120 | ||||
| 90179-06070 | ||||
| 90413-06004 | ||||
| 90462-16047 | ||||
| 90462-16048 | ||||
| 90464-00338 | ||||
| 90467-12001 | ||||
| 90480-01235 | ||||
| 90480-01238 | ||||
| 90480-01261 | ||||
| 90480-19374 | ||||
| 90950-01113 | ||||
| 90959-01112 | ||||
| 90959-01114 | ||||
| 90959-01115 | ||||
| 91651-40814 | ||||
| 91655-40616 | ||||
| 93319-14010 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
