MS122R-SESGS (1983)
Toyota Crown
(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90507-18007 |
LS120,MS12#,YS120..4H,4HC |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-3001004 |
LS120,MS12#,YS120..SED BLUE,BLUE,TRIM8# |
1 | ||
| 72137-3001002 |
LS120,MS12#,YS120..ROY,SAL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72137-3001005 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 72137-3001012 |
MS12#..ROY,SAL MAROON,MAROON,TRIM3# |
1 | ||
| 72137-3001004 |
LS120,MS12#,YS120 BLUE,BLUE,TRIM8# |
1 | ||
| 72137-3001006 |
LS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC) BROWN,BROWN,TRIM4# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-3001004 |
LS120,MS12#,YS120..SED BLUE,BLUE,TRIM8# |
1 | ||
| 72138-3001005 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 72138-3001004 |
LS120,MS12#,YS120 BLUE,BLUE,TRIM8# |
1 | ||
| 72138-3001002 |
LS120,MS12#,YS120..ROY,SAL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72138-3001012 |
MS12#..ROY,SAL MAROON,MAROON,TRIM3# |
1 | ||
| 72138-3001006 |
LS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC) BROWN,BROWN,TRIM4# |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-30110 |
LS120,MS12#,YS120..4H,4HC |
2 | ||
| Common parts | ||||
| 90116-10085 | ||||
| 90119-06230 | ||||
| 90119-08079 | ||||
| 90119-08086 | ||||
| 90119-10349 | ||||
| 90179-06034 | ||||
| 90179-06158 | ||||
| 90179-10015 | ||||
| 90540-17004 | ||||
(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-3001004 |
LS120,MS12#,YS120..SED BLUE,BLUE,TRIM8# |
1 | ||
| 72137-3001002 |
LS120,MS12#,YS120..ROY,SAL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72137-3001005 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 72137-3001012 |
MS12#..ROY,SAL MAROON,MAROON,TRIM3# |
1 | ||
| 72137-3001004 |
LS120,MS12#,YS120 BLUE,BLUE,TRIM8# |
1 | ||
| 72137-3001006 |
LS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC) BROWN,BROWN,TRIM4# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-3001004 |
LS120,MS12#,YS120..SED BLUE,BLUE,TRIM8# |
1 | ||
| 72138-3001005 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 72138-3001004 |
LS120,MS12#,YS120 BLUE,BLUE,TRIM8# |
1 | ||
| 72138-3001002 |
LS120,MS12#,YS120..ROY,SAL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72138-3001012 |
MS12#..ROY,SAL MAROON,MAROON,TRIM3# |
1 | ||
| 72138-3001006 |
LS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC) BROWN,BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90116-10085 | ||||
| 90119-08079 | ||||
| 90119-10349 | ||||
| 90179-10015 | ||||
| 91112-40612 | ||||
| 91131-40650 | ||||
| 91611-40612 | ||||
| 94531-00600 | ||||
| Linked diagrams | ||||
| 8511 | ||||

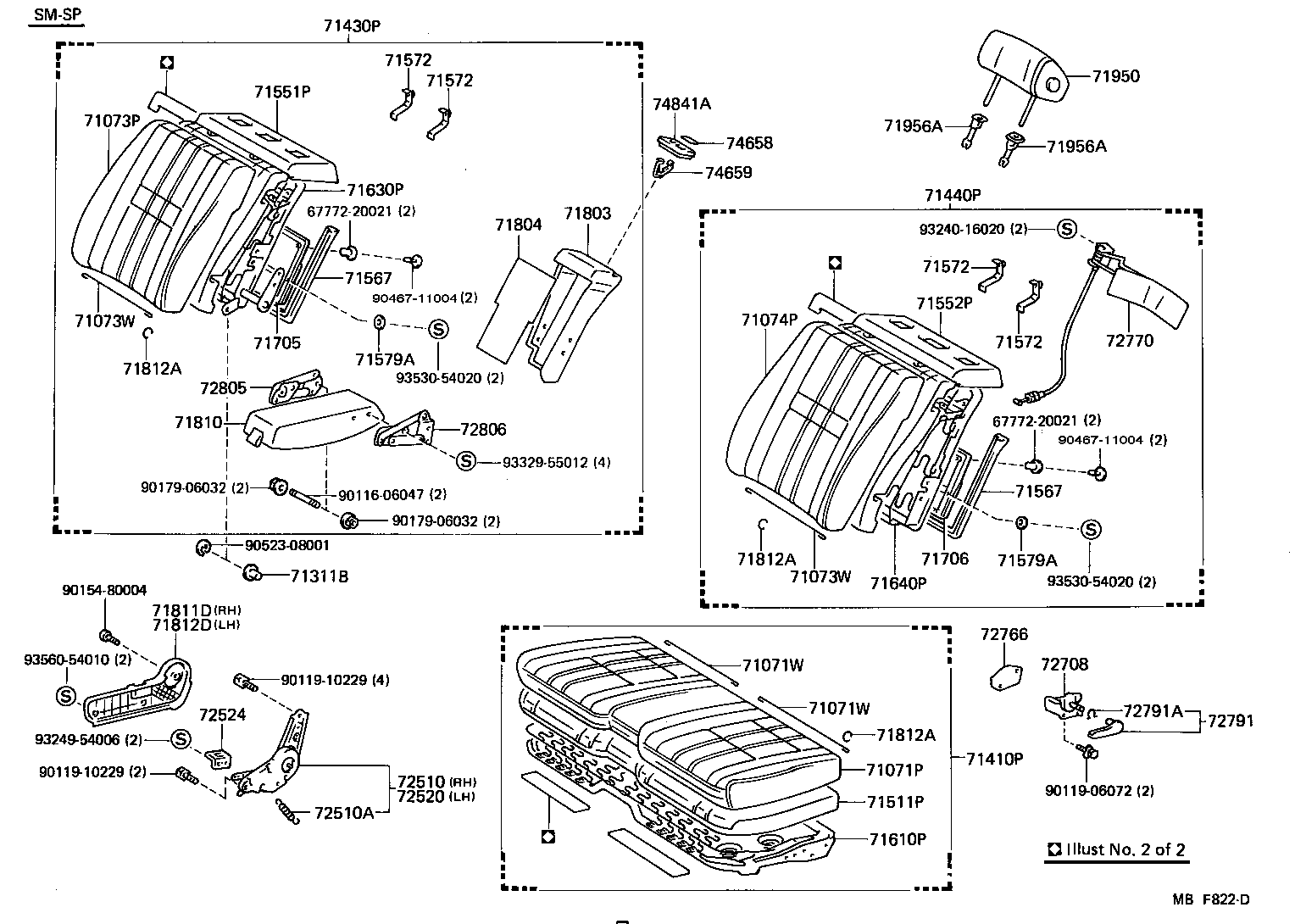

(8308-8509)MS122..4H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071P - COVER, FRONT SEAT CUSHION(FOR SEMI-SEPARATE TYPE) | ||||
| 71071-3A42002 |
MS122..4H FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71071-3A42004 |
MS122..SED..4H FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-3A47005 |
MS122..4HC FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-3A42005 |
MS122..4H FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-3A47004 |
MS122..4HC FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-3A47106 |
MS122..4HC FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-3A47102 |
MS122..4HC FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71071-3A47104 |
MS122..4HC FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-3A47002 |
MS122..4HC FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20122 |
MS12#..4H,4HC L=200 |
1 | ||
| 90580-29010 |
MS12#..4H,4HC L=280 |
4 | ||
| 90580-20139 |
MS12#..4H,4HC L=1020 |
2 | ||
| 90580-20103 |
MS12#..4H,4HC L=1150 |
1 | ||
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20122 |
MS12#..4H,4HC L=200 |
1 | ||
| 90580-29010 |
MS12#..4H,4HC L=280 |
4 | ||
| 90580-20139 |
MS12#..4H,4HC L=1020 |
2 | ||
| 90580-20103 |
MS12#..4H,4HC L=1150 |
1 | ||
| 71073P - COVER, FRONT SEAT BACK, RH(FOR SEMI-SEPARATE TYPE) | ||||
| 71073-3A04004 |
MS122..SED..(4H,4HC) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-3A04005 |
MS122..4H,4HC FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-3A04102 |
MS122..4HC FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-3A04106 |
MS122..4HC FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-3A04002 |
MS122..4H,4HC FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71073-3A04104 |
MS122..4HC FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20023 |
MS12#..4H,4HC L=110 |
4 | ||
| 90580-20072 |
MS12#..4H,4HC L=230 |
4 | ||
| 90580-29010 |
MS12#..4H,4HC L=280 |
4 | ||
| 90580-20076 |
MS12#..4H,4HC L=340 |
4 | ||
| 90580-26013 |
MS12#..4H,4HC *H,L=450 |
2 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20023 |
MS12#..4H,4HC L=110 |
4 | ||
| 90580-20072 |
MS12#..4H,4HC L=230 |
4 | ||
| 90580-29010 |
MS12#..4H,4HC L=280 |
4 | ||
| 90580-20076 |
MS12#..4H,4HC L=340 |
4 | ||
| 90580-26013 |
MS12#..4H,4HC *H,L=450 |
2 | ||
| 71074P - COVER, FRONT SEAT BACK, LH(FOR SEMI-SEPARATE TYPE) | ||||
| 71074-3064002 |
MS122..4H,4HC FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71074-3064004 |
MS122..SED..(4H,4HC) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-3064005 |
MS122..4H,4HC FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71074-3064106 |
MS122..4HC FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71074-3064104 |
MS122..4HC FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-3064102 |
MS122..4HC FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12027 |
LS120,MS12#,YS120 |
2 | ||
| 71410P - CUSHION ASSY, FRONT SEAT(FOR SEMI-SEPARATE TYPE) | ||||
| 71410-3A55005 |
MS122..4H FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71410-3A55002 |
MS122..4H FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71410-3A61004 |
MS122..4HC FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-3A61002 |
MS122..4HC FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71410-3A55004 |
MS122..SED..4H FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-3A61005 |
MS122..4HC FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430P - BACK ASSY, FRONT SEAT, RH(FOR SEMI-SEPARATE TYPE) | ||||
| 71430-3A47004 |
MS122..4HC FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-3A47005 |
MS122..4HC FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-3A48002 |
MS122..4H FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71430-3A48004 |
MS122..SED..4H FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-3A47104 |
MS122..4HC FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-3A48005 |
MS122..4H FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-3A47102 |
MS122..4HC FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71430-3A47002 |
MS122..4HC FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71430-3A47106 |
MS122..4HC FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440P - BACK ASSY, FRONT SEAT, LH(FOR SEMI-SEPARATE TYPE) | ||||
| 71440-3A22004 |
MS122..4HC FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-3A22002 |
MS122..4HC FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71440-3A23002 |
MS122..4H FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71440-3A22005 |
MS122..4HC FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440-3A23004 |
MS122..SED..4H FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-3A23005 |
MS122..4H FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440-3A22106 |
MS122..4HC FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-3A22104 |
MS122..4HC FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-3A22102 |
MS122..4HC FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71511P - PAD, FRONT SEAT CUSHION(FOR SEMI-SEPARATE TYPE) | ||||
| 71511-30610 |
MS12#..4H,4HC |
1 | ||
| 71551P - PAD, FRONT SEAT BACK, RH(FOR SEMI-SEPARATE TYPE) | ||||
| 71551-30470 |
MS12#..4H,4HC |
1 | ||
| 71551-30470 |
MS122..4HC |
1 | ||
| 71552P - PAD, FRONT SEAT BACK, LH(FOR SEMI-SEPARATE TYPE) | ||||
| 71551-30470 |
MS12#..4H,4HC |
1 | ||
| 71551-30470 |
MS122..4HC |
1 | ||
| 71567 - PAD, FRONT SEAT BACK SAFETY | ||||
| 71567-30100 |
MS12#..4H,4HC |
2 | ||
| 71567 - PAD, FRONT SEAT BACK SAFETY | ||||
| 71567-30100 |
MS12#..4H,4HC |
2 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
MS12#..4H,4HC |
4 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
MS12#..4H,4HC |
4 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
MS12#..4H,4HC |
4 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
MS12#..4H,4HC |
4 | ||
| 71579A - WASHER, FRONT SEAT BACK BOARD SETTING | ||||
| 71328-30010 |
MS12#..4H,4HC |
4 | ||
| 71579A - WASHER, FRONT SEAT BACK BOARD SETTING | ||||
| 71328-30010 |
MS12#..4H,4HC |
4 | ||
| 71610P - SPRING ASSY, FRONT SEAT CUSHION(FOR SEMI-SEPARATE TYPE) | ||||
| 71610-30390 |
MS12#..4H,4HC |
1 | ||
| 71630P - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEMI-SEPARATE TYPE | ||||
| 71630-30480 |
MS122..4H |
1 | ||
| 71630-30460 |
MS122..4HC |
1 | ||
| 71640P - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEMI-SEPARATE TYPE | ||||
| 71640-30300 |
MS122..4H |
1 | ||
| 71640-30280 |
MS122..4HC |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-3017004 |
LS120,MS122,123,YS120..SED..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 71705-3017005 |
LS120,MS122,123,YS120..SAL BEIGE,BEIGE,TRIM4# |
1 | ||
| 71705-3017002 |
LS120,MS122,123,YS120..SAL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71705-3017006 |
MS122..(HT,SED)..SAL BROWN,BROWN,TRIM4# |
1 | ||
| 71705-3017012 |
MS122..SAL MAROON,MAROON,TRIM3# |
1 | ||
| 71705-3017004 |
MS122..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-3017002 |
LS120,MS122,123,YS120..SAL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71705-3017006 |
MS122..(HT,SED)..SAL BROWN,BROWN,TRIM4# |
1 | ||
| 71705-3017012 |
MS122..SAL MAROON,MAROON,TRIM3# |
1 | ||
| 71705-3017005 |
LS120,MS122,123,YS120..SAL BEIGE,BEIGE,TRIM4# |
1 | ||
| 71705-3017004 |
LS120,MS122,123,YS120..SED..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 71705-3017004 |
MS122..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 71803 - HOLDER SUB-ASSY, FRONT SEAT ARMREST | ||||
| 71170-3010002 |
MS122..4H,4HC DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71170-3010005 |
MS122..4H,4HC BEIGE,BEIGE,TRIM4# |
1 | ||
| 71170-3010004 |
MS122..SED..(4H,4HC) BLUE,BLUE,TRIM8# |
1 | ||
| 71170-3010006 |
MS122..4HC BROWN,BROWN,TRIM4# |
1 | ||
| 71170-3010012 |
MS122..4HC MAROON,MAROON,TRIM3# |
1 | ||
| 71804 - BOARD SUB-ASSY, FRONT SEAT ARMREST HOLE | ||||
| 71801-3026004 |
MS12#..SED..(4H,4HC) BLUE,BLUE,TRIM8# |
1 | ||
| 71801-3026006 |
MS122,125..4HC BROWN,BROWN,TRIM4# |
1 | ||
| 71801-3026005 |
MS12#..4H,4HC BEIGE,BEIGE,TRIM4# |
1 | ||
| 71801-3026002 |
MS12#..4H,4HC DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71801-3026012 |
MS122,125..4HC MAROON,MAROON,TRIM3# |
1 | ||
| 71810 - ARMREST ASSY, FRONT SEAT CENTER | ||||
| 72810-3017004 |
MS122..SED..(4H,4HC) BLUE,BLUE,TRIM8# |
1 | ||
| 72810-3017005 |
MS122..4H,4HC BEIGE,BEIGE,TRIM4# |
1 | ||
| 72810-3017002 |
MS122..4H,4HC DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72810-3017012 |
MS122..4HC MAROON,MAROON,TRIM3# |
1 | ||
| 72810-3017006 |
MS122..4HC BROWN,BROWN,TRIM4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-3021002 |
MS12#..4HC DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71811-3021004 |
LS120,MS12#..RHD..(4H,4HC) BLUE,BLUE,TRIM8# |
1 | ||
| 71811-3021104 |
LS120,MS122,125..RHD..(4H,4HC) BLUE,BLUE,TRIM8# |
1 | ||
| 71811-3021106 |
MS122,125..4HC BROWN,BROWN,TRIM4# |
1 | ||
| 71811-3021102 |
MS122,125..4HC MAROON,MAROON,TRIM3# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LS120,MS12#,YS120 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LS120,MS12#,YS120 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LS120,MS12#,YS120 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-3012002 |
MS122..4H DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71812-3011002 |
MS122..RHD..SAL;LS120,MS123..RHD..(4HC,5F) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71812-3012005 |
MS122..4H BEIGE,BEIGE,TRIM4# |
1 | ||
| 71812-3012004 |
MS122..SED..4H BLUE,BLUE,TRIM8# |
1 | ||
| 71812-3011005 |
MS122..RHD..SAL;LS120,MS123..RHD..(4HC,5F) BEIGE,BEIGE,TRIM4# |
1 | ||
| 71812-3011004 |
MS122..RHD..SAL;LS120,MS123..RHD..(4HC,5F) BLUE,BLUE,TRIM8# |
1 | ||
| 71812-3011102 |
MS125..4HC;MS122..RHD..SAL MAROWN,MAROON |
1 | ||
| 71812-3011104 |
MS122..RHD..SAL;LS120,MS125,YS120..RHD..(4F,4HC) BLUE,BLUE,TRIM8# |
1 | ||
| 71812-3011106 |
MS122..RHD..SAL;LS120,MS125,YS120..RHD..(4F,4HC) BROWN,BROWN,TRIM4# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3038002 |
LS120,MS122,YS120..SAL RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71910-3038004 |
LS120,MS122,YS120..SED..SAL RH,BLUE,BLUE,TRIM8# |
1 | ||
| 71910-3038005 |
LS120,MS122,YS120..SAL RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71920-3014004 |
LS120,MS122,YS120..SED..SAL LH,BLUE,BLUE,TRIM8# |
1 | ||
| 71920-3014005 |
LS120,MS122,YS120..SAL LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71920-3014002 |
LS120,MS122,YS120..SAL LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71910-3038102 |
MS122..(SED,WG)..SAL RH,MAROON,MAROON,TRIM3# |
1 | ||
| 71910-3038106 |
MS122..SED..SAL RH,BROWN,BROWN,TRIM4# |
1 | ||
| 71910-3038104 |
MS122..(SED,WG)..SAL RH,BLUE,BLUE,TRIM8# |
1 | ||
| 71920-3014102 |
MS122..(SED,WG)..SAL LH,MAROON,MAROON,TRIM3# |
1 | ||
| 71920-3014106 |
MS122..SED..SAL LH,BROWN,BROWN,TRIM4# |
1 | ||
| 71920-3014104 |
MS122..(SED,WG)..SAL LH,BLUE,BLUE,TRIM8# |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001004 |
LS120,MS12#,YS120..SED W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006025 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006002 |
LS120,MS12#,YS120..ROY,SAL W(LOCK),W/LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71930-1006004 |
LS120,MS12#,YS120..SED W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006004 |
LS120,MS12#,YS120 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006036 |
LS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC) W(LOCK),W/LOCK,BROWN,SEPIA BROWN,TRIM4# |
2 | ||
| 71931-1001025 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001036 |
LS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC) W/O(LOCK),W/O LOCK,BROWN,SEPIA BROWN,TRIM4# |
2 | ||
| 71931-1001002 |
LS120,MS12#,YS120..ROY,SAL W/O(LOCK),W/O LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71931-1001004 |
LS120,MS12#,YS120 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001004 |
LS120,MS12#,YS120..SED W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006025 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006002 |
LS120,MS12#,YS120..ROY,SAL W(LOCK),W/LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71930-1006004 |
LS120,MS12#,YS120..SED W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006004 |
LS120,MS12#,YS120 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006036 |
LS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC) W(LOCK),W/LOCK,BROWN,SEPIA BROWN,TRIM4# |
2 | ||
| 71931-1001025 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001036 |
LS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC) W/O(LOCK),W/O LOCK,BROWN,SEPIA BROWN,TRIM4# |
2 | ||
| 71931-1001002 |
LS120,MS12#,YS120..ROY,SAL W/O(LOCK),W/O LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71931-1001004 |
LS120,MS12#,YS120 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-30280 |
LS120,MS122,YS120..RHD..(4F,4FC,4H,5F)..(SAL,STD) |
1 | ||
| 72510-30290 |
MS12#..4H,4HC |
1 | ||
| 72510-30291 |
MS122,125..4HC |
1 | ||
| 72510-30281 |
LS120,MS122,YS120..RHD..(4F,4FC,4H,5F)..(SAL,STD) |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-15002 |
MS123..ARL,EUG,SWZ;LS120,MS122,YS120..SAL,STD |
2 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-30231 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F) |
1 | ||
| 72520-30230 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F) |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-2005012 |
LS120,MS122..RHD..SAL RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72526-2004012 |
LS120,MS122,125..RHD..(ROY,SAL) LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72526-2004024 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F) LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-2005045 |
LS120,MS122,YS120..RHD..(SAL,STD) RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72525-2005024 |
LS120,MS122,YS120..RHD..(SAL,STD) RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-2004045 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F) LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2004022 |
MS12#..RHD LH,MAROON,MAROON,TRIM3# |
1 | ||
| 72526-2004024 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F) LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-2005046 |
LS120,MS122,YS120..RHD..(SAL,STD) RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72525-2005022 |
MS122..RHD..SAL RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72526-2004046 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F) LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72766 - PATCH, LUMBAR SUPPORT BRACKET | ||||
| 72766-30010 |
LS120,MS12#,YS120..4H,4HC |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72792-3001012 |
MS122..4H DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72791-3002012 |
MS12#..4HC DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72792-3001014 |
MS122..4H BLUE,MAROON,TRIM8# |
1 | ||
| 72791-3002025 |
MS12#..4HC BEIGE,BEIGE,TRIM4# |
1 | ||
| 72792-3001025 |
MS122..4H BEIGE,BEIGE,TRIM4# |
1 | ||
| 72791-3002006 |
MS122,125..4HC BROWN,BROWN,TRIM4# |
1 | ||
| 72791-3002022 |
MS122,125..4HC MAROON,MAROON,TRIM3# |
1 | ||
| 72791-3002014 |
MS12#..4HC BLUE,BLUE,TRIM8# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01274 |
LS120,MS12#,YS120..4H,4HC |
1 | ||
| 72805 - LINK SUB-ASSY, FRONT SEAT CENTER ARMREST, RH | ||||
| 72805-30040 |
MS12#..4H,4HC |
1 | ||
| 72806 - LINK SUB-ASSY, FRONT SEAT CENTER ARMREST, LH | ||||
| 72806-30040 |
MS12#..4H,4HC |
1 | ||
| 74658 - ORNAMENT, FRONT SEAT BACK CONTROL PANEL | ||||
| 74843-3009004 |
MS122..SED..(4H,4HC) 76X40,BLUE,BLUE,TRIM8# |
1 | ||
| 74843-3009005 |
MS122..4H,4HC 76X40,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74843-30100 |
MS12#..4H,4HC OD=41 |
1 | ||
| 74843-3009002 |
MS122..4H,4HC 76X40,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74659 - RETAINER, FRONT SEAT BACK CONTROL PANEL | ||||
| 74849-30020 |
MS12#..4H,4HC |
1 | ||
| 74841A - PANEL, FRONT SEAT BACK CONTROL | ||||
| 74841-3005002 |
MS12#..4H,4HC DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74841-3005005 |
MS12#..4H,4HC BEIGE,BEIGE,TRIM4# |
1 | ||
| 74841-3005004 |
MS12#..SED..(4H,4HC) BLUE,BLUE,TRIM8# |
1 | ||
| 74841-3005012 |
MS122,125..4HC MAROON,MAROON,TRIM3# |
1 | ||
| 74841-3005006 |
MS122,125..4HC BROWN,BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 67772-20021 | ||||
| 90116-06047 | ||||
| 90119-06072 | ||||
| 90119-10229 | ||||
| 90154-80004 | ||||
| 90179-06032 | ||||
| 90467-11004 | ||||
| 90523-08001 | ||||
| 93240-16020 | ||||
| 93249-54006 | ||||
| 93329-55012 | ||||
| 93530-54020 | ||||
| 93560-54010 | ||||
(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-30040 |
MS122,125..4HC SEAT CUSHION |
2 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-30040 |
MS122,125..4HC SEAT CUSHION |
2 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-30040 |
MS122,125..4HC SEAT CUSHION |
2 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-30040 |
MS122,125..4HC SEAT CUSHION |
2 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-30040 |
MS122,125..4HC SEAT CUSHION |
2 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-30040 |
MS122,125..4HC SEAT CUSHION |
2 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-30040 |
MS122,125..4HC SEAT CUSHION |
2 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-30040 |
MS122,125..4HC SEAT CUSHION |
2 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-30040 |
MS122,125..4HC SEAT CUSHION |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30260 |
LS120,MS12#,YS120 |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30260 |
LS120,MS12#,YS120 |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30260 |
LS120,MS12#,YS120 |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30260 |
LS120,MS12#,YS120 |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30260 |
LS120,MS12#,YS120 |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30260 |
LS120,MS12#,YS120 |
2 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71622-30120 |
LS120,MS122,125,YS120..4H,4HC |
1 | ||
| 71532-30070 |
LS120,MS122,125,YS120..4H,4HC |
1 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71622-30120 |
LS120,MS122,125,YS120..4H,4HC |
1 | ||
| 71532-30070 |
LS120,MS122,125,YS120..4H,4HC |
1 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71622-30120 |
LS120,MS122,125,YS120..4H,4HC |
1 | ||
| 71532-30070 |
LS120,MS122,125,YS120..4H,4HC |
1 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71622-30120 |
LS120,MS122,125,YS120..4H,4HC |
1 | ||
| 71532-30070 |
LS120,MS122,125,YS120..4H,4HC |
1 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
MS122,125..4HC |
2 | ||
| 71523-30020 |
MS12#..4H,4HC |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
MS122,125..4HC |
2 | ||
| 71523-30020 |
MS12#..4H,4HC |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
MS122,125..4HC |
2 | ||
| 71523-30020 |
MS12#..4H,4HC |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
MS122,125..4HC |
2 | ||
| 71523-30020 |
MS12#..4H,4HC |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
MS122,125..4HC |
2 | ||
| 71523-30020 |
MS12#..4H,4HC |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
MS122,125..4HC |
2 | ||
| 71523-30020 |
MS12#..4H,4HC |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
MS122,125..4HC |
2 | ||
| 71523-30020 |
MS12#..4H,4HC |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
MS122,125..4HC |
2 | ||
| 71523-30020 |
MS12#..4H,4HC |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
MS122,125..4HC |
2 | ||
| 71523-30020 |
MS12#..4H,4HC |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
MS122,125..4HC |
2 | ||
| 71523-30020 |
MS12#..4H,4HC |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
LS120,MS122,125,YS120..4H,4HC |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
LS120,MS122,125,YS120..4H,4HC |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
LS120,MS122,125,YS120..4H,4HC |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
LS120,MS122,125,YS120..4H,4HC |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
LS120,MS122,125,YS120..4H,4HC |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
LS120,MS122,125,YS120..4H,4HC |
2 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30060 |
LS120,MS12#,YS120..4H,4HC |
2 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30060 |
LS120,MS12#,YS120..4H,4HC |
2 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30060 |
LS120,MS12#,YS120..4H,4HC |
2 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30060 |
LS120,MS12#,YS120..4H,4HC |
2 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30060 |
LS120,MS12#,YS120..4H,4HC |
2 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30060 |
LS120,MS12#,YS120..4H,4HC |
2 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30060 |
LS120,MS12#,YS120..4H,4HC |
2 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30060 |
LS120,MS12#,YS120..4H,4HC |
2 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30300 |
MS12#..4H,4HC |
2 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30300 |
MS12#..4H,4HC |
2 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30300 |
MS12#..4H,4HC |
2 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30300 |
MS12#..4H,4HC |
2 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30300 |
MS12#..4H,4HC |
2 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30300 |
MS12#..4H,4HC |
2 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30130 |
LS120,MS12#,YS120 DRIVER SIDE |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30130 |
LS120,MS12#,YS120 DRIVER SIDE |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30130 |
LS120,MS12#,YS120 DRIVER SIDE |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30130 |
LS120,MS12#,YS120 DRIVER SIDE |
1 | ||
| 71581A - PAD, FRONT SEAT BACK CORNER, A | ||||
| 71581-30080 |
MS12#..4H,4HC |
1 | ||
| 71581A - PAD, FRONT SEAT BACK CORNER, A | ||||
| 71581-30080 |
MS12#..4H,4HC |
1 | ||
| 71581B - PAD, FRONT SEAT BACK CORNER, B | ||||
| 71582-30030 |
MS12#..4H,4HC |
2 | ||
| 71581B - PAD, FRONT SEAT BACK CORNER, B | ||||
| 71582-30030 |
MS12#..4H,4HC |
2 | ||
| 71581B - PAD, FRONT SEAT BACK CORNER, B | ||||
| 71582-30030 |
MS12#..4H,4HC |
2 | ||
| 71581B - PAD, FRONT SEAT BACK CORNER, B | ||||
| 71582-30030 |
MS12#..4H,4HC |
2 | ||
(8308- )RHD..4H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071P - COVER, FRONT SEAT CUSHION(FOR SEMI-SEPARATE TYPE) | ||||
| 71071-3A42002 |
MS122..4H FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71071-3A42004 |
MS122..SED..4H FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-3A47005 |
MS122..4HC FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-3A42005 |
MS122..4H FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-3A47004 |
MS122..4HC FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-3A47106 |
MS122..4HC FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-3A47102 |
MS122..4HC FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71071-3A47104 |
MS122..4HC FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-3A47002 |
MS122..4HC FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20122 |
MS12#..4H,4HC L=200 |
1 | ||
| 90580-29010 |
MS12#..4H,4HC L=280 |
4 | ||
| 90580-20139 |
MS12#..4H,4HC L=1020 |
2 | ||
| 90580-20103 |
MS12#..4H,4HC L=1150 |
1 | ||
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20122 |
MS12#..4H,4HC L=200 |
1 | ||
| 90580-29010 |
MS12#..4H,4HC L=280 |
4 | ||
| 90580-20139 |
MS12#..4H,4HC L=1020 |
2 | ||
| 90580-20103 |
MS12#..4H,4HC L=1150 |
1 | ||
| 71073P - COVER, FRONT SEAT BACK, RH(FOR SEMI-SEPARATE TYPE) | ||||
| 71073-3A04004 |
MS122..SED..(4H,4HC) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-3A04005 |
MS122..4H,4HC FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-3A04102 |
MS122..4HC FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-3A04106 |
MS122..4HC FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-3A04002 |
MS122..4H,4HC FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71073-3A04104 |
MS122..4HC FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20023 |
MS12#..4H,4HC L=110 |
4 | ||
| 90580-20072 |
MS12#..4H,4HC L=230 |
4 | ||
| 90580-29010 |
MS12#..4H,4HC L=280 |
4 | ||
| 90580-20076 |
MS12#..4H,4HC L=340 |
4 | ||
| 90580-26013 |
MS12#..4H,4HC *H,L=450 |
2 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20023 |
MS12#..4H,4HC L=110 |
4 | ||
| 90580-20072 |
MS12#..4H,4HC L=230 |
4 | ||
| 90580-29010 |
MS12#..4H,4HC L=280 |
4 | ||
| 90580-20076 |
MS12#..4H,4HC L=340 |
4 | ||
| 90580-26013 |
MS12#..4H,4HC *H,L=450 |
2 | ||
| 71074P - COVER, FRONT SEAT BACK, LH(FOR SEMI-SEPARATE TYPE) | ||||
| 71074-3064002 |
MS122..4H,4HC FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71074-3064004 |
MS122..SED..(4H,4HC) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-3064005 |
MS122..4H,4HC FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71074-3064106 |
MS122..4HC FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71074-3064104 |
MS122..4HC FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-3064102 |
MS122..4HC FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12027 |
LS120,MS12#,YS120 |
2 | ||
| 71410P - CUSHION ASSY, FRONT SEAT(FOR SEMI-SEPARATE TYPE) | ||||
| 71410-3A55005 |
MS122..4H FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71410-3A55002 |
MS122..4H FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71410-3A61004 |
MS122..4HC FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-3A61002 |
MS122..4HC FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71410-3A55004 |
MS122..SED..4H FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-3A61005 |
MS122..4HC FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430P - BACK ASSY, FRONT SEAT, RH(FOR SEMI-SEPARATE TYPE) | ||||
| 71430-3A47004 |
MS122..4HC FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-3A47005 |
MS122..4HC FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-3A48002 |
MS122..4H FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71430-3A48004 |
MS122..SED..4H FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-3A47104 |
MS122..4HC FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-3A48005 |
MS122..4H FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-3A47102 |
MS122..4HC FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71430-3A47002 |
MS122..4HC FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71430-3A47106 |
MS122..4HC FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440P - BACK ASSY, FRONT SEAT, LH(FOR SEMI-SEPARATE TYPE) | ||||
| 71440-3A22004 |
MS122..4HC FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-3A22002 |
MS122..4HC FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71440-3A23002 |
MS122..4H FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71440-3A22005 |
MS122..4HC FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440-3A23004 |
MS122..SED..4H FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-3A23005 |
MS122..4H FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440-3A22106 |
MS122..4HC FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-3A22104 |
MS122..4HC FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-3A22102 |
MS122..4HC FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71511P - PAD, FRONT SEAT CUSHION(FOR SEMI-SEPARATE TYPE) | ||||
| 71511-30610 |
MS12#..4H,4HC |
1 | ||
| 71551P - PAD, FRONT SEAT BACK, RH(FOR SEMI-SEPARATE TYPE) | ||||
| 71551-30470 |
MS12#..4H,4HC |
1 | ||
| 71551-30470 |
MS122..4HC |
1 | ||
| 71552P - PAD, FRONT SEAT BACK, LH(FOR SEMI-SEPARATE TYPE) | ||||
| 71551-30470 |
MS12#..4H,4HC |
1 | ||
| 71551-30470 |
MS122..4HC |
1 | ||
| 71567 - PAD, FRONT SEAT BACK SAFETY | ||||
| 71567-30100 |
MS12#..4H,4HC |
2 | ||
| 71567 - PAD, FRONT SEAT BACK SAFETY | ||||
| 71567-30100 |
MS12#..4H,4HC |
2 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
MS12#..4H,4HC |
4 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
MS12#..4H,4HC |
4 | ||
| 71610P - SPRING ASSY, FRONT SEAT CUSHION(FOR SEMI-SEPARATE TYPE) | ||||
| 71610-30390 |
MS12#..4H,4HC |
1 | ||
| 71630P - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEMI-SEPARATE TYPE | ||||
| 71630-30480 |
MS122..4H |
1 | ||
| 71630-30460 |
MS122..4HC |
1 | ||
| 71640P - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEMI-SEPARATE TYPE | ||||
| 71640-30300 |
MS122..4H |
1 | ||
| 71640-30280 |
MS122..4HC |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-3021002 |
MS12#..4HC DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71811-3021004 |
LS120,MS12#..RHD..(4H,4HC) BLUE,BLUE,TRIM8# |
1 | ||
| 71811-3021104 |
LS120,MS122,125..RHD..(4H,4HC) BLUE,BLUE,TRIM8# |
1 | ||
| 71811-3021106 |
MS122,125..4HC BROWN,BROWN,TRIM4# |
1 | ||
| 71811-3021102 |
MS122,125..4HC MAROON,MAROON,TRIM3# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LS120,MS12#,YS120 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LS120,MS12#,YS120 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LS120,MS12#,YS120 |
1 | ||
| 71824 - BRACKET, FRONT SEAT SIDE, NO.1 RH | ||||
| 71821-30270 |
LS120,MS122,125..RHD..(4H,4HC) |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3038002 |
LS120,MS122,YS120..SAL RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71910-3038004 |
LS120,MS122,YS120..SED..SAL RH,BLUE,BLUE,TRIM8# |
1 | ||
| 71910-3038005 |
LS120,MS122,YS120..SAL RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71920-3014004 |
LS120,MS122,YS120..SED..SAL LH,BLUE,BLUE,TRIM8# |
1 | ||
| 71920-3014005 |
LS120,MS122,YS120..SAL LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71920-3014002 |
LS120,MS122,YS120..SAL LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71910-3038102 |
MS122..(SED,WG)..SAL RH,MAROON,MAROON,TRIM3# |
1 | ||
| 71910-3038106 |
MS122..SED..SAL RH,BROWN,BROWN,TRIM4# |
1 | ||
| 71910-3038104 |
MS122..(SED,WG)..SAL RH,BLUE,BLUE,TRIM8# |
1 | ||
| 71920-3014102 |
MS122..(SED,WG)..SAL LH,MAROON,MAROON,TRIM3# |
1 | ||
| 71920-3014106 |
MS122..SED..SAL LH,BROWN,BROWN,TRIM4# |
1 | ||
| 71920-3014104 |
MS122..(SED,WG)..SAL LH,BLUE,BLUE,TRIM8# |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001004 |
LS120,MS12#,YS120..SED W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006025 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006002 |
LS120,MS12#,YS120..ROY,SAL W(LOCK),W/LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71930-1006004 |
LS120,MS12#,YS120..SED W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006004 |
LS120,MS12#,YS120 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006036 |
LS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC) W(LOCK),W/LOCK,BROWN,SEPIA BROWN,TRIM4# |
2 | ||
| 71931-1001025 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001036 |
LS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC) W/O(LOCK),W/O LOCK,BROWN,SEPIA BROWN,TRIM4# |
2 | ||
| 71931-1001002 |
LS120,MS12#,YS120..ROY,SAL W/O(LOCK),W/O LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71931-1001004 |
LS120,MS12#,YS120 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001004 |
LS120,MS12#,YS120..SED W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006025 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006002 |
LS120,MS12#,YS120..ROY,SAL W(LOCK),W/LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71930-1006004 |
LS120,MS12#,YS120..SED W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006004 |
LS120,MS12#,YS120 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006036 |
LS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC) W(LOCK),W/LOCK,BROWN,SEPIA BROWN,TRIM4# |
2 | ||
| 71931-1001025 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001036 |
LS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC) W/O(LOCK),W/O LOCK,BROWN,SEPIA BROWN,TRIM4# |
2 | ||
| 71931-1001002 |
LS120,MS12#,YS120..ROY,SAL W/O(LOCK),W/O LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71931-1001004 |
LS120,MS12#,YS120 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-30280 |
LS120,MS122,YS120..RHD..(4F,4FC,4H,5F)..(SAL,STD) |
1 | ||
| 72510-30290 |
MS12#..4H,4HC |
1 | ||
| 72510-30291 |
MS122,125..4HC |
1 | ||
| 72510-30281 |
LS120,MS122,YS120..RHD..(4F,4FC,4H,5F)..(SAL,STD) |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-15002 |
MS123..ARL,EUG,SWZ;LS120,MS122,YS120..SAL,STD |
2 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-2005012 |
LS120,MS122..RHD..SAL RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72526-2004012 |
LS120,MS122,125..RHD..(ROY,SAL) LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72526-2004024 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F) LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-2005045 |
LS120,MS122,YS120..RHD..(SAL,STD) RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72525-2005024 |
LS120,MS122,YS120..RHD..(SAL,STD) RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-2004045 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F) LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2004022 |
MS12#..RHD LH,MAROON,MAROON,TRIM3# |
1 | ||
| 72526-2004024 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F) LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-2005046 |
LS120,MS122,YS120..RHD..(SAL,STD) RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72525-2005022 |
MS122..RHD..SAL RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72526-2004046 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F) LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72707 - LEVER SUB-ASSY, LUMBER SUPPORT, RH | ||||
| 72707-30020 |
LS120,MS12#..RHD..(4H,4HC) |
1 | ||
| 72760 - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30080 |
LS120,MS12#..RHD..(4H,4HC) |
1 | ||
| 72766 - PATCH, LUMBAR SUPPORT BRACKET | ||||
| 72766-30010 |
LS120,MS12#,YS120..4H,4HC |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72792-3001012 |
MS122..4H DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72791-3002012 |
MS12#..4HC DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72792-3001014 |
MS122..4H BLUE,MAROON,TRIM8# |
1 | ||
| 72791-3002025 |
MS12#..4HC BEIGE,BEIGE,TRIM4# |
1 | ||
| 72792-3001025 |
MS122..4H BEIGE,BEIGE,TRIM4# |
1 | ||
| 72791-3002006 |
MS122,125..4HC BROWN,BROWN,TRIM4# |
1 | ||
| 72791-3002022 |
MS122,125..4HC MAROON,MAROON,TRIM3# |
1 | ||
| 72791-3002014 |
MS12#..4HC BLUE,BLUE,TRIM8# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01274 |
LS120,MS12#,YS120..4H,4HC |
1 | ||
| 74658 - ORNAMENT, FRONT SEAT BACK CONTROL PANEL | ||||
| 74843-3009004 |
MS122..SED..(4H,4HC) 76X40,BLUE,BLUE,TRIM8# |
1 | ||
| 74843-3009005 |
MS122..4H,4HC 76X40,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74843-30100 |
MS12#..4H,4HC OD=41 |
1 | ||
| 74843-3009002 |
MS122..4H,4HC 76X40,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74659 - RETAINER, FRONT SEAT BACK CONTROL PANEL | ||||
| 74849-30020 |
MS12#..4H,4HC |
1 | ||
| 74841A - PANEL, FRONT SEAT BACK CONTROL | ||||
| 74841-3005002 |
MS12#..4H,4HC DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74841-3005005 |
MS12#..4H,4HC BEIGE,BEIGE,TRIM4# |
1 | ||
| 74841-3005004 |
MS12#..SED..(4H,4HC) BLUE,BLUE,TRIM8# |
1 | ||
| 74841-3005012 |
MS122,125..4HC MAROON,MAROON,TRIM3# |
1 | ||
| 74841-3005006 |
MS122,125..4HC BROWN,BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-06072 | ||||
| 90119-10229 | ||||
| 90154-80004 | ||||
| 90159-60084 | ||||
| 90523-08001 | ||||
| 93240-16020 | ||||
| 93249-54006 | ||||
| 93510-14016 | ||||
| 93540-14010 | ||||
| 93560-14010 | ||||
| 93560-54010 | ||||

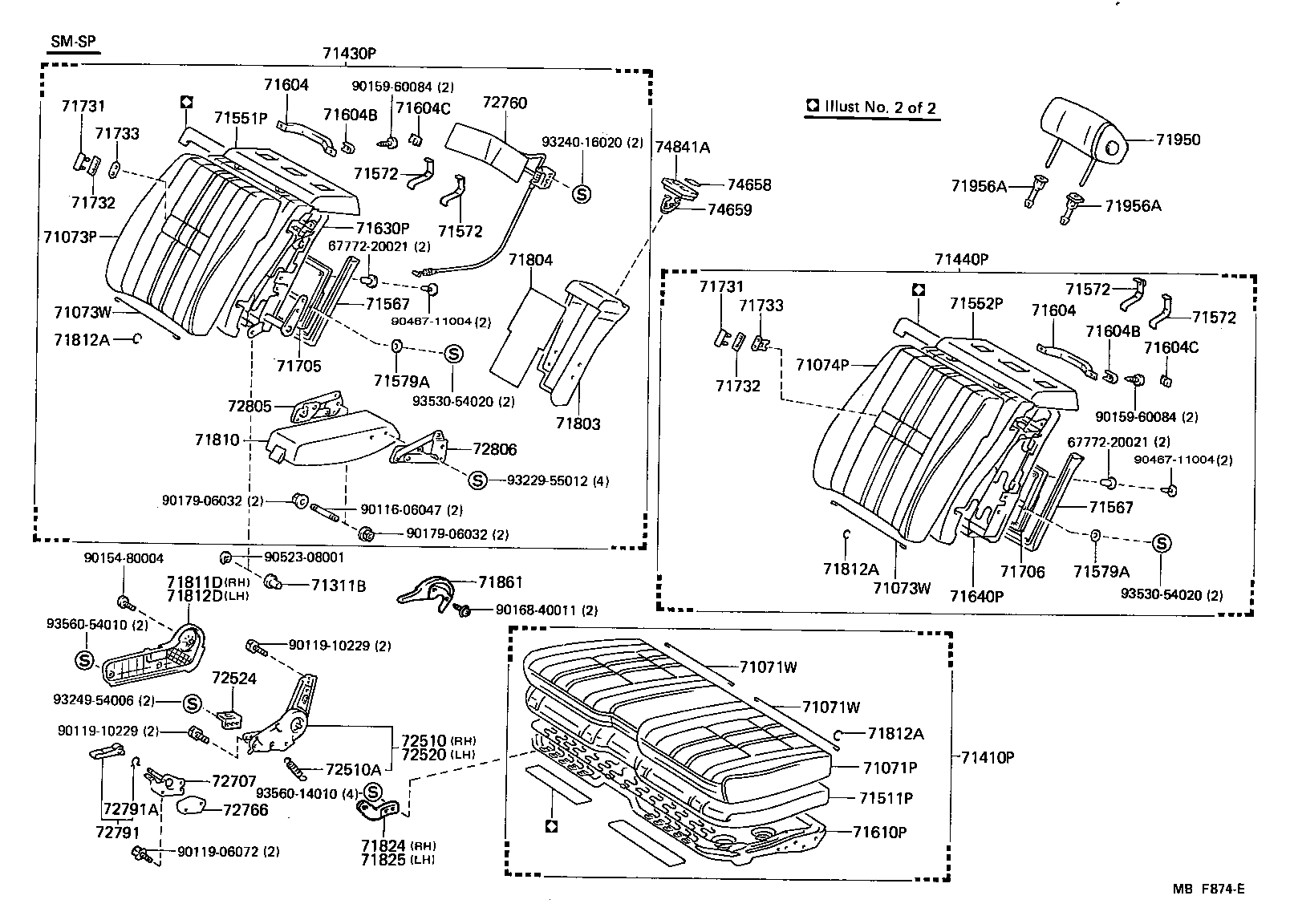

(8308- )4HC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071P - COVER, FRONT SEAT CUSHION(FOR SEMI-SEPARATE TYPE) | ||||
| 71071-3A42002 |
MS122..4H FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71071-3A42004 |
MS122..SED..4H FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-3A47005 |
MS122..4HC FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-3A42005 |
MS122..4H FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-3A47004 |
MS122..4HC FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-3A47106 |
MS122..4HC FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-3A47102 |
MS122..4HC FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71071-3A47104 |
MS122..4HC FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-3A47002 |
MS122..4HC FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20122 |
MS12#..4H,4HC L=200 |
1 | ||
| 90580-29010 |
MS12#..4H,4HC L=280 |
4 | ||
| 90580-20139 |
MS12#..4H,4HC L=1020 |
2 | ||
| 90580-20103 |
MS12#..4H,4HC L=1150 |
1 | ||
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20122 |
MS12#..4H,4HC L=200 |
1 | ||
| 90580-29010 |
MS12#..4H,4HC L=280 |
4 | ||
| 90580-20139 |
MS12#..4H,4HC L=1020 |
2 | ||
| 90580-20103 |
MS12#..4H,4HC L=1150 |
1 | ||
| 71073P - COVER, FRONT SEAT BACK, RH(FOR SEMI-SEPARATE TYPE) | ||||
| 71073-3A04004 |
MS122..SED..(4H,4HC) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-3A04005 |
MS122..4H,4HC FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-3A04102 |
MS122..4HC FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-3A04106 |
MS122..4HC FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-3A04002 |
MS122..4H,4HC FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71073-3A04104 |
MS122..4HC FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20023 |
MS12#..4H,4HC L=110 |
4 | ||
| 90580-20072 |
MS12#..4H,4HC L=230 |
4 | ||
| 90580-29010 |
MS12#..4H,4HC L=280 |
4 | ||
| 90580-20076 |
MS12#..4H,4HC L=340 |
4 | ||
| 90580-26013 |
MS12#..4H,4HC *H,L=450 |
2 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20023 |
MS12#..4H,4HC L=110 |
4 | ||
| 90580-20072 |
MS12#..4H,4HC L=230 |
4 | ||
| 90580-29010 |
MS12#..4H,4HC L=280 |
4 | ||
| 90580-20076 |
MS12#..4H,4HC L=340 |
4 | ||
| 90580-26013 |
MS12#..4H,4HC *H,L=450 |
2 | ||
| 71074P - COVER, FRONT SEAT BACK, LH(FOR SEMI-SEPARATE TYPE) | ||||
| 71074-3064002 |
MS122..4H,4HC FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71074-3064004 |
MS122..SED..(4H,4HC) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-3064005 |
MS122..4H,4HC FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71074-3064106 |
MS122..4HC FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71074-3064104 |
MS122..4HC FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-3064102 |
MS122..4HC FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12027 |
LS120,MS12#,YS120 |
2 | ||
| 71410P - CUSHION ASSY, FRONT SEAT(FOR SEMI-SEPARATE TYPE) | ||||
| 71410-3A55005 |
MS122..4H FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71410-3A55002 |
MS122..4H FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71410-3A61004 |
MS122..4HC FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-3A61002 |
MS122..4HC FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71410-3A55004 |
MS122..SED..4H FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-3A61005 |
MS122..4HC FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430P - BACK ASSY, FRONT SEAT, RH(FOR SEMI-SEPARATE TYPE) | ||||
| 71430-3A47004 |
MS122..4HC FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-3A47005 |
MS122..4HC FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-3A48002 |
MS122..4H FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71430-3A48004 |
MS122..SED..4H FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-3A47104 |
MS122..4HC FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-3A48005 |
MS122..4H FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-3A47102 |
MS122..4HC FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71430-3A47002 |
MS122..4HC FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71430-3A47106 |
MS122..4HC FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440P - BACK ASSY, FRONT SEAT, LH(FOR SEMI-SEPARATE TYPE) | ||||
| 71440-3A22004 |
MS122..4HC FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-3A22002 |
MS122..4HC FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71440-3A23002 |
MS122..4H FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71440-3A22005 |
MS122..4HC FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440-3A23004 |
MS122..SED..4H FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-3A23005 |
MS122..4H FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440-3A22106 |
MS122..4HC FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-3A22104 |
MS122..4HC FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-3A22102 |
MS122..4HC FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71511P - PAD, FRONT SEAT CUSHION(FOR SEMI-SEPARATE TYPE) | ||||
| 71511-30610 |
MS12#..4H,4HC |
1 | ||
| 71551P - PAD, FRONT SEAT BACK, RH(FOR SEMI-SEPARATE TYPE) | ||||
| 71551-30470 |
MS12#..4H,4HC |
1 | ||
| 71551-30470 |
MS122..4HC |
1 | ||
| 71552P - PAD, FRONT SEAT BACK, LH(FOR SEMI-SEPARATE TYPE) | ||||
| 71551-30470 |
MS12#..4H,4HC |
1 | ||
| 71551-30470 |
MS122..4HC |
1 | ||
| 71567 - PAD, FRONT SEAT BACK SAFETY | ||||
| 71567-30100 |
MS12#..4H,4HC |
2 | ||
| 71567 - PAD, FRONT SEAT BACK SAFETY | ||||
| 71567-30100 |
MS12#..4H,4HC |
2 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
MS12#..4H,4HC |
4 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
MS12#..4H,4HC |
4 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
MS12#..4H,4HC |
4 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
MS12#..4H,4HC |
4 | ||
| 71579A - WASHER, FRONT SEAT BACK BOARD SETTING | ||||
| 71328-30010 |
MS12#..4H,4HC |
4 | ||
| 71579A - WASHER, FRONT SEAT BACK BOARD SETTING | ||||
| 71328-30010 |
MS12#..4H,4HC |
4 | ||
| 71610P - SPRING ASSY, FRONT SEAT CUSHION(FOR SEMI-SEPARATE TYPE) | ||||
| 71610-30390 |
MS12#..4H,4HC |
1 | ||
| 71630P - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEMI-SEPARATE TYPE | ||||
| 71630-30480 |
MS122..4H |
1 | ||
| 71630-30460 |
MS122..4HC |
1 | ||
| 71640P - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEMI-SEPARATE TYPE | ||||
| 71640-30300 |
MS122..4H |
1 | ||
| 71640-30280 |
MS122..4HC |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-3017004 |
LS120,MS122,123,YS120..SED..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 71705-3017005 |
LS120,MS122,123,YS120..SAL BEIGE,BEIGE,TRIM4# |
1 | ||
| 71705-3017002 |
LS120,MS122,123,YS120..SAL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71705-3017006 |
MS122..(HT,SED)..SAL BROWN,BROWN,TRIM4# |
1 | ||
| 71705-3017012 |
MS122..SAL MAROON,MAROON,TRIM3# |
1 | ||
| 71705-3017004 |
MS122..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-3017002 |
LS120,MS122,123,YS120..SAL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71705-3017006 |
MS122..(HT,SED)..SAL BROWN,BROWN,TRIM4# |
1 | ||
| 71705-3017012 |
MS122..SAL MAROON,MAROON,TRIM3# |
1 | ||
| 71705-3017005 |
LS120,MS122,123,YS120..SAL BEIGE,BEIGE,TRIM4# |
1 | ||
| 71705-3017004 |
LS120,MS122,123,YS120..SED..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 71705-3017004 |
MS122..SAL BLUE,BLUE,TRIM8# |
1 | ||
| 71803 - HOLDER SUB-ASSY, FRONT SEAT ARMREST | ||||
| 71170-3010002 |
MS122..4H,4HC DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71170-3010005 |
MS122..4H,4HC BEIGE,BEIGE,TRIM4# |
1 | ||
| 71170-3010004 |
MS122..SED..(4H,4HC) BLUE,BLUE,TRIM8# |
1 | ||
| 71170-3010006 |
MS122..4HC BROWN,BROWN,TRIM4# |
1 | ||
| 71170-3010012 |
MS122..4HC MAROON,MAROON,TRIM3# |
1 | ||
| 71804 - BOARD SUB-ASSY, FRONT SEAT ARMREST HOLE | ||||
| 71801-3026004 |
MS12#..SED..(4H,4HC) BLUE,BLUE,TRIM8# |
1 | ||
| 71801-3026006 |
MS122,125..4HC BROWN,BROWN,TRIM4# |
1 | ||
| 71801-3026005 |
MS12#..4H,4HC BEIGE,BEIGE,TRIM4# |
1 | ||
| 71801-3026002 |
MS12#..4H,4HC DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71801-3026012 |
MS122,125..4HC MAROON,MAROON,TRIM3# |
1 | ||
| 71810 - ARMREST ASSY, FRONT SEAT CENTER | ||||
| 72810-3017004 |
MS122..SED..(4H,4HC) BLUE,BLUE,TRIM8# |
1 | ||
| 72810-3017005 |
MS122..4H,4HC BEIGE,BEIGE,TRIM4# |
1 | ||
| 72810-3017002 |
MS122..4H,4HC DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72810-3017012 |
MS122..4HC MAROON,MAROON,TRIM3# |
1 | ||
| 72810-3017006 |
MS122..4HC BROWN,BROWN,TRIM4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-3021002 |
MS12#..4HC DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71811-3021004 |
LS120,MS12#..RHD..(4H,4HC) BLUE,BLUE,TRIM8# |
1 | ||
| 71811-3021104 |
LS120,MS122,125..RHD..(4H,4HC) BLUE,BLUE,TRIM8# |
1 | ||
| 71811-3021106 |
MS122,125..4HC BROWN,BROWN,TRIM4# |
1 | ||
| 71811-3021102 |
MS122,125..4HC MAROON,MAROON,TRIM3# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LS120,MS12#,YS120 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LS120,MS12#,YS120 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LS120,MS12#,YS120 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-3012002 |
MS122..4H DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71812-3011002 |
MS122..RHD..SAL;LS120,MS123..RHD..(4HC,5F) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71812-3012005 |
MS122..4H BEIGE,BEIGE,TRIM4# |
1 | ||
| 71812-3012004 |
MS122..SED..4H BLUE,BLUE,TRIM8# |
1 | ||
| 71812-3011005 |
MS122..RHD..SAL;LS120,MS123..RHD..(4HC,5F) BEIGE,BEIGE,TRIM4# |
1 | ||
| 71812-3011004 |
MS122..RHD..SAL;LS120,MS123..RHD..(4HC,5F) BLUE,BLUE,TRIM8# |
1 | ||
| 71812-3011102 |
MS125..4HC;MS122..RHD..SAL MAROWN,MAROON |
1 | ||
| 71812-3011104 |
MS122..RHD..SAL;LS120,MS125,YS120..RHD..(4F,4HC) BLUE,BLUE,TRIM8# |
1 | ||
| 71812-3011106 |
MS122..RHD..SAL;LS120,MS125,YS120..RHD..(4F,4HC) BROWN,BROWN,TRIM4# |
1 | ||
| 71824 - BRACKET, FRONT SEAT SIDE, NO.1 RH | ||||
| 71821-30270 |
LS120,MS122,125..RHD..(4H,4HC) |
1 | ||
| 71825 - BRACKET, FRONT SEAT SIDE, NO.1 LH | ||||
| 71822-30250 |
MS122,125..4HC |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71875-3003002 |
MS122,125..4HC MAROON,MAROON,TRIM3# |
1 | ||
| 71875-3003004 |
MS122,125..4HC BLUE,BLUE,TRIM8# |
1 | ||
| 71875-3003006 |
MS122,125..4HC BROWN,BROWN,TRIM4# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3038002 |
LS120,MS122,YS120..SAL RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71910-3038004 |
LS120,MS122,YS120..SED..SAL RH,BLUE,BLUE,TRIM8# |
1 | ||
| 71910-3038005 |
LS120,MS122,YS120..SAL RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71920-3014004 |
LS120,MS122,YS120..SED..SAL LH,BLUE,BLUE,TRIM8# |
1 | ||
| 71920-3014005 |
LS120,MS122,YS120..SAL LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71920-3014002 |
LS120,MS122,YS120..SAL LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71910-3038102 |
MS122..(SED,WG)..SAL RH,MAROON,MAROON,TRIM3# |
1 | ||
| 71910-3038106 |
MS122..SED..SAL RH,BROWN,BROWN,TRIM4# |
1 | ||
| 71910-3038104 |
MS122..(SED,WG)..SAL RH,BLUE,BLUE,TRIM8# |
1 | ||
| 71920-3014102 |
MS122..(SED,WG)..SAL LH,MAROON,MAROON,TRIM3# |
1 | ||
| 71920-3014106 |
MS122..SED..SAL LH,BROWN,BROWN,TRIM4# |
1 | ||
| 71920-3014104 |
MS122..(SED,WG)..SAL LH,BLUE,BLUE,TRIM8# |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001004 |
LS120,MS12#,YS120..SED W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006025 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006002 |
LS120,MS12#,YS120..ROY,SAL W(LOCK),W/LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71930-1006004 |
LS120,MS12#,YS120..SED W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006004 |
LS120,MS12#,YS120 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006036 |
LS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC) W(LOCK),W/LOCK,BROWN,SEPIA BROWN,TRIM4# |
2 | ||
| 71931-1001025 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001036 |
LS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC) W/O(LOCK),W/O LOCK,BROWN,SEPIA BROWN,TRIM4# |
2 | ||
| 71931-1001002 |
LS120,MS12#,YS120..ROY,SAL W/O(LOCK),W/O LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71931-1001004 |
LS120,MS12#,YS120 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001004 |
LS120,MS12#,YS120..SED W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006025 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006002 |
LS120,MS12#,YS120..ROY,SAL W(LOCK),W/LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71930-1006004 |
LS120,MS12#,YS120..SED W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006004 |
LS120,MS12#,YS120 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006036 |
LS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC) W(LOCK),W/LOCK,BROWN,SEPIA BROWN,TRIM4# |
2 | ||
| 71931-1001025 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001036 |
LS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC) W/O(LOCK),W/O LOCK,BROWN,SEPIA BROWN,TRIM4# |
2 | ||
| 71931-1001002 |
LS120,MS12#,YS120..ROY,SAL W/O(LOCK),W/O LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71931-1001004 |
LS120,MS12#,YS120 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-30280 |
LS120,MS122,YS120..RHD..(4F,4FC,4H,5F)..(SAL,STD) |
1 | ||
| 72510-30290 |
MS12#..4H,4HC |
1 | ||
| 72510-30291 |
MS122,125..4HC |
1 | ||
| 72510-30281 |
LS120,MS122,YS120..RHD..(4F,4FC,4H,5F)..(SAL,STD) |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-15002 |
MS123..ARL,EUG,SWZ;LS120,MS122,YS120..SAL,STD |
2 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-30231 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F) |
1 | ||
| 72520-30230 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F) |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-2005012 |
LS120,MS122..RHD..SAL RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72526-2004012 |
LS120,MS122,125..RHD..(ROY,SAL) LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72526-2004024 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F) LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-2005045 |
LS120,MS122,YS120..RHD..(SAL,STD) RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72525-2005024 |
LS120,MS122,YS120..RHD..(SAL,STD) RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-2004045 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F) LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2004022 |
MS12#..RHD LH,MAROON,MAROON,TRIM3# |
1 | ||
| 72526-2004024 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F) LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-2005046 |
LS120,MS122,YS120..RHD..(SAL,STD) RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72525-2005022 |
MS122..RHD..SAL RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72526-2004046 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F) LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72707 - LEVER SUB-ASSY, LUMBER SUPPORT, RH | ||||
| 72707-30020 |
LS120,MS12#..RHD..(4H,4HC) |
1 | ||
| 72760 - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30080 |
LS120,MS12#..RHD..(4H,4HC) |
1 | ||
| 72766 - PATCH, LUMBAR SUPPORT BRACKET | ||||
| 72766-30010 |
LS120,MS12#,YS120..4H,4HC |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72792-3001012 |
MS122..4H DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72791-3002012 |
MS12#..4HC DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72792-3001014 |
MS122..4H BLUE,MAROON,TRIM8# |
1 | ||
| 72791-3002025 |
MS12#..4HC BEIGE,BEIGE,TRIM4# |
1 | ||
| 72792-3001025 |
MS122..4H BEIGE,BEIGE,TRIM4# |
1 | ||
| 72791-3002006 |
MS122,125..4HC BROWN,BROWN,TRIM4# |
1 | ||
| 72791-3002022 |
MS122,125..4HC MAROON,MAROON,TRIM3# |
1 | ||
| 72791-3002014 |
MS12#..4HC BLUE,BLUE,TRIM8# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01274 |
LS120,MS12#,YS120..4H,4HC |
1 | ||
| 72805 - LINK SUB-ASSY, FRONT SEAT CENTER ARMREST, RH | ||||
| 72805-30040 |
MS12#..4H,4HC |
1 | ||
| 72806 - LINK SUB-ASSY, FRONT SEAT CENTER ARMREST, LH | ||||
| 72806-30040 |
MS12#..4H,4HC |
1 | ||
| 74658 - ORNAMENT, FRONT SEAT BACK CONTROL PANEL | ||||
| 74843-3009004 |
MS122..SED..(4H,4HC) 76X40,BLUE,BLUE,TRIM8# |
1 | ||
| 74843-3009005 |
MS122..4H,4HC 76X40,BEIGE,BEIGE,TRIM4# |
1 | ||
| 74843-30100 |
MS12#..4H,4HC OD=41 |
1 | ||
| 74843-3009002 |
MS122..4H,4HC 76X40,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74659 - RETAINER, FRONT SEAT BACK CONTROL PANEL | ||||
| 74849-30020 |
MS12#..4H,4HC |
1 | ||
| 74841A - PANEL, FRONT SEAT BACK CONTROL | ||||
| 74841-3005002 |
MS12#..4H,4HC DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74841-3005005 |
MS12#..4H,4HC BEIGE,BEIGE,TRIM4# |
1 | ||
| 74841-3005004 |
MS12#..SED..(4H,4HC) BLUE,BLUE,TRIM8# |
1 | ||
| 74841-3005012 |
MS122,125..4HC MAROON,MAROON,TRIM3# |
1 | ||
| 74841-3005006 |
MS122,125..4HC BROWN,BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 67772-20021 | ||||
| 90116-06047 | ||||
| 90119-06072 | ||||
| 90119-10229 | ||||
| 90154-80004 | ||||
| 90159-60084 | ||||
| 90168-40011 | ||||
| 90179-06032 | ||||
| 90467-11004 | ||||
| 90523-08001 | ||||
| 93229-55012 | ||||
| 93240-16020 | ||||
| 93249-54006 | ||||
| 93530-54020 | ||||
| 93560-14010 | ||||
| 93560-54010 | ||||
(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72110B - TRACK ASSY, SEAT, OUTER RH (FOR BENCH SEAT) | ||||
| 72110-30280 |
LS120,MS12#,YS120..4H,4HC |
1 | ||
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90507-18007 |
LS120,MS12#,YS120..4H,4HC |
2 | ||
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90507-18007 |
LS120,MS12#,YS120..4H,4HC |
2 | ||
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90507-18007 |
LS120,MS12#,YS120..4H,4HC |
2 | ||
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90507-18007 |
LS120,MS12#,YS120..4H,4HC |
2 | ||
| 72120B - TRACK ASSY, SEAT, OUTER LH (FOR BENCH SEAT) | ||||
| 72120-30230 |
LS120,MS12#,YS120..4H,4HC |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-3001004 |
LS120,MS12#,YS120..SED BLUE,BLUE,TRIM8# |
1 | ||
| 72137-3001002 |
LS120,MS12#,YS120..ROY,SAL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72137-3001005 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 72137-3001012 |
MS12#..ROY,SAL MAROON,MAROON,TRIM3# |
1 | ||
| 72137-3001004 |
LS120,MS12#,YS120 BLUE,BLUE,TRIM8# |
1 | ||
| 72137-3001006 |
LS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC) BROWN,BROWN,TRIM4# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-3001004 |
LS120,MS12#,YS120..SED BLUE,BLUE,TRIM8# |
1 | ||
| 72137-3001002 |
LS120,MS12#,YS120..ROY,SAL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72137-3001005 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 72137-3001012 |
MS12#..ROY,SAL MAROON,MAROON,TRIM3# |
1 | ||
| 72137-3001004 |
LS120,MS12#,YS120 BLUE,BLUE,TRIM8# |
1 | ||
| 72137-3001006 |
LS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC) BROWN,BROWN,TRIM4# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-3001004 |
LS120,MS12#,YS120..SED BLUE,BLUE,TRIM8# |
1 | ||
| 72138-3001005 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 72138-3001004 |
LS120,MS12#,YS120 BLUE,BLUE,TRIM8# |
1 | ||
| 72138-3001002 |
LS120,MS12#,YS120..ROY,SAL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72138-3001012 |
MS12#..ROY,SAL MAROON,MAROON,TRIM3# |
1 | ||
| 72138-3001006 |
LS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC) BROWN,BROWN,TRIM4# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-3001004 |
LS120,MS12#,YS120..SED BLUE,BLUE,TRIM8# |
1 | ||
| 72138-3001005 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 72138-3001004 |
LS120,MS12#,YS120 BLUE,BLUE,TRIM8# |
1 | ||
| 72138-3001002 |
LS120,MS12#,YS120..ROY,SAL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72138-3001012 |
MS12#..ROY,SAL MAROON,MAROON,TRIM3# |
1 | ||
| 72138-3001006 |
LS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC) BROWN,BROWN,TRIM4# |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-30110 |
LS120,MS12#,YS120..4H,4HC |
1 | ||
| 72213 - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-2201006 |
MS122,125..4HC;LS120,YS120..LHD..4H BROWN |
1 | ||
| 72213-2201005 |
LS120..LHD..STD;MS12#,YS120..4H,4HC BEIGE,BEIGE,TRIM4# |
1 | ||
| 72213-2201002 |
MS12#..4H,4HC DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72213-2201004 |
LS120,MS12#,YS120..SED..(4H,4HC) BLUE,BLUE,TRIM8# |
1 | ||
| 72213-2201012 |
MS122,125..4HC MAROON |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-30110 |
LS120,MS12#,YS120..4H,4HC |
2 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-30110 |
LS120,MS12#,YS120..4H,4HC |
2 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-30110 |
LS120,MS12#,YS120..4H,4HC |
2 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-30110 |
LS120,MS12#,YS120..4H,4HC |
2 | ||
| Common parts | ||||
| 90116-10085 | ||||
| 90119-08079 | ||||
| 90119-10349 | ||||
| 90179-10015 | ||||
| 90389-06003 | ||||
| 90506-08006 | ||||
| 91611-40616 | ||||
| 94543-01000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
