MS122R-SESGS (1983)
Toyota Crown
(8308- )SED

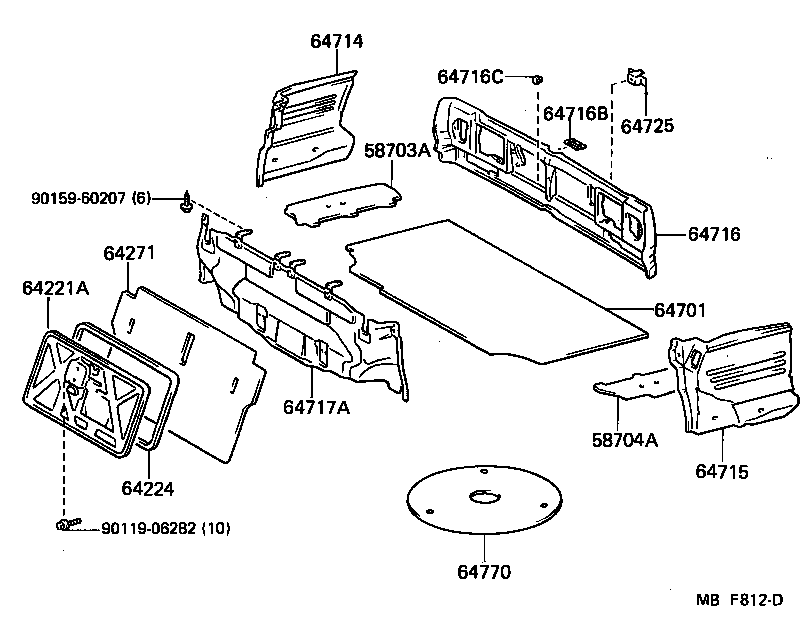

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58703A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH | ||||
| 58703-30020 |
LS120,MS12#,YS120..HT,SED |
1 | ||
| 58704A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH | ||||
| 58704-30050 |
LS120,MS12#,YS120..HT,SED |
1 | ||
| 64221A - PANEL, REAR SEAT CUSHION SUPPORT | ||||
| 64221-30080 |
MS125..4FC;LS120,MS122,123,YS120..HT,SED |
1 | ||
| 64221-30080 |
LS120,MS12#,YS120..SED |
1 | ||
| 64224 - PAD, REAR SEAT CUSHION SUPPORT PANEL | ||||
| 64224-30020 |
LS120,MS12#,YS120..HT,SED |
1 | ||
| 64271 - BOARD, ROOM PARTITION, NO.1 | ||||
| 64271-30100 |
LS120,MS12#,YS120..HT,SED |
1 | ||
| 64701 - MAT SUB-ASSY, LUGGAGE COMPARTMENT | ||||
| 64711-3025003 |
LS120,MS12#,YS120..SED..(ROY,SAL) GRAY,GRAY |
1 | ||
| 64711-3025013 |
MS12#..SED..(ROY,SAL) GRAY,GRAY |
1 | ||
| 64714 - COVER, LUGGAGE COMPARTMENT, RH | ||||
| 64714-3009003 |
LS120,MS12#,YS120..SED GRAY,GRAY |
1 | ||
| 64714-3009013 |
LS120,MS12#,YS120..HT,SED GRAY,GRAY |
1 | ||
| 64715 - COVER, LUGGAGE COMPARTMENT, LH | ||||
| 64715-3009003 |
LS120,MS12#,YS120..SED GRAY,GRAY |
1 | ||
| 64715-3009013 |
LS120,MS12#,YS120..HT,SED GRAY,GRAY |
1 | ||
| 64716 - COVER, LUGGAGE COMPARTMENT, REAR CENTER | ||||
| 64716-30070 |
MS12#..SED..(ROY,SAL) |
1 | ||
| 64716-3005003 |
LS120,MS12#,YS120..SED GRAY,GRAY |
1 | ||
| 64716B - COVER, LUGGAGE COMPARTMENT DOOR STRIKER | ||||
| 64749-3001003 |
LS120,MS12#,YS120..SED GRAY,GRAY |
1 | ||
| 64749-30030 |
MS12#..SED..(ROY,SAL) |
1 | ||
| 64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) | ||||
| 90467-0616103 |
LS120,MS12#,YS120..SED GRAY |
9 | ||
| 90467-0500433 |
LS120,MS12#,YS120..SED GRAY |
7 | ||
| 64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT | ||||
| 64717-30110 |
MS12#..SED W/RR COOLER |
1 | ||
| 64717-30111 |
MS12#..(HT,SED)..(ROY,SAL) |
1 | ||
| 64717-3010003 |
LS120,MS122,123,YS120..SED..(SAL,STD) W/O RR COOLER,GRAY,GRAY |
1 | ||
| 64725 - RETAINER, LUGGAGE COMPARTMENT COVER, NO.1 | ||||
| 64725-30070 |
LS120,MS12#,YS120..HT,SED |
2 | ||
| 64770 - COVER ASSY, SPARE WHEEL | ||||
| 64770-30050 |
LS120,MS12#,YS120..HT,SED |
1 | ||
| Common parts | ||||
| 90119-06282 | ||||
| 90159-60207 | ||||
(8308- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64033B - GRILLE SUB-ASSY, REAR SPEAKER, RH | ||||
| 64033-3001006 |
MS123,125..SED;MS122..(HT,SED)..(ROY,SAL) BROWN,BROWN,TRIM4# |
1 | ||
| 64033-3001004 |
LS120,MS12#,YS120..SED..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 64033-3001002 |
LS120,MS12#,YS120..SED..(ROY,SAL) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 64033-3001004 |
MS12#..(HT,SED)..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 64033-3001005 |
LS120,MS12#,YS120..SED..(ROY,SAL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 64033-3001012 |
MS12#..(HT,SED)..(ROY,SAL) MAROON,MAROON,TRIM3# |
1 | ||
| 64033B - GRILLE SUB-ASSY, REAR SPEAKER, RH | ||||
| 64033-3001006 |
MS123,125..SED;MS122..(HT,SED)..(ROY,SAL) BROWN,BROWN,TRIM4# |
1 | ||
| 64033-3001004 |
LS120,MS12#,YS120..SED..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 64033-3001002 |
LS120,MS12#,YS120..SED..(ROY,SAL) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 64033-3001004 |
MS12#..(HT,SED)..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 64033-3001005 |
LS120,MS12#,YS120..SED..(ROY,SAL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 64033-3001012 |
MS12#..(HT,SED)..(ROY,SAL) MAROON,MAROON,TRIM3# |
1 | ||
| 64033B - GRILLE SUB-ASSY, REAR SPEAKER, RH | ||||
| 64033-3001006 |
MS123,125..SED;MS122..(HT,SED)..(ROY,SAL) BROWN,BROWN,TRIM4# |
1 | ||
| 64033-3001004 |
LS120,MS12#,YS120..SED..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 64033-3001002 |
LS120,MS12#,YS120..SED..(ROY,SAL) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 64033-3001004 |
MS12#..(HT,SED)..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 64033-3001005 |
LS120,MS12#,YS120..SED..(ROY,SAL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 64033-3001012 |
MS12#..(HT,SED)..(ROY,SAL) MAROON,MAROON,TRIM3# |
1 | ||
| 64034B - GRILLE SUB-ASSY, REAR SPEAKER, LH | ||||
| 64033-3001006 |
MS123,125..SED;MS122..(HT,SED)..(ROY,SAL) BROWN,BROWN,TRIM4# |
1 | ||
| 64033-3001005 |
LS120,MS12#,YS120..SED..(ROY,SAL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 64033-3001004 |
LS120,MS12#,YS120..SED..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 64033-3001002 |
LS120,MS12#,YS120..SED..(ROY,SAL) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 64033-3001004 |
MS12#..(HT,SED)..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 64033-3001012 |
MS12#..(HT,SED)..(ROY,SAL) MAROON,MAROON,TRIM3# |
1 | ||
| 64034B - GRILLE SUB-ASSY, REAR SPEAKER, LH | ||||
| 64033-3001006 |
MS123,125..SED;MS122..(HT,SED)..(ROY,SAL) BROWN,BROWN,TRIM4# |
1 | ||
| 64033-3001005 |
LS120,MS12#,YS120..SED..(ROY,SAL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 64033-3001004 |
LS120,MS12#,YS120..SED..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 64033-3001002 |
LS120,MS12#,YS120..SED..(ROY,SAL) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 64033-3001004 |
MS12#..(HT,SED)..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 64033-3001012 |
MS12#..(HT,SED)..(ROY,SAL) MAROON,MAROON,TRIM3# |
1 | ||
| 64034B - GRILLE SUB-ASSY, REAR SPEAKER, LH | ||||
| 64033-3001006 |
MS123,125..SED;MS122..(HT,SED)..(ROY,SAL) BROWN,BROWN,TRIM4# |
1 | ||
| 64033-3001005 |
LS120,MS12#,YS120..SED..(ROY,SAL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 64033-3001004 |
LS120,MS12#,YS120..SED..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 64033-3001002 |
LS120,MS12#,YS120..SED..(ROY,SAL) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 64033-3001004 |
MS12#..(HT,SED)..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 64033-3001012 |
MS12#..(HT,SED)..(ROY,SAL) MAROON,MAROON,TRIM3# |
1 | ||

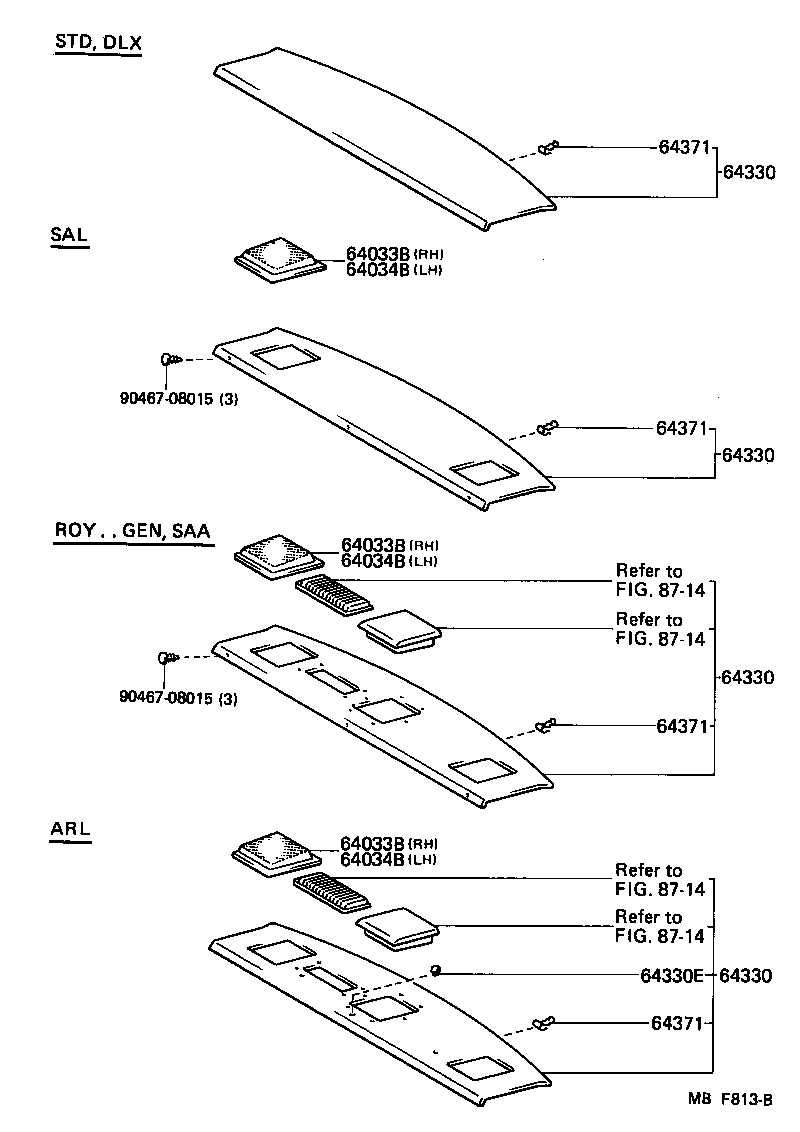

| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-3053002 |
LS120,MS122,123,YS120..SED..SAL W/O *MR,RR COOLER,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 64330-3057005 |
MS12#..SED..(EUG,GEN,SAA,SWZ) W/*MR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 64330-3053005 |
LS120,MS122,123,YS120..SED..SAL W/O *MR,RR COOLER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 64330-3057004 |
MS12#..SED..(EUG,GEN,SAA,SWZ) W/*MR,BLUE,BLUE,TRIM8# |
1 | ||
| 64330-3053004 |
LS120,MS122,123,YS120..SED..SAL W/O *MR,RR COOLER,BLUE,BLUE,TRIM8# |
1 | ||
| 64330-3063002 |
MS122,123..SED..SAL W/O *MR,W/RR COOLER,DEEPMAROON,RED/MAROON,TRIM3# |
1 | ||
| 64330-3063004 |
MS122,123..SED..SAL W/O *MR,W/RR COOLER,BLUE,BLUE,TRIM8# |
1 | ||
| 64330-3053012 |
MS122..SED..SAL W/O *MR,RR COOLER,MAROON,MAROON,TRIM3# |
1 | ||
| 64330-3053004 |
MS122..SED..SAL W/O *MR,RR COOLER,BLUE,BLUE,TRIM8# |
1 | ||
| 64330-3063005 |
MS122,123..SED..SAL W/O *MR,W/RR COOLER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 64330-3057002 |
MS12#..SED..(EUG,GEN,SAA,SWZ) W/*MR,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 64330-3055004 |
MS122,125..SED..(ROY,SAL) W/O *MR,W/RR COOLER,BLUE,BLUE,TRIM8# |
1 | ||
| 64330-3055012 |
MS122,125..SED..(ROY,SAL) W/O *MR,W/RR COOLER,MAROON,MAROON,TRIM3# |
1 | ||
| 64330-3057012 |
MS122,125..SED..(ROY,SAL) W/*MR,RR COOLER,MAROON,MAROON,TRIM3# |
1 | ||
| 64330-3055006 |
MS122,125..SED..(ROY,SAL) W/O *MR,W/RR COOLER,BROWN,BROWN,TRIM4# |
1 | ||
| 64330-3053006 |
MS122..SED..SAL W/O *MR,RR COOLER,BROWN,BROWN,TRIM4# |
1 | ||
| 64330-3057006 |
MS122,125..SED..(ROY,SAL) W/*MR,RR COOLER,BROWN,BROWN,TRIM4# |
1 | ||
| 64330-3057004 |
MS122,125..SED..(ROY,SAL) W/*MR,RR COOLER,BLUE,BLUE,TRIM8# |
1 | ||
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-3053002 |
LS120,MS122,123,YS120..SED..SAL W/O *MR,RR COOLER,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 64330-3057005 |
MS12#..SED..(EUG,GEN,SAA,SWZ) W/*MR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 64330-3053005 |
LS120,MS122,123,YS120..SED..SAL W/O *MR,RR COOLER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 64330-3057004 |
MS12#..SED..(EUG,GEN,SAA,SWZ) W/*MR,BLUE,BLUE,TRIM8# |
1 | ||
| 64330-3053004 |
LS120,MS122,123,YS120..SED..SAL W/O *MR,RR COOLER,BLUE,BLUE,TRIM8# |
1 | ||
| 64330-3063002 |
MS122,123..SED..SAL W/O *MR,W/RR COOLER,DEEPMAROON,RED/MAROON,TRIM3# |
1 | ||
| 64330-3063004 |
MS122,123..SED..SAL W/O *MR,W/RR COOLER,BLUE,BLUE,TRIM8# |
1 | ||
| 64330-3053012 |
MS122..SED..SAL W/O *MR,RR COOLER,MAROON,MAROON,TRIM3# |
1 | ||
| 64330-3053004 |
MS122..SED..SAL W/O *MR,RR COOLER,BLUE,BLUE,TRIM8# |
1 | ||
| 64330-3063005 |
MS122,123..SED..SAL W/O *MR,W/RR COOLER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 64330-3057002 |
MS12#..SED..(EUG,GEN,SAA,SWZ) W/*MR,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 64330-3055004 |
MS122,125..SED..(ROY,SAL) W/O *MR,W/RR COOLER,BLUE,BLUE,TRIM8# |
1 | ||
| 64330-3055012 |
MS122,125..SED..(ROY,SAL) W/O *MR,W/RR COOLER,MAROON,MAROON,TRIM3# |
1 | ||
| 64330-3057012 |
MS122,125..SED..(ROY,SAL) W/*MR,RR COOLER,MAROON,MAROON,TRIM3# |
1 | ||
| 64330-3055006 |
MS122,125..SED..(ROY,SAL) W/O *MR,W/RR COOLER,BROWN,BROWN,TRIM4# |
1 | ||
| 64330-3053006 |
MS122..SED..SAL W/O *MR,RR COOLER,BROWN,BROWN,TRIM4# |
1 | ||
| 64330-3057006 |
MS122,125..SED..(ROY,SAL) W/*MR,RR COOLER,BROWN,BROWN,TRIM4# |
1 | ||
| 64330-3057004 |
MS122,125..SED..(ROY,SAL) W/*MR,RR COOLER,BLUE,BLUE,TRIM8# |
1 | ||
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-3053002 |
LS120,MS122,123,YS120..SED..SAL W/O *MR,RR COOLER,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 64330-3057005 |
MS12#..SED..(EUG,GEN,SAA,SWZ) W/*MR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 64330-3053005 |
LS120,MS122,123,YS120..SED..SAL W/O *MR,RR COOLER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 64330-3057004 |
MS12#..SED..(EUG,GEN,SAA,SWZ) W/*MR,BLUE,BLUE,TRIM8# |
1 | ||
| 64330-3053004 |
LS120,MS122,123,YS120..SED..SAL W/O *MR,RR COOLER,BLUE,BLUE,TRIM8# |
1 | ||
| 64330-3063002 |
MS122,123..SED..SAL W/O *MR,W/RR COOLER,DEEPMAROON,RED/MAROON,TRIM3# |
1 | ||
| 64330-3063004 |
MS122,123..SED..SAL W/O *MR,W/RR COOLER,BLUE,BLUE,TRIM8# |
1 | ||
| 64330-3053012 |
MS122..SED..SAL W/O *MR,RR COOLER,MAROON,MAROON,TRIM3# |
1 | ||
| 64330-3053004 |
MS122..SED..SAL W/O *MR,RR COOLER,BLUE,BLUE,TRIM8# |
1 | ||
| 64330-3063005 |
MS122,123..SED..SAL W/O *MR,W/RR COOLER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 64330-3057002 |
MS12#..SED..(EUG,GEN,SAA,SWZ) W/*MR,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 64330-3055004 |
MS122,125..SED..(ROY,SAL) W/O *MR,W/RR COOLER,BLUE,BLUE,TRIM8# |
1 | ||
| 64330-3055012 |
MS122,125..SED..(ROY,SAL) W/O *MR,W/RR COOLER,MAROON,MAROON,TRIM3# |
1 | ||
| 64330-3057012 |
MS122,125..SED..(ROY,SAL) W/*MR,RR COOLER,MAROON,MAROON,TRIM3# |
1 | ||
| 64330-3055006 |
MS122,125..SED..(ROY,SAL) W/O *MR,W/RR COOLER,BROWN,BROWN,TRIM4# |
1 | ||
| 64330-3053006 |
MS122..SED..SAL W/O *MR,RR COOLER,BROWN,BROWN,TRIM4# |
1 | ||
| 64330-3057006 |
MS122,125..SED..(ROY,SAL) W/*MR,RR COOLER,BROWN,BROWN,TRIM4# |
1 | ||
| 64330-3057004 |
MS122,125..SED..(ROY,SAL) W/*MR,RR COOLER,BLUE,BLUE,TRIM8# |
1 | ||
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-3053002 |
LS120,MS122,123,YS120..SED..SAL W/O *MR,RR COOLER,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 64330-3057005 |
MS12#..SED..(EUG,GEN,SAA,SWZ) W/*MR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 64330-3053005 |
LS120,MS122,123,YS120..SED..SAL W/O *MR,RR COOLER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 64330-3057004 |
MS12#..SED..(EUG,GEN,SAA,SWZ) W/*MR,BLUE,BLUE,TRIM8# |
1 | ||
| 64330-3053004 |
LS120,MS122,123,YS120..SED..SAL W/O *MR,RR COOLER,BLUE,BLUE,TRIM8# |
1 | ||
| 64330-3063002 |
MS122,123..SED..SAL W/O *MR,W/RR COOLER,DEEPMAROON,RED/MAROON,TRIM3# |
1 | ||
| 64330-3063004 |
MS122,123..SED..SAL W/O *MR,W/RR COOLER,BLUE,BLUE,TRIM8# |
1 | ||
| 64330-3053012 |
MS122..SED..SAL W/O *MR,RR COOLER,MAROON,MAROON,TRIM3# |
1 | ||
| 64330-3053004 |
MS122..SED..SAL W/O *MR,RR COOLER,BLUE,BLUE,TRIM8# |
1 | ||
| 64330-3063005 |
MS122,123..SED..SAL W/O *MR,W/RR COOLER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 64330-3057002 |
MS12#..SED..(EUG,GEN,SAA,SWZ) W/*MR,DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 64330-3055004 |
MS122,125..SED..(ROY,SAL) W/O *MR,W/RR COOLER,BLUE,BLUE,TRIM8# |
1 | ||
| 64330-3055012 |
MS122,125..SED..(ROY,SAL) W/O *MR,W/RR COOLER,MAROON,MAROON,TRIM3# |
1 | ||
| 64330-3057012 |
MS122,125..SED..(ROY,SAL) W/*MR,RR COOLER,MAROON,MAROON,TRIM3# |
1 | ||
| 64330-3055006 |
MS122,125..SED..(ROY,SAL) W/O *MR,W/RR COOLER,BROWN,BROWN,TRIM4# |
1 | ||
| 64330-3053006 |
MS122..SED..SAL W/O *MR,RR COOLER,BROWN,BROWN,TRIM4# |
1 | ||
| 64330-3057006 |
MS122,125..SED..(ROY,SAL) W/*MR,RR COOLER,BROWN,BROWN,TRIM4# |
1 | ||
| 64330-3057004 |
MS122,125..SED..(ROY,SAL) W/*MR,RR COOLER,BLUE,BLUE,TRIM8# |
1 | ||
| 64371 - RETAINER, PACKAGE TRAY TRIM | ||||
| 64371-30050 |
LS120,MS12#,YS120..HT,SED |
6 | ||
| 64371 - RETAINER, PACKAGE TRAY TRIM | ||||
| 64371-30050 |
LS120,MS12#,YS120..HT,SED |
6 | ||
| 64371 - RETAINER, PACKAGE TRAY TRIM | ||||
| 64371-30050 |
LS120,MS12#,YS120..HT,SED |
6 | ||
| 64371 - RETAINER, PACKAGE TRAY TRIM | ||||
| 64371-30050 |
LS120,MS12#,YS120..HT,SED |
6 | ||
| Common parts | ||||
| 90467-08015 | ||||
| Linked diagrams | ||||
| 8714 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
