MS122R-SESGS (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 5M
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )HT,SED

Click highlighted areas on diagram

diagram 52023 52075 52076 52152B 52153B 52155A 52156A 52159 52552 52553 52559 52559 52561 52565A 52567A 52567A 52575 52576 52577 52578 52589 52589 52615 52751 52752 52753 52754 9010906083 9010906083 9010906083 9010906083 9010906083 9011912057 9015960165 9017905004 9017906007 9017906032 9017906032 9018303001 9018303001 9018906004 9043005008 9043005008 9043005009 9043005009 9046709030 9046709030 9054007002 9054008009 9054008009 9165640616 9165640616 9165640616 9165640618
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-30080

MS12#,YS120..SED..(ROY,SAL)

 1
52075 - RETAINER SUB-ASSY, REAR BUMPER SIDE, RH
52075-30010

LS120,MS12#,YS120..HT,SED

 1
52076 - RETAINER SUB-ASSY, REAR BUMPER SIDE, LH
52076-30010

LS120,MS12#,YS120..HT,SED

 1
52152B - EXTENSION, REAR BUMPER, RH
52152-30903

MS12#,YS120..(HT,SED)..(4FC,4H,4HC,5F)..(DLX,ROY,SAL)

W/*UB

 1
52106-30010

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 1
52153B - EXTENSION, REAR BUMPER, LH
52107-30030

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 1
52153-30903

MS12#,YS120..(HT,SED)..(4FC,4H,4HC,5F)..(DLX,ROY,SAL)

W/*UB

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-30030

LS120,MS12#,YS120..HT,SED

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52155-30030

LS120,MS12#,YS120..HT,SED

 1
52159 - COVER, REAR BUMPER
52159-30904

MS12#,YS120..(HT,SED)..(4FC,4H,4HC,5F)..(DLX,ROY,SAL)

 1
52552 - FILLER, REAR BUMPER, RH
52506-30020

LS120,MS122,YS120..SED

 1
52553 - FILLER, REAR BUMPER, LH
52507-30020

LS120,MS122,YS120..SED

 1
52559 - SEAL, REAR BUMPER FILLER
52559-30020

LS120,MS12#,YS120

 2
52559 - SEAL, REAR BUMPER FILLER
52559-30020

LS120,MS12#,YS120

 2
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52561-30030

MS12#,YS120..(HT,SED)..(4FC,4H,4HC,5F)..(DLX,ROY,SAL)

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-30020

LS120,MS12#,YS120

 1
52567A - RETAINER, REAR BUMPER, LOWER SIDE
52567-30040

MS12#

RH

 1
52568-30030

LS120,MS12#,YS120

LH

 1
52567-30020

LS120,MS12#,YS120

RH

 1
52567-30020

LS120,MS122,YS120

RH

 1
52567A - RETAINER, REAR BUMPER, LOWER SIDE
52567-30040

MS12#

RH

 1
52568-30030

LS120,MS12#,YS120

LH

 1
52567-30020

LS120,MS12#,YS120

RH

 1
52567-30020

LS120,MS122,YS120

RH

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-30030

MS12#,YS120..(HT,SED)..(4FC,4H,4HC,5F)..(DLX,ROY,SAL)

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-30030

MS12#,YS120..(HT,SED)..(4FC,4H,4HC,5F)..(DLX,ROY,SAL)

 1
52577 - RETAINER, REAR BUMPER SIDE, NO.2 RH
52577-30020

MS12#,YS120..(HT,SED)..(4FC,4H,4HC,5F)..(DLX,ROY,SAL)

 1
52578 - RETAINER, REAR BUMPER SIDE, NO.2 LH
52578-30020

MS12#,YS120..(HT,SED)..(4FC,4H,4HC,5F)..(DLX,ROY,SAL)

 1
52589 - RETAINER, REAR BUMPER END, NO.2
52589-30010

LS120,MS12#,YS120..HT,SED

 2
52589 - RETAINER, REAR BUMPER END, NO.2
52589-30010

LS120,MS12#,YS120..HT,SED

 2
52615 - ABSORBER, REAR BUMPER ENERGY
52615-30030

MS12#,YS120..(HT,SED)..(4FC,4H,4HC,5F)..(DLX,ROY,SAL)

 1
52751 - MOULDING, REAR BUMPER
52751-30020

LS120,MS12#,YS120

 1
52752 - MOULDING, REAR BUMPER SIDE, RH
52752-30010

LS120,MS12#,YS120..HT,SED

 1
52753 - MOULDING, REAR BUMPER SIDE, LH
52753-30010

LS120,MS12#,YS120..HT,SED

 1
52754 - MOULDING, REAR BUMPER, NO.2
52754-30020

MS12#,YS120..(HT,SED)..(4FC,4H,4HC,5F)..(DLX,ROY,SAL)

 1
Common parts
90109-06083
90119-12057
90159-60165
90179-05004
90179-06007
90179-06032
90183-03001
90189-06004
90430-05008
90430-05009
90467-09030
90540-07002
90540-08009
91656-40616
91656-40618

(8308-8611)YS120..STD ; (8308-8611)LS120,MS122..SED..DLX,SAL,STD..GEN

Click highlighted areas on diagram

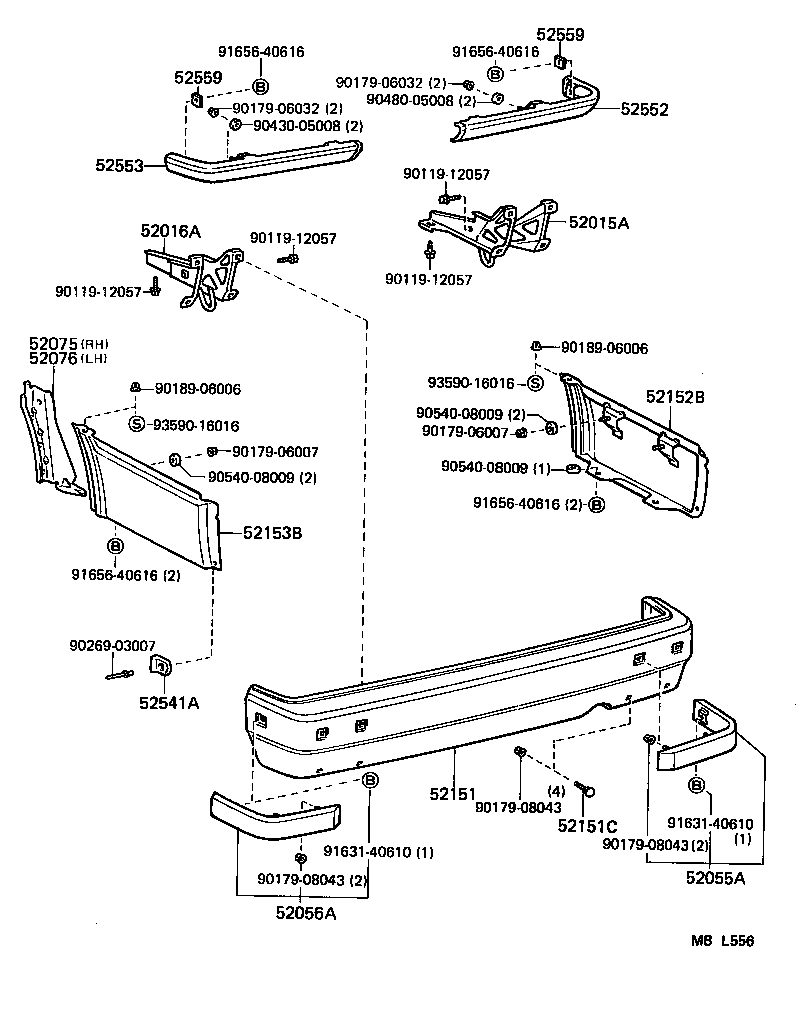

diagram 52015A 52016A 52055A 52056A 52075 52076 52151 52151C 52152B 52153B 52541A 52552 52553 52559 52559 9011912057 9011912057 9011912057 9011912057 9017906007 9017906007 9017906032 9017906032 9017908043 9017908043 9017908043 9018906006 9018906006 9026903007 9043005008 9043005009 9043005009 9048005008 9054008009 9054008009 9054008009 9163140610 9163140610 9165640616 9165640616 9165640616 9165640616 9359016016 9359016016
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-30070

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-30070

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 1
52055A - PAD SUB-ASSY, REAR BUMPER, RH
52055-39055

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 1
52056A - PAD SUB-ASSY, REAR BUMPER, LH
52056-39025

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 1
52075 - RETAINER SUB-ASSY, REAR BUMPER SIDE, RH
52075-30010

LS120,MS12#,YS120..HT,SED

 1
52076 - RETAINER SUB-ASSY, REAR BUMPER SIDE, LH
52076-30010

LS120,MS12#,YS120..HT,SED

 1
52151 - BUMPER ASSY, REAR
52151-30180

LS120,MS122,YS120..SED..(DLX,SAL,STD)..GEN

 1
52151-39125

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 1
52151C - BOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER)
90112-08031

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 4
52152B - EXTENSION, REAR BUMPER, RH
52152-30903

MS12#,YS120..(HT,SED)..(4FC,4H,4HC,5F)..(DLX,ROY,SAL)

W/*UB

 1
52106-30010

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 1
52153B - EXTENSION, REAR BUMPER, LH
52107-30030

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 1
52153-30903

MS12#,YS120..(HT,SED)..(4FC,4H,4HC,5F)..(DLX,ROY,SAL)

W/*UB

 1
52541A - PROTECTOR, REAR BUMPER
52541-30030

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 2
52552 - FILLER, REAR BUMPER, RH
52506-30020

LS120,MS122,YS120..SED

 1
52553 - FILLER, REAR BUMPER, LH
52507-30020

LS120,MS122,YS120..SED

 1
52559 - SEAL, REAR BUMPER FILLER
52559-30020

LS120,MS12#,YS120

 2
52559 - SEAL, REAR BUMPER FILLER
52559-30020

LS120,MS12#,YS120

 2
Common parts
90119-12057
90179-06007
90179-06032
90179-08043
90189-06006
90269-03007
90430-05008
90430-05009
90480-05008
90540-08009
91631-40610
91656-40616
93590-16016

(8611- )SED..DLX,SAL,STD

Click highlighted areas on diagram

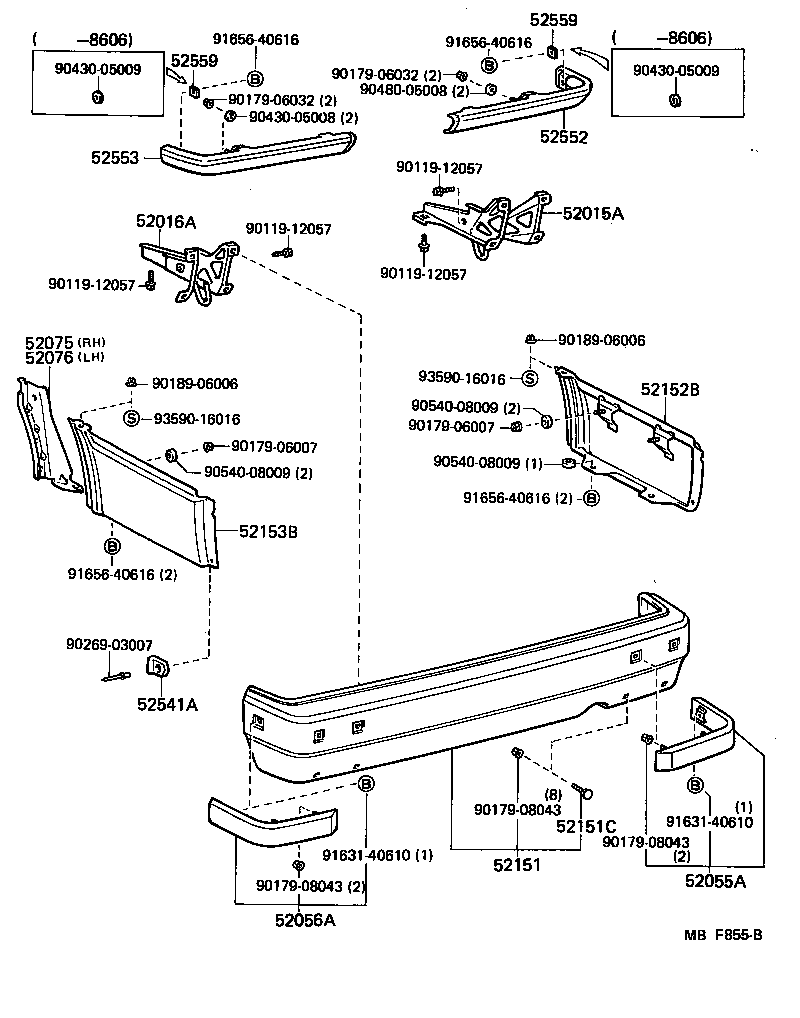

diagram 52015A 52016A 52055A 52056A 52075 52076 52151 52151C 52152B 52153B 52541A 52552 52553 52559 52559 9011912057 9011912057 9011912057 9011912057 9017906007 9017906007 9017906032 9017906032 9017908043 9017908043 9017908043 9018906006 9018906006 9026903007 9043005008 9048005008 9054008009 9054008009 9054008009 9163140610 9163140610 9165640616 9165640616 9165640616 9165640616 9359016016 9359016016
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-30070

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-30070

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 1
52055A - PAD SUB-ASSY, REAR BUMPER, RH
52055-39055

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 1
52056A - PAD SUB-ASSY, REAR BUMPER, LH
52056-39025

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 1
52075 - RETAINER SUB-ASSY, REAR BUMPER SIDE, RH
52075-30010

LS120,MS12#,YS120..HT,SED

 1
52076 - RETAINER SUB-ASSY, REAR BUMPER SIDE, LH
52076-30010

LS120,MS12#,YS120..HT,SED

 1
52151 - BUMPER ASSY, REAR
52151-30180

LS120,MS122,YS120..SED..(DLX,SAL,STD)..GEN

 1
52151-39125

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 1
52151C - BOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER)
90112-08031

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 4
52152B - EXTENSION, REAR BUMPER, RH
52152-30903

MS12#,YS120..(HT,SED)..(4FC,4H,4HC,5F)..(DLX,ROY,SAL)

W/*UB

 1
52106-30010

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 1
52153B - EXTENSION, REAR BUMPER, LH
52107-30030

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 1
52153-30903

MS12#,YS120..(HT,SED)..(4FC,4H,4HC,5F)..(DLX,ROY,SAL)

W/*UB

 1
52541A - PROTECTOR, REAR BUMPER
52541-30030

YS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN

 2
52552 - FILLER, REAR BUMPER, RH
52506-30020

LS120,MS122,YS120..SED

 1
52553 - FILLER, REAR BUMPER, LH
52507-30020

LS120,MS122,YS120..SED

 1
52559 - SEAL, REAR BUMPER FILLER
52559-30020

LS120,MS12#,YS120

 2
52559 - SEAL, REAR BUMPER FILLER
52559-30020

LS120,MS12#,YS120

 2
Common parts
90119-12057
90179-06007
90179-06032
90179-08043
90189-06006
90269-03007
90430-05008
90480-05008
90540-08009
91631-40610
91656-40616
93590-16016
