MS122R-SESGS (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 5M
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )LS120,MS122,YS120..RHD

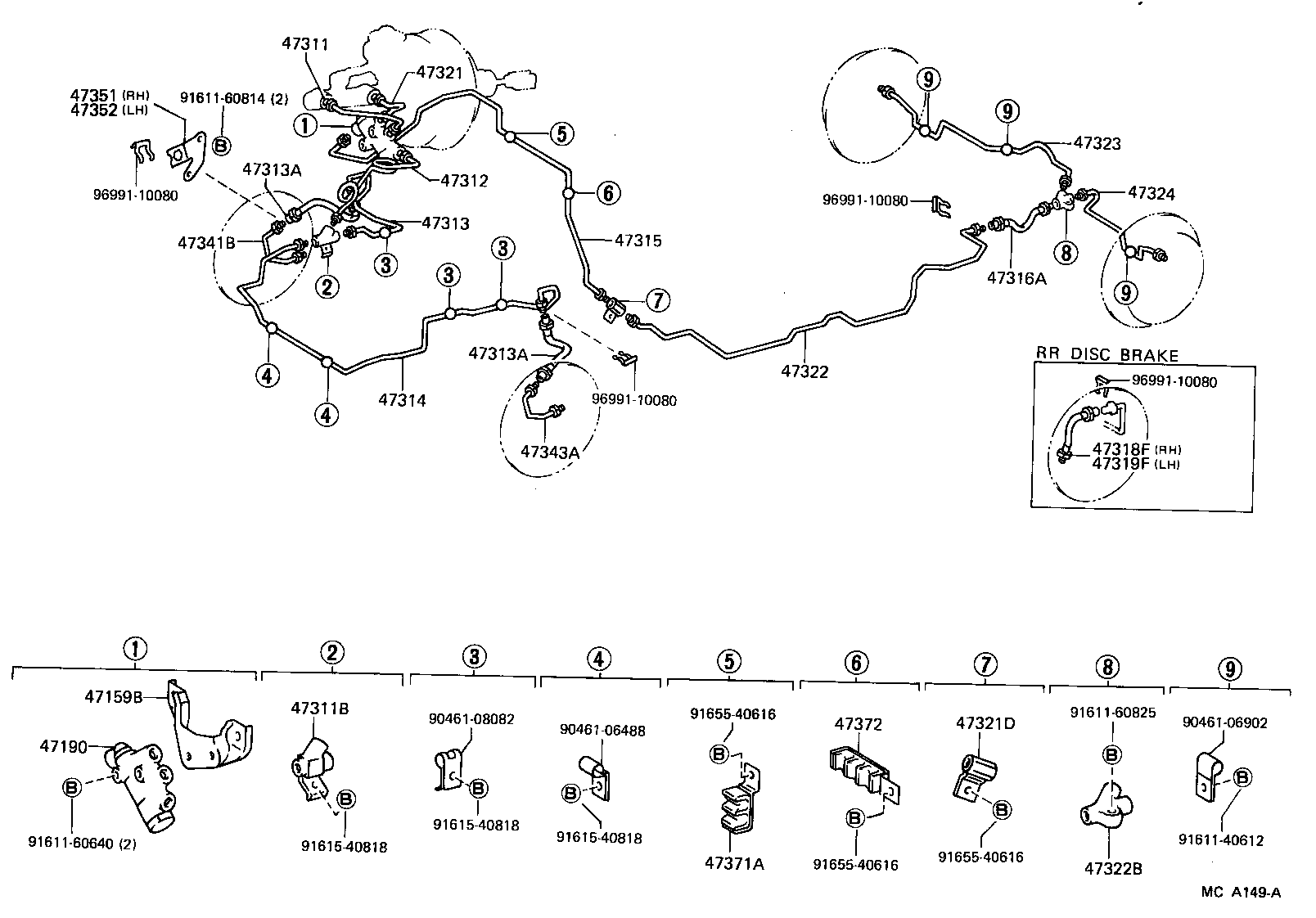

Click highlighted areas on diagram

diagram 47159B 47190 47311 47311B 47312 47313 47313A 47313A 47314 47315 47316A 47318F 47319F 47321 47321D 47322 47322B 47323 47324 47341B 47343A 47351 47352 47371A 47372 9046106488 9046106902 9046108082 9161140612 9161160640 9161160814 9161160825 9161540818 9161540818 9161540818 9165540616 9165540616 9165540616 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47159B - BRACKET, PROPORTIONING & BY-PASS VALVE
47159-30150

LS120,MS12#,YS120

 1
47190 - VALVE ASSY, PROPORTIONING & BY-PASS
47190-30150

LS120,MS122,YS120..SAL,STD

 1
47190-30110

MS122..DLX,SAL

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-30400

MS123..SWZ;LS120,MS122,YS120

 1
47311-30380

MS12#

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10014

LS120,MS12#,YS120..RHD

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-30200

MS12#..RHD

 1
47312-30130

LS120,MS122,YS120..RHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-30140

LS120,MS12#,YS120..RHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02361

LS120,MS12#,YS120

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02361

LS120,MS12#,YS120

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-30150

LS120,MS12#,YS120..RHD

 1
47314-30190

LS120,MS12#,YS120..RHD

 1
47314-30190

MS12#..RHD

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-30260

LS120,MS122,YS120..RHD

 1
47315-30330

MS12#..RHD

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-32855

LS120,MS122,YS120

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-30100

MS12#

 1
47321-30120

MS123..SWZ;LS120,MS122,YS120

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10116

LS120,MS12#,YS120

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-30070

LS120,MS122,YS120

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10156

LS120,MS122,YS120

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-30080

LS120,MS122,YS120..DLX,SAL,STD

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-30040

LS120,MS122,YS120..DLX,SAL,STD

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-30020

LS120,MS12#,YS120

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-30020

LS120,MS12#,YS120

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-30160

LS120,MS12#,YS120

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-30080

LS120,MS12#,YS120

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-30010

LS120,MS12#,YS120..RHD

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47371-30020

LS120,MS12#,YS120..RHD

 1
Common parts
90461-06488
90461-06902
90461-08082
91611-40612
91611-60640
91611-60814
91611-60825
91615-40818
91655-40616
96991-10080
