MS122R-SESGS (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 5M
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )MS122..RHD

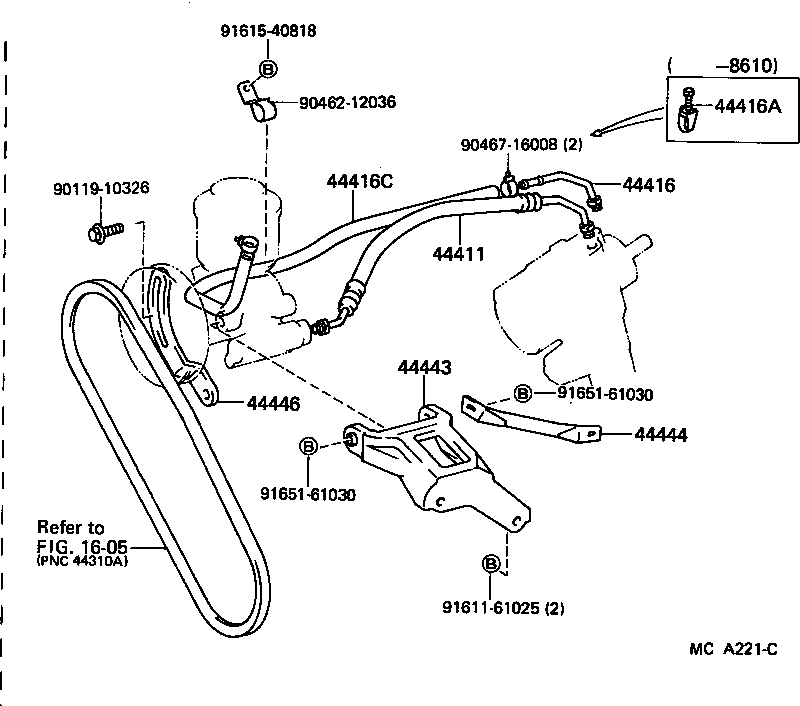

Click highlighted areas on diagram

diagram 1605 44411 44416 44416A 44416C 44443 44444 44446 9011910326 9046212036 9046716008 9161161025 9161540818 9165161030 9165161030
Part # Description Qty Price
44411 - HOSE, PRESSURE FEED
44411-30330

MS122..RHD

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-30060

LS120,MS12#..RHD

 1
44416A - CLAMP(FOR RETURN HOSE)
90460-01001

MS12#..RHD..GEN

 2
44416C - HOSE(FOR RETURN TUBE TO RESERVIOR)
44412-14170

MS122..RHD

 1
44443 - BRACKET, PUMP
44443-30051

MS122

 1
44444 - STAY, PUMP, REAR
44444-30061

MS122

 1
44446 - STRUT, ADJUSTING
44446-30040

MS122

 1
Common parts
90119-10326
90462-12036
90467-16008
91611-61025
91615-40818
91651-61030
Linked diagrams
1605
