MS122R-SESGS (1983)
Toyota Crown
Production
Aug 1983
-
Aug 1987
Engine
5M
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )MS122,123..ATM

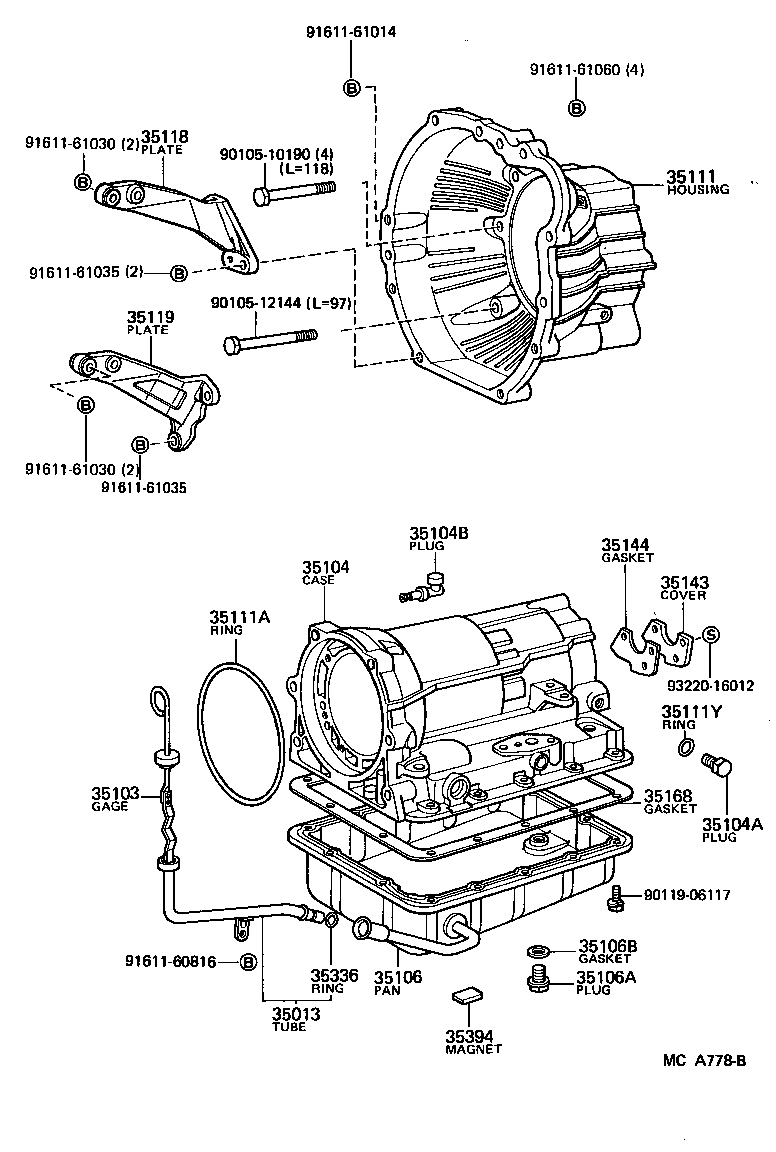

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-22120 |
MS122..SED..ATM |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-30131 |
MS122..SED..ATM |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-26020 |
MS12#..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35104-26021 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35104-26021 |
MS122..ATM |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
MS12#..ATM |
2 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03108 |
MS12#..ATM |
1 | ||
| 90930-03069 |
MS12#..ATM |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-30050 |
MS122..SED..ATM |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10006 |
MS12#..ATM |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
MS12#..ATM |
1 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-14070 |
MS122,123..ATM |
1 | ||
| 35111A - RING, O (FOR AUTOMATIC TRANSMISSION HOUSING) | ||||
| 90301-99006 |
MS122,123..ATM |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
MS12#..ATM |
2 | ||
| 35118 - PLATE, STIFENER, RH (ATM) | ||||
| 33118-22040 |
MS12#..ATM |
1 | ||
| 33118-22060 |
MS12#..ATM |
1 | ||
| 35119 - PLATE, STIFENER, LH (ATM) | ||||
| 33119-22030 |
MS12#..ATM |
1 | ||
| 35143 - COVER, TRANSMISSION CASE, REAR | ||||
| 35143-22010 |
MS122,123..ATM |
1 | ||
| 35144 - GASKET, TRANSMISSION CASE REAR COVER | ||||
| 35144-22010 |
MS122,123..ATM |
1 | ||
| 35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN | ||||
| 35168-22011 |
MS122,123..ATM |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
MS12#..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
MS12#..ATM |
4 | ||
| Common parts | ||||
| 90105-10190 | ||||
| 90105-12144 | ||||
| 90119-06117 | ||||
| 91611-60816 | ||||
| 91611-61014 | ||||
| 91611-61030 | ||||
| 91611-61035 | ||||
| 91611-61060 | ||||
| 93220-16012 | ||||
