MS122R-SESGS (1983)
Toyota Crown

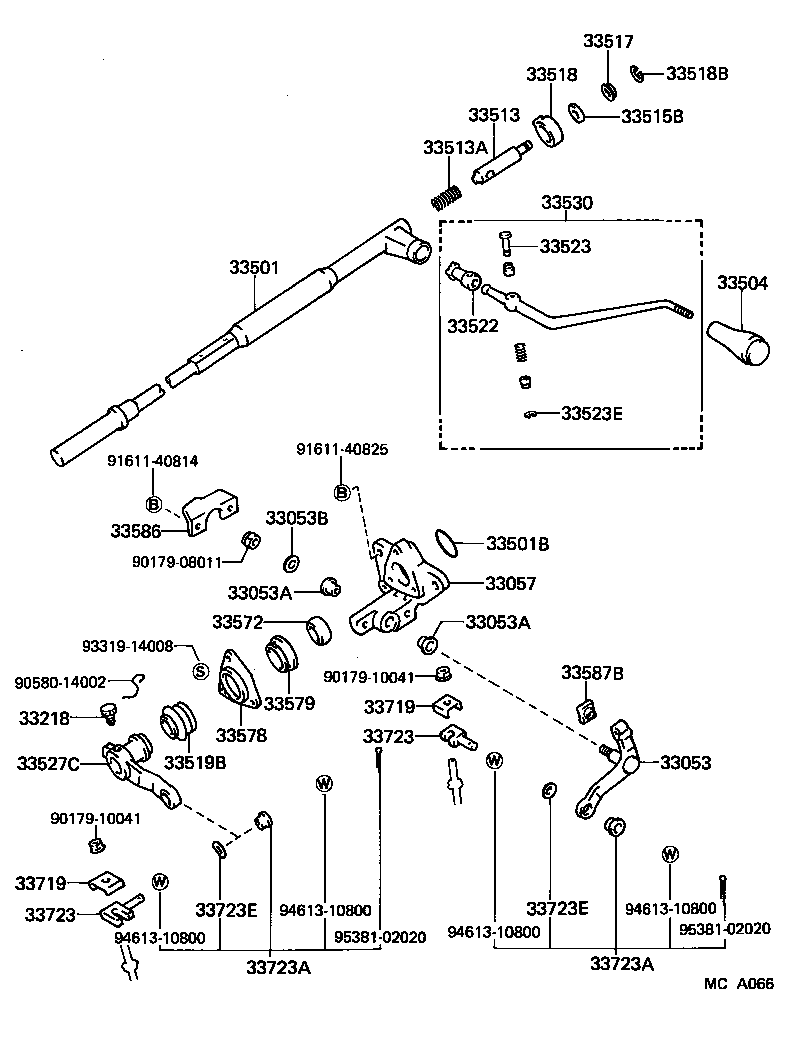

(8308- )RHD..4H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33053A - BUSH(FOR CONTROL SELECT LEVER) | ||||
| 90386-13007 |
LS120,MS122,YS120..4H |
2 | ||
| 33053A - BUSH(FOR CONTROL SELECT LEVER) | ||||
| 90386-13007 |
LS120,MS122,YS120..4H |
2 | ||
| 33053B - WASHER, PLATE(FOR CONTROL SELECT LEVER) | ||||
| 90201-08065 |
LS120,MS122,YS120..4H |
1 | ||
| 33218 - BOLT, SHIFT LEVER LOCK | ||||
| 33218-35010 |
LS120,MS122,YS120..4H |
1 | ||
| 33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT) | ||||
| 33501-30440 |
MS12#..4HC |
1 | ||
| 33501B - RING, O (FOR COLUMN SHIFT CONTROL SHAFT LOWER) | ||||
| 90301-34002 |
LS120,MS122,YS120..4H |
1 | ||
| 33504 - KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 33504-30110 |
LS120,MS122,YS120..4H |
1 | ||
| 33513 - SHAFT, CONTROL SHAFT BRACKET, UPPER | ||||
| 33513-30100 |
LS120,MS12#,YS120..4H,4HC |
1 | ||
| 33513A - SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT) | ||||
| 90501-14784 |
LS120,MS122,YS120..4H |
1 | ||
| 90501-14083 |
MS12#..4HC |
1 | ||
| 33515B - SEAT, CONTROL UPPER SHAFT (FOR COLUMN SHIFT) | ||||
| 33515-30010 |
LS120,MS12#,YS120..4H,4HC |
1 | ||
| 33517 - RETAINER, CONTROL SHAFT UPPER SPRING | ||||
| 33517-30010 |
LS120,MS12#,YS120..4H,4HC |
1 | ||
| 33518 - BUSH, UPPER CONTROL SHAFT PIECE | ||||
| 33518-30060 |
LS120,MS12#,YS120..4H,4HC |
1 | ||
| 33518B - RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH) | ||||
| 90523-06019 |
LS120,MS12#,YS120..4H,4HC |
1 | ||
| 33519B - BOOT, CONTROL SHAFT DUST | ||||
| 33519-30030 |
LS120,MS122,YS120..4H |
1 | ||
| 33522 - SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT) | ||||
| 33522-30030 |
LS120,MS12#,YS120..4H,4HC |
1 | ||
| 33523 - PIN, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 90249-07003 |
LS120,MS12#,YS120..4H,4HC |
1 | ||
| 33523E - RING, E (FOR SHIFT LEVER PIN) | ||||
| 96160-00500 |
LS120,MS12#,YS120..4H,4HC |
1 | ||
| 33530 - LEVER ASSY, SHIFT (FOR COLUMN SHIFT) | ||||
| 33501-30460 |
MS12#..4HC |
1 | ||
| 33572 - BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT) | ||||
| 33572-30020 |
MS12#..4HC |
1 | ||
| 33572-30030 |
LS120,MS122,YS120..4H |
1 | ||
| 33578 - SEAT, CONTROL SHAFT LOWER BUSH, NO.1 | ||||
| 33578-30020 |
LS120,MS122,YS120..4H |
1 | ||
| 33579 - SEAT, CONTROL SHAFT LOWER BUSH, NO.2 | ||||
| 33579-30020 |
LS120,MS122,YS120..4H |
1 | ||
| 33587B - BUSH, LEVER SELECTING | ||||
| 33587-30050 |
LS120,MS122,YS120..4H |
1 | ||
| 33719 - PLATE, SHIFT CONTROL ROD | ||||
| 33719-30010 |
LS120,MS12#,YS120..4H,4HC |
2 | ||
| 33719 - PLATE, SHIFT CONTROL ROD | ||||
| 33719-30010 |
LS120,MS12#,YS120..4H,4HC |
2 | ||
| 33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT) | ||||
| 33723-30050 |
LS120,MS12#,YS120..4H,4HC |
2 | ||
| 33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT) | ||||
| 33723-30050 |
LS120,MS12#,YS120..4H,4HC |
2 | ||
| 33723A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90999-99064 |
LS120,MS12#,YS120..4H,4HC |
2 | ||
| 33723A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90999-99064 |
LS120,MS12#,YS120..4H,4HC |
2 | ||
| 33723E - WASHER, WAVE (FOR COLUMN SHIFT CONTROL ROD SETTING) | ||||
| 90206-08016 |
LS120,MS12#,YS120..4H,4HC |
2 | ||
| 33723E - WASHER, WAVE (FOR COLUMN SHIFT CONTROL ROD SETTING) | ||||
| 90206-08016 |
LS120,MS12#,YS120..4H,4HC |
2 | ||
| Common parts | ||||
| 90179-08011 | ||||
| 90179-10041 | ||||
| 90580-14002 | ||||
| 91611-40814 | ||||
| 91611-40825 | ||||
| 93319-14008 | ||||
| 94613-10800 | ||||
| 95381-02020 | ||||

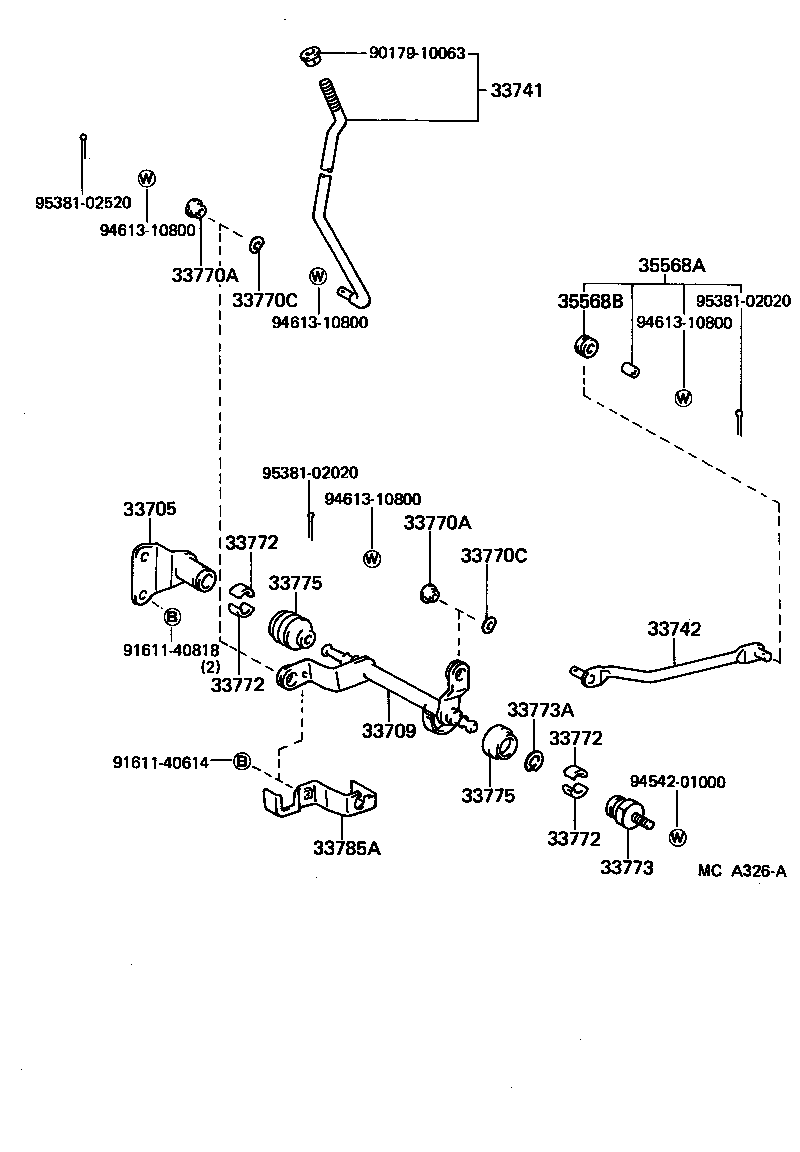

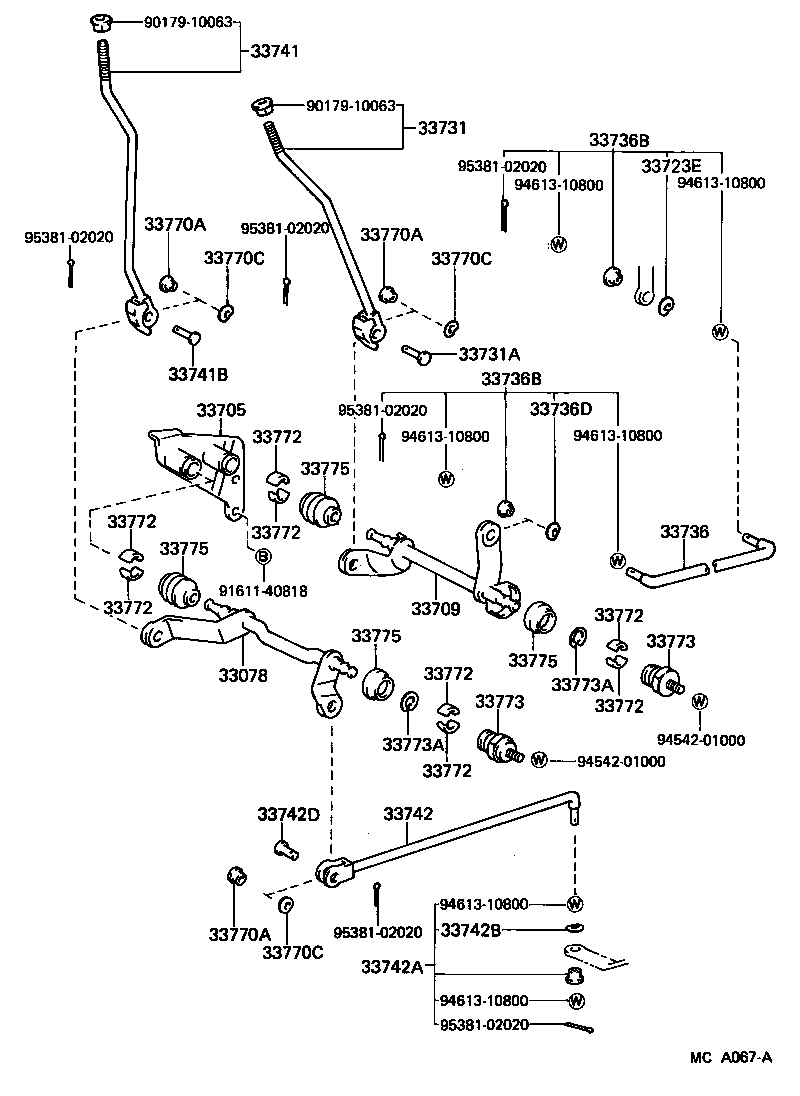

(8308- )RHD..4H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33705 - SUPPORT SUB-ASSY, CROSS SHAFT (FOR BODY SIDE) | ||||
| 33705-30120 |
MS12#..4HC |
1 | ||
| 33709 - SHAFT SUB-ASSY, CROSS, NO.1 (FOR COLUMN SHIFT) | ||||
| 33709-30300 |
MS12#..4HC |
1 | ||
| 33723E - WASHER, WAVE (FOR COLUMN SHIFT CONTROL ROD SETTING) | ||||
| 90206-08016 |
LS120,MS12#,YS120..4H,4HC |
2 | ||
| 33736B - BUSH(FOR GEAR SELECTING ROD, NO.2) | ||||
| 90999-99064 |
LS120,MS122,YS120..4H |
2 | ||
| 33736B - BUSH(FOR GEAR SELECTING ROD, NO.2) | ||||
| 90999-99064 |
LS120,MS122,YS120..4H |
2 | ||
| 33736D - WASHER, WAVE(FOR GEAR SELECTING ROD, NO.2) | ||||
| 90206-08016 |
LS120,MS122,YS120..4H |
2 | ||
| 33741 - ROD, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT) | ||||
| 33702-30110 |
MS12#..4HC |
1 | ||
| 33742 - ROD, GEAR SHIFTING, NO.2(FOR COLUMN SHIFT) | ||||
| 33742-30240 |
MS122,123..4HC |
1 | ||
| 33742A - BUSH(FOR SHIFTING ROD NO.2) | ||||
| 90999-99064 |
LS120,MS122,YS120..4H |
1 | ||
| 33742B - WASHER, WAVE(FOR SHIFTING NO.2 ROD) | ||||
| 90206-08016 |
LS120,MS122,YS120..4H |
1 | ||
| 33770A - BUSH (FOR CROSS SHAFT) | ||||
| 90389-08008 |
LS120,MS12#..RHD..(4H,4HC) |
3 | ||
| 33770A - BUSH (FOR CROSS SHAFT) | ||||
| 90389-08008 |
LS120,MS12#..RHD..(4H,4HC) |
3 | ||
| 33770A - BUSH (FOR CROSS SHAFT) | ||||
| 90389-08008 |
LS120,MS12#..RHD..(4H,4HC) |
3 | ||
| 33770C - WASHER, WAVE (FOR CROSS SHAFT) | ||||
| 90206-08016 |
LS120,MS12#,YS120..4H,4HC |
4 | ||
| 33770C - WASHER, WAVE (FOR CROSS SHAFT) | ||||
| 90206-08016 |
LS120,MS12#,YS120..4H,4HC |
4 | ||
| 33770C - WASHER, WAVE (FOR CROSS SHAFT) | ||||
| 90206-08016 |
LS120,MS12#,YS120..4H,4HC |
4 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
LS120,MS12#,YS120..4H,4HC |
8 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
LS120,MS12#,YS120..4H,4HC |
8 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
LS120,MS12#,YS120..4H,4HC |
8 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
LS120,MS12#,YS120..4H,4HC |
8 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
LS120,MS12#,YS120..4H,4HC |
8 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
LS120,MS12#,YS120..4H,4HC |
8 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
LS120,MS12#,YS120..4H,4HC |
8 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
LS120,MS12#,YS120..4H,4HC |
8 | ||
| 33773 - SUPPORT, CROSS SHAFT, NO.1 (FOR COLUM SHIFT) | ||||
| 33773-20020 |
LS120,MS12#..RHD..(4H,4HC) CROSSSHAFT NO.1 |
1 | ||
| 33773 - SUPPORT, CROSS SHAFT, NO.1 (FOR COLUM SHIFT) | ||||
| 33773-20020 |
LS120,MS12#..RHD..(4H,4HC) CROSSSHAFT NO.1 |
1 | ||
| 33773A - RING, HOLE SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 96151-01600 |
LS120,MS12#,YS120..4H,4HC |
2 | ||
| 33773A - RING, HOLE SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 96151-01600 |
LS120,MS12#,YS120..4H,4HC |
2 | ||
| 33775 - COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 33775-30020 |
LS120,MS12#..RHD..(4H,4HC) MISSION SIDE |
2 | ||
| 33775-20040 |
LS120,MS12#,YS120..4H,4HC FRAME SIDE |
2 | ||
| 33775 - COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 33775-30020 |
LS120,MS12#..RHD..(4H,4HC) MISSION SIDE |
2 | ||
| 33775-20040 |
LS120,MS12#,YS120..4H,4HC FRAME SIDE |
2 | ||
| 33775 - COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 33775-30020 |
LS120,MS12#..RHD..(4H,4HC) MISSION SIDE |
2 | ||
| 33775-20040 |
LS120,MS12#,YS120..4H,4HC FRAME SIDE |
2 | ||
| 33775 - COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 33775-30020 |
LS120,MS12#..RHD..(4H,4HC) MISSION SIDE |
2 | ||
| 33775-20040 |
LS120,MS12#,YS120..4H,4HC FRAME SIDE |
2 | ||
| Common parts | ||||
| 90179-10063 | ||||
| 91611-40818 | ||||
| 94542-01000 | ||||
| 94613-10800 | ||||
| 95381-02020 | ||||

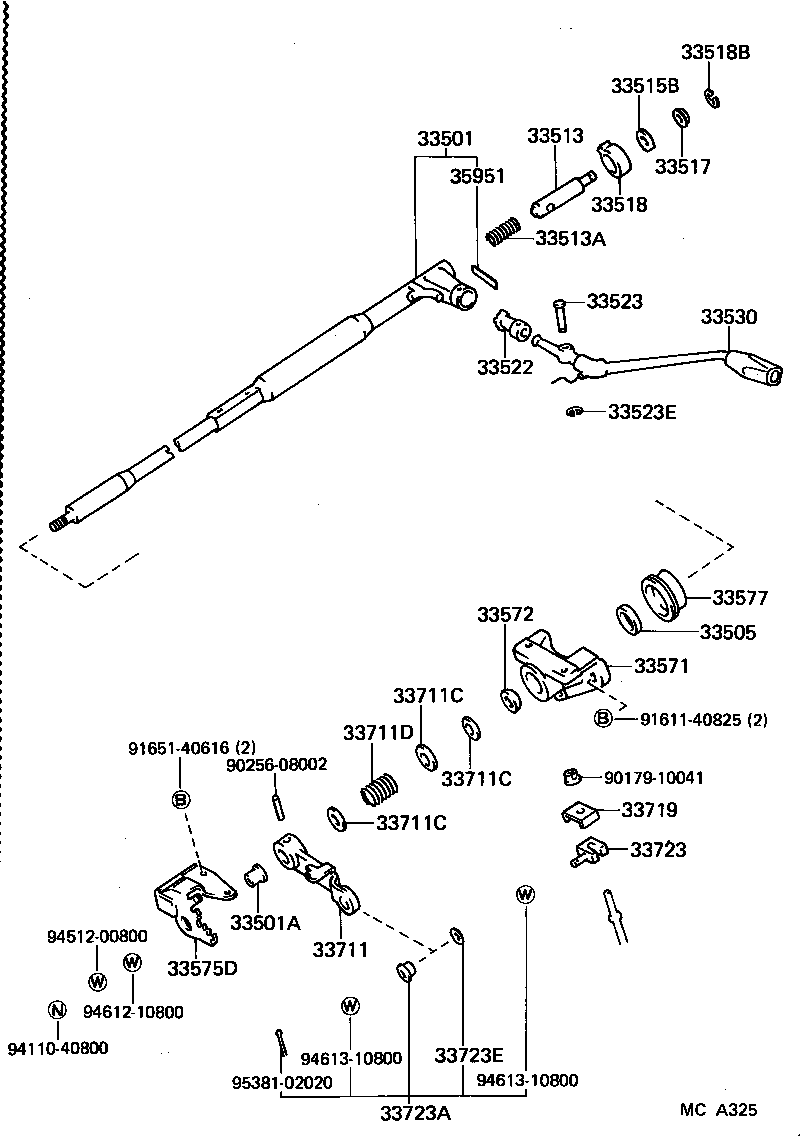

(8308- )4HC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT) | ||||
| 33501-30440 |
MS12#..4HC |
1 | ||
| 33501A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90386-10060 |
MS12#..4HC |
1 | ||
| 33505 - SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 33505-30010 |
MS12#..4HC |
1 | ||
| 33513 - SHAFT, CONTROL SHAFT BRACKET, UPPER | ||||
| 33513-30100 |
LS120,MS12#,YS120..4H,4HC |
1 | ||
| 33513A - SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT) | ||||
| 90501-14784 |
LS120,MS122,YS120..4H |
1 | ||
| 90501-14083 |
MS12#..4HC |
1 | ||
| 33515B - SEAT, CONTROL UPPER SHAFT (FOR COLUMN SHIFT) | ||||
| 33515-30010 |
LS120,MS12#,YS120..4H,4HC |
1 | ||
| 33517 - RETAINER, CONTROL SHAFT UPPER SPRING | ||||
| 33517-30010 |
LS120,MS12#,YS120..4H,4HC |
1 | ||
| 33518 - BUSH, UPPER CONTROL SHAFT PIECE | ||||
| 33518-30060 |
LS120,MS12#,YS120..4H,4HC |
1 | ||
| 33518B - RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH) | ||||
| 90523-06019 |
LS120,MS12#,YS120..4H,4HC |
1 | ||
| 33522 - SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT) | ||||
| 33522-30030 |
LS120,MS12#,YS120..4H,4HC |
1 | ||
| 33523 - PIN, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 90249-07003 |
LS120,MS12#,YS120..4H,4HC |
1 | ||
| 33523E - RING, E (FOR SHIFT LEVER PIN) | ||||
| 96160-00500 |
LS120,MS12#,YS120..4H,4HC |
1 | ||
| 33530 - LEVER ASSY, SHIFT (FOR COLUMN SHIFT) | ||||
| 33501-30460 |
MS12#..4HC |
1 | ||
| 33571 - BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT) | ||||
| 33571-30310 |
MS12#..4HC |
1 | ||
| 33572 - BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT) | ||||
| 33572-30020 |
MS12#..4HC |
1 | ||
| 33572-30030 |
LS120,MS122,YS120..4H |
1 | ||
| 33575D - RETAINER, CONTROL SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 33575-30280 |
MS12#..4HC |
1 | ||
| 33577 - COVER, CONTROL SHAFT HOLE | ||||
| 33577-30070 |
MS12#..4HC |
1 | ||
| 33711 - LEVER, CONTROL SHAFT (FOR COLUMN SHIFT) | ||||
| 33711-30240 |
MS12#..4HC |
1 | ||
| 33711C - WASHER, PLATE (FOR CONTROL SHAFT LEVER) | ||||
| 90201-17044 |
MS12#..4HC T=1.2,T=1.2 |
2 | ||
| 90201-17048 |
MS12#..4HC T=1.0,T=1.0 |
1 | ||
| 33711C - WASHER, PLATE (FOR CONTROL SHAFT LEVER) | ||||
| 90201-17044 |
MS12#..4HC T=1.2,T=1.2 |
2 | ||
| 90201-17048 |
MS12#..4HC T=1.0,T=1.0 |
1 | ||
| 33711C - WASHER, PLATE (FOR CONTROL SHAFT LEVER) | ||||
| 90201-17044 |
MS12#..4HC T=1.2,T=1.2 |
2 | ||
| 90201-17048 |
MS12#..4HC T=1.0,T=1.0 |
1 | ||
| 33711D - SPRING, COMPRESSION (FOR CONTROL SHAFT LEVER) | ||||
| 90501-10311 |
MS12#..4HC |
1 | ||
| 33719 - PLATE, SHIFT CONTROL ROD | ||||
| 33719-30010 |
LS120,MS12#,YS120..4H,4HC |
2 | ||
| 33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT) | ||||
| 33723-30050 |
LS120,MS12#,YS120..4H,4HC |
2 | ||
| 33723A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90999-99064 |
LS120,MS12#,YS120..4H,4HC |
2 | ||
| 33723E - WASHER, WAVE (FOR COLUMN SHIFT CONTROL ROD SETTING) | ||||
| 90206-08016 |
LS120,MS12#,YS120..4H,4HC |
2 | ||
| 35951 - INDICATOR, CONTROL POSITION | ||||
| 35951-30130 |
MS12#..4HC |
1 | ||
| Common parts | ||||
| 90179-10041 | ||||
| 90256-08002 | ||||
| 91611-40825 | ||||
| 91651-40616 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||
| 95381-02020 | ||||
(8308- )4HC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33705 - SUPPORT SUB-ASSY, CROSS SHAFT (FOR BODY SIDE) | ||||
| 33705-30120 |
MS12#..4HC |
1 | ||
| 33709 - SHAFT SUB-ASSY, CROSS, NO.1 (FOR COLUMN SHIFT) | ||||
| 33709-30300 |
MS12#..4HC |
1 | ||
| 33741 - ROD, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT) | ||||
| 33702-30110 |
MS12#..4HC |
1 | ||
| 33742 - ROD, GEAR SHIFTING, NO.2(FOR COLUMN SHIFT) | ||||
| 33742-30240 |
MS122,123..4HC |
1 | ||
| 33770A - BUSH (FOR CROSS SHAFT) | ||||
| 90389-08008 |
LS120,MS12#..RHD..(4H,4HC) |
3 | ||
| 33770A - BUSH (FOR CROSS SHAFT) | ||||
| 90389-08008 |
LS120,MS12#..RHD..(4H,4HC) |
3 | ||
| 33770C - WASHER, WAVE (FOR CROSS SHAFT) | ||||
| 90206-08016 |
LS120,MS12#,YS120..4H,4HC |
4 | ||
| 33770C - WASHER, WAVE (FOR CROSS SHAFT) | ||||
| 90206-08016 |
LS120,MS12#,YS120..4H,4HC |
4 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
LS120,MS12#,YS120..4H,4HC |
8 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
LS120,MS12#,YS120..4H,4HC |
8 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
LS120,MS12#,YS120..4H,4HC |
8 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
LS120,MS12#,YS120..4H,4HC |
8 | ||
| 33773 - SUPPORT, CROSS SHAFT, NO.1 (FOR COLUM SHIFT) | ||||
| 33773-20020 |
LS120,MS12#..RHD..(4H,4HC) CROSSSHAFT NO.1 |
1 | ||
| 33773A - RING, HOLE SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 96151-01600 |
LS120,MS12#,YS120..4H,4HC |
2 | ||
| 33775 - COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 33775-30020 |
LS120,MS12#..RHD..(4H,4HC) MISSION SIDE |
2 | ||
| 33775-20040 |
LS120,MS12#,YS120..4H,4HC FRAME SIDE |
2 | ||
| 33775 - COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 33775-30020 |
LS120,MS12#..RHD..(4H,4HC) MISSION SIDE |
2 | ||
| 33775-20040 |
LS120,MS12#,YS120..4H,4HC FRAME SIDE |
2 | ||
| 33785A - INSULATOR, CROSS SHAFT LEVER HEAT, NO.1(FOR COLUMN SHIF | ||||
| 33785-30050 |
MS12#..4HC |
1 | ||
| 35568A - BUSH (FOR SHIFTING ROD, 2ND) | ||||
| 90999-99017 |
MS12#..4HC |
1 | ||
| 35568B - GROMMET (FOR SHIFTING ROD, 2ND) | ||||
| 90480-17177 |
MS12#..4HC |
1 | ||
| Common parts | ||||
| 90179-10063 | ||||
| 91611-40614 | ||||
| 91611-40818 | ||||
| 94542-01000 | ||||
| 94613-10800 | ||||
| 95381-02020 | ||||
| 95381-02520 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
