MS122R-SESGS (1983)
Toyota Crown
(8308- )5M,5ME..MS122..SAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15310 - REGULATOR ASSY, OIL PRESSURE | ||||
| 15310-45012 |
5M#,6MGE..MS12#..EUG,GEN,SAA,SWZ |
1 | ||
| 15310C - SPRING, OIL PRESSURE REGULATOR | ||||
| 15132-21010 |
5M#,6MGE..MS12#..EUG,GEN,SAA,SWZ |
1 | ||
| 15318 - GASKET, OIL PRESSURE REGULATOR BODY | ||||
| 15318-45011 |
5M#,6MGE..MS12#..EUG,GEN,SAA,SWZ |
1 | ||
| 15321 - VALVE, OIL ADJUSTING | ||||
| 15131-22010 |
5M#,6MGE..MS12#..EUG,GEN,SAA,SWZ |
1 | ||
| 15323 - BOLT, OIL PRESSURE ADJUSTING | ||||
| 15133-20010 |
5M#,6MGE..MS12#..EUG,GEN,SAA,SWZ |
1 | ||
| 15323A - GASKET, OIL PRESSURE REGULATOR ADJUSTING BOLT | ||||
| 15134-20010 |
5M#,6MGE..MS12#..EUG,GEN,SAA,SWZ |
1 | ||
| 15710 - COOLER ASSY, OIL | ||||
| 15710-41060 |
5M#,6MGE..MS12#..EUG,GEN,SAA,SWZ |
1 | ||
| 15771B - HOSE, OIL, NO.1(FOR OIL PIPE) | ||||
| 15777-41050 |
5M#,6MGE..MS12#..EUG,GEN,SAA,SWZ |
1 | ||
| 15771D - CLAMP, OIL COOLER HOSE | ||||
| 90467-16004 |
5M#,6MGE..MS12#..EUG,GEN,SAA,SWZ |
4 | ||
| 15771D - CLAMP, OIL COOLER HOSE | ||||
| 90467-16004 |
5M#,6MGE..MS12#..EUG,GEN,SAA,SWZ |
4 | ||
| 15771D - CLAMP, OIL COOLER HOSE | ||||
| 90467-16004 |
5M#,6MGE..MS12#..EUG,GEN,SAA,SWZ |
4 | ||
| 15771D - CLAMP, OIL COOLER HOSE | ||||
| 90467-16004 |
5M#,6MGE..MS12#..EUG,GEN,SAA,SWZ |
4 | ||
| 15771M - PIPE, OIL | ||||
| 15707-41090 |
5M#,6MGE..MS12#..EUG,GEN,SAA,SWZ |
1 | ||
| 15771N - HOSE, OIL, NO.2(FOR OIL PIPE) | ||||
| 15778-41060 |
5M#,6MGE..MS12#..EUG,GEN,SAA,SWZ |
1 | ||
| 15772A - UNION(FOR OIL PIPE) | ||||
| 90405-10153 |
5M#..MS12#..EUG,GEN,SAA,SWZ |
1 | ||
| 90405-10019 |
5M#,6MGE..MS12#..EUG,GEN,SAA,SWZ |
1 | ||
| 15772A - UNION(FOR OIL PIPE) | ||||
| 90405-10153 |
5M#..MS12#..EUG,GEN,SAA,SWZ |
1 | ||
| 90405-10019 |
5M#,6MGE..MS12#..EUG,GEN,SAA,SWZ |
1 | ||
| 15772B - HOSE, OIL, NO.1(FOR OIL PIPE) | ||||
| 15779-41070 |
5M#,6MGE..MS12#..EUG,GEN,SAA,SWZ |
1 | ||
| 15772D - CLAMP OR CLIP, OIL COOLER HOSE | ||||
| 90467-16004 |
5M#,6MGE..MS12#..EUG,GEN,SAA,SWZ |
4 | ||
| 15772D - CLAMP OR CLIP, OIL COOLER HOSE | ||||
| 90467-16004 |
5M#,6MGE..MS12#..EUG,GEN,SAA,SWZ |
4 | ||
| 15772D - CLAMP OR CLIP, OIL COOLER HOSE | ||||
| 90467-16004 |
5M#,6MGE..MS12#..EUG,GEN,SAA,SWZ |
4 | ||
| 15772D - CLAMP OR CLIP, OIL COOLER HOSE | ||||
| 90467-16004 |
5M#,6MGE..MS12#..EUG,GEN,SAA,SWZ |
4 | ||
| 15772E - GASKET(FOR OIL PIPE) | ||||
| 90430-14235 |
5M#..MS12#..EUG,GEN,SAA,SWZ |
2 | ||
| 90430-12009 |
5M#,6MGE..MS12#..EUG,GEN,SAA,SWZ |
2 | ||
| 90430-12018 |
5M,5ME,6MGE..MS122,125 |
2 | ||
| 15772E - GASKET(FOR OIL PIPE) | ||||
| 90430-14235 |
5M#..MS12#..EUG,GEN,SAA,SWZ |
2 | ||
| 90430-12009 |
5M#,6MGE..MS12#..EUG,GEN,SAA,SWZ |
2 | ||
| 90430-12018 |
5M,5ME,6MGE..MS122,125 |
2 | ||
| 15772F - BOLT, UNION(FOR OIL PIPE) | ||||
| 90401-12009 |
5M#,6MGE..MS12#..EUG,GEN,SAA,SWZ |
1 | ||
| 90401-14091 |
5M#..MS12#..EUG,GEN,SAA,SWZ |
1 | ||
| 15772G - HOSE, OIL, NO.2 (FOR OIL PIPE) | ||||
| 15776-41050 |
5M#,6MGE..MS12#..EUG,GEN,SAA,SWZ |
1 | ||
| Common parts | ||||
| 90119-06246 | ||||
| 91611-60822 | ||||
| 91615-60816 | ||||

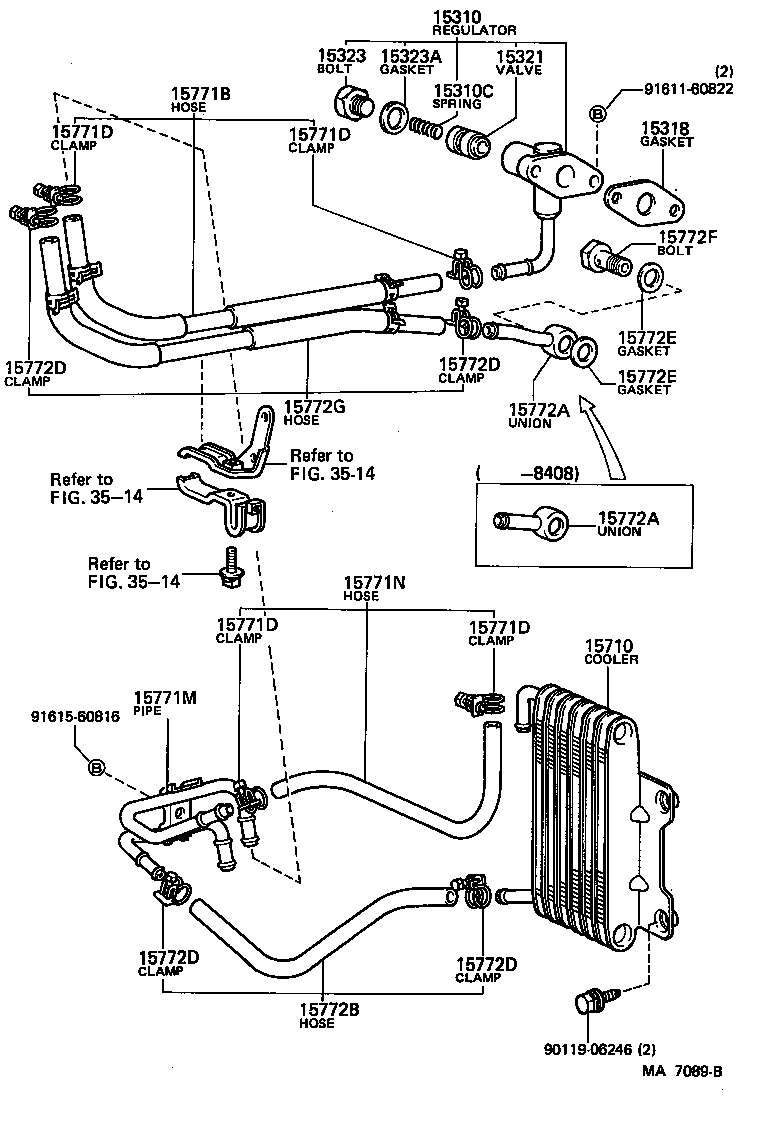

| Linked diagrams | ||||
| 3514 | ||||
