MS122R-SEPGS (1983)
Toyota Crown
(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81850 - LAMP ASSY, INDICATOR | ||||
| 81850-30250 |
MS122,123..RHD..ATM ATM SHIFT |
1 | ||
| 81850-30310 |
LS120,MS122,123,YS120..(4F,4FC,5F)..(DLX,SAL,STD) CONSOL |
1 | ||
| 81850-30180 |
MS122,123,YS120..GEN,SWZ WARNING |
1 | ||
| 81850-30250 |
MS122..RHD..ATM ATM SHIFT |
1 | ||
| 81850 - LAMP ASSY, INDICATOR | ||||
| 81850-30250 |
MS122,123..RHD..ATM ATM SHIFT |
1 | ||
| 81850-30310 |
LS120,MS122,123,YS120..(4F,4FC,5F)..(DLX,SAL,STD) CONSOL |
1 | ||
| 81850-30180 |
MS122,123,YS120..GEN,SWZ WARNING |
1 | ||
| 81850-30250 |
MS122..RHD..ATM ATM SHIFT |
1 | ||
| 81850 - LAMP ASSY, INDICATOR | ||||
| 81850-30250 |
MS122,123..RHD..ATM ATM SHIFT |
1 | ||
| 81850-30310 |
LS120,MS122,123,YS120..(4F,4FC,5F)..(DLX,SAL,STD) CONSOL |
1 | ||
| 81850-30180 |
MS122,123,YS120..GEN,SWZ WARNING |
1 | ||
| 81850-30250 |
MS122..RHD..ATM ATM SHIFT |
1 | ||
| 81850B - BULB, INDICATOR LAMP | ||||
| 90981-11018 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD 12V 1.2W W/O SOCKET,WARNING & CONSOLE,12V 1.4W |
8 | ||
| 84999-40010 |
MS12#..ATM ATM SHIFT,1.4W BASE OD=10 |
5 | ||
| 90981-11024 |
MS12#..ATM 12V 1.4W,ATM SHIFT,1.4W BASE OD=11.9 |
6 | ||
| 81850B - BULB, INDICATOR LAMP | ||||
| 90981-11018 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD 12V 1.2W W/O SOCKET,WARNING & CONSOLE,12V 1.4W |
8 | ||
| 84999-40010 |
MS12#..ATM ATM SHIFT,1.4W BASE OD=10 |
5 | ||
| 90981-11024 |
MS12#..ATM 12V 1.4W,ATM SHIFT,1.4W BASE OD=11.9 |
6 | ||
| 81850B - BULB, INDICATOR LAMP | ||||
| 90981-11018 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD 12V 1.2W W/O SOCKET,WARNING & CONSOLE,12V 1.4W |
8 | ||
| 84999-40010 |
MS12#..ATM ATM SHIFT,1.4W BASE OD=10 |
5 | ||
| 90981-11024 |
MS12#..ATM 12V 1.4W,ATM SHIFT,1.4W BASE OD=11.9 |
6 | ||
| 81850B - BULB, INDICATOR LAMP | ||||
| 90981-11018 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD 12V 1.2W W/O SOCKET,WARNING & CONSOLE,12V 1.4W |
8 | ||
| 84999-40010 |
MS12#..ATM ATM SHIFT,1.4W BASE OD=10 |
5 | ||
| 90981-11024 |
MS12#..ATM 12V 1.4W,ATM SHIFT,1.4W BASE OD=11.9 |
6 | ||
| 81850C - PLATE, INDICATOR LAMP | ||||
| 83247-3A270 |
MS122,123,YS120..GEN,SWZ |
1 | ||
| 81851 - LENS, INDICATOR LAMP | ||||
| 83145-30110 |
MS122,123,YS120..GEN,SWZ |
1 | ||
| 81856A - SOCKET, INDICATOR LAMP | ||||
| 83101-14040 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD |
8 | ||
| 81881A - COVER, INDICATOR LAMP | ||||
| 83132-30550 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD |
1 | ||
| 81930 - LAMP ASSY, HEATER CONTROL INDICATOR, NO.1 | ||||
| 81930-30190 |
LS120..4F,5F;LS120..LHD..STD;MS122,123,YS120..SAL,STD W/HEATER & COOLER |
1 | ||
| 81930-30181 |
LS120..4F,5F;LS120..LHD..STD;MS122,123,YS120..SAL,STD W/HEATER |
1 | ||
| 81930-30231 |
LS120..4F,5F;LS120..LHD..STD;MS122,123,YS120..SAL,STD W/HEATER & COOLER |
1 | ||
| 81930-30201 |
LS120..4F,5F;LS120..LHD..STD;MS122,YS120..SAL,STD |
1 | ||
| 81930-30250 |
LS120..4F;LS120..LHD;MS122,YS120..(DLX,SAL,STD)..GEN |
1 | ||
| 81930-30210 |
LS120..4F;LS120..LHD;MS122,YS120..DLX,SAL,STD W/HEATER |
1 | ||
| 81930-30180 |
LS120..4F,5F;LS120..LHD..STD;MS122,123,YS120..SAL,STD W/HEATER |
1 | ||
| 81930-30230 |
LS120..4F,5F;LS120..LHD..STD;MS122,YS120..SAL,STD W/*BV,W/*BV & COOLER |
1 | ||
| 81930-30220 |
LS120..4F;LS120..LHD;MS122,YS120..DLX,SAL,STD W/HEATER & COOLER |
1 | ||
| 81930 - LAMP ASSY, HEATER CONTROL INDICATOR, NO.1 | ||||
| 81930-30190 |
LS120..4F,5F;LS120..LHD..STD;MS122,123,YS120..SAL,STD W/HEATER & COOLER |
1 | ||
| 81930-30181 |
LS120..4F,5F;LS120..LHD..STD;MS122,123,YS120..SAL,STD W/HEATER |
1 | ||
| 81930-30231 |
LS120..4F,5F;LS120..LHD..STD;MS122,123,YS120..SAL,STD W/HEATER & COOLER |
1 | ||
| 81930-30201 |
LS120..4F,5F;LS120..LHD..STD;MS122,YS120..SAL,STD |
1 | ||
| 81930-30250 |
LS120..4F;LS120..LHD;MS122,YS120..(DLX,SAL,STD)..GEN |
1 | ||
| 81930-30210 |
LS120..4F;LS120..LHD;MS122,YS120..DLX,SAL,STD W/HEATER |
1 | ||
| 81930-30180 |
LS120..4F,5F;LS120..LHD..STD;MS122,123,YS120..SAL,STD W/HEATER |
1 | ||
| 81930-30230 |
LS120..4F,5F;LS120..LHD..STD;MS122,YS120..SAL,STD W/*BV,W/*BV & COOLER |
1 | ||
| 81930-30220 |
LS120..4F;LS120..LHD;MS122,YS120..DLX,SAL,STD W/HEATER & COOLER |
1 | ||
| 81931A - COVER, COOLER SWITCH HOLE | ||||
| 55538-30071 |
LS120..4F;LS120..LHD;MS122,YS120..DLX,SAL,STD |
1 | ||
| 55538-30070 |
LS120..4F,5F;LS120..LHD..STD;MS122,123,YS120..SAL,STD |
1 | ||
| Common parts | ||||
| 88569-30870 | ||||
| 90167-45002 | ||||
| 93510-13008 | ||||

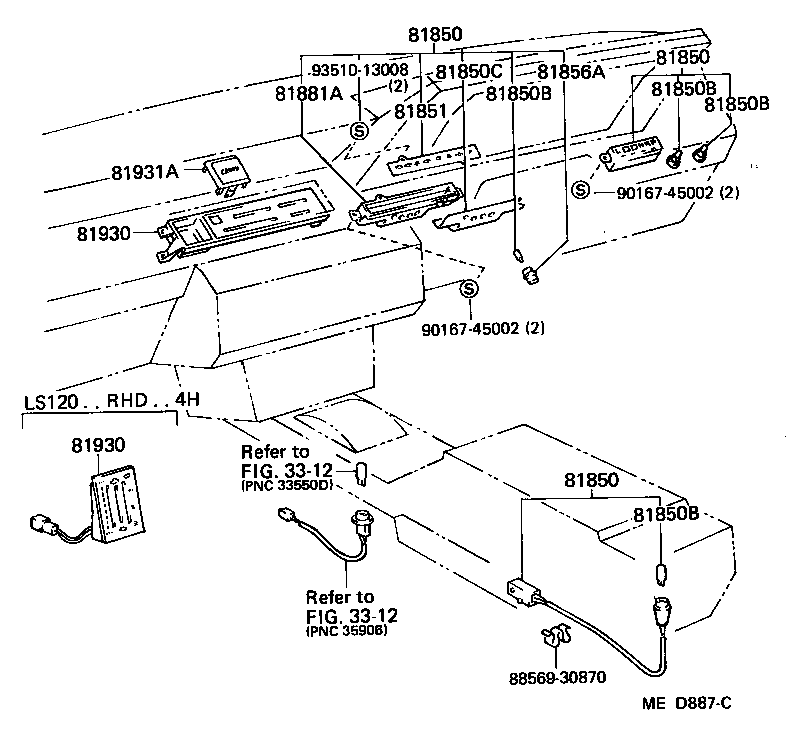

| Linked diagrams | ||||
| 3312 | ||||
