MS122LG-SWMGS (1983)
Toyota Crown
Production
Aug 1983
-
Aug 1987
Engine
5M
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )

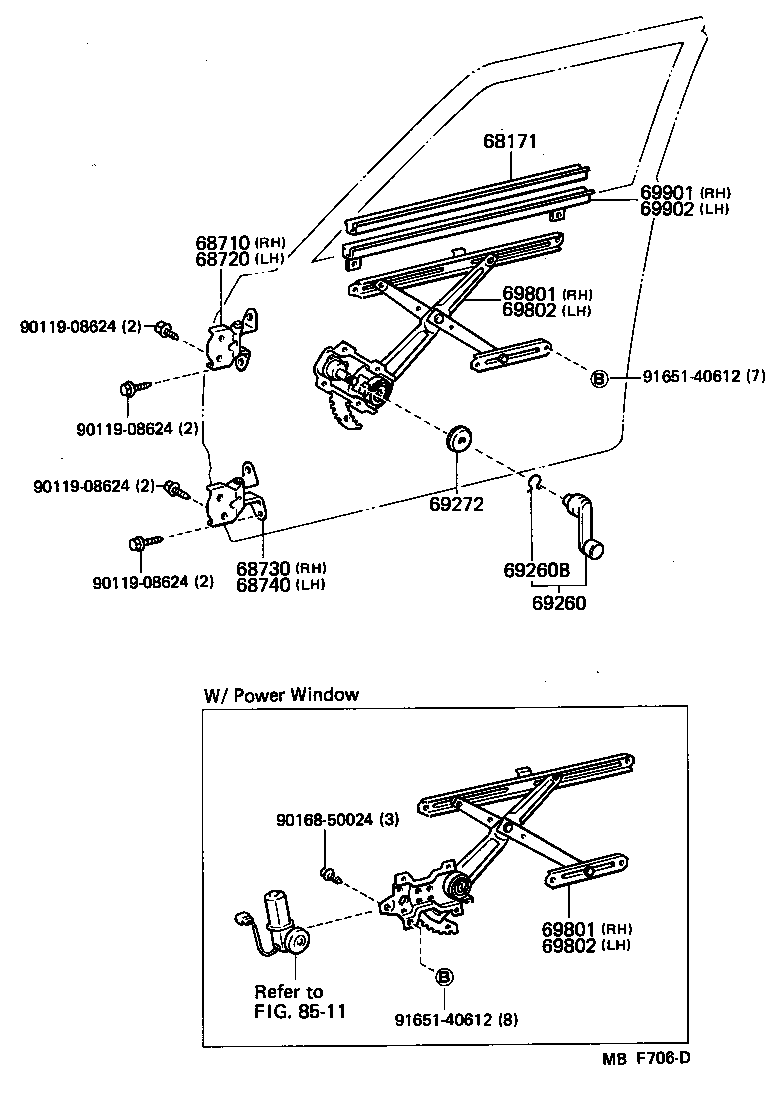

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL | ||||
| 68171-20030 |
LS120,MS12#,YS120..SED,WG |
2 | ||
| 68710 - HINGE ASSY, FRONT DOOR, UPPER RH | ||||
| 68710-32010 |
LS120,MS12#,YS120 |
1 | ||
| 68720 - HINGE ASSY, FRONT DOOR, UPPER LH | ||||
| 68720-32010 |
LS120,MS12#,YS120 |
1 | ||
| 68730 - HINGE ASSY, FRONT DOOR, LOWER RH | ||||
| 68730-32010 |
LS120,MS12#,YS120 |
1 | ||
| 68740 - HINGE ASSY, FRONT DOOR, LOWER LH | ||||
| 68740-32010 |
LS120,MS12#,YS120 |
1 | ||
| 69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 69801-30150 |
LS120,MS12#,YS120..ROY,SAL |
1 | ||
| 69801-30150 |
MS12#..SED,WG W/*PW |
1 | ||
| 69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 69801-30150 |
LS120,MS12#,YS120..ROY,SAL |
1 | ||
| 69801-30150 |
MS12#..SED,WG W/*PW |
1 | ||
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69802-30150 |
MS12#..SED,WG W/*PW |
1 | ||
| 69802-30150 |
LS120,MS12#,YS120..ROY,SAL |
1 | ||
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69802-30150 |
MS12#..SED,WG W/*PW |
1 | ||
| 69802-30150 |
LS120,MS12#,YS120..ROY,SAL |
1 | ||
| 69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH | ||||
| 69901-30100 |
LS120,MS12#,YS120..SED,WG |
1 | ||
| 69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH | ||||
| 69902-30070 |
LS120,MS12#,YS120..SED,WG |
1 | ||
| Common parts | ||||
| 90119-08624 | ||||
| 90168-50024 | ||||
| 91651-40612 | ||||
| Linked diagrams | ||||
| 8511 | ||||
