MS122LG-SWMGS (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 5M
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8509)5M#,6MGE ; (8509- )5M,5ME,6MGE

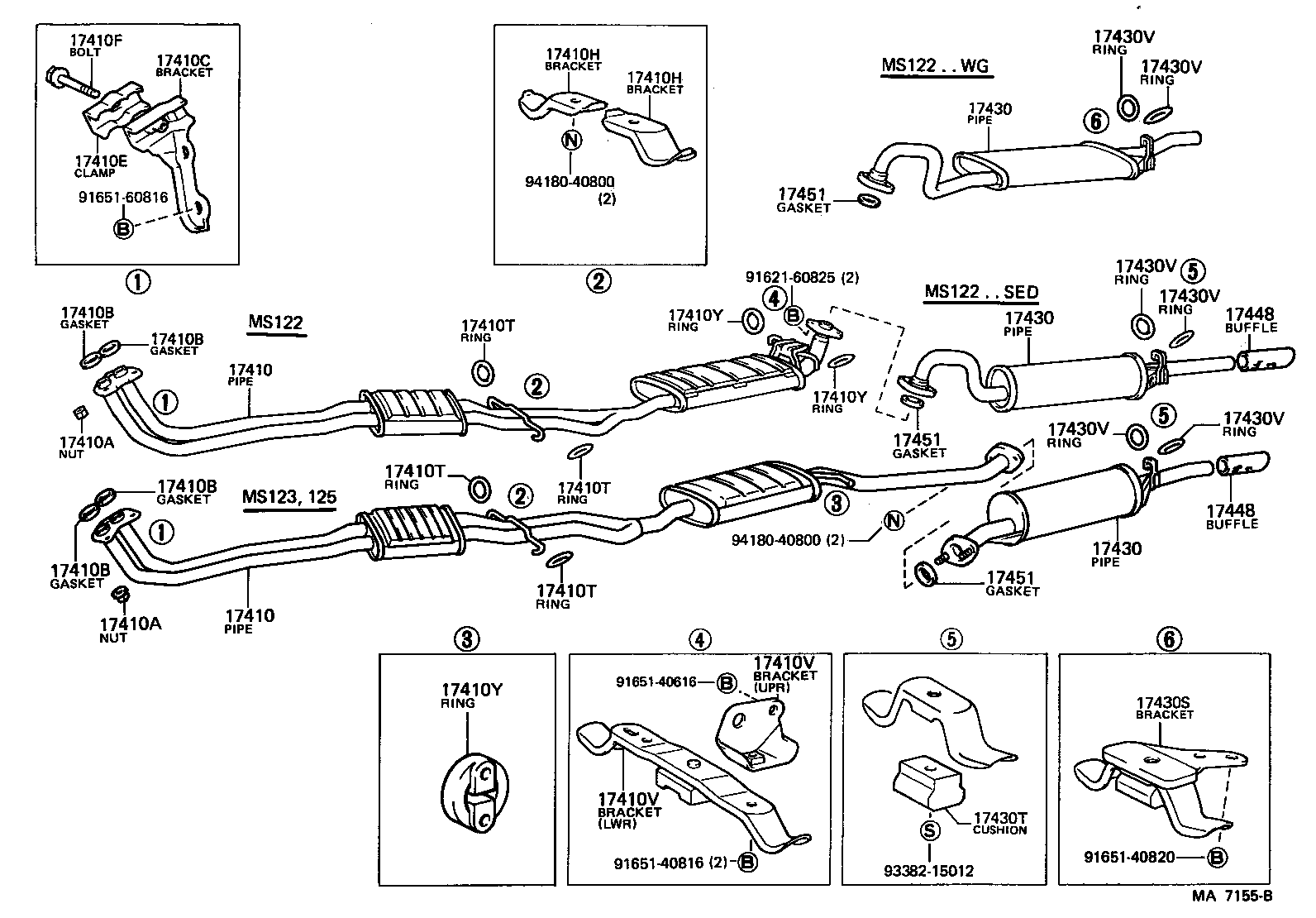

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17410B 17410B 17410C 17410E 17410F 17410H 17410H 17410T 17410T 17410T 17410T 17410V 17410V 17410Y 17410Y 17410Y 17430 17430 17430 17430S 17430T 17430V 17430V 17430V 17430V 17430V 17430V 17448 17448 17451 17451 17451 9162160825 9165140616 9165140816 9165140820 9165160816 9338215012 9418040800 9418040800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-43110

5M,5ME..MS122

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-43110

5M,5ME..MS122

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10028

2L,5M#,3Y..LS120,MS12#,YS120

 3
90179-10070

2L,5M#,6MGE,3Y..LS120,MS12#,YS120

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10028

2L,5M#,3Y..LS120,MS12#,YS120

 3
90179-10070

2L,5M#,6MGE,3Y..LS120,MS12#,YS120

 3
17410B - GASKET, EXHAUST PIPE
90917-06004

2L,5M#,6MGE,3Y..LS120,MS12#,YS120

 2
17410B - GASKET, EXHAUST PIPE
90917-06004

2L,5M#,6MGE,3Y..LS120,MS12#,YS120

 2
17410B - GASKET, EXHAUST PIPE
90917-06004

2L,5M#,6MGE,3Y..LS120,MS12#,YS120

 2
17410B - GASKET, EXHAUST PIPE
90917-06004

2L,5M#,6MGE,3Y..LS120,MS12#,YS120

 2
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-41080

5M#,6MGE..MS12#

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04041

5M#,6MGE..MS12#

 1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
90105-10019

5M#,6MGE..MS12#

 1
17410H - BRACKET, EXHAUST PIPE FRONT (FOR CENTER)
17572-54100

5M,5ME,6MGE..MS122,125

 2
17572-54100

5M#,6MGE..MS12#

 2
17410H - BRACKET, EXHAUST PIPE FRONT (FOR CENTER)
17572-54100

5M,5ME,6MGE..MS122,125

 2
17572-54100

5M#,6MGE..MS12#

 2
17410T - BOLT OR RING, EXHAUST PIPE FRONT (FOR CENTER)
90301-34207

5M#,6MGE..MS12#

 2
90301-34207

5M,5ME,6MGE..MS122,125

 2
17410T - BOLT OR RING, EXHAUST PIPE FRONT (FOR CENTER)
90301-34207

5M#,6MGE..MS12#

 2
90301-34207

5M,5ME,6MGE..MS122,125

 2
17410T - BOLT OR RING, EXHAUST PIPE FRONT (FOR CENTER)
90301-34207

5M#,6MGE..MS12#

 2
90301-34207

5M,5ME,6MGE..MS122,125

 2
17410T - BOLT OR RING, EXHAUST PIPE FRONT (FOR CENTER)
90301-34207

5M#,6MGE..MS12#

 2
90301-34207

5M,5ME,6MGE..MS122,125

 2
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17575-41020

5M,5ME,3Y..MS122,YS120

UPR

 1
17505-45040

5M,5ME,3Y..MS122,YS120

LWR

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17575-41020

5M,5ME,3Y..MS122,YS120

UPR

 1
17505-45040

5M,5ME,3Y..MS122,YS120

LWR

 1
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17565-45010

2L,5M,5ME,3Y..LS120,MS122,YS120

 2
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17565-45010

2L,5M,5ME,3Y..LS120,MS122,YS120

 2
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17565-45010

2L,5M,5ME,3Y..LS120,MS122,YS120

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-54430

5M..MS122..WG

 1
17430-54431

5M..MS122..WG

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-54430

5M..MS122..WG

 1
17430-54431

5M..MS122..WG

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-54430

5M..MS122..WG

 1
17430-54431

5M..MS122..WG

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17508-54020

5M..MS122..WG

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

2L,5M#,6MGE,3Y..LS120,MS12#,YS120

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

2L,5M#,6MGE,3Y..LS120,MS12#,YS120

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

2L,5M#,6MGE,3Y..LS120,MS12#,YS120

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

2L,5M#,6MGE,3Y..LS120,MS12#,YS120

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

2L,5M#,6MGE,3Y..LS120,MS12#,YS120

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

2L,5M#,6MGE,3Y..LS120,MS12#,YS120

 2
17451 - GASKET, EXHAUST PIPE
90917-06012

5M#,3Y..MS12#,YS120

 1
90917-06012

5M#,6MGE..MS12#

 1
90917-06012

5M,5ME,6MGE..MS122,125

 1
17451 - GASKET, EXHAUST PIPE
90917-06012

5M#,3Y..MS12#,YS120

 1
90917-06012

5M#,6MGE..MS12#

 1
90917-06012

5M,5ME,6MGE..MS122,125

 1
17451 - GASKET, EXHAUST PIPE
90917-06012

5M#,3Y..MS12#,YS120

 1
90917-06012

5M#,6MGE..MS12#

 1
90917-06012

5M,5ME,6MGE..MS122,125

 1
Common parts
91621-60825
91651-40616
91651-40816
91651-40820
91651-60816
93382-15012
94180-40800

(8308- )2L ; (8509- )5MGE

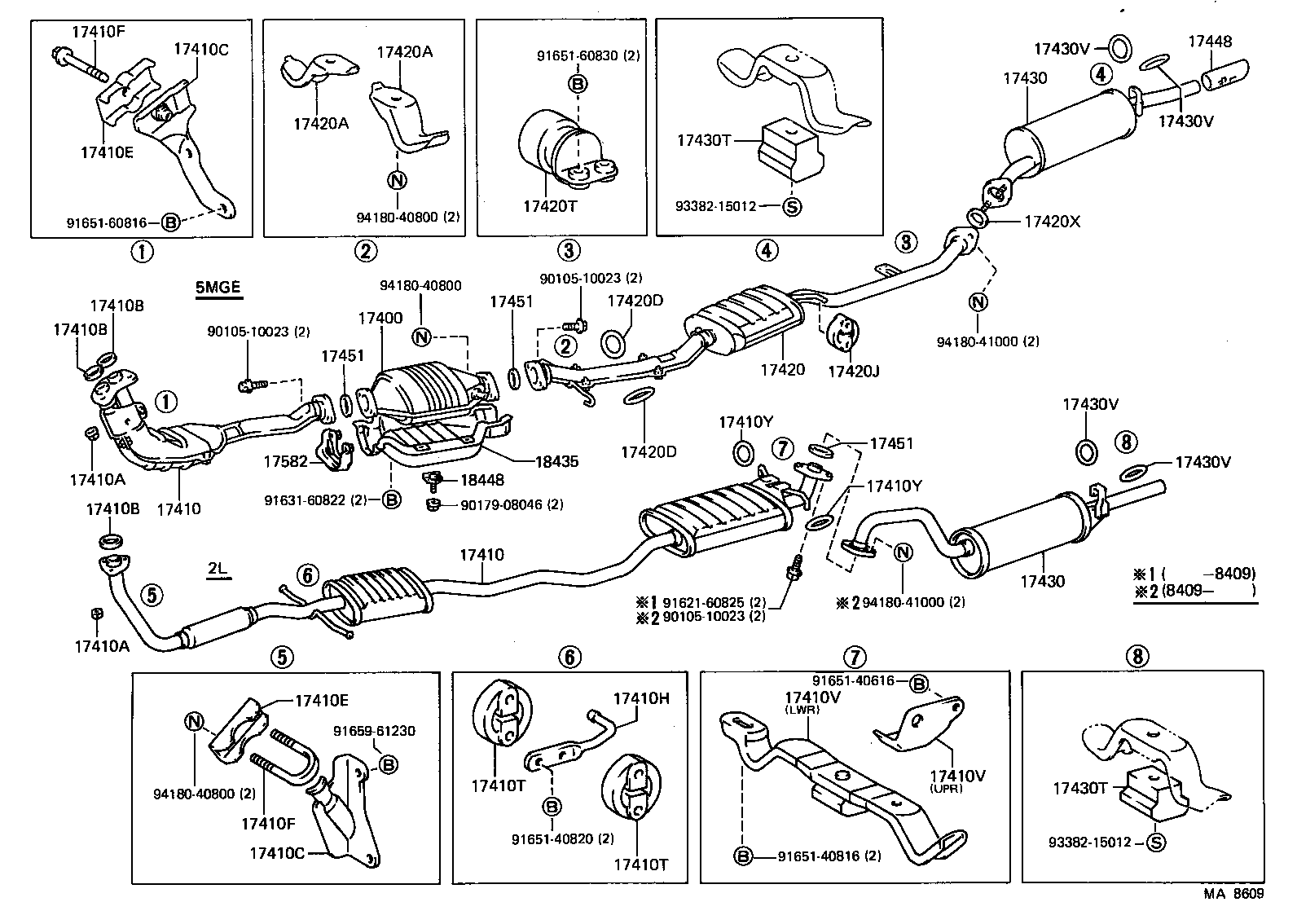

Click highlighted areas on diagram

diagram 17400 17410 17410 17410A 17410A 17410B 17410B 17410B 17410C 17410C 17410E 17410E 17410F 17410F 17410H 17410T 17410T 17410V 17410V 17410Y 17410Y 17420 17420A 17420A 17420D 17420D 17420J 17420T 17420X 17430 17430 17430T 17430T 17430V 17430V 17430V 17430V 17448 17451 17451 17451 17582 18435 18448 9010510023 9010510023 9010510023 9017908046 9162160825 9163160822 9165140616 9165140816 9165140820 9165160816 9165160830 9165961230 9338215012 9338215012 9418040800 9418040800 9418040800 9418041000 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-43110

5M,5ME..MS122

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-43110

5M,5ME..MS122

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10028

2L,5M#,3Y..LS120,MS12#,YS120

 3
90179-10070

2L,5M#,6MGE,3Y..LS120,MS12#,YS120

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10028

2L,5M#,3Y..LS120,MS12#,YS120

 3
90179-10070

2L,5M#,6MGE,3Y..LS120,MS12#,YS120

 3
17410B - GASKET, EXHAUST PIPE
90917-06004

2L,5M#,6MGE,3Y..LS120,MS12#,YS120

 2
17410B - GASKET, EXHAUST PIPE
90917-06004

2L,5M#,6MGE,3Y..LS120,MS12#,YS120

 2
17410B - GASKET, EXHAUST PIPE
90917-06004

2L,5M#,6MGE,3Y..LS120,MS12#,YS120

 2
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-41080

5M#,6MGE..MS12#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-41080

5M#,6MGE..MS12#

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04041

5M#,6MGE..MS12#

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04041

5M#,6MGE..MS12#

 1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
90105-10019

5M#,6MGE..MS12#

 1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
90105-10019

5M#,6MGE..MS12#

 1
17410H - BRACKET, EXHAUST PIPE FRONT (FOR CENTER)
17572-54100

5M,5ME,6MGE..MS122,125

 2
17572-54100

5M#,6MGE..MS12#

 2
17410T - BOLT OR RING, EXHAUST PIPE FRONT (FOR CENTER)
90301-34207

5M#,6MGE..MS12#

 2
90301-34207

5M,5ME,6MGE..MS122,125

 2
17410T - BOLT OR RING, EXHAUST PIPE FRONT (FOR CENTER)
90301-34207

5M#,6MGE..MS12#

 2
90301-34207

5M,5ME,6MGE..MS122,125

 2
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17575-41020

5M,5ME,3Y..MS122,YS120

UPR

 1
17505-45040

5M,5ME,3Y..MS122,YS120

LWR

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17575-41020

5M,5ME,3Y..MS122,YS120

UPR

 1
17505-45040

5M,5ME,3Y..MS122,YS120

LWR

 1
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17565-45010

2L,5M,5ME,3Y..LS120,MS122,YS120

 2
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17565-45010

2L,5M,5ME,3Y..LS120,MS122,YS120

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-54430

5M..MS122..WG

 1
17430-54431

5M..MS122..WG

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-54430

5M..MS122..WG

 1
17430-54431

5M..MS122..WG

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

2L,5M#,6MGE,3Y..LS120,MS12#,YS120

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

2L,5M#,6MGE,3Y..LS120,MS12#,YS120

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

2L,5M#,6MGE,3Y..LS120,MS12#,YS120

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

2L,5M#,6MGE,3Y..LS120,MS12#,YS120

 2
17451 - GASKET, EXHAUST PIPE
90917-06012

5M#,3Y..MS12#,YS120

 1
90917-06012

5M#,6MGE..MS12#

 1
90917-06012

5M,5ME,6MGE..MS122,125

 1
17451 - GASKET, EXHAUST PIPE
90917-06012

5M#,3Y..MS12#,YS120

 1
90917-06012

5M#,6MGE..MS12#

 1
90917-06012

5M,5ME,6MGE..MS122,125

 1
17451 - GASKET, EXHAUST PIPE
90917-06012

5M#,3Y..MS12#,YS120

 1
90917-06012

5M#,6MGE..MS12#

 1
90917-06012

5M,5ME,6MGE..MS122,125

 1
Common parts
90105-10023
90179-08046
91621-60825
91631-60822
91651-40616
91651-40816
91651-40820
91651-60816
91651-60830
91659-61230
93382-15012
94180-40800
94180-41000
