MS122LG-SWJGS (1983)
Toyota Crown
Production
Aug 1983
-
Sep 1985
Engine
5M
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)

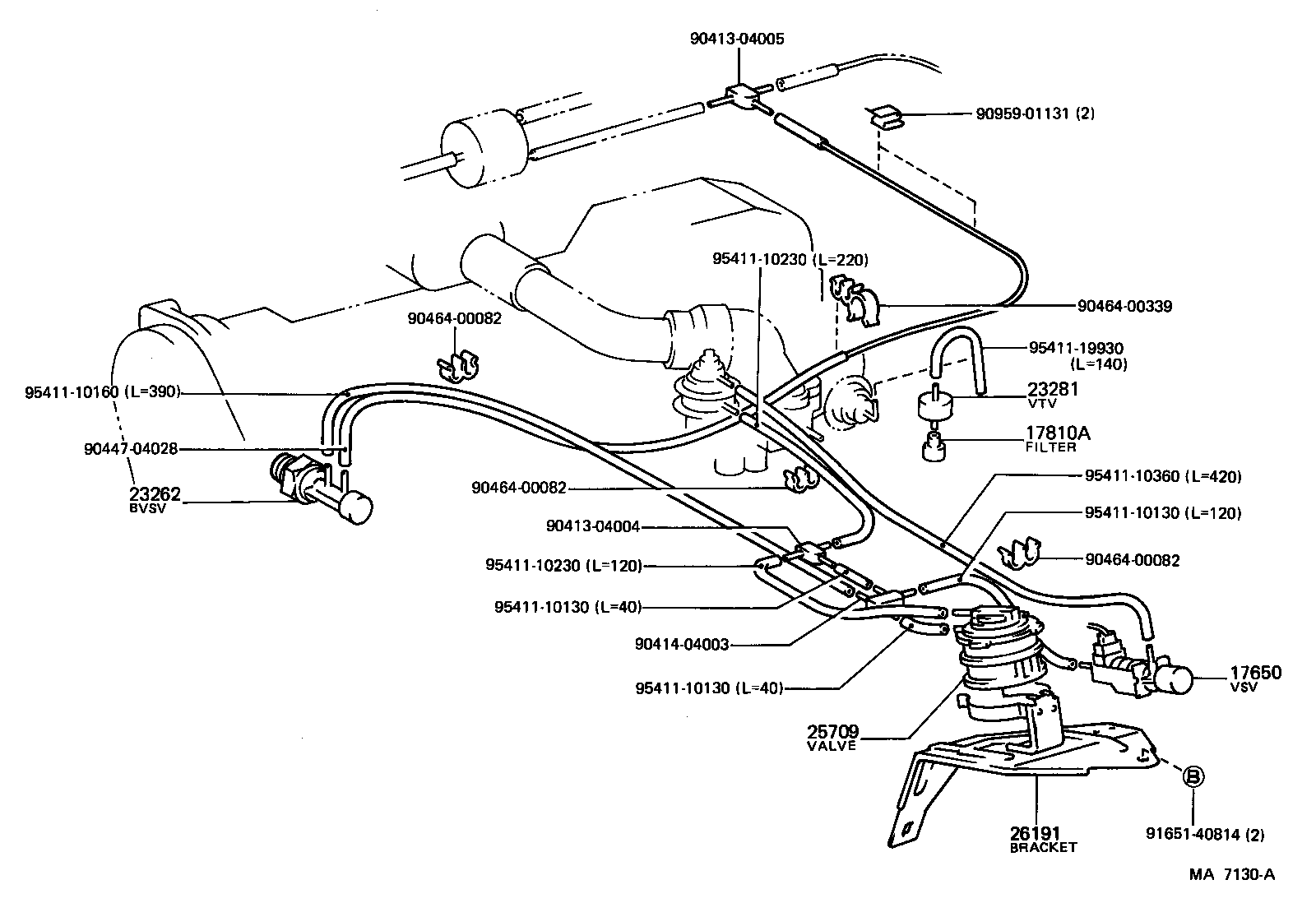

(8308- )2L..LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01042 |
5M..MS122 |
1 | ||
| Common parts | ||||
| 90413-04004 | ||||
| 90413-04005 | ||||
| 90414-04003 | ||||
| 90447-04028 | ||||
| 90464-00082 | ||||
| 90464-00339 | ||||
| 90959-01131 | ||||
| 91651-40814 | ||||
| 95411-10130 | ||||
| 95411-10160 | ||||
| 95411-10230 | ||||
| 95411-10360 | ||||
| 95411-19930 | ||||

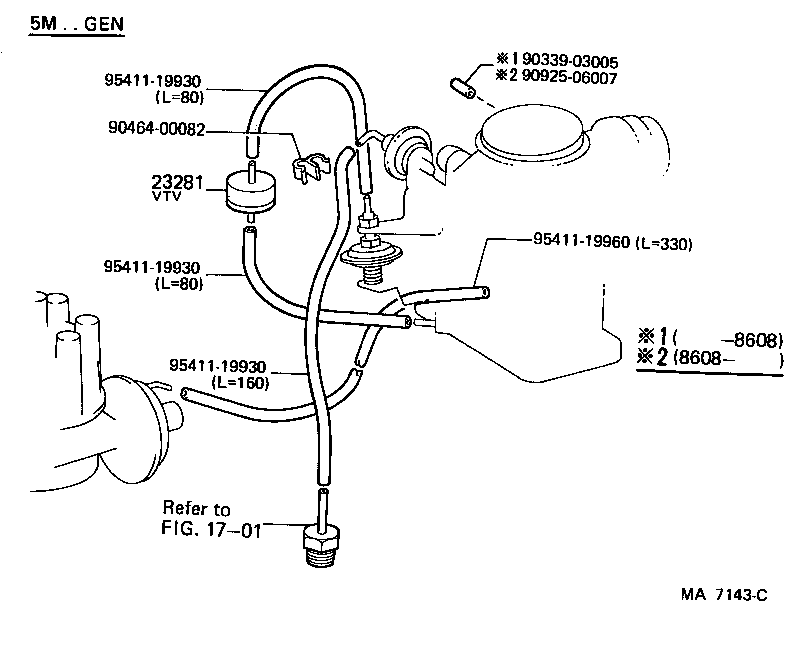

(8308- )5M..GEN
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01042 |
5M..MS122 |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 90464-00082 | ||||
| 90925-06007 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| Linked diagrams | ||||
| 1701 | ||||
(8308- )2L
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 95411-10030 | ||||
| 95411-10130 | ||||
| 95411-10160 | ||||
| 95411-19995 | ||||
(8308- )5M#,6MGE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 95411-10030 | ||||
| 95411-10130 | ||||
| 95411-10160 | ||||
| 95411-19995 | ||||
