MS122L-STMGEV (1985)
Toyota Crown
Production
Sep 1985
-
Aug 1987
Engine
5ME
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8509- )HT

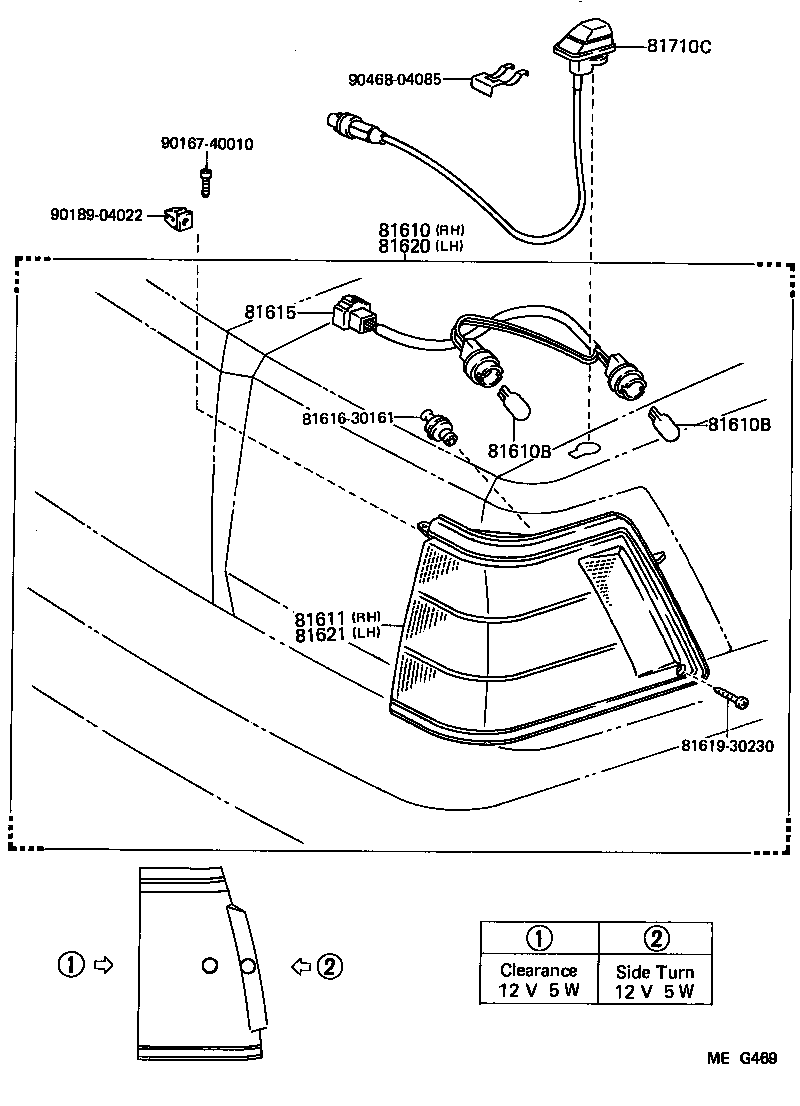

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81610 - LAMP ASSY, PARKING & CLEARANCE, RH | ||||
| 81610-39775 |
LS120,MS12#,YS120..ARL,GEN,SAA |
1 | ||
| 81610-30231 |
MS122,125..HT |
1 | ||
| 81610B - BULB(FOR PARKING & CLEARANCE LAMP) | ||||
| 99132-12050 |
LS120,MS12#,YS120 12V 5W,12V 5W |
4 | ||
| 81610B - BULB(FOR PARKING & CLEARANCE LAMP) | ||||
| 99132-12050 |
LS120,MS12#,YS120 12V 5W,12V 5W |
4 | ||
| 81611 - LENS, PARKING & CLEARANCE LAMP, RH | ||||
| 81611-30231 |
MS122,125..HT |
1 | ||
| 81611-30210 |
LS120,MS12#,YS120..ARL,GEN,SAA |
1 | ||
| 81615 - SOCKET AND WIRE, CLEARANCE LAMP | ||||
| 81615-30231 |
MS122,125..HT |
2 | ||
| 81615-30210 |
LS120,MS12#,YS120..ARL,GEN,SAA |
2 | ||
| 81620 - LAMP ASSY, PARKING & CLEARANCE, LH | ||||
| 81620-39775 |
LS120,MS12#,YS120..ARL,GEN,SAA |
1 | ||
| 81620-30231 |
MS122,125..HT |
1 | ||
| 81621 - LENS, PARKING & CLEARANCE LAMP, LH | ||||
| 81621-30210 |
LS120,MS12#,YS120..ARL,GEN,SAA |
1 | ||
| 81621-30231 |
MS122,125..HT |
1 | ||
| 81710C - MARKER ASSY, FENDER | ||||
| 81710-30020 |
MS122,125..HT RH |
1 | ||
| 81720-30010 |
MS122,125..HT LH |
1 | ||
| Common parts | ||||
| 81616-30161 | ||||
| 81619-30230 | ||||
| 90167-40010 | ||||
| 90189-04022 | ||||
| 90468-04085 | ||||
