Toyota Crown MS122 RADIO RECEIVER & AMPLIFIER & CONDENSER

Manufacturers Home
Toyota
GR
CROWN
MS122L-SEPQS (1983)
8601 - RADIO RECEIVER & AMPLIFIER & CONDENSER

MS122L-SEPQS (1983)

Toyota Crown

Production Aug 1983 - Aug 1987

Engine 5M

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(8308- )

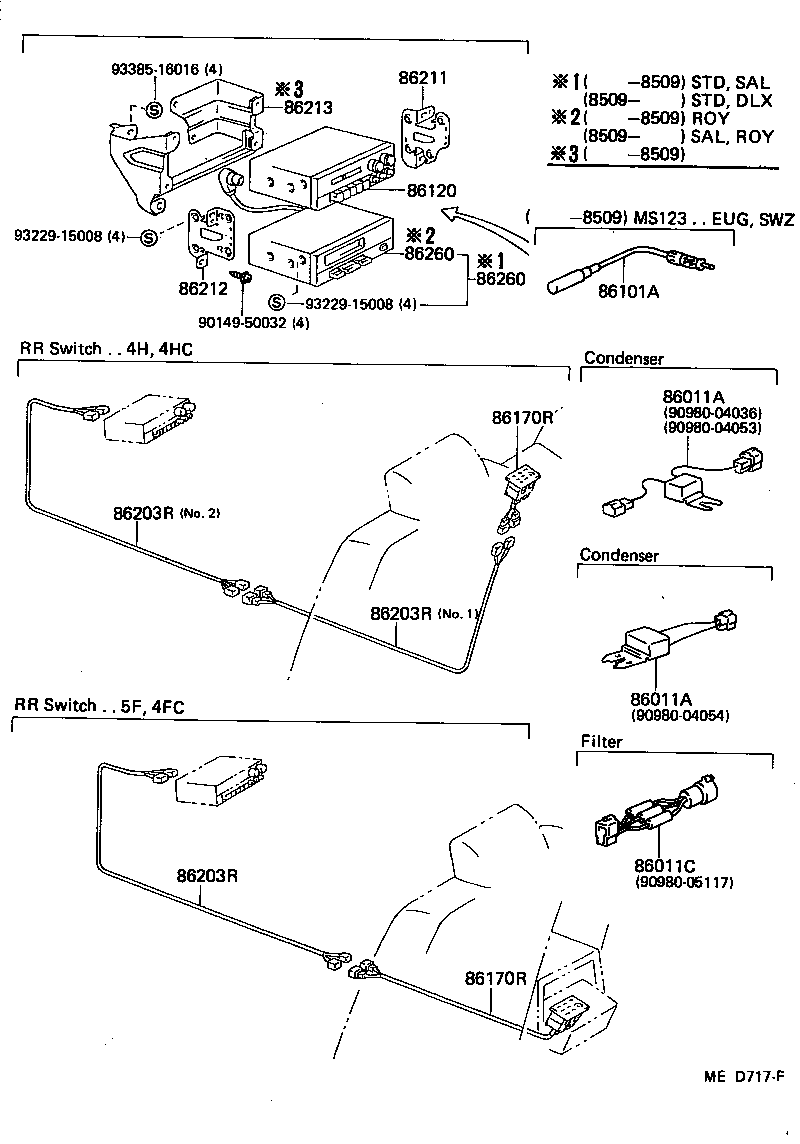

Click highlighted areas on diagram

Part #	Description	Period	Qty
86011A - CONDENSER, RADIO SETTING
90980-04054	MS12#,YS120 IGNITION	09/1985 - 08/1987	1
90980-04036	MS12#,YS120 IGNITION	08/1983 - 06/1985	1
90980-04053	MS12#,YS120 IGNITION	06/1985 - 09/1985	1
86011A - CONDENSER, RADIO SETTING
90980-04054	MS12#,YS120 IGNITION	09/1985 - 08/1987	1
90980-04036	MS12#,YS120 IGNITION	08/1983 - 06/1985	1
90980-04053	MS12#,YS120 IGNITION	06/1985 - 09/1985	1
86011C - FILTER, NOISE
90980-05117	MS125,YS120..LHD;MS122..LHD..(4FC,5F)	09/1985 - 08/1987	1
86120 - RECEIVER ASSY, RADIO
86120-30630	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN) AM/FM MULTIPLEX,*ELT	08/1983 - 01/1984	1
86120-30680	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA) AM/FM MULTIPLEX,*ELT	01/1984 - 08/1984	1
86120-30640	LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA) MW/SW,5-PB	08/1983 - 09/1985	1
86120-30680	LS120,MS122,125,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,*ELT	08/1984 - 09/1985	1
86120-30660	LS120,MS122,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	08/1983 - 09/1985	1
86120-30641	MS122,125..ROY,SAL MW/SW,5-PB	09/1985 - 08/1987	1
86120-30710	MS122,125..LHD AM/FM/SW MULTIPLEX,*ELT	08/1984 - 09/1985	1
86120-30681	MS12#..ROY,SAL AM/FM MULTIPLEX,*ELT	09/1985 - 08/1987	1
86120-30661	MS122,125..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	09/1985 - 08/1987	1
86170R - SWITCH & VOLUME ASSY, RR
86170-30141	MS12#..(4FC,5F)..(ROY,SAL)	09/1985 - 08/1987	1
86170-30140	LS120,MS12#,YS120..(4FC,5F)..(ARL,GEN,SAA)	08/1983 - 09/1985	1
86170R - SWITCH & VOLUME ASSY, RR
86170-30141	MS12#..(4FC,5F)..(ROY,SAL)	09/1985 - 08/1987	1
86170-30140	LS120,MS12#,YS120..(4FC,5F)..(ARL,GEN,SAA)	08/1983 - 09/1985	1
86203R - WIRE SUB-ASSY, RR
86203-30330	LS120,MS12#,YS120..(4FC,5F)..(ROY,SAL)..(ARL,GEN,SAA)	08/1983 - 08/1987	1
86203R - WIRE SUB-ASSY, RR
86203-30330	LS120,MS12#,YS120..(4FC,5F)..(ROY,SAL)..(ARL,GEN,SAA)	08/1983 - 08/1987	1
86203R - WIRE SUB-ASSY, RR
86203-30330	LS120,MS12#,YS120..(4FC,5F)..(ROY,SAL)..(ARL,GEN,SAA)	08/1983 - 08/1987	1
86211 - BRACKET, RADIO, NO.1
86211-30050	LS120,MS12#,YS120..LHD	08/1983 - 08/1987	1
86212 - BRACKET, RADIO, NO.2
86212-30050	LS120,MS12#,YS120..LHD	08/1983 - 08/1987	1
86260 - TAPE PLAYER ASSY
86260-30180	MS12#..ROY	08/1983 - 09/1985	1
86260-30181	MS12#..ROY	09/1985 - 08/1987	1
86260 - TAPE PLAYER ASSY
86260-30180	MS12#..ROY	08/1983 - 09/1985	1
86260-30181	MS12#..ROY	09/1985 - 08/1987	1
Common parts
90149-50032
90980-04036
90980-04053
90980-04054
90980-05117
93229-15008
93385-16016

(8308- )

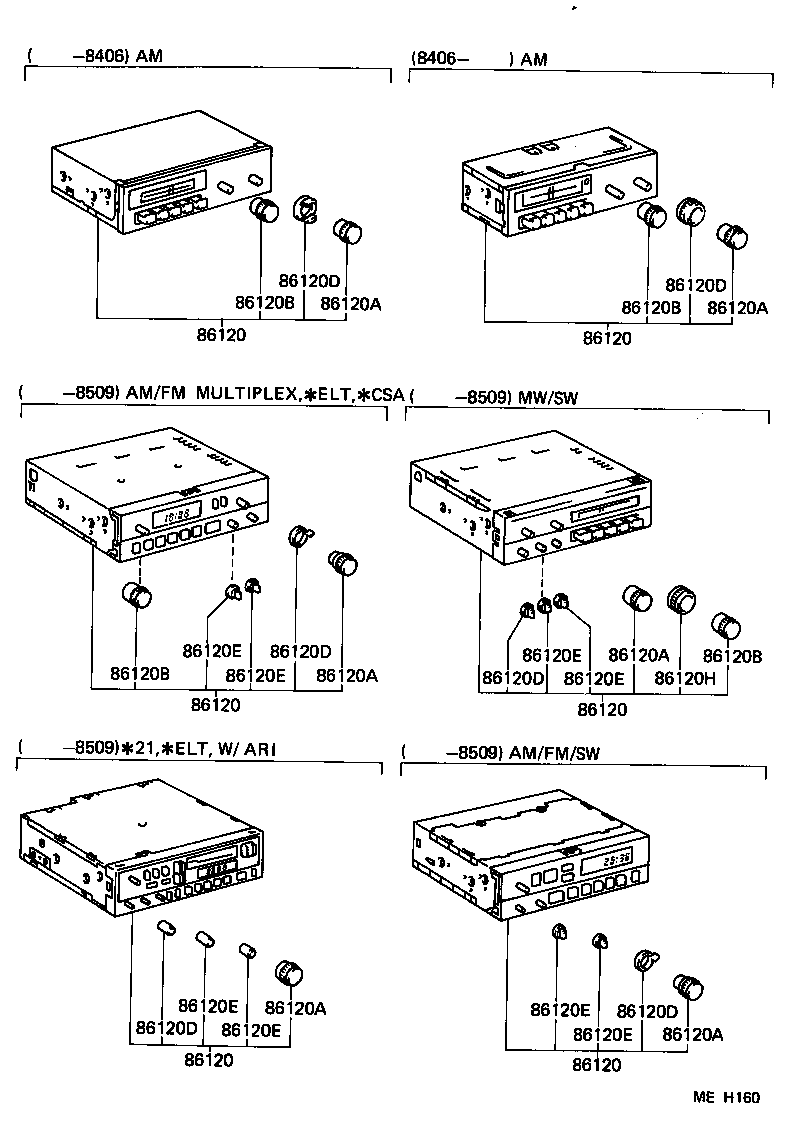

Click highlighted areas on diagram

Part #	Description	Period	Qty
86120 - RECEIVER ASSY, RADIO
86120-30630	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN) AM/FM MULTIPLEX,*ELT	08/1983 - 01/1984	1
86120-30680	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA) AM/FM MULTIPLEX,*ELT	01/1984 - 08/1984	1
86120-30640	LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA) MW/SW,5-PB	08/1983 - 09/1985	1
86120-30680	LS120,MS122,125,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,*ELT	08/1984 - 09/1985	1
86120-30660	LS120,MS122,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	08/1983 - 09/1985	1
86120-30641	MS122,125..ROY,SAL MW/SW,5-PB	09/1985 - 08/1987	1
86120-30710	MS122,125..LHD AM/FM/SW MULTIPLEX,*ELT	08/1984 - 09/1985	1
86120-30681	MS12#..ROY,SAL AM/FM MULTIPLEX,*ELT	09/1985 - 08/1987	1
86120-30661	MS122,125..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	09/1985 - 08/1987	1
86120 - RECEIVER ASSY, RADIO
86120-30630	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN) AM/FM MULTIPLEX,*ELT	08/1983 - 01/1984	1
86120-30680	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA) AM/FM MULTIPLEX,*ELT	01/1984 - 08/1984	1
86120-30640	LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA) MW/SW,5-PB	08/1983 - 09/1985	1
86120-30680	LS120,MS122,125,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,*ELT	08/1984 - 09/1985	1
86120-30660	LS120,MS122,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	08/1983 - 09/1985	1
86120-30641	MS122,125..ROY,SAL MW/SW,5-PB	09/1985 - 08/1987	1
86120-30710	MS122,125..LHD AM/FM/SW MULTIPLEX,*ELT	08/1984 - 09/1985	1
86120-30681	MS12#..ROY,SAL AM/FM MULTIPLEX,*ELT	09/1985 - 08/1987	1
86120-30661	MS122,125..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	09/1985 - 08/1987	1
86120 - RECEIVER ASSY, RADIO
86120-30630	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN) AM/FM MULTIPLEX,*ELT	08/1983 - 01/1984	1
86120-30680	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA) AM/FM MULTIPLEX,*ELT	01/1984 - 08/1984	1
86120-30640	LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA) MW/SW,5-PB	08/1983 - 09/1985	1
86120-30680	LS120,MS122,125,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,*ELT	08/1984 - 09/1985	1
86120-30660	LS120,MS122,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	08/1983 - 09/1985	1
86120-30641	MS122,125..ROY,SAL MW/SW,5-PB	09/1985 - 08/1987	1
86120-30710	MS122,125..LHD AM/FM/SW MULTIPLEX,*ELT	08/1984 - 09/1985	1
86120-30681	MS12#..ROY,SAL AM/FM MULTIPLEX,*ELT	09/1985 - 08/1987	1
86120-30661	MS122,125..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	09/1985 - 08/1987	1
86120 - RECEIVER ASSY, RADIO
86120-30630	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN) AM/FM MULTIPLEX,*ELT	08/1983 - 01/1984	1
86120-30680	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA) AM/FM MULTIPLEX,*ELT	01/1984 - 08/1984	1
86120-30640	LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA) MW/SW,5-PB	08/1983 - 09/1985	1
86120-30680	LS120,MS122,125,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,*ELT	08/1984 - 09/1985	1
86120-30660	LS120,MS122,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	08/1983 - 09/1985	1
86120-30641	MS122,125..ROY,SAL MW/SW,5-PB	09/1985 - 08/1987	1
86120-30710	MS122,125..LHD AM/FM/SW MULTIPLEX,*ELT	08/1984 - 09/1985	1
86120-30681	MS12#..ROY,SAL AM/FM MULTIPLEX,*ELT	09/1985 - 08/1987	1
86120-30661	MS122,125..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	09/1985 - 08/1987	1
86120 - RECEIVER ASSY, RADIO
86120-30630	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN) AM/FM MULTIPLEX,*ELT	08/1983 - 01/1984	1
86120-30680	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA) AM/FM MULTIPLEX,*ELT	01/1984 - 08/1984	1
86120-30640	LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA) MW/SW,5-PB	08/1983 - 09/1985	1
86120-30680	LS120,MS122,125,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,*ELT	08/1984 - 09/1985	1
86120-30660	LS120,MS122,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	08/1983 - 09/1985	1
86120-30641	MS122,125..ROY,SAL MW/SW,5-PB	09/1985 - 08/1987	1
86120-30710	MS122,125..LHD AM/FM/SW MULTIPLEX,*ELT	08/1984 - 09/1985	1
86120-30681	MS12#..ROY,SAL AM/FM MULTIPLEX,*ELT	09/1985 - 08/1987	1
86120-30661	MS122,125..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	09/1985 - 08/1987	1
86120 - RECEIVER ASSY, RADIO
86120-30630	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN) AM/FM MULTIPLEX,*ELT	08/1983 - 01/1984	1
86120-30680	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA) AM/FM MULTIPLEX,*ELT	01/1984 - 08/1984	1
86120-30640	LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA) MW/SW,5-PB	08/1983 - 09/1985	1
86120-30680	LS120,MS122,125,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,*ELT	08/1984 - 09/1985	1
86120-30660	LS120,MS122,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	08/1983 - 09/1985	1
86120-30641	MS122,125..ROY,SAL MW/SW,5-PB	09/1985 - 08/1987	1
86120-30710	MS122,125..LHD AM/FM/SW MULTIPLEX,*ELT	08/1984 - 09/1985	1
86120-30681	MS12#..ROY,SAL AM/FM MULTIPLEX,*ELT	09/1985 - 08/1987	1
86120-30661	MS122,125..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	09/1985 - 08/1987	1
86120A - KNOB, RADIO RECEIVER SWITCH
86128-30540	LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA) MW/SW,5-PB	08/1983 - 09/1985	1
86128-30600	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA) AM/FM MULTIPLEX,*ELT	08/1983 - 08/1984	1
86128-30620	MS12#..ROY,SAL AM/FM MULTIPLEX,*ELT	09/1985 - 08/1987	1
86128-30600	MS122,125..LHD AM/FM/SW MULTIPLEX,*ELT	08/1984 - 09/1985	1
86128-30600	LS120,MS122,125,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,*ELT	08/1984 - 09/1985	1
86128-30620	MS122,125..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	09/1985 - 08/1987	1
86128-30600	LS120,MS122,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	08/1983 - 09/1985	1
86120A - KNOB, RADIO RECEIVER SWITCH
86128-30540	LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA) MW/SW,5-PB	08/1983 - 09/1985	1
86128-30600	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA) AM/FM MULTIPLEX,*ELT	08/1983 - 08/1984	1
86128-30620	MS12#..ROY,SAL AM/FM MULTIPLEX,*ELT	09/1985 - 08/1987	1
86128-30600	MS122,125..LHD AM/FM/SW MULTIPLEX,*ELT	08/1984 - 09/1985	1
86128-30600	LS120,MS122,125,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,*ELT	08/1984 - 09/1985	1
86128-30620	MS122,125..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	09/1985 - 08/1987	1
86128-30600	LS120,MS122,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	08/1983 - 09/1985	1
86120A - KNOB, RADIO RECEIVER SWITCH
86128-30540	LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA) MW/SW,5-PB	08/1983 - 09/1985	1
86128-30600	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA) AM/FM MULTIPLEX,*ELT	08/1983 - 08/1984	1
86128-30620	MS12#..ROY,SAL AM/FM MULTIPLEX,*ELT	09/1985 - 08/1987	1
86128-30600	MS122,125..LHD AM/FM/SW MULTIPLEX,*ELT	08/1984 - 09/1985	1
86128-30600	LS120,MS122,125,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,*ELT	08/1984 - 09/1985	1
86128-30620	MS122,125..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	09/1985 - 08/1987	1
86128-30600	LS120,MS122,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	08/1983 - 09/1985	1
86120A - KNOB, RADIO RECEIVER SWITCH
86128-30540	LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA) MW/SW,5-PB	08/1983 - 09/1985	1
86128-30600	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA) AM/FM MULTIPLEX,*ELT	08/1983 - 08/1984	1
86128-30620	MS12#..ROY,SAL AM/FM MULTIPLEX,*ELT	09/1985 - 08/1987	1
86128-30600	MS122,125..LHD AM/FM/SW MULTIPLEX,*ELT	08/1984 - 09/1985	1
86128-30600	LS120,MS122,125,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,*ELT	08/1984 - 09/1985	1
86128-30620	MS122,125..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	09/1985 - 08/1987	1
86128-30600	LS120,MS122,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	08/1983 - 09/1985	1
86120A - KNOB, RADIO RECEIVER SWITCH
86128-30540	LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA) MW/SW,5-PB	08/1983 - 09/1985	1
86128-30600	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA) AM/FM MULTIPLEX,*ELT	08/1983 - 08/1984	1
86128-30620	MS12#..ROY,SAL AM/FM MULTIPLEX,*ELT	09/1985 - 08/1987	1
86128-30600	MS122,125..LHD AM/FM/SW MULTIPLEX,*ELT	08/1984 - 09/1985	1
86128-30600	LS120,MS122,125,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,*ELT	08/1984 - 09/1985	1
86128-30620	MS122,125..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	09/1985 - 08/1987	1
86128-30600	LS120,MS122,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	08/1983 - 09/1985	1
86120A - KNOB, RADIO RECEIVER SWITCH
86128-30540	LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA) MW/SW,5-PB	08/1983 - 09/1985	1
86128-30600	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA) AM/FM MULTIPLEX,*ELT	08/1983 - 08/1984	1
86128-30620	MS12#..ROY,SAL AM/FM MULTIPLEX,*ELT	09/1985 - 08/1987	1
86128-30600	MS122,125..LHD AM/FM/SW MULTIPLEX,*ELT	08/1984 - 09/1985	1
86128-30600	LS120,MS122,125,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,*ELT	08/1984 - 09/1985	1
86128-30620	MS122,125..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	09/1985 - 08/1987	1
86128-30600	LS120,MS122,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	08/1983 - 09/1985	1
86120B - KNOB, RADIO RECEIVER TUNING, NO.1
86128-30520	LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA) MW/SW,5-PB	08/1983 - 09/1985	1
86128-30660	MS122,125..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	09/1985 - 08/1987	1
86128-30540	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA) AM/FM MULTIPLEX,*ELT	08/1983 - 08/1984	1
86128-30660	MS12#..ROY,SAL AM/FM MULTIPLEX,*ELT	09/1985 - 08/1987	1
86128-30540	LS120,MS122,125,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,*ELT	08/1984 - 09/1985	1
86120B - KNOB, RADIO RECEIVER TUNING, NO.1
86128-30520	LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA) MW/SW,5-PB	08/1983 - 09/1985	1
86128-30660	MS122,125..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	09/1985 - 08/1987	1
86128-30540	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA) AM/FM MULTIPLEX,*ELT	08/1983 - 08/1984	1
86128-30660	MS12#..ROY,SAL AM/FM MULTIPLEX,*ELT	09/1985 - 08/1987	1
86128-30540	LS120,MS122,125,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,*ELT	08/1984 - 09/1985	1
86120B - KNOB, RADIO RECEIVER TUNING, NO.1
86128-30520	LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA) MW/SW,5-PB	08/1983 - 09/1985	1
86128-30660	MS122,125..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	09/1985 - 08/1987	1
86128-30540	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA) AM/FM MULTIPLEX,*ELT	08/1983 - 08/1984	1
86128-30660	MS12#..ROY,SAL AM/FM MULTIPLEX,*ELT	09/1985 - 08/1987	1
86128-30540	LS120,MS122,125,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,*ELT	08/1984 - 09/1985	1
86120B - KNOB, RADIO RECEIVER TUNING, NO.1
86128-30520	LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA) MW/SW,5-PB	08/1983 - 09/1985	1
86128-30660	MS122,125..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	09/1985 - 08/1987	1
86128-30540	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA) AM/FM MULTIPLEX,*ELT	08/1983 - 08/1984	1
86128-30660	MS12#..ROY,SAL AM/FM MULTIPLEX,*ELT	09/1985 - 08/1987	1
86128-30540	LS120,MS122,125,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,*ELT	08/1984 - 09/1985	1
86120D - KNOB, RADIO RECEIVER TONE
86128-30500	LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA) MW/SW,5-PB	08/1983 - 09/1985	1
86128-30580	LS120,MS122,125,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,*ELT	08/1984 - 09/1985	1
86128-30680	MS12#..ROY,SAL AM/FM MULTIPLEX,*ELT	09/1985 - 08/1987	1
86128-30580	MS122,125..LHD AM/FM/SW MULTIPLEX,*ELT	08/1984 - 09/1985	1
86128-30580	LS120,MS122,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	08/1983 - 09/1985	1
86128-30680	MS122,125..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	09/1985 - 08/1987	1
86128-30580	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA) AM/FM MULTIPLEX,*ELT	08/1983 - 08/1984	1
86120D - KNOB, RADIO RECEIVER TONE
86128-30500	LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA) MW/SW,5-PB	08/1983 - 09/1985	1
86128-30580	LS120,MS122,125,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,*ELT	08/1984 - 09/1985	1
86128-30680	MS12#..ROY,SAL AM/FM MULTIPLEX,*ELT	09/1985 - 08/1987	1
86128-30580	MS122,125..LHD AM/FM/SW MULTIPLEX,*ELT	08/1984 - 09/1985	1
86128-30580	LS120,MS122,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	08/1983 - 09/1985	1
86128-30680	MS122,125..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	09/1985 - 08/1987	1
86128-30580	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA) AM/FM MULTIPLEX,*ELT	08/1983 - 08/1984	1
86120D - KNOB, RADIO RECEIVER TONE
86128-30500	LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA) MW/SW,5-PB	08/1983 - 09/1985	1
86128-30580	LS120,MS122,125,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,*ELT	08/1984 - 09/1985	1
86128-30680	MS12#..ROY,SAL AM/FM MULTIPLEX,*ELT	09/1985 - 08/1987	1
86128-30580	MS122,125..LHD AM/FM/SW MULTIPLEX,*ELT	08/1984 - 09/1985	1
86128-30580	LS120,MS122,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	08/1983 - 09/1985	1
86128-30680	MS122,125..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	09/1985 - 08/1987	1
86128-30580	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA) AM/FM MULTIPLEX,*ELT	08/1983 - 08/1984	1
86120D - KNOB, RADIO RECEIVER TONE
86128-30500	LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA) MW/SW,5-PB	08/1983 - 09/1985	1
86128-30580	LS120,MS122,125,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,*ELT	08/1984 - 09/1985	1
86128-30680	MS12#..ROY,SAL AM/FM MULTIPLEX,*ELT	09/1985 - 08/1987	1
86128-30580	MS122,125..LHD AM/FM/SW MULTIPLEX,*ELT	08/1984 - 09/1985	1
86128-30580	LS120,MS122,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	08/1983 - 09/1985	1
86128-30680	MS122,125..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	09/1985 - 08/1987	1
86128-30580	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA) AM/FM MULTIPLEX,*ELT	08/1983 - 08/1984	1
86120D - KNOB, RADIO RECEIVER TONE
86128-30500	LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA) MW/SW,5-PB	08/1983 - 09/1985	1
86128-30580	LS120,MS122,125,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,*ELT	08/1984 - 09/1985	1
86128-30680	MS12#..ROY,SAL AM/FM MULTIPLEX,*ELT	09/1985 - 08/1987	1
86128-30580	MS122,125..LHD AM/FM/SW MULTIPLEX,*ELT	08/1984 - 09/1985	1
86128-30580	LS120,MS122,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	08/1983 - 09/1985	1
86128-30680	MS122,125..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	09/1985 - 08/1987	1
86128-30580	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA) AM/FM MULTIPLEX,*ELT	08/1983 - 08/1984	1
86120D - KNOB, RADIO RECEIVER TONE
86128-30500	LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA) MW/SW,5-PB	08/1983 - 09/1985	1
86128-30580	LS120,MS122,125,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,*ELT	08/1984 - 09/1985	1
86128-30680	MS12#..ROY,SAL AM/FM MULTIPLEX,*ELT	09/1985 - 08/1987	1
86128-30580	MS122,125..LHD AM/FM/SW MULTIPLEX,*ELT	08/1984 - 09/1985	1
86128-30580	LS120,MS122,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	08/1983 - 09/1985	1
86128-30680	MS122,125..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	09/1985 - 08/1987	1
86128-30580	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA) AM/FM MULTIPLEX,*ELT	08/1983 - 08/1984	1
86120E - KNOB, RADIO RECEIVER BALANCE
86128-30500	LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA) MW/SW,5-PB	08/1983 - 09/1985	1
86128-30500	LS120,MS122,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	08/1983 - 09/1985	1
86128-30500	MS122,125..LHD AM/FM/SW MULTIPLEX,*ELT	08/1984 - 09/1985	1
86128-30500	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA) AM/FM MULTIPLEX,*ELT	08/1983 - 08/1984	1
86128-30640	MS12#..ROY,SAL AM/FM MULTIPLEX,*ELT	09/1985 - 08/1987	1
86128-30640	MS122,125..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	09/1985 - 08/1987	1
86128-30500	LS120,MS122,125,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,*ELT	08/1984 - 09/1985	1
86120E - KNOB, RADIO RECEIVER BALANCE
86128-30500	LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA) MW/SW,5-PB	08/1983 - 09/1985	1
86128-30500	LS120,MS122,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	08/1983 - 09/1985	1
86128-30500	MS122,125..LHD AM/FM/SW MULTIPLEX,*ELT	08/1984 - 09/1985	1
86128-30500	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA) AM/FM MULTIPLEX,*ELT	08/1983 - 08/1984	1
86128-30640	MS12#..ROY,SAL AM/FM MULTIPLEX,*ELT	09/1985 - 08/1987	1
86128-30640	MS122,125..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	09/1985 - 08/1987	1
86128-30500	LS120,MS122,125,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,*ELT	08/1984 - 09/1985	1
86120E - KNOB, RADIO RECEIVER BALANCE
86128-30500	LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA) MW/SW,5-PB	08/1983 - 09/1985	1
86128-30500	LS120,MS122,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	08/1983 - 09/1985	1
86128-30500	MS122,125..LHD AM/FM/SW MULTIPLEX,*ELT	08/1984 - 09/1985	1
86128-30500	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA) AM/FM MULTIPLEX,*ELT	08/1983 - 08/1984	1
86128-30640	MS12#..ROY,SAL AM/FM MULTIPLEX,*ELT	09/1985 - 08/1987	1
86128-30640	MS122,125..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	09/1985 - 08/1987	1
86128-30500	LS120,MS122,125,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,*ELT	08/1984 - 09/1985	1
86120E - KNOB, RADIO RECEIVER BALANCE
86128-30500	LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA) MW/SW,5-PB	08/1983 - 09/1985	1
86128-30500	LS120,MS122,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	08/1983 - 09/1985	1
86128-30500	MS122,125..LHD AM/FM/SW MULTIPLEX,*ELT	08/1984 - 09/1985	1
86128-30500	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA) AM/FM MULTIPLEX,*ELT	08/1983 - 08/1984	1
86128-30640	MS12#..ROY,SAL AM/FM MULTIPLEX,*ELT	09/1985 - 08/1987	1
86128-30640	MS122,125..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	09/1985 - 08/1987	1
86128-30500	LS120,MS122,125,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,*ELT	08/1984 - 09/1985	1
86120E - KNOB, RADIO RECEIVER BALANCE
86128-30500	LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA) MW/SW,5-PB	08/1983 - 09/1985	1
86128-30500	LS120,MS122,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	08/1983 - 09/1985	1
86128-30500	MS122,125..LHD AM/FM/SW MULTIPLEX,*ELT	08/1984 - 09/1985	1
86128-30500	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA) AM/FM MULTIPLEX,*ELT	08/1983 - 08/1984	1
86128-30640	MS12#..ROY,SAL AM/FM MULTIPLEX,*ELT	09/1985 - 08/1987	1
86128-30640	MS122,125..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	09/1985 - 08/1987	1
86128-30500	LS120,MS122,125,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,*ELT	08/1984 - 09/1985	1
86120E - KNOB, RADIO RECEIVER BALANCE
86128-30500	LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA) MW/SW,5-PB	08/1983 - 09/1985	1
86128-30500	LS120,MS122,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	08/1983 - 09/1985	1
86128-30500	MS122,125..LHD AM/FM/SW MULTIPLEX,*ELT	08/1984 - 09/1985	1
86128-30500	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA) AM/FM MULTIPLEX,*ELT	08/1983 - 08/1984	1
86128-30640	MS12#..ROY,SAL AM/FM MULTIPLEX,*ELT	09/1985 - 08/1987	1
86128-30640	MS122,125..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	09/1985 - 08/1987	1
86128-30500	LS120,MS122,125,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,*ELT	08/1984 - 09/1985	1
86120E - KNOB, RADIO RECEIVER BALANCE
86128-30500	LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA) MW/SW,5-PB	08/1983 - 09/1985	1
86128-30500	LS120,MS122,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	08/1983 - 09/1985	1
86128-30500	MS122,125..LHD AM/FM/SW MULTIPLEX,*ELT	08/1984 - 09/1985	1
86128-30500	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA) AM/FM MULTIPLEX,*ELT	08/1983 - 08/1984	1
86128-30640	MS12#..ROY,SAL AM/FM MULTIPLEX,*ELT	09/1985 - 08/1987	1
86128-30640	MS122,125..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	09/1985 - 08/1987	1
86128-30500	LS120,MS122,125,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,*ELT	08/1984 - 09/1985	1
86120E - KNOB, RADIO RECEIVER BALANCE
86128-30500	LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA) MW/SW,5-PB	08/1983 - 09/1985	1
86128-30500	LS120,MS122,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	08/1983 - 09/1985	1
86128-30500	MS122,125..LHD AM/FM/SW MULTIPLEX,*ELT	08/1984 - 09/1985	1
86128-30500	LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA) AM/FM MULTIPLEX,*ELT	08/1983 - 08/1984	1
86128-30640	MS12#..ROY,SAL AM/FM MULTIPLEX,*ELT	09/1985 - 08/1987	1
86128-30640	MS122,125..(ROY,SAL)..GEN AM/FM MULTIPLEX,ELT,CSA	09/1985 - 08/1987	1
86128-30500	LS120,MS122,125,YS120..(ROY,SAL)..GEN AM/FM MULTIPLEX,*ELT	08/1984 - 09/1985	1
86120H - KNOB, RADIO RECEIVER SELECT
86128-30560	LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA) MW/SW,5-PB	08/1983 - 09/1985	1

MS122L-SEPQS (1983)

(8308- )

(8308- )

Part Price Details
