MS122L-SEPGS (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 5M
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )MS122..LHD

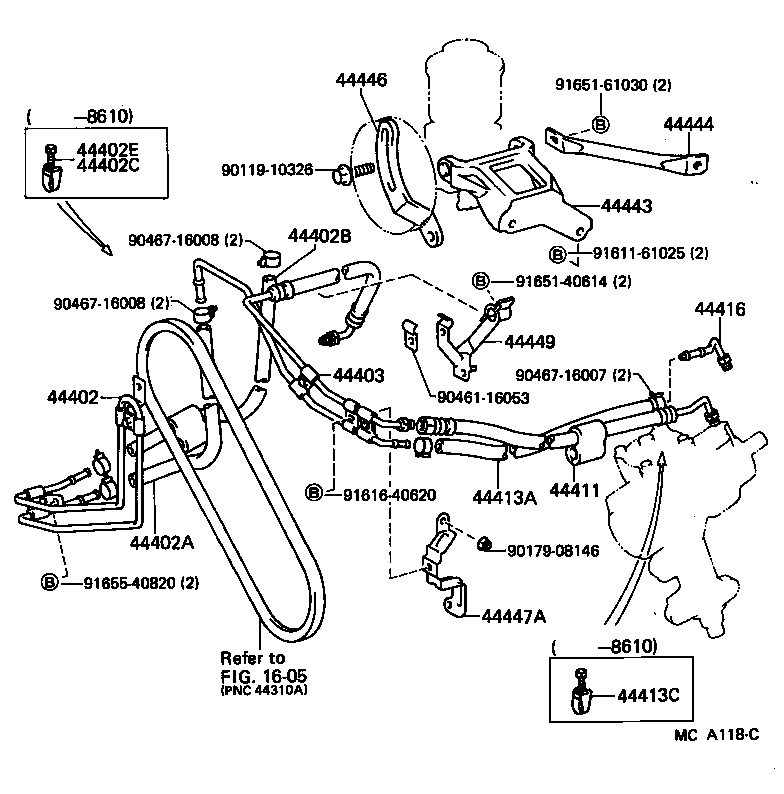

Click highlighted areas on diagram

diagram 1605 44402 44402A 44402B 44402C 44402E 44403 44411 44413A 44413C 44416 44443 44444 44446 44447A 44449 9011910326 9017908146 9046116053 9046716007 9046716008 9046716008 9161161025 9161640620 9165140614 9165161030 9165540820
Part # Description Qty Price
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-30090

MS12#..LHD..(EUG,GEN,SAA)

 1
44402A - HOSE, POWER STEERING OIL COOLER INLET
90447-18019

MS122..LHD

 1
90447-18019

MS12#..LHD..(EUG,GEN,SAA)

 1
44402B - HOSE, POWER STEERING OIL COOLER OUTLET
90447-18006

MS122..LHD

 1
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

MS12#..LHD..(EUG,GEN,SAA)

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

MS12#..LHD..(EUG,GEN,SAA)

 2
44403 - TUBE SUB-ASSY, PRESSURE FEED, NO.1
44403-30020

MS122..LHD

 1
44411 - HOSE, PRESSURE FEED
44411-30310

MS12#..LHD

 1
44413A - HOSE(FOR RETURN TUBE OUTLET)
90445-18120

MS12#..LHD

 1
44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE)
90460-01001

MS12#..LHD

 2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-30070

LS120,MS12#,YS120..LHD

 1
44443 - BRACKET, PUMP
44443-30051

MS122

 1
44444 - STAY, PUMP, REAR
44444-30061

MS122

 1
44446 - STRUT, ADJUSTING
44446-30040

MS122

 1
44447A - BRACKET, HOSE SUPPORT, NO.1
44447-30031

MS122..LHD

 1
44449 - BRACKET, PRESSURE FEED HOSE SUPPORT, NO.2
44449-30040

MS122..LHD

 1
Common parts
90119-10326
90179-08146
90461-16053
90467-16007
90467-16008
91611-61025
91616-40620
91651-40614
91651-61030
91655-40820
Linked diagrams
1605
