Toyota Crown MS122 AIR CLEANER - JDM Part Detective

MS122L-SEMGS (1983)

Toyota Crown

Production Aug 1983 - Aug 1987

Engine 5M

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-43080	5M..MS122 W/HOT AIR INTAKE	08/1983 - 09/1985	1
17700-43080	5M..MS122..GEN W/HOT AIR INTAKE	09/1985 - 08/1987	1
17700-43070	5M..MS122	08/1983 - 08/1987	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-43080	5M..MS122	08/1983 - 08/1987	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-41090	5M..MS122	08/1983 - 08/1987	1
17881 - HOSE, AIR CLEANER, NO.1
17881-26010	5M..MS122 W/HOT AIR INTAKE	08/1983 - 02/1985	1
17881-34040	5M..MS122 W/HOT AIR INTAKE	02/1985 - 08/1987	1
Common parts
90119-08171
90179-08123
90387-10040
90446-20003
90446-20004
90480-16005
90540-11003
90560-08026
91611-40812
91621-40812
91651-40818
91655-40820
91666-40825

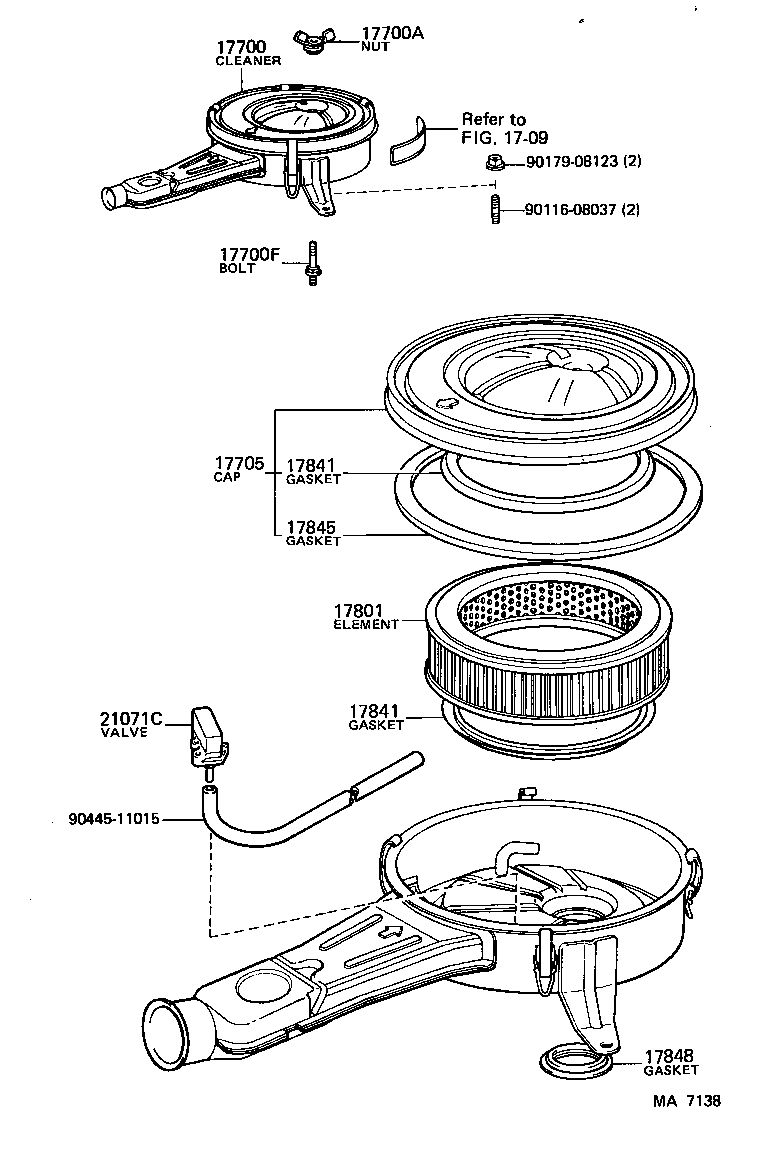

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-43080	5M..MS122 W/HOT AIR INTAKE	08/1983 - 09/1985	1
17700-43080	5M..MS122..GEN W/HOT AIR INTAKE	09/1985 - 08/1987	1
17700-43070	5M..MS122	08/1983 - 08/1987	1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06003	5M..MS122	08/1983 - 08/1987	1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06222	5M..MS122	08/1983 - 08/1987	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-43080	5M..MS122	08/1983 - 08/1987	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-41090	5M..MS122	08/1983 - 08/1987	1
17841 - GASKET, FILTER ELEMENT
17841-41050	5M..MS122	08/1983 - 08/1987	2
17841 - GASKET, FILTER ELEMENT
17841-41050	5M..MS122	08/1983 - 08/1987	2
17845 - GASKET, AIR CLEANER CAP
17845-61011	5M..MS122 *G,L=1172	08/1983 - 08/1987	1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90430-72003	5M..MS122	08/1983 - 08/1987	1
21071C - VALVE SUB-ASSY, THERMOSTATIC(FOR AIR CLEANER)
21071-45021	5M..MS122	08/1983 - 08/1987	1
17728-41030	5M..MS122..GEN W/HOT AIR INTAKE	09/1985 - 08/1987	1
17728-41030	5M..MS122 W/HOT AIR INTAKE	08/1983 - 09/1985	1
Common parts
90116-08037
90179-08123
90445-11015
Linked diagrams
1709

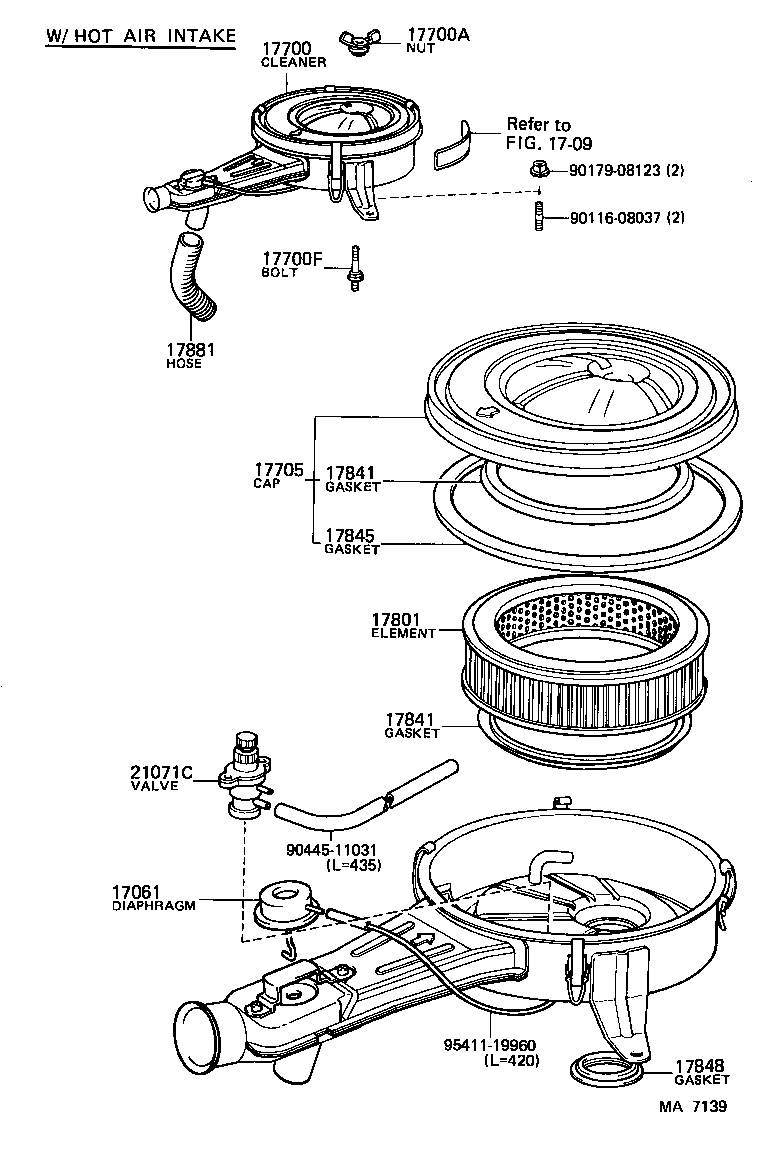

Click highlighted areas on diagram

Part #	Description	Period	Qty
17061 - DIAPHRAGM SUB-ASSY
17061-41010	5M..MS122 W/HOT AIR INTAKE	08/1983 - 08/1987	1
17700 - CLEANER ASSY, AIR
17700-43080	5M..MS122 W/HOT AIR INTAKE	08/1983 - 09/1985	1
17700-43080	5M..MS122..GEN W/HOT AIR INTAKE	09/1985 - 08/1987	1
17700-43070	5M..MS122	08/1983 - 08/1987	1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06003	5M..MS122	08/1983 - 08/1987	1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06222	5M..MS122	08/1983 - 08/1987	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-43080	5M..MS122	08/1983 - 08/1987	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-41090	5M..MS122	08/1983 - 08/1987	1
17841 - GASKET, FILTER ELEMENT
17841-41050	5M..MS122	08/1983 - 08/1987	2
17841 - GASKET, FILTER ELEMENT
17841-41050	5M..MS122	08/1983 - 08/1987	2
17845 - GASKET, AIR CLEANER CAP
17845-61011	5M..MS122 *G,L=1172	08/1983 - 08/1987	1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90430-72003	5M..MS122	08/1983 - 08/1987	1
17881 - HOSE, AIR CLEANER, NO.1
17881-26010	5M..MS122 W/HOT AIR INTAKE	08/1983 - 02/1985	1
17881-34040	5M..MS122 W/HOT AIR INTAKE	02/1985 - 08/1987	1
21071C - VALVE SUB-ASSY, THERMOSTATIC(FOR AIR CLEANER)
21071-45021	5M..MS122	08/1983 - 08/1987	1
17728-41030	5M..MS122..GEN W/HOT AIR INTAKE	09/1985 - 08/1987	1
17728-41030	5M..MS122 W/HOT AIR INTAKE	08/1983 - 09/1985	1
Common parts
90116-08037
90179-08123
90445-11031
95411-19960
Linked diagrams
1709
