MS122L-SEJGS (1983)
Toyota Crown
Production
Aug 1983
-
Sep 1985
Engine
5M
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )YS120..LHD ; (8308- )LS120,MS122,123
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-30190 |
LS120,MS122,123,YS120..LHD..MTM |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90506-12026 |
LS120,MS122,123..MTM |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06008 |
LS120,MS122,123,YS120..LHD..MTM |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13192 |
LS120,MS122,123,YS120..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13192 |
LS120,MS122,123,YS120..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
LS120,MS122,123,YS120..MTM |
1 | ||
| 31305D - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-30140 |
LS120,MS122,123,YS120..LHD..MTM |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-30040 |
LS120,MS122,123,YS120..MTM |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10039 |
LS120,MS122,123,YS120..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
LS120,MS122,123,YS120..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90249-08018 |
LS120,MS122,123,YS120..MTM L=29.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
LS120,MS122,123,YS120..MTM |
1 | ||
| Common parts | ||||
| 90468-16142 | ||||
| 91651-60816 | ||||
| 94110-51000 | ||||
| 94120-41000 | ||||
| 94512-01000 | ||||
(8308- )MTM

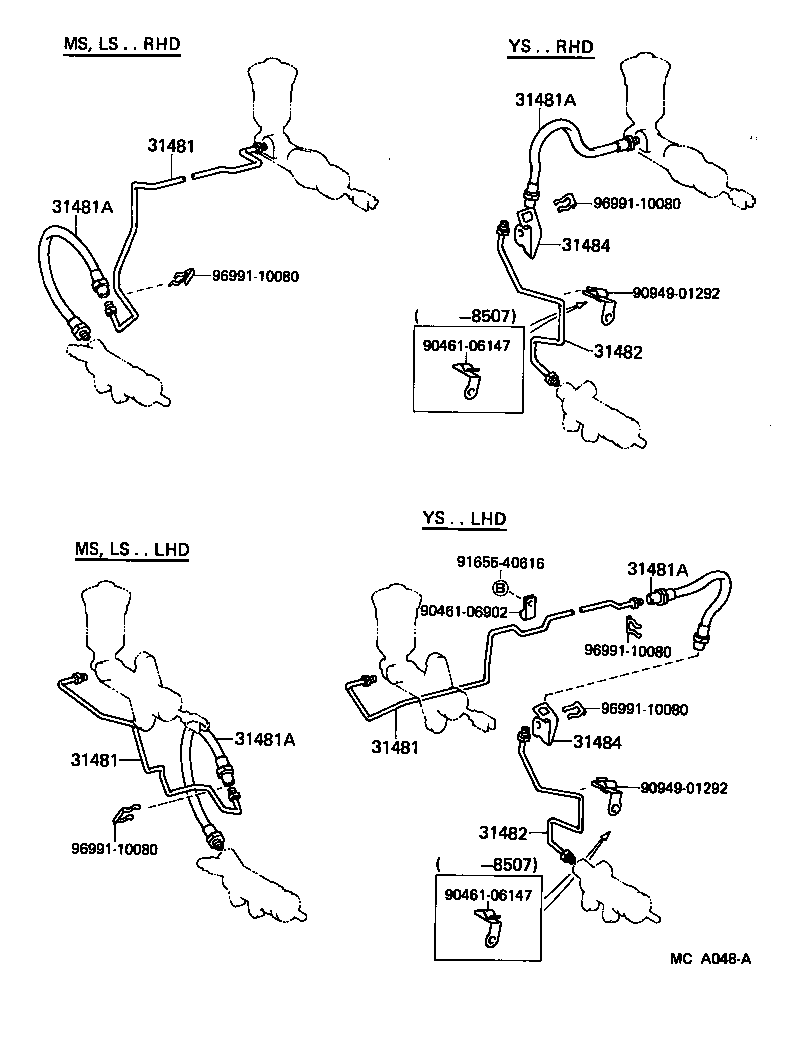

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-30140 |
LS120,MS122,123..LHD..MTM |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-30140 |
LS120,MS122,123..LHD..MTM |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-30140 |
LS120,MS122,123..LHD..MTM |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96812-50335 |
LS120,MS122,123..MTM |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96812-50335 |
LS120,MS122,123..MTM |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96812-50335 |
LS120,MS122,123..MTM |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96812-50335 |
LS120,MS122,123..MTM |
1 | ||
| Common parts | ||||
| 90461-06147 | ||||
| 90461-06902 | ||||
| 90949-01292 | ||||
| 91655-40616 | ||||
| 96991-10080 | ||||
