MS112RG-SWJDS (1980)

Toyota Crown

Production Aug 1980 - Aug 1981
Engine 5M
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )5M

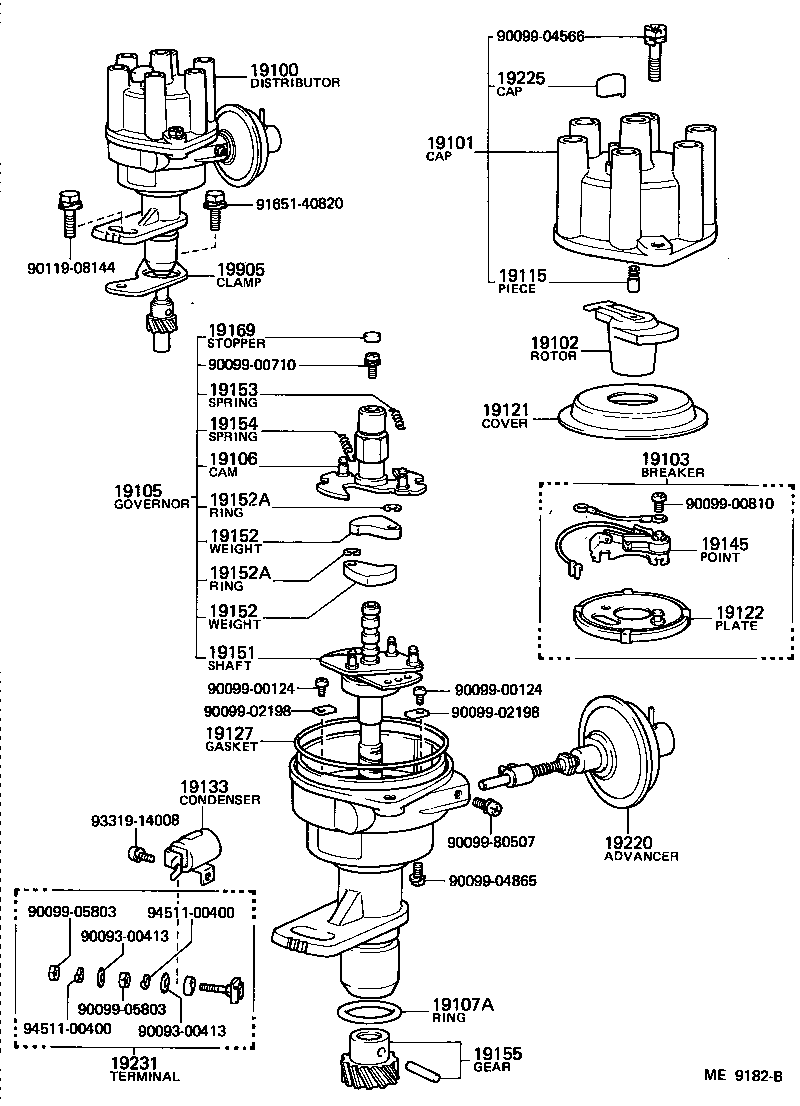

Click highlighted areas on diagram

diagram 19100 19101 19102 19103 19105 19106 19107A 19115 19121 19122 19127 19133 19145 19151 19152 19152 19152A 19152A 19153 19154 19155 19169 19220 19225 19231 19905 9009300413 9009300413 9009900124 9009900124 9009900710 9009900810 9009902198 9009902198 9009904566 9009904865 9009905803 9009905803 9009980507 9011908144 9165140820 9331914008 9451100400 9451100400
Part # Description Qty Price
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-41140

5M#..MS112

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14018

4M,5M#..MS11#

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

4M,5M#..MS11#

 1
19145 - POINT, DISTRIBUTOR
19145-26060

4M,5M..MS11#

 1
19151 - SHAFT, GOVERNOR
19151-41200

5M#..MS112

 1
19152 - WEIGHT, GOVERNOR
19152-45060

5M#..MS112

 2
19152 - WEIGHT, GOVERNOR
19152-45060

5M#..MS112

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07109

5M#..MS112

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07109

5M#..MS112

 2
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-41130

5M#..MS112

 1
19169 - STOPPER, CAM GREASE
19169-32010

4M,5M#..MS11#

 1
19905 - CLAMP SUB-ASSY, DISTRIBUTOR
19955-45010

5M#..MS112

 1
Common parts
90093-00413
90099-00124
90099-00710
90099-00810
90099-02198
90099-04566
90099-04865
90099-05803
90099-80507
90119-08144
91651-40820
93319-14008
94511-00400
