MS112LG-SWMDEW (1979)

Toyota Crown

Production Sep 1979 - Jul 1982
Engine 5ME
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909-8008)RS110..EUR ; (7909- )LS110,MS11#..MTM

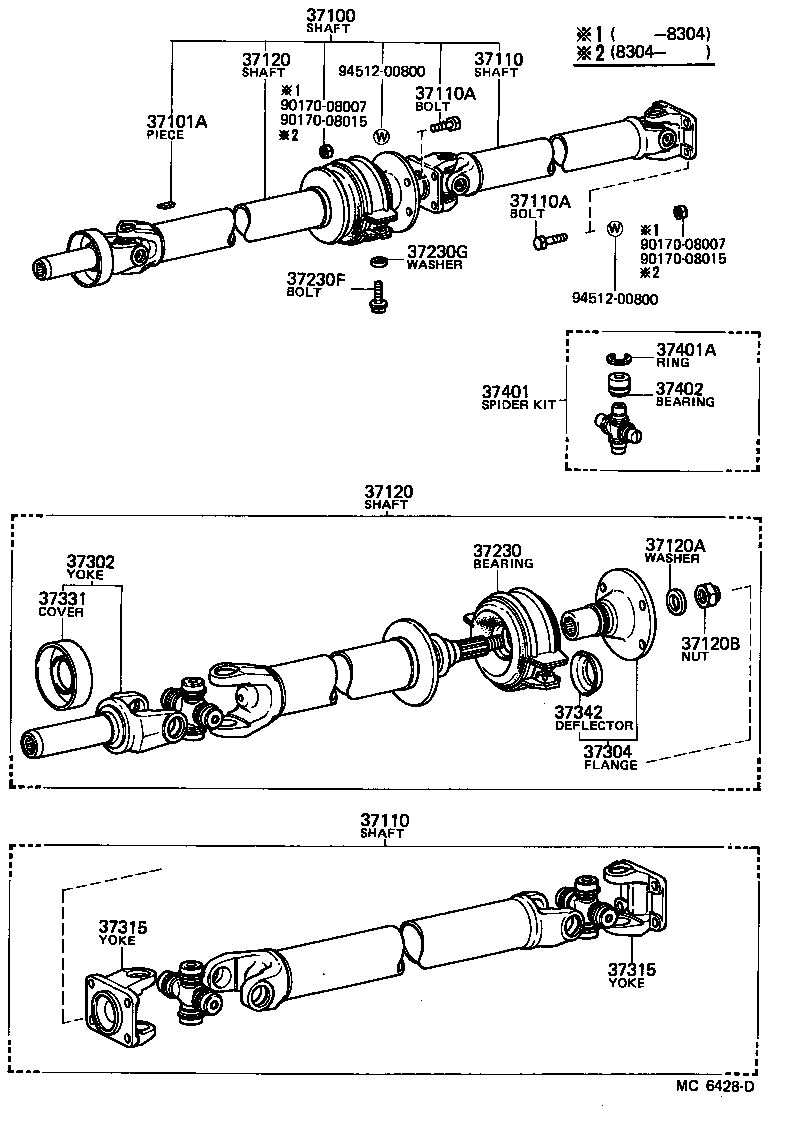

Click highlighted areas on diagram

diagram 37100 37101A 37110 37110 37110A 37110A 37120 37120 37120A 37120B 37230 37230F 37230G 37302 37304 37315 37315 37331 37342 37401 37401A 37402 9017008007 9017008007 9017008015 9017008015 9451200800 9451200800
Part # Description Qty Price
37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING
37100-30060

LS110,MS11#..MTM

 1
37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
90937-01132

LS110,MS11#,RS110

10G,L=20.7,10G

 2
90937-01152

LS110,MS11#,RS110

14G,L=29.0,14G

 2
90937-01149

LS110,MS11#,RS110

6G,L=12.4,6G

 2
90937-01151

LS110,MS11#,RS110

12G,L=24.9,12G

 2
90937-01153

LS110,MS11#,RS110

16G,L=33.2,16G

 2
90937-01154

LS110,MS11#,RS110

18G,L=37.3,18G

 2
90937-01140

LS110,MS11#,RS110

30G,L=62.2,30G

 2
90937-01148

LS110,MS11#,RS110

4G,T=2.0,4G

 2
90937-01156

LS110,MS11#,RS110

24G,L=49.7,24G

 2
90937-01136

LS110,MS11#,RS110

20G,L=41.4,20G

 2
90937-01147

LS110,MS11#,RS110

2G,T=2.0,2G

 2
90937-01158

LS110,MS11#,RS110

28G,L=58.1,28G

 2
90937-01155

LS110,MS11#,RS110

22G,L=45.6,22G

 2
90937-01157

LS110,MS11#,RS110

26G,L=53.9,26G

 2
37110 - SHAFT ASSY, PROPELLER
37110-30042

LS110,MS11#..MTM

 1
37110 - SHAFT ASSY, PROPELLER
37110-30042

LS110,MS11#..MTM

 1
37110A - BOLT (FOR PROPELLER SHAFT)
90101-08039

LS110,MS11#,RS110

 8
37110A - BOLT (FOR PROPELLER SHAFT)
90101-08039

LS110,MS11#,RS110

 8
37120 - SHAFT ASSY, PROPELLER INTERMEDIATE
37120-30070

LS110,MS11#..MTM

 1
37120 - SHAFT ASSY, PROPELLER INTERMEDIATE
37120-30070

LS110,MS11#..MTM

 1
37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)
90201-18182

LS110,MS11#

OD=33.5,T=4.0

 1
37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
90179-18060

LS110,MS11#

 1
37230 - BEARING ASSY, CENTER SUPPORT, NO.1
37230-30030

LS110,MS11#

 1
37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING)
90119-10033

LS110,MS11#

L=27

 2
37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING)
90201-10008

LS110,MS11#

T=4.5,T=4.5

 2
37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37302-30020

LS110,MS11#,RS110..MTM

 1
37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT
37304-30011

LS110,MS11#..MTM

 1
37315 - YOKE, UNIVERSAL JOINT FLANGE
37315-30011

LS110,MS11#..MTM

 2
37315 - YOKE, UNIVERSAL JOINT FLANGE
37315-30011

LS110,MS11#..MTM

 2
37331 - COVER, SLIDING SHAFT DUST
37331-30010

LS110,MS11#,RS110

 1
37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2
37342-30010

LS110,MS11#

 1
37401 - SPIDER KIT, UNIVERSAL JOINT
04371-30020

LS110,MS11#..MTM

 3
37401A - RING, HOLE SNAP (FOR SPIDER BEARING)
90520-26233

LS110,MS11#..MTM

T=1.50,OD=32.4,T=1.50

 12
90520-26235

LS110,MS11#..MTM

T=1.60,T=1.60

 12
90520-26234

LS110,MS11#..MTM

T=1.55,T=1.55

 12
37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
37402-30020

LS110,MS11#..MTM

 12
Common parts
90170-08007
90170-08015
94512-00800
