Toyota Crown MS112 FRONT MOULDING

MS112LG-SWJDS (1980)

Toyota Crown

Production Aug 1980 - Jul 1983

Engine 5M

Transmission 4H MTM

Displacement 2500cc

Power 168 HP (125 kW)

(7909-8108)

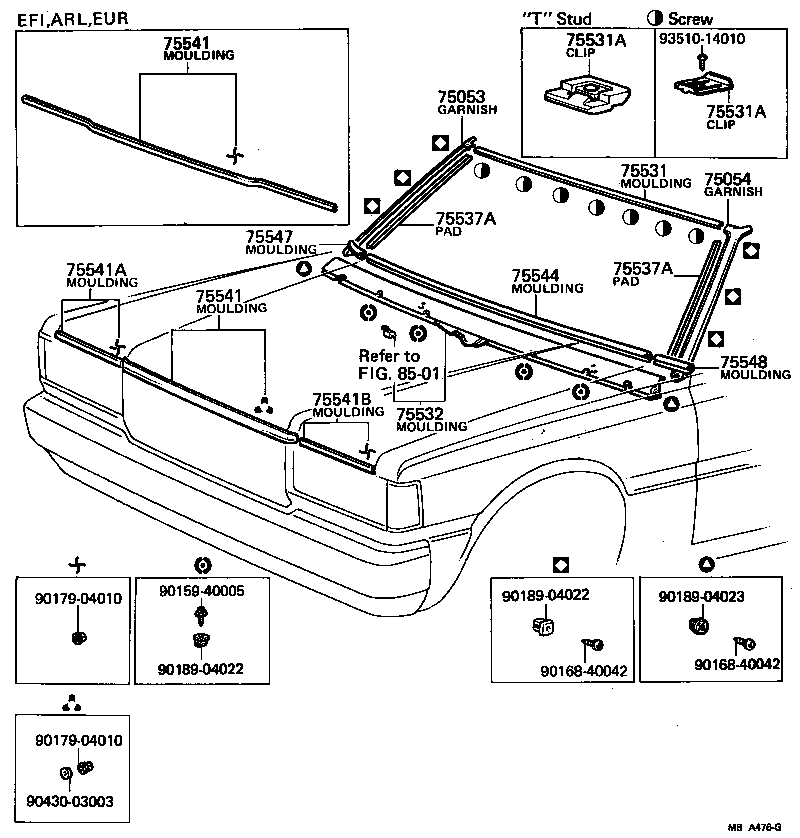

Click highlighted areas on diagram

Part #	Description	Period	Qty
75053 - GARNISH SUB-ASSY, FRONT PILLAR, OUTER RH
75533-30160	LS110,MS11#,RS110	09/1979 - 07/1983	1
75054 - GARNISH SUB-ASSY, FRONT PILLAR, OUTER LH
75534-30140	LS110,MS11#,RS110	09/1979 - 07/1983	1
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-30140	LS110,MS11#,RS110	09/1979 - 07/1983	1
75531A - CLIP, WINDSHIELD MOULDING SET, NO.1
75545-30021	LS110,MS11#,RS110 T STUD	09/1979 - 06/1981	6
75545-12031	LS110,MS112,RS110 T STUD	06/1981 - 07/1983	6
75545-30040	LS110,MS11#,RS110 SCREW	09/1979 - 07/1983	6
75531A - CLIP, WINDSHIELD MOULDING SET, NO.1
75545-30021	LS110,MS11#,RS110 T STUD	09/1979 - 06/1981	6
75545-12031	LS110,MS112,RS110 T STUD	06/1981 - 07/1983	6
75545-30040	LS110,MS11#,RS110 SCREW	09/1979 - 07/1983	6
75532 - MOULDING, WINDSHIELD, LOWER
75535-30170	LS110,MS11#,RS110..LHD	09/1979 - 07/1983	1
75537A - PAD, WINDSHIELD MOULDING
75537-30050	LS110,MS11#,RS110	09/1979 - 07/1983	2
75537A - PAD, WINDSHIELD MOULDING
75537-30050	LS110,MS11#,RS110	09/1979 - 07/1983	2
75541 - MOULDING, HOOD, FRONT
75770-39065	LS110,MS112,RS110..(BTP,DLX)..GEN	08/1981 - 07/1983	1
75771-39025	LS110,MS11#,RS110..GEN	09/1979 - 08/1981	1
75541 - MOULDING, HOOD, FRONT
75770-39065	LS110,MS112,RS110..(BTP,DLX)..GEN	08/1981 - 07/1983	1
75771-39025	LS110,MS11#,RS110..GEN	09/1979 - 08/1981	1
75541A - MOULDING, HOOD, FRONT RH
75780-39025	LS110,MS112,RS110..GEN	08/1981 - 07/1983	1
75780-39015	LS110,MS11#,RS110..GEN	09/1979 - 08/1981	1
75541B - MOULDING, HOOD, FRONT LH
75790-39015	LS110,MS11#,RS110..GEN	09/1979 - 08/1981	1
75790-39025	LS110,MS112,RS110..GEN	08/1981 - 07/1983	1
75544 - MOULDING, HOOD, REAR
75772-30030	LS110,MS11#,RS110	09/1979 - 08/1981	1
75772-30050	LS110,MS112,RS110	08/1981 - 07/1983	1
75547 - MOULDING, FRONT FENDER, RH
75615-30030	LS110,MS11#,RS110	09/1979 - 08/1981	1
75615-30050	LS110,MS112,RS110	08/1981 - 07/1983	1
75548 - MOULDING, FRONT FENDER, LH
75616-30050	LS110,MS112,RS110	08/1981 - 07/1983	1
75616-30030	LS110,MS11#,RS110	09/1979 - 08/1981	1
Common parts
90159-40005
90168-40042
90179-04010
90189-04022
90189-04023
90430-03003
93510-14010
Linked diagrams
8501

(8108- )

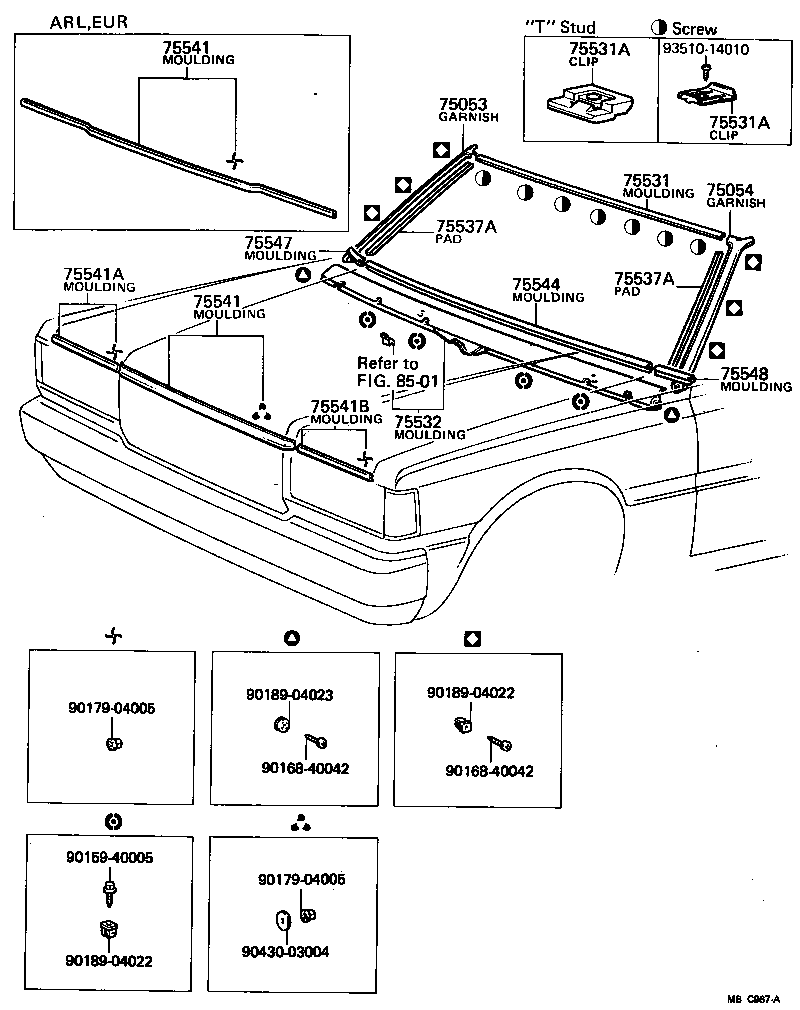

Click highlighted areas on diagram

Part #	Description	Period	Qty
75053 - GARNISH SUB-ASSY, FRONT PILLAR, OUTER RH
75533-30160	LS110,MS11#,RS110	09/1979 - 07/1983	1
75054 - GARNISH SUB-ASSY, FRONT PILLAR, OUTER LH
75534-30140	LS110,MS11#,RS110	09/1979 - 07/1983	1
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-30140	LS110,MS11#,RS110	09/1979 - 07/1983	1
75531A - CLIP, WINDSHIELD MOULDING SET, NO.1
75545-30021	LS110,MS11#,RS110 T STUD	09/1979 - 06/1981	6
75545-12031	LS110,MS112,RS110 T STUD	06/1981 - 07/1983	6
75545-30040	LS110,MS11#,RS110 SCREW	09/1979 - 07/1983	6
75531A - CLIP, WINDSHIELD MOULDING SET, NO.1
75545-30021	LS110,MS11#,RS110 T STUD	09/1979 - 06/1981	6
75545-12031	LS110,MS112,RS110 T STUD	06/1981 - 07/1983	6
75545-30040	LS110,MS11#,RS110 SCREW	09/1979 - 07/1983	6
75532 - MOULDING, WINDSHIELD, LOWER
75535-30170	LS110,MS11#,RS110..LHD	09/1979 - 07/1983	1
75537A - PAD, WINDSHIELD MOULDING
75537-30050	LS110,MS11#,RS110	09/1979 - 07/1983	2
75537A - PAD, WINDSHIELD MOULDING
75537-30050	LS110,MS11#,RS110	09/1979 - 07/1983	2
75541 - MOULDING, HOOD, FRONT
75770-39065	LS110,MS112,RS110..(BTP,DLX)..GEN	08/1981 - 07/1983	1
75771-39025	LS110,MS11#,RS110..GEN	09/1979 - 08/1981	1
75541 - MOULDING, HOOD, FRONT
75770-39065	LS110,MS112,RS110..(BTP,DLX)..GEN	08/1981 - 07/1983	1
75771-39025	LS110,MS11#,RS110..GEN	09/1979 - 08/1981	1
75541A - MOULDING, HOOD, FRONT RH
75780-39025	LS110,MS112,RS110..GEN	08/1981 - 07/1983	1
75780-39015	LS110,MS11#,RS110..GEN	09/1979 - 08/1981	1
75541B - MOULDING, HOOD, FRONT LH
75790-39015	LS110,MS11#,RS110..GEN	09/1979 - 08/1981	1
75790-39025	LS110,MS112,RS110..GEN	08/1981 - 07/1983	1
75544 - MOULDING, HOOD, REAR
75772-30030	LS110,MS11#,RS110	09/1979 - 08/1981	1
75772-30050	LS110,MS112,RS110	08/1981 - 07/1983	1
75547 - MOULDING, FRONT FENDER, RH
75615-30030	LS110,MS11#,RS110	09/1979 - 08/1981	1
75615-30050	LS110,MS112,RS110	08/1981 - 07/1983	1
75548 - MOULDING, FRONT FENDER, LH
75616-30050	LS110,MS112,RS110	08/1981 - 07/1983	1
75616-30030	LS110,MS11#,RS110	09/1979 - 08/1981	1
Common parts
90159-40005
90168-40042
90179-04005
90189-04022
90189-04023
90430-03004
93510-14010
Linked diagrams
8501

MS112LG-SWJDS (1980)

(7909-8108)

(8108- )
